Honeywell HDP302DQI Quick Start Manual

|
Performance Series
Honeywell
Performance Series HQA HDP302DQI
1080p IR PTZ Dome Camera

Quick Start Guide

Cautions and Warnings

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your warranty.
WARNING To ensure compliance with electrical safety standards, CSA Certified/UL
Listed Class 2 power adaptors are required.
WARNING IR emitted from this product. Do not view directly with optical instruments
(magnifiers). Do not stare directly into the lamp at a distance of less than 3.3 ft (1 m).
FCC Statement of Compliance
Information to the User: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
Note: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Manufacturer's Declaration of Conformance
The manufacturer declares that the equipment supplied with this guide is compliant
with the European Parliament and Council Directive on the Restrictions of the use of
certain Hazardous Substances in electrical and electronic equipment (2011/65/EU),
General Product Safety Directive (2001/95/EC) and the essential requirements of the
EMC Directive (2014/30/EU), conforming to the requirements of standards EN 55022
for emissions, EN 50130-4 for immunity, and EN 60950-1 for electrical equipment
safety.
CAUTION This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
WARNING To comply with EN50130-4 requirements, a UPS should be employed when
powering the camera from 24 VAC.
Waste Electrical and Electronic Equipment (WEEE)
Correct Disposal of this Product (applicable in the European Union and
other European countries with separate collection systems).
This product should be disposed of, at the end of its useful life, as per
applicable local laws, regulations, and procedures.

Safety Instructions

Before installing or operating the unit, read and follow all instructions. After
installation, retain the safety and operating instructions for future reference.
HEED WARNINGS - Adhere to all warnings on the unit and in the operating
1.
instructions.
2. INSTALLATION
•
Install in accordance with the manufacturer's instructions.
•
Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
• Do not install indoor rated models in outdoor locations.
• Any wall or ceiling mounting of the product should follow the manufacturer's
instructions and use a mounting kit approved or recommended by the
manufacturer.
3. POWER SOURCES - This product should be operated only from the type of power
source indicated on the marking label.
4. HEAT - Situate away from items that produce heat or are heat sources such as
radiators, heat registers, stoves, or other products (including amplifiers).
5. MOUNTING SYSTEM - Use only with a mounting system recommended by the
manufacturer, or sold with the product.
6. ATTACHMENTS - Do not use attachments not recommended by the product
manufacturer as they may result in the risk of fire, electric shock, or injury to
persons.
7. ACCESSORIES - Only use accessories specified by the manufacturer.
CLEANING - Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
8.
cleaning.
9. SERVICING - Do not attempt to service this unit yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
10. REPLACEMENT PARTS - When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufacturer or
have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards. Using replacement parts or
accessories other than the original manufacturers may invalidate the warranty.
CAUTION Risk of explosion if Battery is replaced by an incorrect type. Dispose of
used batteries in accordance with local laws.

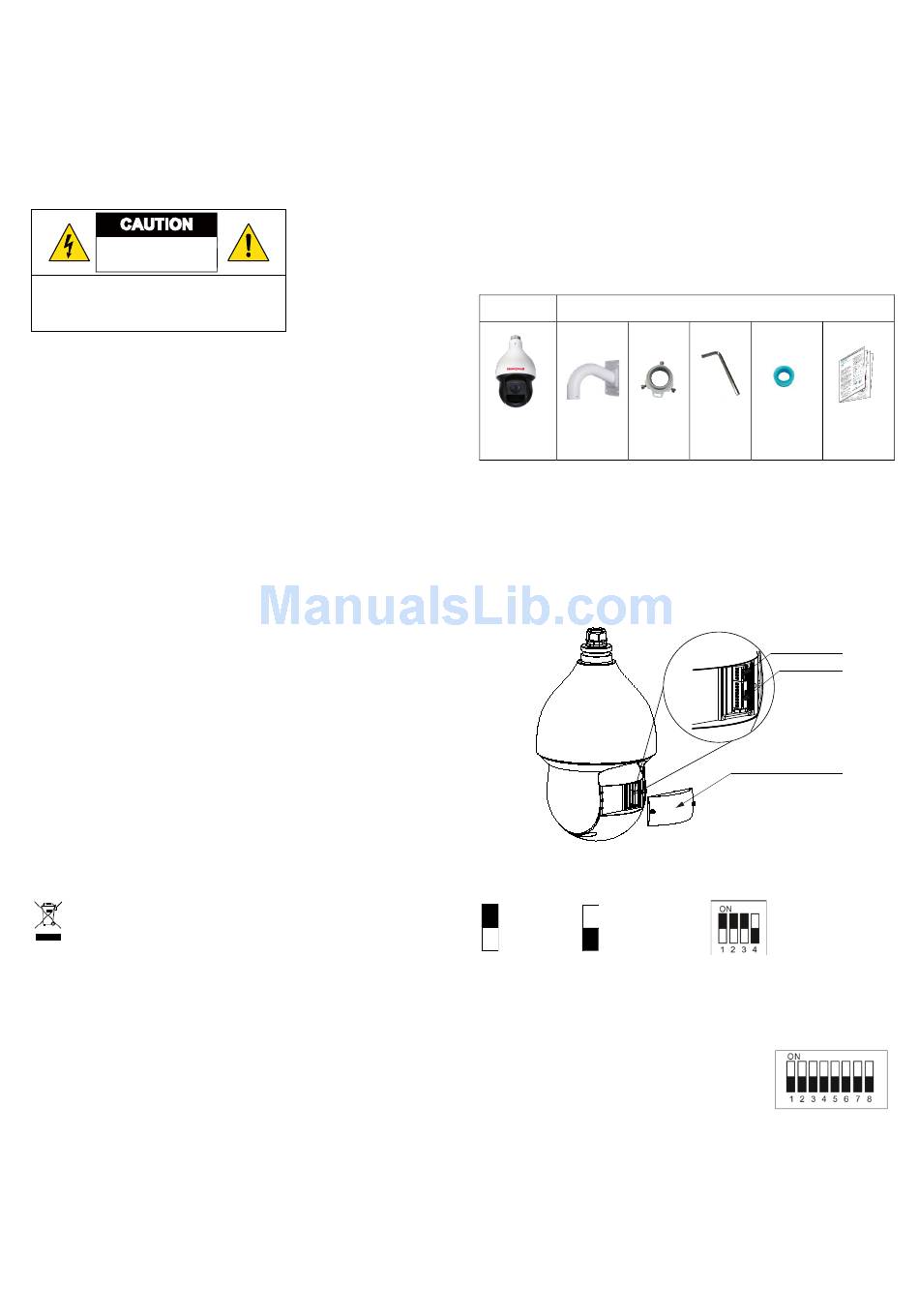

Before You Begin

Open the box and check:
Module
HDP302DQI Wall Mount
Note: Rotate and remove the protective cover bag and tape from the camera body before
the installation.

Dip Switches

Take a minute to familiarize yourself with the camera's switches, as shown in the figures
below. When setting the dip switches for either the address setting, baud rate setting, or
parity check, use the following ON/OFF positions as a reference:
ON
ON
Switch is
Switch is
Set to ON
Set to OFF
Please note the intelligent speed dome can self-adapt PELCO-D, PELCO-P and
industrial standard protocol. The control protocol doesn't have to be set via the dip
switches.
Address Setting
Assign an Address number to a Performance Series PTZ
dome camera if there is more than one camera in the same
network. The camera's Address can be set by using the 8-bit
Address dip switch, which is located on the camera body's
back as shown in the figure above. If the camera's Address
number is 6, for example, the Address switches SW2 and
SW3 should be set to ON, and the rest should be set to OFF (see the Address numbering
table below). Address numbers 0–8, 254 and 255 are listed in the table below.
Note: Cameras in the same network should not be given with the same camera Address.
Otherwise, a communication conflict error may occur.
1
Accessories
Pendent Wrench Waterproof
Adaptor Tape
Baud rate/Parity
Address
Camera back cover
Means switches 1,
2, and 3 are set to
ON, and switch 4 is
set to OFF.
Quick Start
Guide
