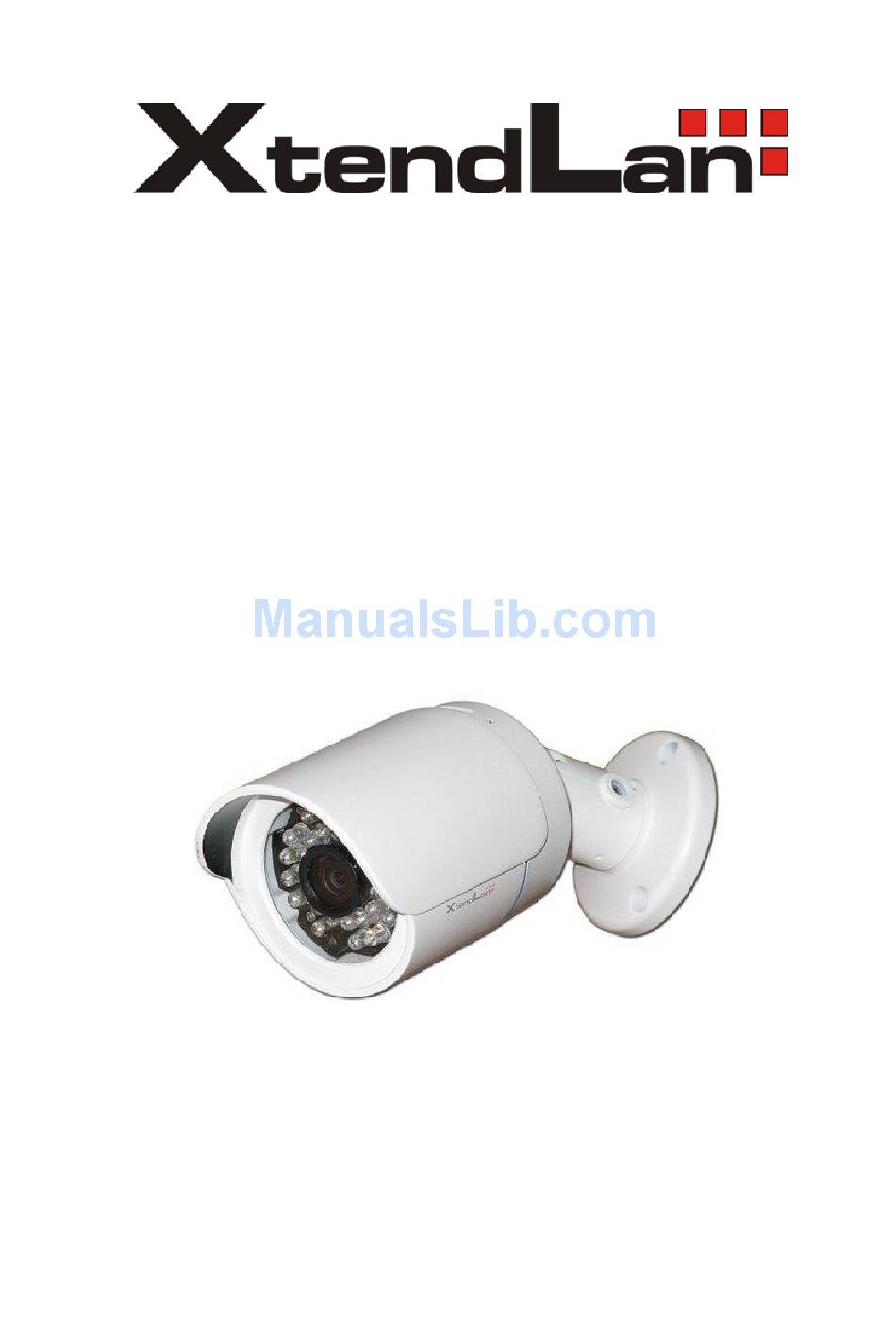

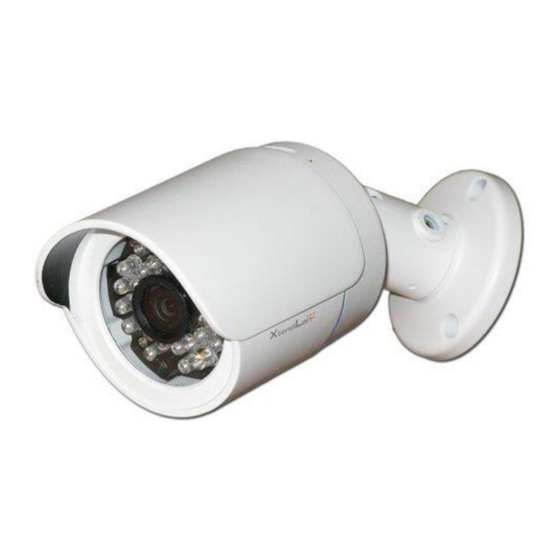

- Page 1 OUTIRDVS620FR-42 Face Recognition Multifunction Megapixel HD Smart Camera Operation Manual...
- Page 2 1. Main features: （1）1/3 inch SONY Super HAD CCDⅡ （2）Sony New HD CCD （3）Face Recognition: Face Detection / multi-target tracking motion detection / tracking Zoom / Intelligent Face tracking / warning zone of detection / capture Archive （4）Automatic intelligent analysis multi-target moves and face tracking. Electronic fence one/dual-way throughout to alarm （5）Supports digital through the fog / HLC / BLC / Smart IR function （6）Supports 2 languages...
- Page 3 2.3 The operation and settings of RS485 and PTZ keyboard: operation command used to record RS485 keyboard can record various different brands of commands. Usage: select the keys [KEY FUNC] you want to record by the buttons on the machine, such as MENU, UP ..., then press [KEY SET ] to start recording, the menu will be displayed on waiting, then press the RS485 keyboard keys, and then press the enter button on the machine, then displays OK, indicating the end of the record of this button.
- Page 4 object motion, high is high output, low output is low .Set high or low depending on an external alarm system of itself trigger voltage is high or low. 0-3600 [10] Alarm seconds Set the alarm time in unit of seconds while detecting object motion ON,OFF(OFF) Manually warning area...
- Page 5 Set cordon Set warning areas, total of 2 set point, Press the Enter key to switch to the set Press the Right key point, then press Up / Down / Left / then click setting Right to pan to warning area, for several consecutive press the Enter key to exit the setting screen.
- Page 6 press Up / Down / Left / Right to randomly move the cordon location, for several consecutive press the Enter key to exit the setting screen. Two-way, right to left, Alarm direction left to right, touch [OFF] Color 0-15 [3] Set the color of cordon 1.4 Motion detection: Generally known as Movement detection, commonly used in unmanned surveillance video, that is, when an object movement is...
-
Page 7: Backlight Compensation
0-3 [3] Set the transparency of privacy Transparency shield 1,2,3,4,5,6,7,8[1] Shielded area Select the shield ID, a total of 8 selection areas can be set Set the shield area, total of 4 set point, Press the Enter key to switch Press the Right key then click to the set point, then press Up / setting... - Page 8 consecutive press the Enter key to exit the setting screen. low, medium, high(high) Dark compensation The compensation intensity of dark intensity 1~6 [1] (1 is black(0,0,0) Set shield color of overexposed area, the other is 40, 80, 120, 160, Shielded gray larger the number is, the whiter the color 200 ) Through the fog...
-
Page 9: Image Adjustment
Color rolling suppression OFF,ON(OFF) Set the rolling suppression 4. Image Adjustment 4.1 Day&Night mode Color-color mode compulsory, non-switching Black & white- black&white compulsory, non-switching Auto-progressive: the progressive black&white closed to Color, black&white, auto- human’s eyes progressive,auto- Mode standard, exteral input,( exteral input) Aut-standard: switching to black&... - Page 10 4.2 Digital slow shutter 1/100000,1/10000,1/5000,1/2000, 1/500, 1/250, 1/100,1/50, automatic, Digital slow shutter Set the shutter speed. 2x,3x,4x,5x,,8x, 16x,32x,64x,128x,256x,512X[16X] 4.3 HDNR HDNR 0 ~ 32 [32] Set the HDNR（2D/3D） 4.4 Sharpness Sharpness Set the screen sharpness, the 0 ~ 7 [1] larger number is, the stronger it is 4.5 Dynamin compensation of dead pixels...
- Page 11 Minute Add via upwards UP key, and Set the minute of image minus via downwards DOWN which is looking for Second Add via upwards UP key, and Set the second of image minus via downwards DOWN which is looking for 5.2 Lens Mode DC current-indoor, DC current-...
- Page 12 5.6 Other Off ,display ID/Icon, display ID Set if need to display Pelco Display ID/Icon ID and Icon Display Icon [display Icon] Set date and time Year-(add via UP key,Minus via Set system time-year Down key) Month-(add via UP key,Minus via Set system time-month Down key) Day-(add via UP key,Minus via...
- Page 13 8. Related Paramters Item Parameter Image format JPEG Image resolution 1280*720 Deck type TF card Storage support Support up to 32G( an image nearly occupy memory 100KB; Calculated to 1GB card, phote storage space: 1024× 1024KB=1048576KB÷100KB=nearly 10485PCS) Operate temperature -20～+80℃ Specification parameter would be upgraded and change, please refer to the actual object.
- Page 14 Note: The date and time of this product doesn’t have power and memory function, after power off and restart, the date and time will automatically restore to the origional settings, and needs you to reset it in the item of System Setting, otherwise, the following capture archived image will be recorded in TF card in origional date and time, the specific setting method as follow: press MENU key: pop-up menu>system setting>set date and time>...
