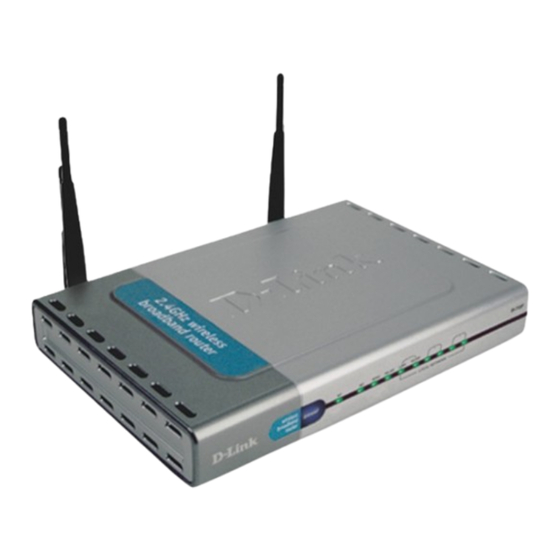

D-Link DI-713P Quick Install Manual

D-Link DI-713P Quick Install Manual

Hide thumbs Also See for DI-713P:
1
2
3
4
5

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Installation Manual
QUICK INSTALL GUIDE
DI I I I - - - - 713P
713P
713P
713P

PRINT SERVER

1. 1. 1. 1.
Using the Print Server Software to Install the port
Step 1:
Insert the installation CD-ROM into the CD-ROM drive. The following window will be
shown automatically. If it is not, please run "install.exe" on the CD-ROM.
Step 2:
Click on the INSTALL button. Wait until the following Welcome dialog to appear, and click
on the Next button.

Advertisement

loading

Related Manuals for D-Link DI-713P

Summary of Contents for D-Link DI-713P

  • Page 1: Print Server

    QUICK INSTALL GUIDE DI I I I - - - - 713P 713P 713P 713P PRINT SERVER 1. 1. 1. 1. Using the Print Server Software to Install the port Step 1: Insert the installation CD-ROM into the CD-ROM drive. The following window will be shown automatically.
  • Page 2 Step 3: Select the destination folder and click on the Next button. Then, the setup program will begin to install the programs into the destination folder. Step 4: When the following window is displayed, click on the Finish button. Step 5: Select the item to restart the computer and then click the OK button to reboot your computer.
  • Page 3 After you finished the software installation procedure described in Chapter 3, your computer has possessed the network printing facility provided by the DI-713P. For convenience, we call the printer connected to the printer port of the DI-713P as server printer. On a Windows 95/98 platform, open the Printers window in the My Computer menu: Now, yon can configure the print server of the DI-713P: 1.

  • Page 4: Configuring On Windows Nt Platforms

    2. Click the Details item: Choose the “D-Link LPT port (Print Server)” from the list attached at the Print To item. Be sure that the Printer Driver item is configured to the correct driver of your server printer. Click on the button of Port Settings: Type in the IP address of the DI-713P and then click the OK button.

  • Page 5: Configuring On Windows 2000 Platforms

    Compared to the procedure in last section, the selection of Details is equivalent to the selection of Ports, and Port Settings is equivalent to Configure Port. 4. 4. 4. 4. Configuring on Windows 2000 Platforms The configuration procedure for a Windows 2000 platform is similar to that of Windows 95/98 except the screen of printer Properties: Compared to the procedure in last section, the selection of Details is equivalent to the selection of Ports, and Port Settings is equivalent to Configure Port...
