This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.

Before You Begin

1. 1. 1. 1. 1. Thank you for purchasing this router to share your high-speed Internet connection
with other computers. For you to share high-speed Internet access, you must
have either an Ethernet-based Cable or DSL modem with an established Internet
account from an Internet Service Provider (ISP).
2 . 2 . 2 . 2 . 2 . It's best to use the same computer that is connected to your modem for configuring
the DI-824VUP+ Wireless VPN Router. The DI-824VUP+ acts as a DHCP server
and will assign all the necessary IP address information on your network. See
Appendix at the end of this Quick Installation Guide or the Manual on the CD-
ROM for setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and

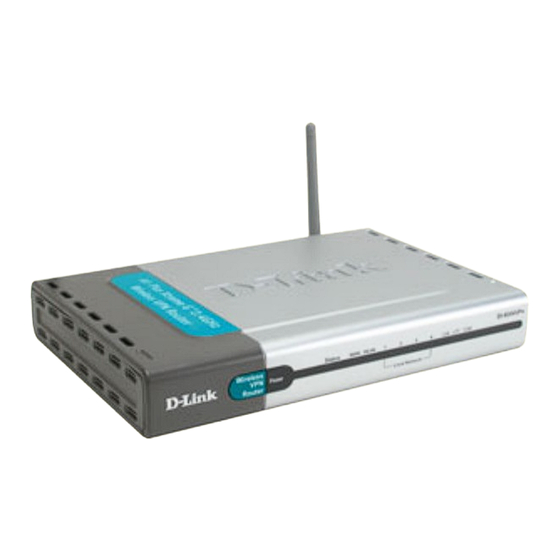

DI-824VUP+ 2.4GHz Wireless VPN Router
and Print Server
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight-Through)
Cable
5V DC Power Adapter
specifications subject to change without notice. DI-824VUP+. 11072003
Router and Print Server
1
DI-824VUP+
2.4GHz Wireless VPN
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.

Advertisement

Table of Contents
loading

Related Manuals for D-Link DI-824VUP+ 2.4GHz Wireless VPN Router and Print Server

Summary of Contents for D-Link DI-824VUP+ 2.4GHz Wireless VPN Router and Print Server

  • Page 1: Before You Begin

    If any of the above items are missing, please contact your reseller. ©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DI-824VUP+. 11072003...
  • Page 2 Connecting The DI-824VUP+ 2.4GHz Wire- less VPN Router To Your Network First, connect the power adapter to the receptor at the back panel of the DI-824VUP+ and then plug the other end of the power adapter to a wall outlet or power strip.
  • Page 3 Continued... (Fig. C) Insert an Ethernet cable to LAN Port 1 on the back panel of the DI-824VUP+ and an available Ethernet port on the network adapter in the computer you are using to configure the DI-824VUP+. The LED light for LAN Port 1 illuminates to indicate proper connection.

  • Page 4: Restart Your Computer

    Continued... Computers equipped with 802.11g wireless adapters will be able to connect to the DI-824VUP+. The DWL-G650+ Wireless Cardbus Adapter and the DWL-G520+ Wireless PCI Adapter will be able to connect out of the box with the router using their default wireless settings. Connect your Parrallel or USB printer here.
  • Page 5 Connecting Additional Computers To The DI-824VUP+ 2.4GHz Wireless VPN Router Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers to the remaining Ethernet LAN ports on the back panel of the DI-824VUP+. Status LED – a steady WAN LED – a blinking light COM LED –...

  • Page 6: Using The Setup Wizard

    When you have completed the steps in this Quick Installation Guide, your connected network should look similar to this: Using The Setup Wizard Open your Web browser and type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key. The logon pop-up screen will appear.
  • Page 7 The Setup Wizard (continued) Once you have logged in, the Home screen will appear. Click Run Wizard You will see the following screens. Click Next Set up your new password. You have the option to establish a password. Click Next...
  • Page 8 The Setup Wizard (continued) Choose your time zone from the drop down list. Click Next A this point, the setup wizard will try to auto-detect your Internet connection type. If you have a Dynamic or PPPoE connection, you will be brought to the corresponding page.
  • Page 9 The Setup Wizard (continued) If you selected Dynamic IP Address, this screen will appear: (Used mainly for Cable Internet service.) Click the “ Clone MAC Address” button to automatically copy the MAC address of the network adapter in your computer. You can also manually type in the MAC address.

  • Page 10: Wireless Setup

    The Setup Wizard (continued) If your ISP uses PPPoE (Point-to- Point Protocol over Ethernet), and this option is selected, then this screen will appear: (Used mainly for DSL Internet service.) Please be sure to remove any existing PPPoE client software installed on your computers.

  • Page 11: Test Internet Connection

    Your Setup is Complete! Click Restart Test Internet Connection You will be returned to the Home tab. Click to Exit Then relaunch your Web browser (i.e., Internet Explorer or Netscape Navigator), to link to your favorite Web site to test your Internet connection.

  • Page 12: Installing The Print Server Software

    APPENDIX Installing the Print Server Software Insert the installation CD-ROM into the CD- ROM drive. The following window will be shown automatically. If it is not, please run “autorun.exe” on the CD-ROM. Click Install Print Sever Software Select your Windows operating system Wait until the following Welcome dialog appears.

  • Page 13: Configuring On Windows 98Se/Me Platforms

    Installing the Print Server Software (continued) Then, the setup program will begin to install the programs into the destination folder. When the following window is displayed. Click Finish Click After rebooting your computer, the software installation procedure is finished. Configuring on Windows 98se/Me Platforms After you finish the software installation procedure, your computer will be capable of network printing provided by the DI-824VUP+.
  • Page 14 Configuring on Windows 98se/Me Platforms (continued) Click on the Details tab Choose the “PRTmate: (All-in-1)” from the list attached at the Print To item. Be sure that the Printer Driver item is configured to the correct driver of your printer server. Click Port Settings Choose your printer interface.
  • Page 15 Microsoft Windows XP: Go to Start > right click on My Network Places > select Properties > Right click on the Network Connection associated with the Ethernet adapter and select Properties (i.e., D-Link DFE-530TX+). Click Internet Protocol (TCP/IP) Click Properties Select...
  • Page 16 Apple Macintosh OS X: Go to the Apple Menu Click on System Preferences and Select Network Click on Network Select Built-in Ethernet in the show pull down menu Select Using DHCP the Configure pull down menu Click on Apply Now The IP address information, the Subnet Mask, the Router’s IP address and the Ethernet...

  • Page 18: Technical Support

    Technical Support Technical Support You can find software updates and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States and within Canada for the duration of the warranty period on this product.
