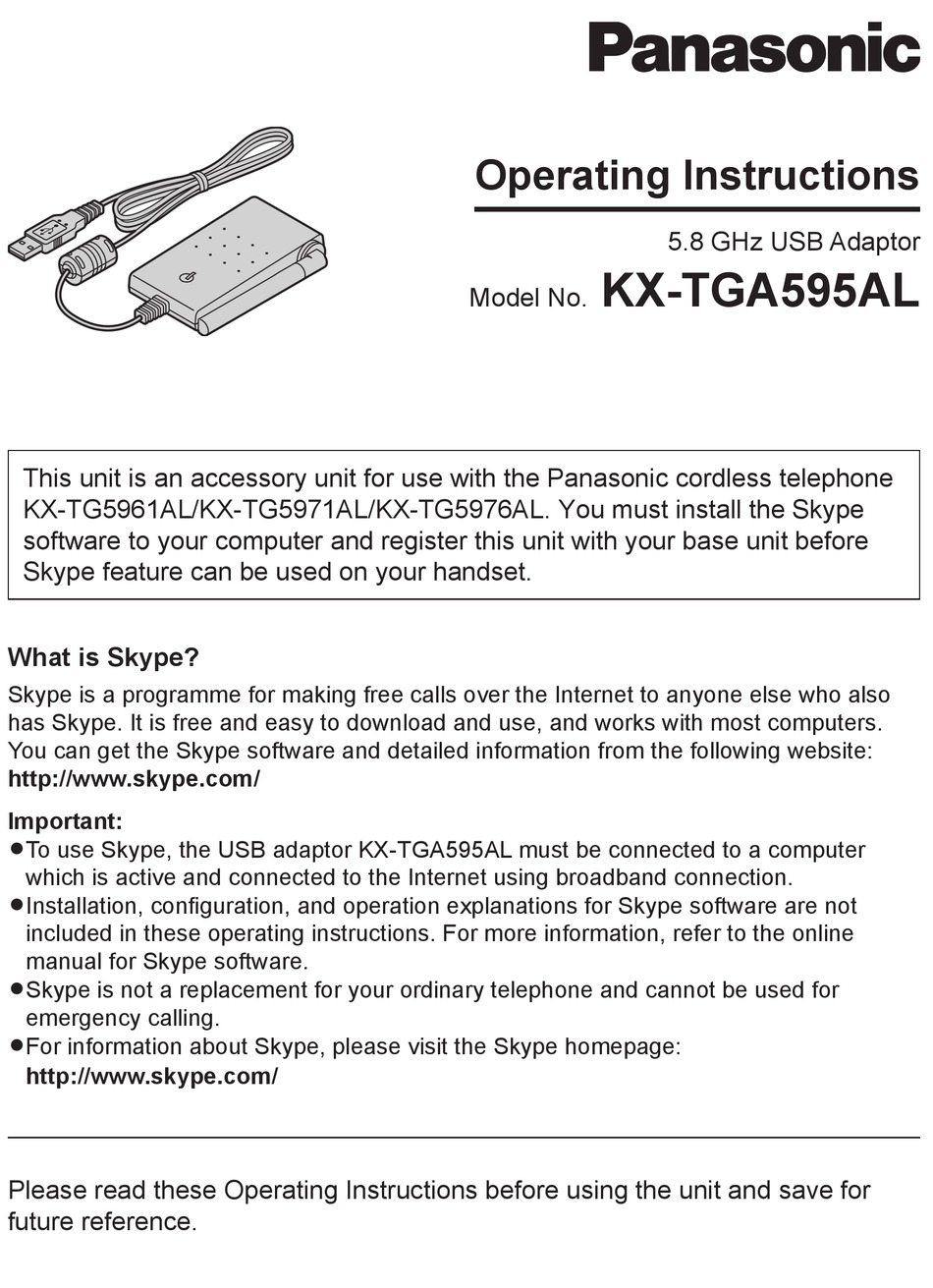

This unit is an accessory unit for use with the Panasonic cordless telephone
KX-TG5961AL/KX-TG5971AL/KX-TG5976AL. You must install the Skype
software to your computer and register this unit with your base unit before
Skype feature can be used on your handset.
What is Skype?
Skype is a programme for making free calls over the Internet to anyone else who also
has Skype. It is free and easy to download and use, and works with most computers.
You can get the Skype software and detailed information from the following website:
http://www.skype.com/
Important:
L� T o use Skype, the USB adaptor KX-TGA595AL must be connected to a computer
which is active and connected to the Internet using broadband connection.
L� I nstallation, configuration, and operation explanations for Skype software are not
included in these operating instructions. For more information, refer to the online
manual for Skype software.
L� S kype is not a replacement for your ordinary telephone and cannot be used for
emergency calling.
L� F or information about Skype, please visit the Skype homepage:
http://www.skype.com/
Please read these Operating Instructions before using the unit and save for
future reference.
Operating Instructions
KX-TGA595AL
Model No.
5.8 GHz USB Adaptor
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TGA595AL
Summary of Contents for Panasonic KX-TGA595AL
-
Page 1: Operating Instructions
Important: L� T o use Skype, the USB adaptor KX-TGA595AL must be connected to a computer which is active and connected to the Internet using broadband connection. L� I nstallation, configuration, and operation explanations for Skype software are not included in these operating instructions. -
Page 2: Table Of Contents
Table of Contents Introduction Feature highlights ...3 Accessory information ...3 For best performance ...4 Preparation Controls ...5 Symbols and screen shots used in these operating instructions ...5 System requirements for your computer ...6 Connecting to a computer ...6 Installing and setting up the USB Adaptor Utility ...8 Confirming the USB adaptor works properly ...9 Soft key and display menus ...10 Deregistering the USB adaptor ...10... -
Page 3: Introduction
Introduction Thank you for purchasing the Panasonic 5.8 GHz USB Adaptor. We recommend keeping a record of the following information for future reference. Serial No. Date of purchase (found on the bottom of the unit) Name and address of dealer Attach your purchase receipt here. -
Page 4: For Best Performance
For best performance Location/avoiding noise This unit communicates using radio waves. For maximum distance and noise-free operation, we recommend the following: L� P lacing the product away from electrical appliances. L� R aising the antenna vertically. Environment L� K eep the product away from electrical noise generating devices, such as fluorescent lamps and motors. -
Page 5: Preparation
Controls Status indicator The status indicator indicates the USB adaptor status. Indicator Status Flashing USB adaptor is receiving power from the computer but link to the base unit, Skype software or USB Adaptor Utility has not been established. Light on USB adaptor is receiving power from the computer and has link with your base unit, ready to use. -
Page 6: System Requirements For Your Computer
800 x 600 or higher resolution display Others USB interface (1.1) CD-ROM drive Video adaptor with High Colour (16 bit) or higher Panasonic cordless telephone KX-TG5961AL/KX-TG5971AL/ KX-TG5976AL Skype software (Skype 2.0 or later) Internet connection: Broadband, e.g. DSL Connecting to a computer Connect the USB adaptor to the USB port of your computer. -
Page 7: Wall Mounting
Wall mounting The USB adaptor can be mounted on the flat surface such as a wall by using the wall mounting adaptor. Note: L� F or USB adaptor location information, see page 4. Peel off the protection sheet and attach the wall mounting adaptor to the flat surface firmly. -
Page 8: Installing And Setting Up The Usb Adaptor Utility
) is displayed in the system tray (page 9). – The base unit and handset are powered up nearby and are not being used. – USB adaptor KX-TGA595AL is being connected to the USB port on your computer and the status indicator is flashing. -
Page 9: Confirming The Usb Adaptor Works Properly
[Exit]. L� T o restart the USB Adaptor Utility, click [Start], then select [All Programs] – [Panasonic] – [USB Adaptor Utility (KX-TGA595)] – [USB Adaptor Utility]. (For Windows 2000, click [Programs] instead of [All Programs].) -
Page 10: Soft Key And Display Menus
Uninstalling the USB Adaptor Utility ■ For Windows XP users: Click [Start], then click [Control Panel]. Click [Add or Remove Programs]. Select [Panasonic USB Adaptor Utility] from the list. Click [Remove], then follow the Phonebook on-screen instructions. ■ For Windows 2000 users: Click [Start], point to [Settings], then click [Control Panel]. -
Page 11: Using The Usb Adaptor
Entering the IP phone mode Press {IP PHONE} (right soft key) on the handset to enter the IP phone mode. L� appears on the handset display. IP PHONE The IP phone mode consists of the following menus: Missed call *1 Contacts Call List Dial... -
Page 12: Making Internet Calls
Making internet calls Calling from the Contact list You can make an internet call by selecting a Skype name from the Skype Contact list. You must add Skype names in the Contact list beforehand by using your computer. {IP PHONE} (right soft key) i “Contacts”... -
Page 13: Answering Internet Calls
Making regular phone calls (SkypeOut) SkypeOut is a way to make calls from Skype to persons who use telephone lines or mobile phones. Making SkypeOut calls is not free of charge. Before using the SkypeOut, purchase the Skype credit on your Skype account page. For more information about SkypeOut, see the Skype website (http://www.skype.com/). -
Page 14: Useful Features During An Internet Call
Temporary ringer off While the handset is ringing for an internet call, you can turn the ringer off temporarily by pressing {~} or {OFF}. Missed calls If an internet call is not answered, “IP missed call” is shown on the handset display. -
Page 15: Using The History (Call List)
Using the History (Call list) Call information of incoming and outgoing internet calls is logged in the Skype History by the most recent internet call to the oldest. If you receive the Skype Voicemail, it will be recorded in the History along with call information. -
Page 16: Useful Information
2) Press and hold {8} until a beep sounds. 3) Follow the on-screen instructions. L� S tart the Utility manually. Click [Start], then select [All Programs] – [Panasonic] – [USB Adaptor Utility (KX-TGA595)] – [USB Adaptor Utility]. (For Windows 2000, click [Programs] instead of [All Programs].) - Page 17 L� F or other troubleshooting, refer to the base unit’s operating instructions or visit: http://panasonic.co.jp/pcc/cs/en/telecom/tel/download.htm. Cause & solution L� Y ou can change the application’s display language to English, French, or Spanish. Select the desired language from the pull-down menu on the upper right of the USB adapter setup window.
-
Page 18: Important Information
− when VoIP (Voice over Internet Protocol) communication software was used, − when software not provided by Panasonic was used. Important L� P anasonic cannot accept any liability or provide warranty for the Skype software. Warning L�... -
Page 19: Specifications
Specifications Operating environment Frequency Dimensions Mass (Weight) Power consumption Power output Power supply Interface Note: L� D esign and specifications are subject to change without notice. L� T he illustrations in these instructions may vary slightly from the actual product. L�... - Page 20 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
