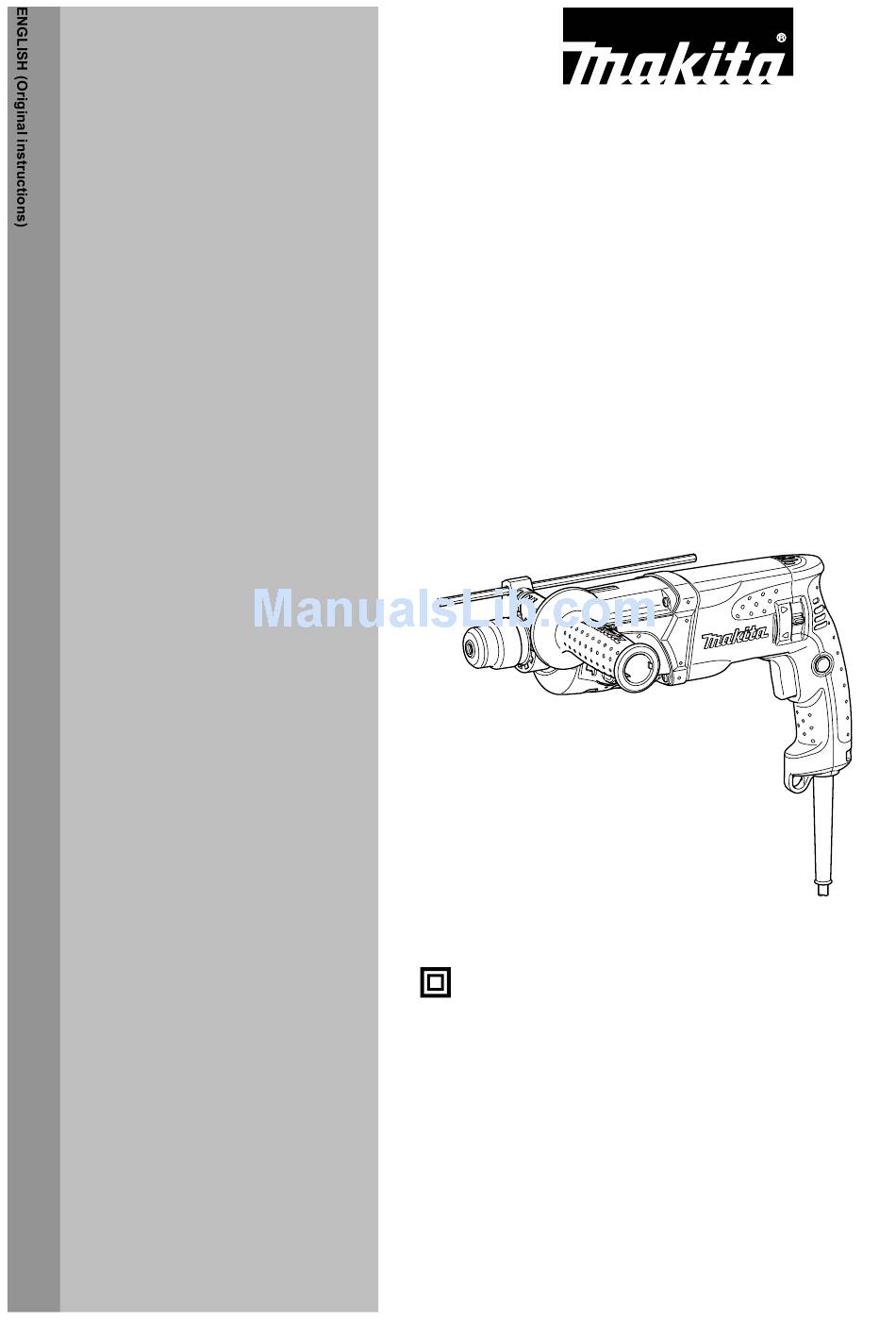

- Page 1 INSTRUCTION MANUAL Rotary Hammer HR2470 HR2470F HR2470FT HR2470T 007943 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model HR2470/HR2470F HR2470T/HR2470FT Tungsten-carbide tipped bit 24 mm Concrete Core bit 54 mm Capacities Diamond core bit (dry type) 65 mm Steel 13 mm Wood 32 mm No load speed (min 0 - 1,100 Blows per minute... -
Page 3: Rotary Hammer Safety Warnings
Do not expose power tools to rain or wet Power tool use and care conditions. Water entering a power tool will 18. Do not force the power tool. Use the correct increase the risk of electric shock. power tool for your application. The correct Do not abuse the cord. -
Page 4: Functional Description
the cutting accessory may contact hidden FUNCTIONAL DESCRIPTION wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the CAUTION: operator an electric shock. Always be sure that the tool is switched off and •... - Page 5 Attaching the quick change drill chuck Reversing switch action 1. Spindle 1. Reversing switch 2. Quick change lever drill chuck 3. Change cover line 4. Change cover 007945 007935 Check the line of the quick change drill chuck shows the CAUTION: symbol.
-
Page 6: Torque Limiter
Hammering only CAUTION: Always use the side grip to ensure operating safety. • 1. Hammering only Install the side grip so that the teeth on the grip fit in between the protrusions on the tool barrel. Then tighten the grip by turning clockwise at the desired position. It may be swung 360°... -
Page 7: Operation
Bit angle (when chipping, scaling or Dust cup demolishing) 1. Dust cup 1. Lock button 2. Action mode changing knob 001300 Use the dust cup to prevent dust from falling over the tool 007950 and on yourself when performing overhead drilling The bit can be secured at the desired angle. - Page 8 1. Sleeve 2. Ring 3. Quick change drill chuck 004224 For Model HR2470/HR2470F 007954 Use the optional drill chuck assembly. When installing it, Set the action mode changing knob to the symbol. refer to "Installing or removing the bit" described on the Hold the tool firmly with both hands.
-
Page 9: Maintenance
Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. SDS-Plus Carbide-tipped bits • Bull point • Cold chisel •... - Page 12 Makita Corporation www.makita.com 884704C0...
