SPECIFICATIONS
Model
Planing width ........................................................................................................................................... 82 mm
Planing depth .............................................................................................................................................. 3 mm
Shiplapping (rabbeting) depth .................................................................................................................... 9 mm
-1
No load speed (min
) .............................................................................................................................. 16,000
Overall length ..........................................................................................................................................390 mm
Net weight .................................................................................................................................................. 4.9 kg
• Due to our continuing program of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
Power supply
The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets without earth wire.
Power Planer
1100N
DOUBLE
INSULATION
1100N

Advertisement

loading

Summary of Contents for Makita 1100N

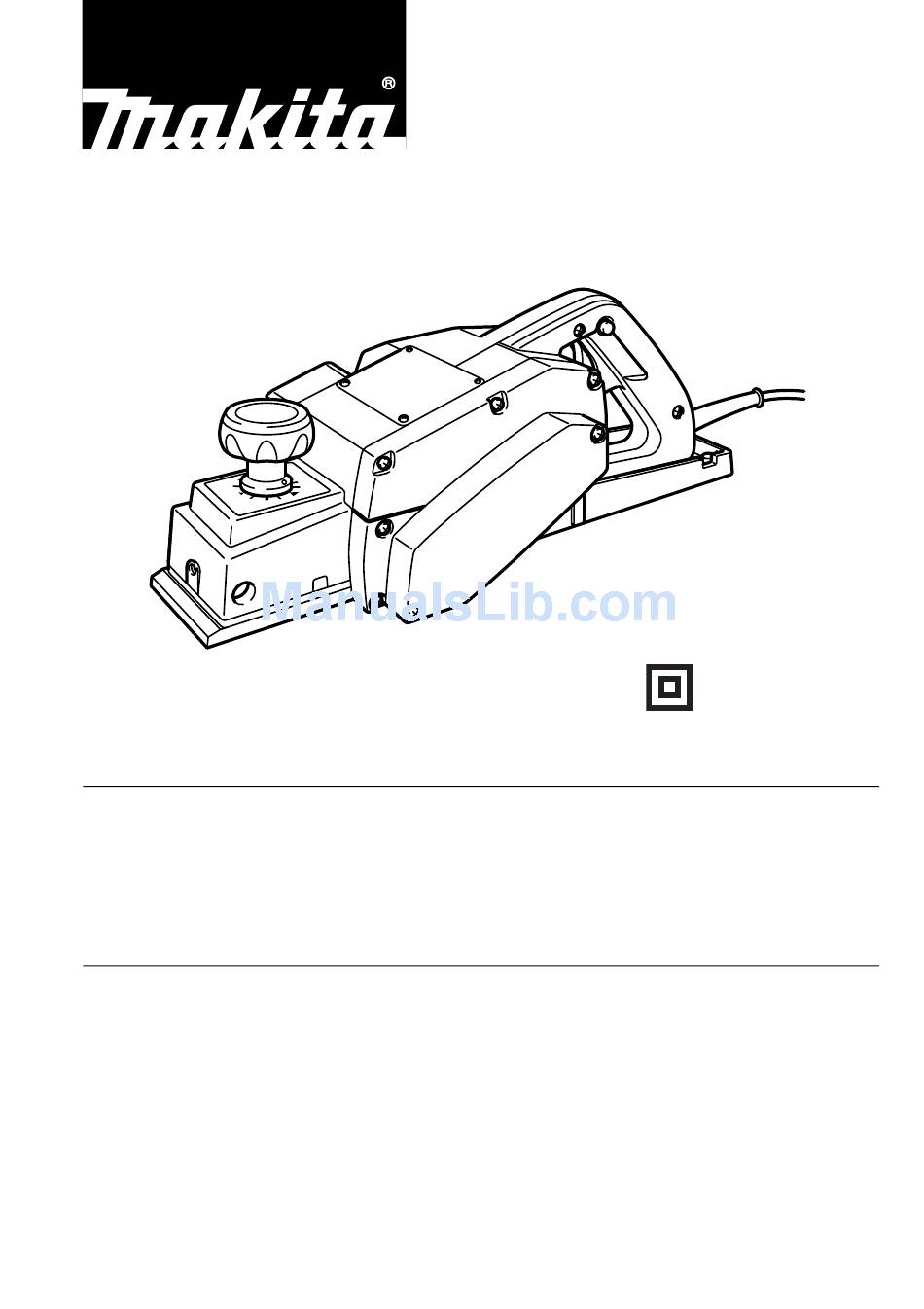

  • Page 1 Power Planer 1100N DOUBLE INSULATION SPECIFICATIONS Model 1100N Planing width ............................82 mm Planing depth .............................. 3 mm Shiplapping (rabbeting) depth ........................9 mm No load speed (min ) ..........................16,000 Overall length ............................390 mm Net weight ..............................4.9 kg •...
  • Page 2 0.3 – 0.6 mm...
  • Page 5 Symbols The following show the symbols used for the tool. Be sure that you understand their meaning before use. Read instruction manual. DOUBLE INSULATION...
  • Page 6: Safety Instructions

    ENGLISH Explanation of general view Bolt 15 Inside flank of gauge plate 28 Align the “V” groove with the Drum 16 Mini planer blade edge of the workpiece Planer blade 17 Groove 29 Sharpening holder Drum cover 18 Knob 30 Wing nut Adjust plate 19 Switch trigger 31 Blade (A)
  • Page 7: Additional Safety Rules

    Slip the heel of the adjust plate into the groove of the tool aside. drum. 17. Use only Makita blades specified in this manual. Set the drum cover over the adjust plate/set plate SAVE THESE INSTRUCTIONS. and screw in the three bolts so that a gap exists between the drum and the set plate to slide the mini planer blade into position.
  • Page 8 For shiplapping (Fig. 6) The blade edge should be made to protrude outside slightly (0.3 mm – 0.6 mm). Otherwise, nicks and generally poor shiplapping results. CAUTION: Tighten the blade installation bolts carefully when attaching the blades to the tool. A loose installation bolt can be dan- gerous.
  • Page 9: Maintenance

    First, remove the chip cover and then replace the carbon brushes. Both identical carbon brushes should be replaced at the same time. To maintain product safety and reliability, repairs, mainte- nance or adjustment should be carried out by a Makita Authorized Service Center.
  • Page 10 ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. The accessories or attachments should be used only in the proper and intended manner.
  • Page 12 Makita Corporation Anjo, Aichi, Japan Made in Japan 884417-3...
