4 . H a r d w a
4 . H a r d w a
This section will guide you to install the router through hardware connection and
configure the router's settings through web browser.

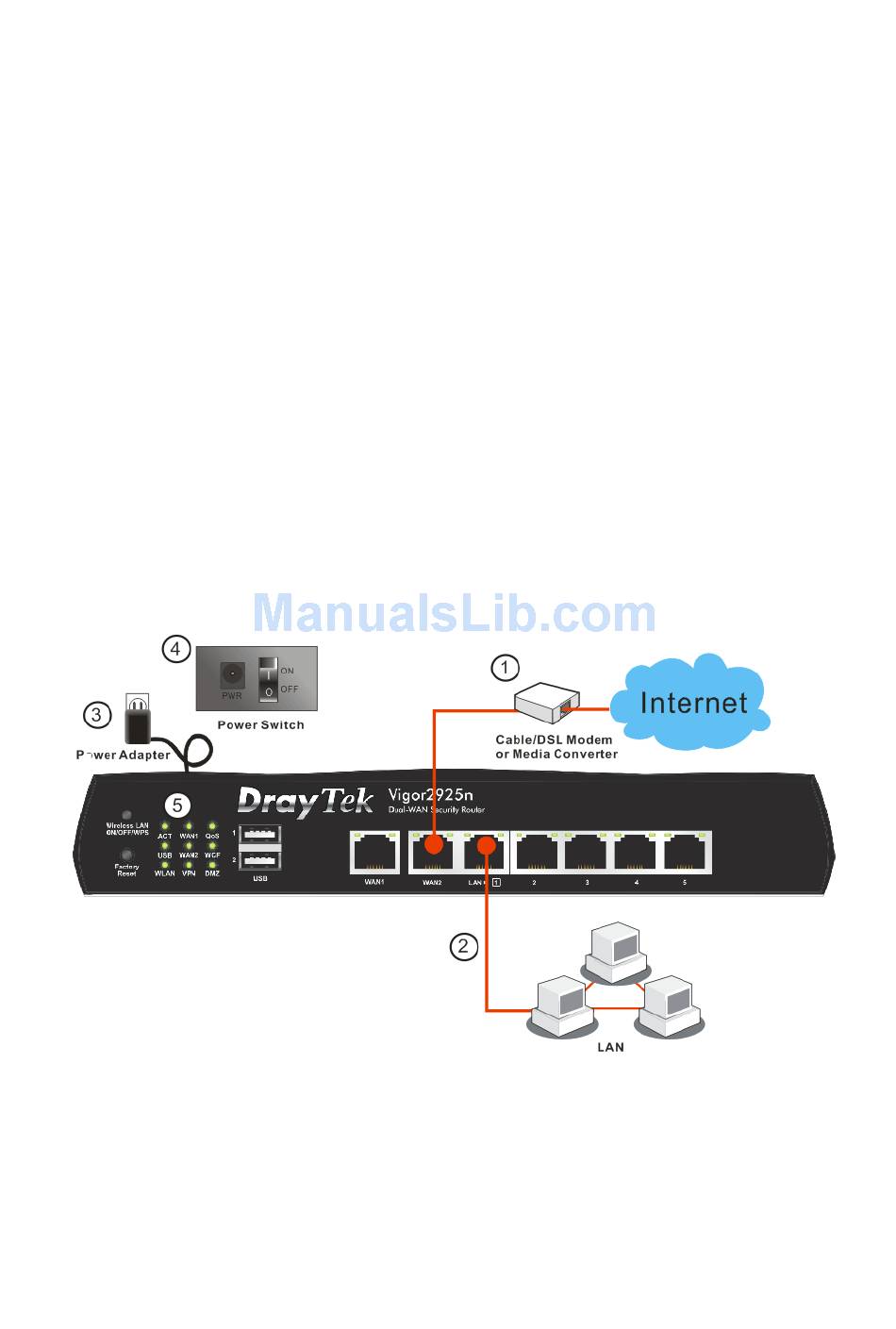

Before starting to configure the router (taking Vigor2925n for example), you
have to connect your devices correctly.
1. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of
router with Ethernet cable (RJ-45).
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the
router and the other end of the cable (RJ-45) into the Ethernet port on your
computer.
3. Connect one end of the power cord to the router's power port on the rear
panel, and the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear panel.
5. The system starts to initiate. After completing the system test, the ACT LED
will light up and start blinking.
(For the detailed information of LED status, please refer to section 3. Panel
Explanation)
r e I n s t a l l a
r e I n s t a l l a
t i o n
t i o n
15
