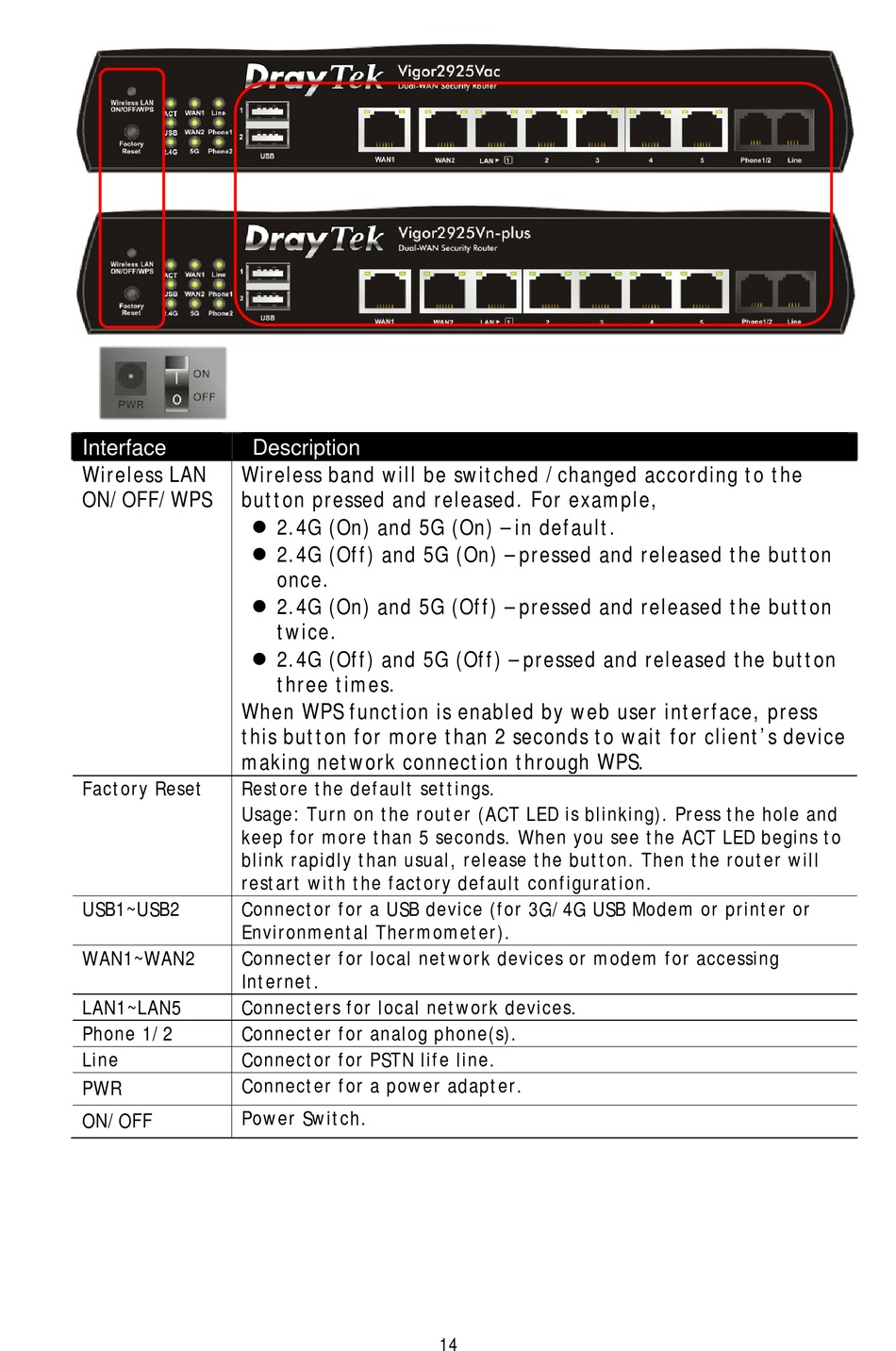

Draytek Vigor2925 Quick Start Manual page 19

Interface Description
Wireless LAN Wireless band will be switched /changed according to the
ON/OFF/WPS button pressed and released. For example,
 2.4G (On) and 5G (On) – in default.
 2.4G (Off) and 5G (On) – pressed and released the button
 2.4G (On) and 5G (Off) – pressed and released the button
 2.4G (Off) and 5G (Off) – pressed and released the button
When WPS function is enabled by web user interface, press
this button for more than 2 seconds to wait for client's device
making network connection through WPS.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the router will
restart with the factory default configuration.
USB1~USB2 Connector for a USB device (for 3G/4G USB Modem or printer or
Environmental Thermometer).
WAN1~WAN2 Connecter for local network devices or modem for accessing
Internet.
LAN1~LAN5 Connecters for local network devices.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
Connecter for a power adapter.
PWR
Power Switch.
ON/OFF
once.
twice.
three times.
14
