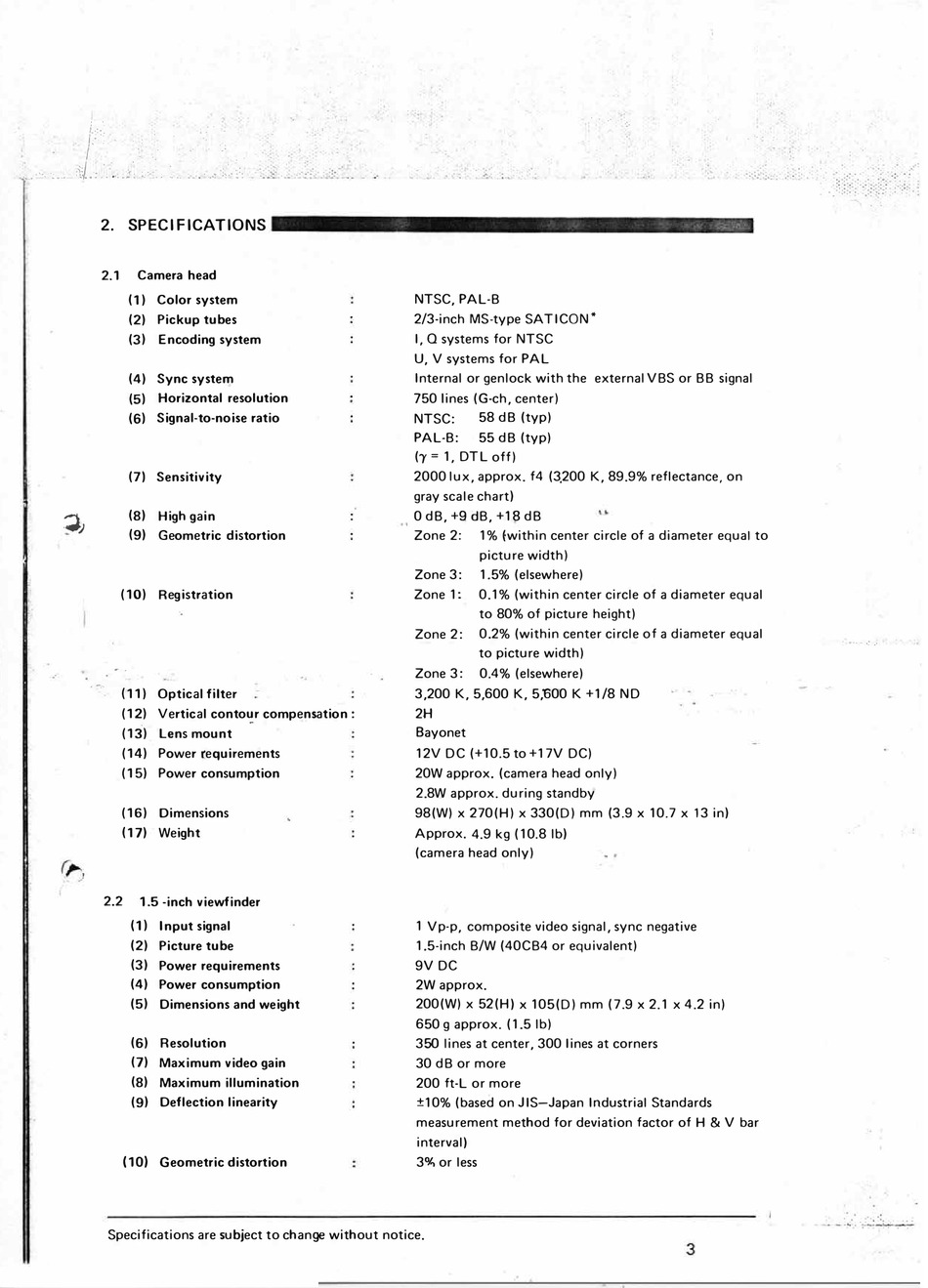

2. SPECIFICATIONS
2.1
Camera head
Color system
(1)
Pickup tubes
(2)
Encoding system
(3)
Sync system
(4)
(5)
Horizontal resolution
(6)
Signal-to-noise ratio
(7) Sensitivity
::J;
High gain
(8)
(9) Geometric distortion
(10)
Registration
�
.
.
...
:-,
( - 1 1)
Optical filter
(12)
Vertical
(13)
Lens mount
(14)
Power requirements
(15)
Power consumption
(16)
Dimensions
Weight
(17)
2.2
1.5 -inch viewfinder
(1)
Input signal
Picture tube
(2)
Power requirements
(3)
Power consumption
(4)
Dimensions and weight
(5)
Resolution
(6)
Maximum video gain
(7)
Maximum illumination
(8)
Deflection linearity
(9)
(10)
Geometric distortion
Specifications are subject to change without notice.
..
:_.
-�
· � :
. .
1•' :�:
conto�_
r compensation:
NTSC, PAL-B
2/3-inch MS-type SAT ICON*
I, 0 systems for NTSC
U, V systems for PAL
Internal or genlock with the external VBS or BB signal
750 lines (G-ch, center)
58 dB (typ)
NTSC:
PAL-B:
55 dB (typ)
(-y = 1, DTL off)
2000 lux, approx. f4 (3, 2 00 K, 89.9% reflectance, on
gray scale chart)
0 dB, +9 dB, +1� dB
Zone 2:
1 % twithin center circle of a diameter equal to
picture width)
Zone 3:
1.5% (elsewhere)
0.1% (within center circle of a diameter equal
Zone 1:
to 80% of picture height)
Zone 2:
0.2% (within center circle of a diameter equal
to picture width)
Zone 3:
0.4% (elsewhere)
3,200 K, 5,600 K, 5,"600 K +1 /8 ND
2H
Bayonet
12V DC (+10.5 to +17V DC)
20W approx. (camera head only)
2.8W approx. during standby
98(W) x 270(H) x 330(0) mm (3.9 x 10.7 x 13 in)
Approx. 4 .9 kg ( 10.8 lb)
(camera head only)
1 Vp-p, composite video signal, sync negative
1.5-inch B/W (40CB4 or equivalent)
9V DC
2W approx.
200(W) x 52(H) x 105(0) mm (7 .9 x 2.1 x 4.2 in)
650 g approx. ( 1.5 lb)
350 lines at center, 300 I ines at corners
30 dB or more
200 ft-L or more
±10% (based on JIS-Japan Industrial Standards
measurement method for deviation factor of H & V bar
interval )
3% or less
' . .
.. ·:·
•
·
.
··.;
:,
.
-
.: .·
