H34S-IC In-Ceiling Mount

Quick Installation Guide

This document describes how to install an equIP

rugged IP minidome camera in a suspended ceiling using the H34S-IC in-ceiling mount.

CAUTION

qualified and experienced technicians to conform to all local codes and

to maintain your warranty.

Package Contents

Before you begin, check that you have received all of the parts listed below. If any parts are

missing or damaged, contact your dealer immediately.

•

You will also need drilling tools and a Phillips screwdriver (not supplied).

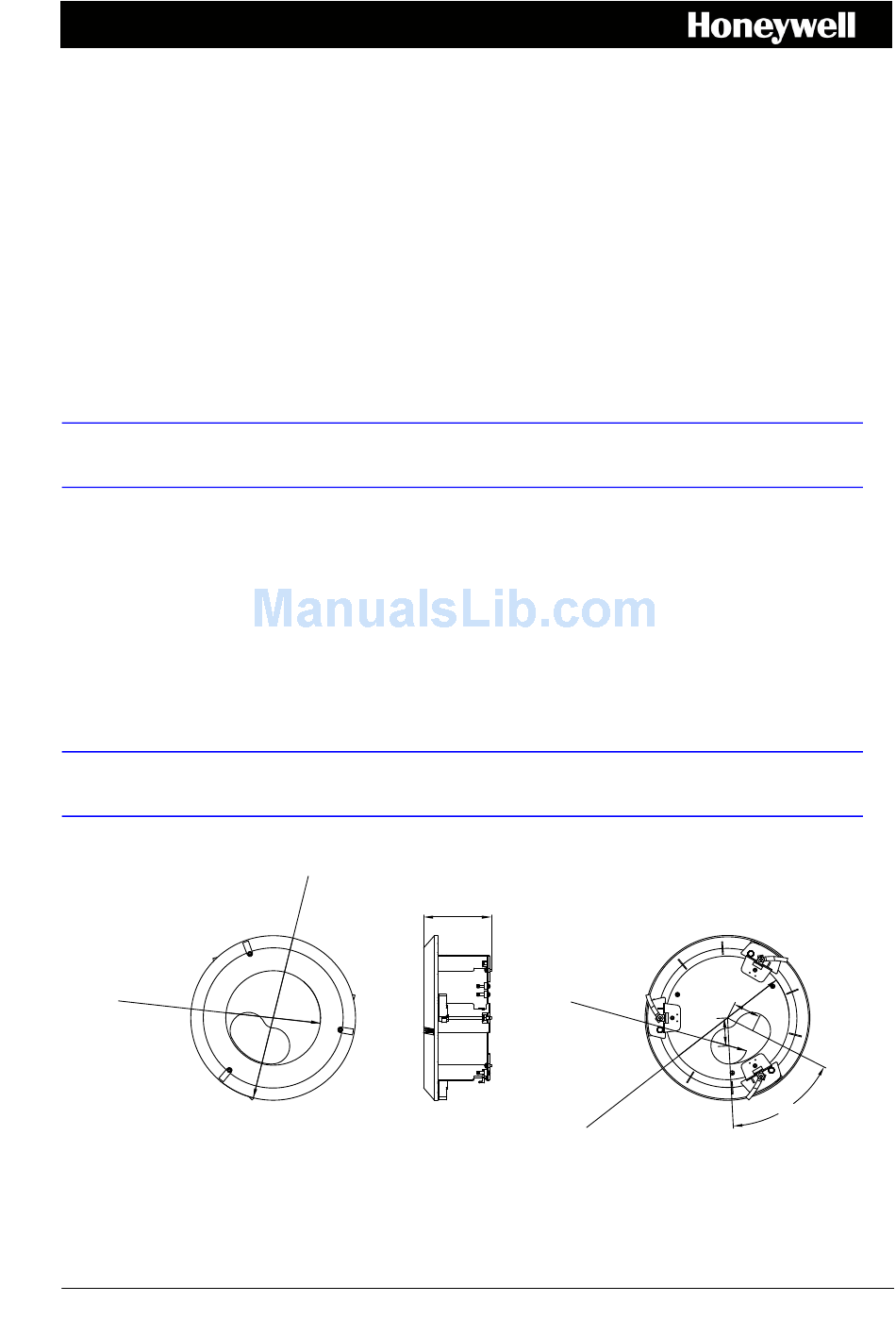

In-Ceiling Mount Dimensions

Ø 4.53 in.

(115 mm)

Installation and servicing should be performed only by

In-ceiling mount

Trim ring

Template

Ø 7.87 in.

(200 mm)

Series H3D S Series indoor or H4D S Series

•

Security Torx key

•

Quick Installation Guide

3.23 in.

(82.1 mm)

Ø 1.73 in.

(44 mm)

Ø 5.91 in.

(150 mm)

1.34 in.

(34 mm)

60°

Document 800-16667 – Rev A – 01/2014

Page 1 ® This document describes how to install an equIP Series H3D S Series indoor or H4D S Series rugged IP minidome camera in a suspended ceiling using the H34S-IC in-ceiling mount. CAUTION Installation and servicing should be performed only by qualified and experienced technicians to conform to all local codes and to maintain your warranty.
Page 2 2 | H34S-IC In-Ceiling Mount Quick Installation Guide Preparing the Camera Loosen the two captive security screws on the dome cover using the supplied Torx key and remove the dome cover from the camera base. Remove the inner cover from the camera assembly. Press both sides of the inner cover to release it from the camera assembly.
Page 3 Attaching the Camera to the In-Ceiling Mount Align the three captive M3 screws on the in-ceiling mount with the mating screw holes on the camera base. Make sure the cable entry hole on the in-ceiling mount is lined up with the cable entry hole on the camera base.
Page 4 Document 800-16667 – Rev A – 01/2014 © 2014 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot assume responsibility for any consequences resulting from the use thereof.
