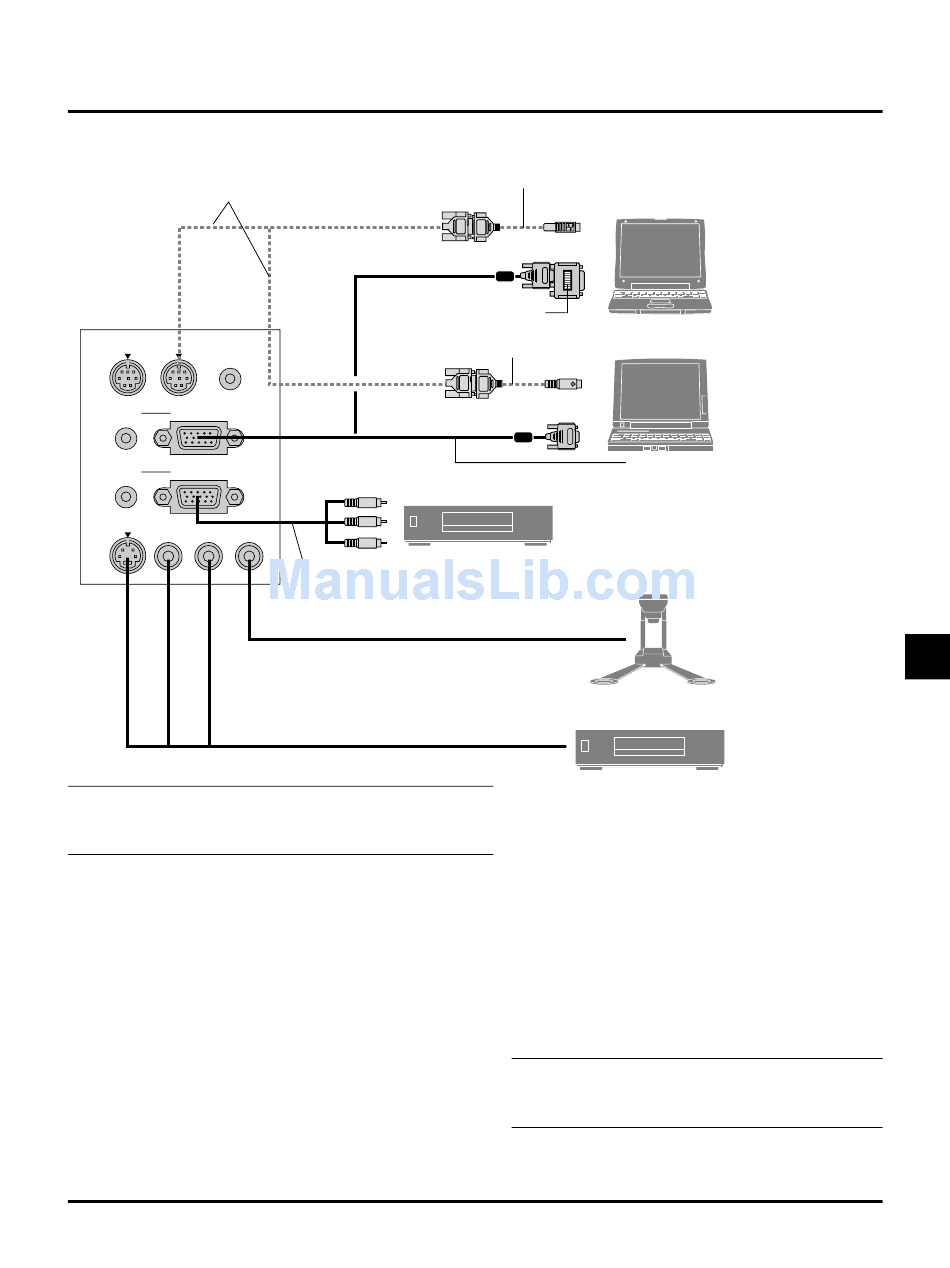

Wiring Diagram

Supplied serial cable
MOUSE
REMOTE
PC CONTROL
OUT
CONTROL
INPUT
AUDIO RGB INPUT 1
AUDIO RGB INPUT 2
S-VIDEO
L / MONO
R
VIDEO
NOTE: When using with a notebook PC, be sure to connect between the
projector and the notebook PC before turning on the power to the notebook
PC. In most cases signal cannot be output from RGB output unless the
notebook PC is turned on after connecting with the projector.
Remote Control Guideline for the Remote Control
1. Plug the supplied serial cable with the mouse output port of the
projector into your computer's mouse port and restart your com-
puter to gain remote mouse control.
2. When using the remote control's built-in infrared mouse on a laptop
computer, the laptop's mouse, trackball or trackpad will be dis-
abled. Disconnect the serial cable from the mouse output port and
restart your computer to regain trackball or trackpad mouse con-
trol.
3. If the screen goes blank while using your remote control, it may
be the result of the computer's screen-saver or power manage-
ment software.
4. If you accidentally hit the OFF button on the remote control, wait
one full minute and then press the ON button to resume.
Supplied mouse adapter (For Macintosh)
Pin adapter for Macintosh (supplied)
Supplied mouse adapter (For IBM PS/2)
DVD Player (with component output)
Optional Component V cable
To video, S-video, and audio
inputs on the projector.
E–15
Signal cable (supplied)
To mini D-Sub 15-pin connector on
the projector. It is recommended that
you use a commercially available
distribution amplifier if connecting a
signal cable longer than the supplied
one.
VCR, DVD Player or LaserDisc Player
Connecting Your PC or Macintosh Computer
Connecting your PC or Macintosh computer to your MultiSync
MT840 (SVGA)/MT1040 and MT1045 (XGA) projector will enable
you to project your computer's screen image for an impressive pre-
sentation.
To connect to a PC or Macintosh, simply:
1. Turn off the power to your projector and computer.
2. Use the signal cable that's supplied to connect your PC or
Macintosh computer to the projector. For older Macintosh, use
the supplied pin adapter to connect to your Mac's video port.
NOTE:The new Macintosh computer such as G3 will have the 15
pin HD connector. The MT840/MT1040/MT1045's "Plug and Play"
data will be downloaded to the Macintosh. Therefore, the Mac
adapter will not be necessary.
3. Turn on the projector and the computer.
4. If the projector goes blank after a period of inactivity, it may be
caused by a screen saver installed on the computer you've con-
nected to the projector.
Macintosh or Compatibles
(Desktop type or notebook type)
IBM VGA or Compatibles
(Desktop type or notebook type)
Document Camera
