Honeywell HDZ Series Quick Installation Manual

HDZ Series IP PTZ Dome Quick Installation Guide
800-11874V5 - Rev A - 01/2015

Cautions and Warnings

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING Installation and servicing should be performed only by qualified
and experienced technicians to conform to all local codes and to maintain your
warranty.
WARNING To ensure compliance with electrical safety standards, CSA
Certified/UL Listed Class 2 power adapters are required. Power over Ethernet
(PoE+) shall be supplied by listed Information Technology Equipment meeting
the IEEE 802.3at-2009 PoE+ standard. The PoE is not intended to be connected
to exposed (outside plant) networks.
IMPORTANT NOTE
Regarding PoE operation of models HDZ22HDE(X), HDZ36E(X) and
HDZ30HDE
A high power PoE injector capable of supplying at least 60 W is required for proper
operation of outdoor camera models HDZ22HDE(X), HDZ36E(X) and HDZ30HDE, as PoE
to IEEE802.3af or IEEE802.3at will not support this model.
FCC Statement of Compliance
Information to the User: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Note Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Manufacturer's Declaration of Conformance
The manufacturer declares that the equipment supplied with this guide is compliant with the
European Parliament and Council Directive on the Restrictions of the use of certain Hazardous
Substances in electrical and electronic equipment (2011/65/EU), General Product Safety Directive
(2001/95/EC) and the essential requirements of the EMC Directive (2004/108/EC), conforming to the
requirements of standards EN 55022 for emissions, EN 50130-4 for immunity, and EN 60950-1 for
electrical equipment safety.
CAUTION
This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
WARNING To comply with EN50130-4 requirements, a UPS should be
employed when powering the camera from 24 V AC.
Waste Electrical and Electronic Equipment (WEEE)
Correct Disposal of this Product (applicable in the European Union and other
European countries with separate collection systems).
This product should be disposed of, at the end of its useful life, as per applicable local
laws, regulations, and procedures.

Safety Instructions

Before installing or operating the unit, read and follow all instructions. After
installation, retain the safety and operating instructions for future reference.
1. HEED WARNINGS - Adhere to all warnings on the unit and in the operating instructions.
2. INSTALLATION
• Install in accordance with the manufacturer's instructions.
• Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
• Do not install indoor rated models in outdoor locations.
• Any wall or ceiling mounting of the product should follow the manufacturer's instructions
and use a mounting kit approved or recommended by the manufacturer.
3. POWER SOURCES - This product should be operated only from the type of power source
indicated on the marking label.
4. HEAT - Situate away from items that produce heat or are heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers).
5. MOUNTING SYSTEM - Use only with a mounting system recommended by the manufacturer,
or sold with the product.
Document 800-11874V5 – Rev A – 01/2015
6. ATTACHMENTS - Do not use attachments not recommended by the product manufacturer as
they may result in the risk of fire, electric shock, or injury to persons.
7. ACCESSORIES - Only use accessories specified by the manufacturer.
8. CLEANING - Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
9. SERVICING - Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
10.
REPLACEMENT PARTS - When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the same
characteristics as the original part. Unauthorized substitutions may result in fire, electric shock
or other hazards. Using replacement parts or accessories other than the original
manufacturers may invalidate the warranty
CAUTION
Risk of explosion if Battery is replaced by an incorrect type. Dispose of
used batteries in accordance with local laws.

Before You Begin

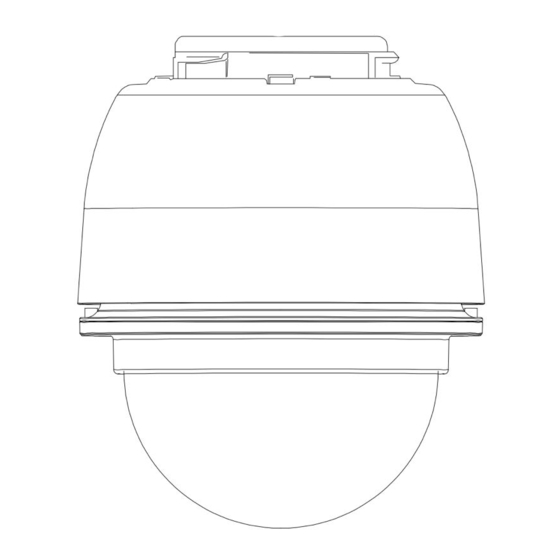

The Honeywell HDZ Series True Day/Night IP PTZ dome camera is a high resolution
network camera PTZ series designed for use in a wide range of applications. The camera
supports H.264 compression and quad video streaming. Streaming options include:
• HDZ30HD, HDZ22HD(X), HDZ30HDE and HDZ22HDE(X): Up to 30 frames per
second (NTSC) or 25 fps (PAL) in 1080p resolution (1920 x 1080). Up to 60 fps
(NTSC) or 50 fps (PAL) in 720p resolution (1280 x 720).
• HDZ30(X), and HDZ36E(X): Up to 60 frames per second (NTSC) or 50 fps (PAL) at
D1 resolution (720 x 486 NTSC; 720 x 576 PAL).
Before you begin, check that you have received all of the parts listed below. If any parts
are missing or damaged, contact your dealer immediately.
Indoor models: • PTZ dome camera
HDZ30HD
• Indoor mount kit
HDZ22HD(X)
• Honeywell logo label
HDZ30(X)
• Lubricant
Outdoor models: • PTZ dome camera
HDZ30HDE
• Outdoor mount kit
HDZ22HDE(X)
• Honeywell logo label
HDZ36E(X)
• Lubricant
• Installation CD

Assembling the Camera

Camera assembly is quick and easy. To assemble the camera:
1. Take the camera and all other components out of the packaging.
2. Rotate and remove the protective cover bag from the camera body.
3. Use the torx driver to remove the dome cover.
4. Remove the foam and tape from inside the dome.
5. Remove the lens cap from the camera lens.
6. Use the torx driver to fasten the dome cover to the camera body.
Note Optional: Use the lubricant on the dome cover's rubber ring to make it easier to
re-attach to the housing and seal the PTZ dome cover and housing without water
coming in. Be careful to not get any lubricant on the dome as it may interfere with
viewing PTZ images.
7. Leave the protective film on the dome cover until installation is complete.

Mounting the Camera

You can install the camera to a ceiling, wall, pole, parapet, or roof using the following
Honeywell products:
Model No. Description
HDZINBKT In-Ceiling Bracket
HDCM1 Ceiling Mount
HDXWM2 Wall Mount
HDPRM2 Parapet/Flat Roof Mount
HDXCMA1 Corner Mount Adapter for HDXWM2
HDXPMA2 Pole Mount Adapter for HDXWM2
.
• Installation CD
• Quick Installation Guide
• Torx driver
• M5 security and standard
screws (1 each)
• Quick Installation Guide
• Torx driver
Indoor Outdoor










