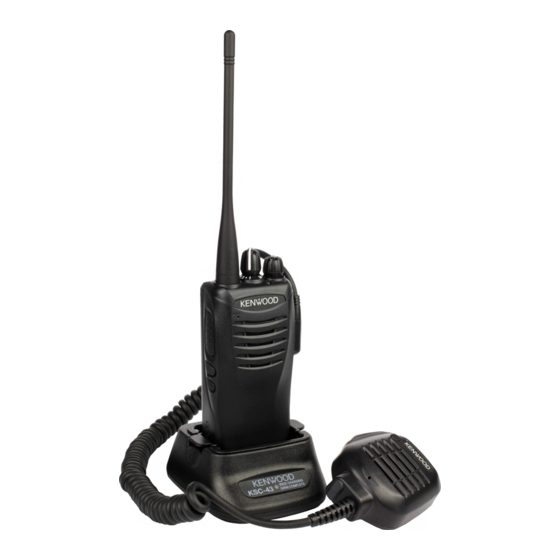

VHF FM TRANSCEIVER
TK-2402(V)/2402
TK-2406/2407
SERVICE MANUAL
Helical antenna
(T90-1036-15) : TK-2402(V)
TK-2402
Button knob (PTT)
(K29-9612-03)
Button knob
(SIDE1/SIDE2)
(K29-9613-03)
Plastic cabinet assy
(A02-4200-03)
This product complies with the RoHS directive for the European market.
Knob (Selector)
(K29-9615-03)
Knob (Volume)
(K29-9614-03)
© 2012-11 PRINTED IN JA PAN
B53-7040-00 ( Y ) 669
CONTENTS
GENERAL ....................................................2
SYSTEM SET-UP .........................................3
REALIGNMENT ...........................................3
DISASSEMBLY FOR REPAIR .....................6
CIRCUIT DESCRIPTION .............................9
SEMICONDUCTOR DATA .........................14
COMPONENTS DESCRIPTION ................15
PARTS LIST ...............................................16
EXPLODED VIEW ......................................22
PACKING ...................................................23
ADJUSTMENT ...........................................25
TX-RX UNIT (X57-8310-10) ....................30
SCHEMATIC DIAGRAM ............................34
BLOCK DIAGRAM .....................................38
LEVEL DIAGRAM ......................................40
SPECIFICATIONS ......................................41
This product uses Lead Free solder.
