Tracking Belt

the aim of tracking the belt is to keep it centered
on the rollers.
To track the belt:
1. make sure the belt is properly pre-tracked
(refer to pre-Tracking Belt on page 27).
2. tie back loose clothing and long hair to pro-
tect yourself from getting caught in the mov-
ing sanding belt when you start the machine.
3. move the quick release tension lever toward
the back of the sander to tension the belt.
4. loosen the lock nut on the belt tracking
knob.
5. turn the sander ON, and using the tracking
control knob (figure 78), carefully adjust the
tracking in or out until the sanding belt is cen-
tered on the main roller (see figure 45, page
27).
Control Knob

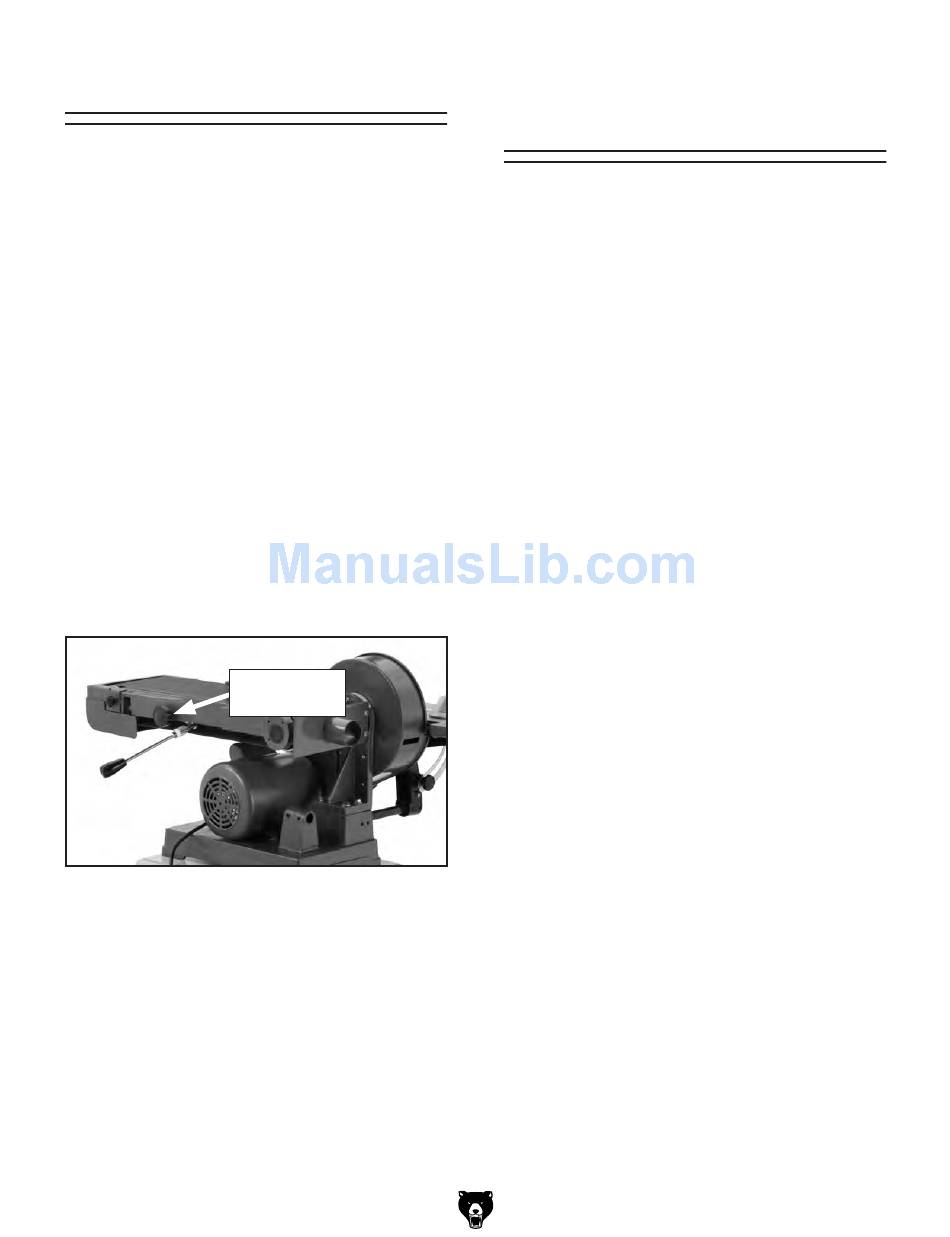

figure 78. tracking control knob.
Note: The tracking control knob is very sen-
sitive; adjust it carefully in small increments.
Turning the knob clockwise moves the belt
toward the front of the sander.
6.
tighten the belt tracking knob lock nut.
-40-
tracking
Changing Sanding
Disc
the model g1014z/g1014zX accepts 9" diameter
paper-backed pressure sensitive adhesive (psa)
discs (refer to Accessories on page 41).
To change the sanding disc:
1. disConneCt sander From poWer!
2.
remove the work table and miter gauge.
3.
unscrew the pulley cover thumb knob, open
the cover, then remove the existing psa
disc.
4. remove dried-on adhesive from the cast
iron disc with acetone or lacquer thinner and
a brush, then let it dry. CAuTION: Follow
the manufacturer's safety recommendations
when using acetone or lacquer thinner.
5.
peel off the backing from the new psa disc,
then press it onto the cast iron plate, making
sure it contacts the surface evenly.
6.
Close the pulley cover, re-install the lock
knob, then re-install the work table and miter
gauge.
model g1014z/g1014zX (mfg. 11/07+)
