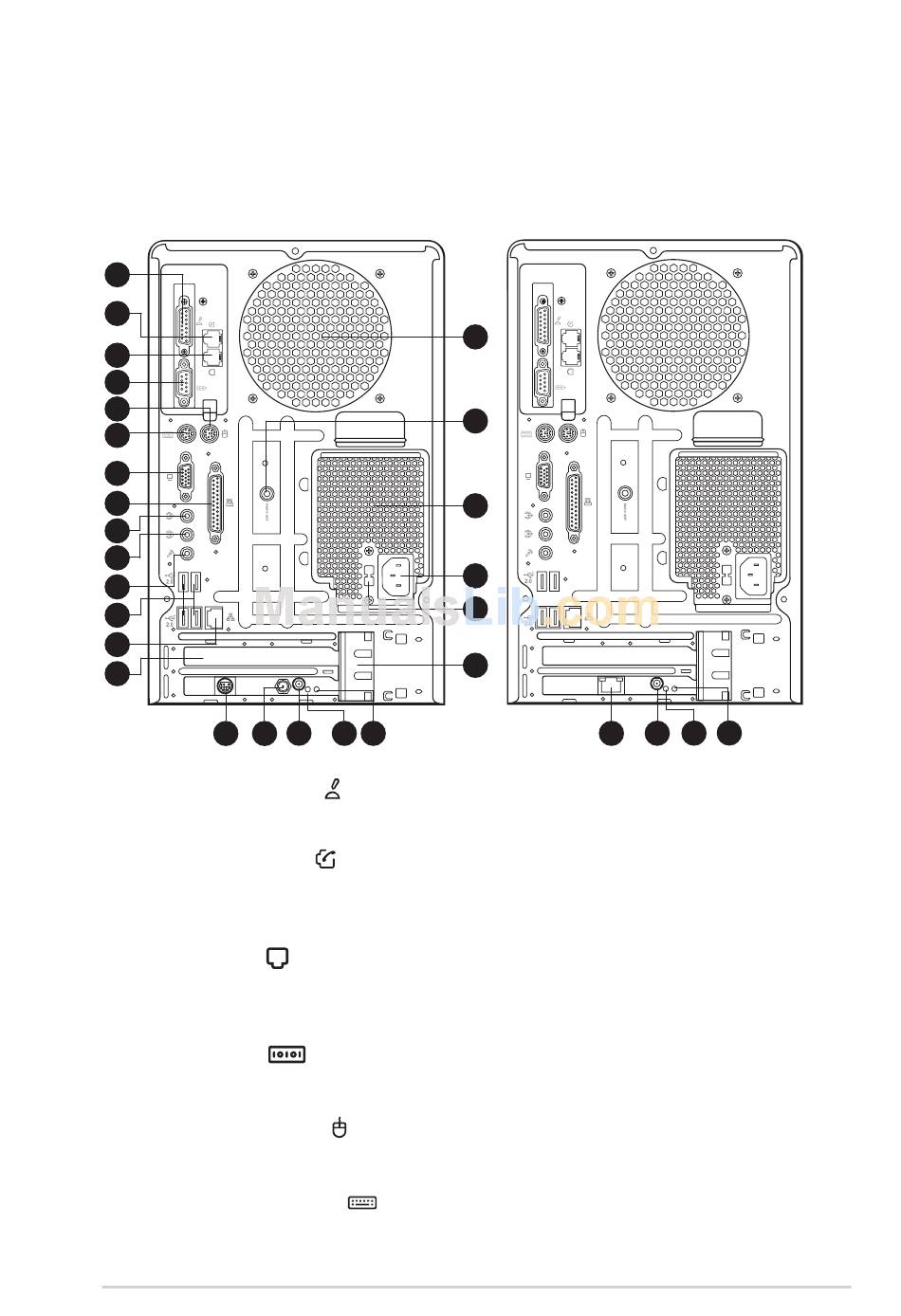

Rear panel

The system rear panel includes the power connector and several I/O ports
that allow convenient connection of devices.
Deluxe model
(Consumer edition)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
21 22
1. GAME/MIDI port ( ). This port connects a joystick, or game pad for
playing games, and MIDI devices for audio editing.
2. Telephone port ( ) (optional) . This port connects an RJ-11 cable
jack. Connect one end of an RJ-11 cable to this port and the other
end to the RJ-11 port of the telephone unit.
3. RJ-11 port ( ) (optional) . This port connects an RJ-11 cable jack.
Connect one end of an RJ-11 cable to this port and the other end to
the RJ-11 wall socket.
4. Serial port (
devices that conforms with serial specification.
5. PS/2 mouse port ( ). This green 6-pin connector is for a
PS/2 mouse.
6. PS/2 keyboard port (
PS/2 keyboard.
