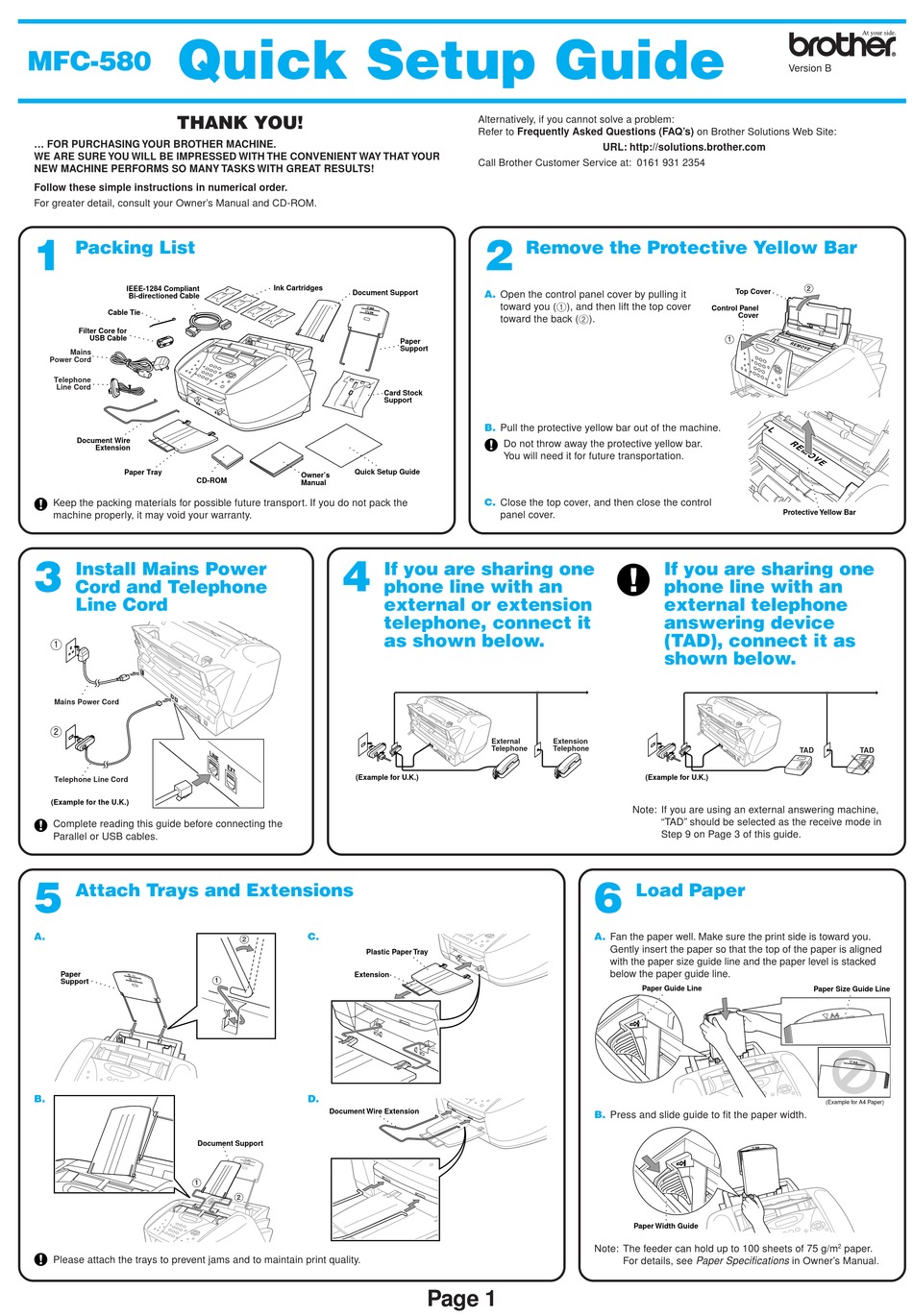

Brother MFC-580 Quick Setup Manual

Quick Setup Guide

MFC-580
THANK YOU!
... FOR PURCHASING YOUR BROTHER MACHINE.
WE ARE SURE YOU WILL BE IMPRESSED WITH THE CONVENIENT WAY THAT YOUR
NEW MACHINE PERFORMS SO MANY TASKS WITH GREAT RESULTS!
Follow these simple instructions in numerical order.
For greater detail, consult your Owner's Manual and CD-ROM.
1

Packing List

IEEE-1284 Compliant
Bi-directioned Cable
Cable Tie
Filter Core for
USB Cable
Mains
Power Cord
Telephone
Line Cord
Document Wire
Extension
Paper Tray
CD-ROM
Keep the packing materials for possible future transport. If you do not pack the
machine properly, it may void your warranty.
3
Install Mains Power
Cord and Telephone
Line Cord
1
Mains Power Cord
2
Telephone Line Cord
(Example for the U.K.)
Complete reading this guide before connecting the
Parallel or USB cables.
5
Attach Trays and Extensions
A.
Paper
Support
B.
Document Support
Please attach the trays to prevent jams and to maintain print quality.
Ink Cartridges
Document Support
Paper
Support
Card Stock
Support
Quick Setup Guide
Owner's
Manual
4
If you are sharing one
phone line with an
external or extension
telephone, connect it
as shown below.
(Example for U.K.)
C.
Plastic Paper Tray
Extension
D.
Document Wire Extension
Page 1
Alternatively, if you cannot solve a problem:
Refer to Frequently Asked Questions (FAQ's) on Brother Solutions Web Site:
URL: http://solutions.brother.com
Call Brother Customer Service at: 0161 931 2354
2
Remove the Protective Yellow Bar
A.
Open the control panel cover by pulling it
toward you (1), and then lift the top cover
toward the back (2).
B. Pull the protective yellow bar out of the machine.
Do not throw away the protective yellow bar.
You will need it for future transportation.
C. Close the top cover, and then close the control
panel cover.
External Extension
Telephone Telephone
(Example for U.K.)
Note: If you are using an external answering machine,
6

Load Paper

A. Fan the paper well. Make sure the print side is toward you.
Gently insert the paper so that the top of the paper is aligned
with the paper size guide line and the paper level is stacked
below the paper guide line.
Paper Guide Line
B.
Press and slide guide to fit the paper width.
Paper Width Guide
Note: The feeder can hold up to 100 sheets of 75 g/m
For details, see Paper Specifications in Owner's Manual.
Version B
Top Cover
Control Panel
Cover
Protective Yellow Bar
If you are sharing one
phone line with an
external telephone
answering device
(TAD), connect it as
shown below.
TAD
"TAD" should be selected as the receive mode in
Step 9 on Page 3 of this guide.
Paper Size Guide Line
(Example for A4 Paper)
TAD
2
paper.
