Defining ASCII export templates/ Data
This index on this index card affect the format of the data readings columns.
Column header
In this input box, you can set the title appearing above each individual column of readings. This can be a combination
of fixed text and placeholders. Such placeholders represent specific characteristic values belonging to the data set
written in the respective column, and are filled with the current texts (e.g. name, comment, units) or numerical values
(e.g sampling interval, length) upon saving. A placeholder can be recognized as a fixed designation surrounded by
percent signs.
%NAME%, for instance, means the name, %YUNIT% the y-unit of the data set recorded. In the selection list at right,
all placeholders defined are listed. Double-clicking on the desired entry (or selecting the entry and hitting the [<<]-
button) copies the placeholder to the current cursor position in the input box.
You can also use the input box's context menu (called by right-clicking in the input box) to insert a placeholder. This
also offers a list of available placeholders.
If no column header is needed, simply leave the input box empty (or completely delete its contents).
Minimum column width
Determines the minimum width a data column can have. If the actual contents are narrower than the specified width,
the left side is filled with empty spaces and the contents are right-justified. However, if the actual contents are wider,
they are still displayed entirely, and the column is widened for the purpose.
Numerical format
Here, you specify the numerical format and resolution of numerical output. You can choose among exponential
notation (e.g. "1.23E3"), decimal notation ("123.4") and "Automatic". Automatic means, in this case, that the shortest
possible notation is selected for the given numerical value. The "Digits" box is for entering the number of decimal
places to be displayed.
Power Quality Recorder SICAM Q80 7KG8080, System manual
E50417-H1076-C420-A2, Release 12.01.2015

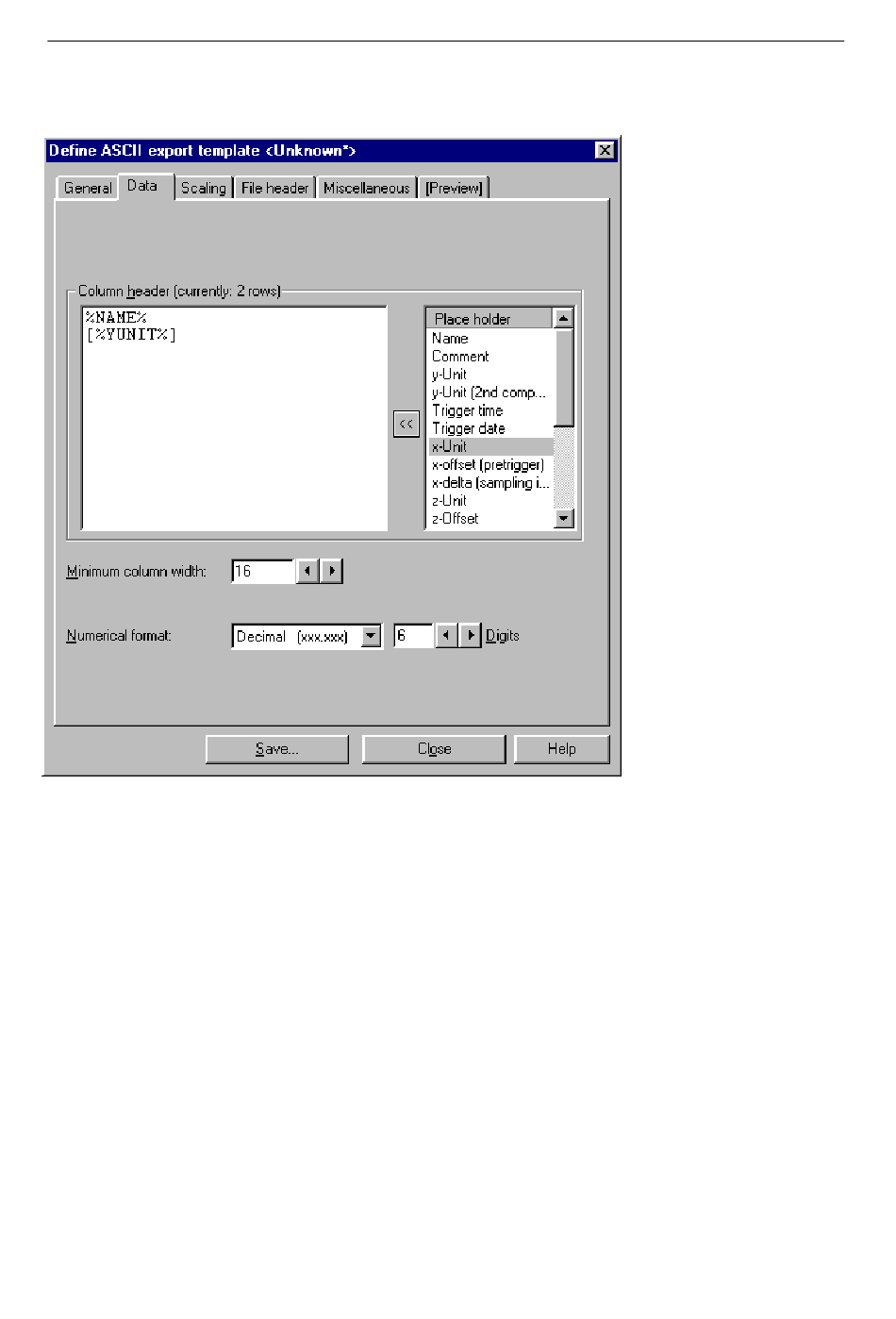

Dialog define ASCII export template / Data
