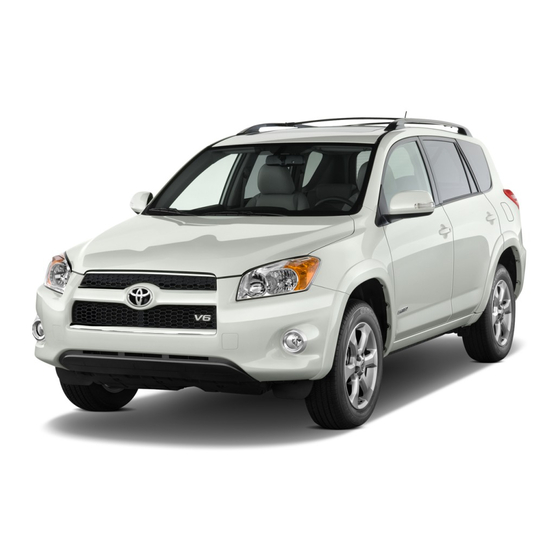

Page 1 ..... . . 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 2: Instrument Panel Overview
17. Cup holders 18. Hood lock release lever 19. Window lock switch 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 3: Controls
15. Front passenger’s seat belt reminder light 16. Engine immobilizer system indicator light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 4 ’08 Rav4_U (L/O 0802) 17. Engine switch 18. Tilt and telescopic steering lock release lever 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 5: Controls
15. Front passenger’s seat belt reminder light 16. Engine immobilizer system indicator light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 6 18. Tilt and telescopic steering lock release lever 19. Power outlet main switch 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 7: Steering Switches Overview
3. Speech command switch 4. Cruise control switch With electric moon roof 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 8: Instrument Cluster Overview
6. Odometer, two trip meters and outside 3. Speedometer temperature display 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 9: Indicator Symbols On The Instrument Panel
Tire pressure warning light ∗ 1 Malfunction indicator lamp ∗ 1 “4WD” warning light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 10 : If this light flashes, see “Cruise control” on page 168 in Section 1−7. Front fog light indicator light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 11: Table Of Contents
......... . . 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 12: Keys
If you should lose your keys or if you a built−in transponder chip. glove box. need additional keys, duplicates can be made by a Toyota dealer using the key 2. Sub key—This key will not work in the To protect items locked in the glove box number.
Page 13 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 14 If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.
Page 15: Engine Immobilizer System
’08 Rav4_U (L/O 0802) Engine immobilizer system The system is maintenance−free. For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you.
Page 16: Wireless Remote Control
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 17 (See “If you lose your keys” on page 379 in Section 4.) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 18 Toyota dealer. that may cause undesired operation of the device. Unlocking operation 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 19 “ON” position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 20 Dispose of used batteries according to the local laws. Replace the battery by following these procedures: 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 21 Toyota light comes on. dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 22: Side Doors
(For further information, see “Illuminated entry system” on page 119 in Section 1−5.) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 23 Front passenger’s side doors with the power door lock switch. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 24: Power Windows
They stop working when the either front door is opened. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 25 If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 26: Back Door
See “—Stowage precautions” on page 336 in Section 2 for precautions when loading luggage. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 27: Hood
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 28: Fuel Tank Cap
If necessary, press down gently on the front edge to lock it. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 29 If the indicator lamp does neck if the cap is suddenly re- not go off, contact your Toyota dealer as moved. soon as possible. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 30: Electric Moon Roof
Tilting operation either the “SLIDE OPEN” or “TILT UP” side briefly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 31 “SLIDE OPEN” side. not be operated properly, have it checked by your Toyota dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 32 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 33 ..........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 34: Seats
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 35 Otherwise, your hands or fingers may be caught and injured. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 36 Then lean back to the desired angle and release the lever. Driver’s seat Passenger’s seat 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 37 Releasing the switch will stop the seat- back at that position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 38: Flattening Front Seatbacks
The amount of lumbar support will change while the switch is pushed. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 39 After returning the seat to its original position, be certain to replace the head restraint. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 40 After returning the seat to its original position, be certain to replace the head restraint. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 41: Rear Seats
Without third seat 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 42 With third seat 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 43 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 44 The seat belt buckles must be stowed before you fold the seatback. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 45 Then slide the rear seat fully backward and pull it forward slightly until it locks. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 46 4. Pull down the seatback angle adjust- ing lever and fold down the seat- back. Right side 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 47 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 48 The seat belt must be removed from the hanger when the seat belt is in use. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 49 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 50 To lock the seatback, lift the seatback by pulling the seatback lock release strap and push the seatback down. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 51: Armrest
To prevent damage to the armrest, avoid putting heavy loads on it. Rear/second seats 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 52: Seat Heaters
Therefore, using a cushion on the seatback is not recom- mended. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 53: Seat Belts
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 54 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 55 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 56 After adjustment, make sure the anchor is locked in position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 57 Buckle 2—Properly matches with round belt. end tab 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 58 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 59 Stow the rear/second center seat belt when not in use. Third seat belt buckles 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 60 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 61 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 62 7. Airbag sensor assembly 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 63 Repairs made on or near the front fenders, front end structure or con- sole 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 64 The seat belt pretensioner assembly or surrounding area has been damaged. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 65: Srs Airbags
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 66 Always wear your seat belts properly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 67 7. Driver’s seat belt buckle switch diately. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 68 The windshield may be damaged by absorbing some of the force of the inflat- ing airbag. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 69 85 in this Sec- arms or on their knees. tion. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 70 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 71 NOTICE Do not disconnect the battery cables before contacting your Toyota dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 72 “Seat belts” on page 53 in this Section. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 73 Always wear your seat belts properly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 74 Always wear your seat belts properly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 75 6. Curtain shield airbag sensors 7. Side and curtain shield airbag sensors 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 76 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 77 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 78 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 79 For details, see “Roof luggage carrier” on page 303 in Section 1−10. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 80 OFF” indicator light will come on if there is a malfunction in the front passenger occupant classification system. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 81 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 82 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 83 : In case the indicator is not illuminated, see “Child restraint” on page 85 as for installing the child restraint system properly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 84 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 85: Child Restraint
65 and “Child restraint” on page 85 in this Section. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 86 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 87 104 in this Sec- tion. (B) Convertible seat 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 88 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 89 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 90 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 91 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 92 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 93 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 94 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 95 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 96 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 97 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 98 Otherwise, child may be killed or seriously in- jured. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 99 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 100 Otherwise, the rear center seat belt may not work properly. Center position 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 101 This symbol indicates the locations of the anchor brackets. Anchor brackets Outside position Symbol mark Center position 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 102 For instructions to install the child re- straint system, see “Child restraint” on page 85 in this Section. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 103 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 104 Follow all the installation instructions provided by its manufacturer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 105 Make sure the seatback is locked secure- Canada only Canada only Type A Type B 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 106 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 107 ..........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 108: Tilt And Telescopic Steering Wheel
122 in Section 1−5.) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 109 Mirrors can be adjusted when the engine switch is in the “ACC” or “ON” position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 110: Anti−Glare Inside Rear View Mirror
Remember that by reducing glare you also lose some rear view clarity. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 111: Sun Visors
(to position 3). 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 112 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 113 Rear window and outside rear view mirror defoggers ... 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 114: Headlights And Turn Signals
For Canada 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 115 You can flash the high beam headlights 2) and hold it. with the knob turned to “OFF”. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 116: Emergency Flashers
The turn signal light switch will not work when the emergency flashers are operat- ing. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 117: Front Fog Lights
For details, see “Illuminated entry system” on page 119 in this Section. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 118: Personal Lights
“DOOR” position for 20 min- utes or more. With electric moon roof 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 119: Illuminated Entry System
If all the doors are locked, all the lights will fade out. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 120: Windshield Wipers And Washer
For a single sweep of the windshield, push the lever up and release it. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 121: Rear Window Wiper And Washer
The rear window wip- er operates while the washer squirts. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 122: Windshield Wiper De−Icer
Automatic air conditioning system 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 123 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 124 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 125 ....2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 126: Fuel Gauge
The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible. The gauge indicates the approximate The gauge indicates the engine coolant...
Page 127: Tachometer
This may cause severe engine damage. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 128: Outside Temperature Display
3_C (37_F) or below, the display does not flash when the engine is turned to the “ON” position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 129: Service Reminder Indicators And Warning Buzzers
’08 Rav4_U (L/O 0802) Service reminder indicators and warning buzzers If the indicator or buzzer comes on... Do this. If parking brake is off, stop immediately and contact Toyota dealer. Fasten driver’s seat belt. (indicator and buzzer) Fasten front passenger’s seat belt.
Page 130 If the indicator or buzzer comes on... Do this. Take vehicle to Toyota dealer. If brake system warning light is also on, stop immediately and contact Toyota dealer. Close all side doors and back door. Take vehicle to Toyota dealer immediately.
Page 131 Do this. Add washer fluid. Replace engine oil. Key reminder buzzer Remove key. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 132: Driver's Seat Belt Reminder Light
A warning light turning on briefly during operation does not indicate a problem. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 133: Charging System Warning Light
If the fuel tank is empty, refuel immedi- Toyota dealer or qualified repair shop for ately. assistance. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 134 “AUTO LSD” system more firmly and slowly, you can drive your Enhanced vehicle stability control sys- vehicle at low speeds. Have your vehicle checked by your Toyota dealer as soon as possible. Downhill assist control system Hill−start assist control system 2008 RAV4 from Feb.
Page 135 6 seconds. The light comes on while driving. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 136 “ON” position. The warning light comes on while driv- ing. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 137 When driveline temperature falls enough, the light will go off. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 138 Tire pressure warning light “4WD” warning light Electric power steering system warning light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 139 Toyota dealer as soon as possible. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 140 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 141 ..........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 142: Engine (Ignition) Switch
“ON” or remove the key. “START” position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 143: Automatic Transmission
L: Maximum engine braking (The engine switch must be in the “ON” position.) Shift normally. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 144 3. Release the parking brake and brake pedal. Depress the accelerator pedal slowly for smooth starting. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 145 67 km/h (41 mph) tain engine braking efficiency, do not use the “D” position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 146 378 in Section 4. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 147 L: Maximum engine braking (The engine switch must be in the “ON” position.) Shift normally. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 148 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 149 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 150: Active Torque Control 4Wd System
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 151 “ON” position, contact your Toyota dealer to service the vehicle. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 152: Traction Control System
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 153: Auto Lsd" System
When the systems are work properly, the light turns off after a few seconds. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 154 When the systems are work properly, the light turns off after a few seconds. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 155: Enhanced Vehicle Stability Control System
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 156 When the systems are work properly, the light turns off after a few seconds. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 157 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 158: Downhill Assist Control System
When the systems are work properly, the light turns off after a few seconds. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 159 This does not indicate a malfunction. tor light flashes when the selector lever is seconds. The system will temporarily stop in “L” or “R”, contact your Toyota dealer. If the brakes are applied while the system operating in order to protect the brake is operating, a kickback from the brake actuator.
Page 160 When the systems are work properly, the light turns off after a few seconds. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 161: Hill−Start Assist Control System
If the accelerator pedal is depressed, the system will also stop operation without beep sounds. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 162 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 163: Tire Pressure Warning System
1 minute, the tire pressure warning system is not working properly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 164 The tire pressure warning light will turn off after a few minutes. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 165 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 166 If a large metallic object which can interfere with signal reception is put in the luggage compartment. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 167: Parking Brake
For Canada 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 168: Cruise Control
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 169 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 170 Even if you downshift the transmission If this is the case, contact your Toyota by pushing the lever up in the “+ RES” from the “D” position to “3” (4−speed) or dealer and have your vehicle inspected.
Page 171 ........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 172: Reference
: Use of satellite radio requires XMr tuner and service. Contact your Toyota dealer for details. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 173: Using Your Audio System
“channel 000” on the radio. For dealer for details. details, see “Displaying the radio ID” be- low. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 174 Toyota through an automatic car wash. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 175 The player is intended for use with 12 cm (4.7 in.) discs only. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 176 Details of specific buttons, controls and features are described in the alphabetical list that follows. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 177 When you release the button, the compact disc play- er will resume playing. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 178 Macrovision Corporation. Reverse engineering or disassembly is prohibited. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 179 This process will be continued until you push the button again to turn off the re- peat feature. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 180 To stop scanning, push this button again. station band. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 181 The rest of the title will appear. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 182 Details of specific buttons, controls and features are described in the alphabetical list that follows. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 183 Details of specific buttons, controls and features are described in the alphabetical list that follows. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 184 Push and release the eject but- is attached securely. not broadcasting any programming. Select ton. another channel. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 185 The display ranges from L7 to R7. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 186 (CD−DA) and MP3/WMA files, audio compact disc changer lid. data (CD−DA) is played. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 187 Push “PWR·VOL” to turn the audio system on and off. Turn “PWR·VOL” to adjust the volume. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 188 To turn off the repeat feature, push this button again. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 189 The discs in the compact disc changer of “SEEK·TRACK” button. separate unit can be scanned up only. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 190 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 191: Aux Adapter
If this happens, use the power source of the portable audio device. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 192 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 193 Repeat this until the disc you want to listen to is set. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 194: Rear Seat Entertainment System
176 or “Audio remote con- trols” on page 191 in this section. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 195 Toyota recom- mends the use of Toyota genuine wireless headphone. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 196 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 197 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 198 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 199 (such as on the instrument panel) for a long time. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 200 This button fast forwards a screen when the DVD player is operated. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 201 DVD player is operated. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 202 If the control- shown. ler still does not operate properly, contact your Toyota dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 203 The “DVD” button is effective only when a disc is inserted. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 204 If the malfunction still exists, take your vehicle to your Toyota dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 205 In this case, “DISC CHECK” and disc number appear on the screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 206 9. “TOP MENU” button 10. “" ”, “ ”, “AA” and “""” buttons 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 207 “OPTION” button on the controller. Second page (DVD video operation Second page (video CD) switch) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 208 Controller 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 209 DVD video discs. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 210 You can select the menu for the disc by the joystick and the “ENT” button on the controller. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 211 Push the “""” switch/button while paus- ing, the DVD video plays the slow−motion video replay. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 212 For further details of the predetermined screen, see the separate manual for the DVD disc. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 213 Push the “Back” switch to return to the menu screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 214 Push the “Back” switch to return to the previous screen. The selected subtitle language will appear on the screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 215 Push the “Back” switch to return to the previous screen. The selected audio language will appear on the screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 216 Buttons” switch. Push the “Back” switch to return to the previous screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 217 “Others” switch. The “Enter Audio Lang. Code” screen will ap- pear. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 218 “Enter Subtitle Lang. Code” screen will screen, push the “Back” switch on the appear. screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 219 “Select DVD Lang.” screen, push the “Back” switch on the screen. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 220 To return to the “Setup Menu” screen, push the “Back” switch. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 221 0118 Arabic 0601 Persian 1009 Yiddish 0119 Assamese 0609 Finnish 1023 Javanese 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 222 1318 Marathi 1908 Serbo−Croatian 2015 Tonga 1319 Malay 1909 Sinhalese 2018 Turkish 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 223 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 224 Push the “""” switch/button while paus- ing, the DVD video plays the slow−motion video replay. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 225 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 226 When the player has scanned all the tracks on the disc, it will stop scan- ning. CD MP3 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 227 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 228 Strengthens Strengthens Color the red the green color color 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 229 G−rated movies can be played. ALL: all countries Number: region code 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 230 Chapter: A unit smaller than a title. A title comprises plural chapters. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 231 115 VAC/100W limits. short circuit. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 232: Audio/Video System Operating Hints
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 233 Increasing the bass level may reduce static and fluttering. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 234 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 235 CD−RW (CD−Re−writable) CD−ROM DVD−R DVD+R DVD+RW DVD−RW DVD−ROM DVD−RAM Transparent/translucent discs Labeled discs 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 236 Store them in their plastic cases away from moisture, heat, and direct sun- light. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 237 It is possible to play up to 192 folders or 255 files on one disc. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 238 MP3/WMA player, playback will begin more slowly than with a conventional CD or CD−R disc. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 239: Hands−Free Phone System
1/10 the size of that on convention- al discs. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 240 The registered names can be changed. Delete Entry The registered names can be deleted. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 241 Bluetooth trademark owned Bluetooth SIG. Inc. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 242 −Consult the dealer or an experienced radio/TV technician for help. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 243 When receiving a call, pushing the off− Microphone hook switch allows you to talk on the phone. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 244 4. Preset buttons Pushing the preset button displays the registered speed dial numbers. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 245 [BT] is displayed. The display is updated name playback: in real time. Select phone Change name Delete 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 246 4. Input the displayed passkey into the tem may not function properly. phone. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 247 [XXX selected. Returning to the phone setup.] is heard. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 248 [Changed] is dis- setup.] is heard and [Changed] is dis- played. played. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 249 [Passkey changed. Returning to the phone tem may not function properly. setup.] is heard. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 250 [Deleted. Returning to the phone setup.] is heard and [Deleted] is displayed. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 251 [The PIN number has been set. Returning to the security.] is heard and [Completed] is displayed. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 252 Returning to the main menu.] is heard and [Locked] is displayed. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 253 Returning the main menu.] is heard and [Unlocked] is dis- played. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 254 2. Turn the “AUDIO CONTROL” knob to is heard. adjust the volume and push the knob. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 255 3. Follow voice guidance instructions. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 256 Next, input a voice tag. For further details, see page 255. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 257 Next, input a voice tag. For further details, see page 255. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 258 Push the talk switch and say the number.] 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 259 If no name has been registered. If the system does not recognize the voice command. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 260 [Changed] is dis- played. If the preset button has not been as- signed. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 261 If no name has been registered. If the system does not recognize the voice command. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 262 “AUDIO CONTROL” knob until [Confirm] is displayed and push the knob. [Deleted.] is heard. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 263 If there is no outgoing history. If the phone book is locked. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 264 “AUDIO CONTROL” knob until [Confirm] is displayed and push the knob. [Deleted.] is heard. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 265 To make a phone call Push the off−hook switch to turn the hands−free system on. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 266 Otherwise, push the talk switch and say dial, go back, or delete.] 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 267 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 268 The microphone can be muted by pushing the talk switch and say [Mute]. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 269 ........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 270: Air Conditioning System Manual Air Conditioning System Controls
2. Fan speed selector 3. Temperature selector 4. “A/C” button 5. Air intake selector 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 271 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 272 FRESH depending on the condi- tion of the air conditioning system. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 273: Air Flow Selector Settings
’08 Rav4_U (L/O 0802) —Air flow selector settings —Operating tips To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.
Page 274 RECIRCULATE. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 275 It is not possible to return to RECIRCULATE in this position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 276: Automatic Air Conditioning System Controls
9. Fan speed selector 10. Windshield air flow button 11. “OFF” button 12. “AUTO” button 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 277 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 278 280. 3. Floor—Air flows mainly from the floor vents. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 279 Press one of the air flow selector but- tons or the windshield air flow button. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 280: Air Flow Selector Settings
’08 Rav4_U (L/O 0802) —Air flow selector settings —Operating tips To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.
Page 281 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 282 Pressing this button once again returns Air flow—WINDSHIELD the air flow mode to the last one used. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 283: Side Vents
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 284: Air Conditioning Filter
The air conditioning filter prevents dust from entering the vehicle through the air conditioning vent. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 285 3. Remove the filter cover as shown in damper as shown. to disconnect the claws. the illustration. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 286 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 287 ..........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 288: Clock
1:00 (one o’clock). Automatic air conditioning system Rear console box 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 289 115 VAC/100W limits. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 290 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 291: Glove Box
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 292: Luggage Storage Boxes
Rear (type A) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 293: Rear Console Box
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 294: Front Cup Holders
For third seats 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 295: Bottle Holders
To avoid personal injury, keep the tie− down hooks stored when not in use. Rear door 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 296: Grocery Bag Hooks
To prevent damage to the hook, avoid hanging heavy load on it. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 297 This will prevent passengers from injury in the event of a sudden stop or accident. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 298 1. Open the deck board. 2. Remove the deck side cover. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 299 (1) over the rear cargo net. Otherwise, the deck board may not close securely. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 300: Rear Cargo Net
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 301 “—Stowing third seats for luggage space” on page 47 in Section 1−3). 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 302 3. Insert the right end of the rear cargo net into the luggage storage box as shown. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 303: Roof Luggage Carrier
Follow the manufacture’s instructions and precautions when installing the attach- ments or their equivalent. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 304: Floor Mat
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 305 Do not place floor mats on top of existing mats. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 306 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 307 ..........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 308: Utility Vehicle Precautions
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 309: Break−In Period
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 310 87 may result in engine is expected to be applied world wide. Toyota, be sure that it has an octane knocking. Persistent knocking can lead to The WWFC consists of four categories rating no lower than 87.
Page 311: Fuel Pump Shut Off System
Operation in foreign countries GASOLINE QUALITY The fuel pump shut off system stops sup- If you plan to drive your Toyota in plying fuel to the engine to minimize the another country... In a very few cases, you may experience...
Page 312: Three−Way Catalytic Converters
“Scheduled Maintenance vehicle is moving. Guide” or “Owner’s Manual Supple- ment”. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 313: Engine Exhaust Cautions
Have the vehicle inspected by your Toyota dealer immediately. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 314: Facts About Engine Oil Consumption
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 315: Iridium−Tipped Spark Plugs
For details about the spark plug type, see “Service specifications” on page 429 in Section 8. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 316 This sound does not indicate a malfunction. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 317 Driving on rough, gravel or snow− For Canada covered roads. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 318 5 km/h (3 mph). road surfaces. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 319: Brake Pad Wear Limit Indicators
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 320 Contact your Toyota dealer as soon as possible to service the vehicle. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 321: Rear Step Bumper
This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. Under the right front seat The rear step bumper is for rear end protection and easier step−up loading.
Page 322 The vehicle identification number (VIN) is also on the Certification Label. 3.5 L V6 (2GR−FE) engine 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 323: Theft Prevention Labels
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 324: Tire Information
“RADIAL” on the sidewall. A tire not marked with “RADIAL” is a bias−ply tire. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 325 (3 or 4 letters) tires” on page 338. 6. Manufacturing week 7. Manufacturing year 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 326 6. Load index (2 digits or 3 digits) 7. Speed symbol (alphabet with one 11. Chafer letter) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 327 For example: Treadwear 200 Traction AA Temperature A 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 328 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 329 Table Occupant distribution 1 that follows 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 330 Bead cords and that is shaped to fit the rim 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 331 Innerliner ing medium within the tire 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 332 Overall width including elevations due to labeling, decorations, or protective bands or ribs 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 333 Alpine Symbol ( ) on at least one sidewall 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 334 2 in front, 2 in second seat, 2 in third 16 through 20 seat, 1 in fourth seat 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 335: Vehicle Load Limits
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 336: Cargo And Luggage
Keep cargo and luggage low, as close to the floor as pos- sible. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 337 525 kg – 166 kg = 359 kg. (1155 lb. – 366 lb. = 789 lb.) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 338: Types Of Tires
For details about total load capacity, see “Vehicle load limits” on page 335. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 339 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 340 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 341 ... . . 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 342: Before Starting The Engine
See “If your vehicle will not start” on page 356 in Section 4. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 343: Tips For Driving In Various Conditions
Toyota dealer for assistance. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 344: Driving In The Rain
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 345: Off−Road Driving Precautions
Recreational Vehicle Clubs fire could occur. U.S. Forest Service and Bureau of Land Management 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 346: Winter Driving Tips
“Scheduled Main- tenance Guide” or “Owner’s Manual Supplement”. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 347: Dinghy Towing
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 348: Trailer Towing
3862 kg (8515 lb.) necessary to use a sway control device with sufficient capacity. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 349 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 350 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 351 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 352 Have someone guide you when in “D”. backing to reduce the risk of an acci- dent. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 353: How To Save Fuel And Make Your Vehicle Last Longer
Avoid jackrabbit starts. Get into high gear as quickly as possible. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 354 By reducing your speed, you will cut down on fuel con- sumption. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 355: In Case Of An Emergency
........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 356: If Your Vehicle Will Not Start
Have ing the engine with your foot off the accel- engine” on page 356 for further instruc- checked at your Toyota dealer. If none of erator pedal. tions. your keys work, there may be a malfunc- If the engine does not start after 15 se- tion in the immobilizer system.
Page 357 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 358 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 359: If Your Engine Stalls While Driving
“LOCK” position, and try starting the vehicle at low speeds. Have your vehicle 7. Carefully dispose of the battery cover engine again. checked by your Toyota dealer as soon as cloths—they may now contain sulfuric If the engine will not start, see “If your possible.
Page 360: If Your Vehicle Overheats
Serious injury could result from scalding hot fluid and steam blown out under pressure. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 361: If You Have A Flat Tire
D Raise the vehicle only high enough to remove and change the tire. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 362 Tool bag Jack 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 363 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 364 Type B 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 365 Do not remove the nuts yet—just un- screw them about one−half turn. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 366 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 367 Wiggle the tire and press it back over the other bolts. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 368 Repeat the process until all the nuts are tight. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 369 Be careful not to lose the rubber rings after removing them. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 370 Be careful not to lose the wheel orna- ment. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 371 Type B 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 372 8 with a torque wrench. Have a technician repair the flat tire. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 373: If Your Vehicle Becomes Stuck
Two−wheel drive models 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 374 If towing is necessary, we recommend TOWING PRECAUTIONS: (a) Towing with wheel lift type truck— you to have it done by your Toyota Use a safety chain system for all towing, dealer or a commercial tow truck ser- and abide by the state/provincial and local vice.
Page 375 (b) Using flat bed truck All models— If towing is necessary, we recommend you to have it done by your Toyota (c) Towing with sling type truck dealer or a commercial tow truck ser- vice. NOTICE...
Page 376 The eyelet and towing cable or chain may break and cause serious injury or damage. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 377 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 378: If You Cannot Shift Automatic Transmission Selector Lever
2. Pry up the cover with a flathead screwdriver or equivalent. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 379: If You Lose Your Keys
Vehicles with engine immobilizer system— Even if you lose only one key, contact your Toyota dealer to make a new key. If you lose all your master keys, you cannot make new keys; the whole engine immobi- lizer system must be replaced.
Page 380 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 381: Corrosion Prevention And Appearance Care
........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 382 Now, it is up to be dry. to see all the mud and dirt. It will do you. Proper care of your Toyota can help more harm than good to simply wet the High ambient temperatures can cause ensure long−term corrosion prevention.
Page 383 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 384 This may damage the sur- or neutral detergent. faces of the lights. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 385 The nozzle will be damaged. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 386 Rub in overlapping circles. damage the heater wires or connec- tors. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 387 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 388 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 389 For scheduled maintenance information, please refer to the “Sched- uled Maintenance Guide” or “Owner’s Manual Supplement”. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 390: Maintenance Requirements
Simple instructions for how to per- or if you prefer, your Toyota dealer will be dating this warranty. See “Owner’s War- form them are presented on page 395 in pleased to do them at a nominal cost.
Page 391: General Maintenance
Booklet” or “Owner’s Manual Supple- should investigate the cause or take your al information. ment” for the details. vehicle to your Toyota dealer or a quali- Radiator, condenser and hoses fied service shop immediately. It is recom- mended that any problem you notice be...
Page 392 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 393: Does Your Vehicle Need Repairing
Be on the alert for changes in perfor- If you notice any of these clues, take your mance, sounds, and visual tip−offs that vehicle to your Toyota dealer as soon as Check the pressure with a gauge ev- indicate service is needed. Some impor- possible.
Page 394: Emissions Inspection And Maintenance (I/M) Programs
I/M test. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 395 ........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 396: Engine Compartment Overview
9. Engine oil level dipstick 10. Windshield and rear window washer fluid tank 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 397 9. Engine oil level dipstick 10. Windshield and rear window washer fluid tank 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 398: Fuse Locations
’08 Rav4_U (L/O 0802) Fuse locations Spare fuses 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 399: Do−It−Yourself Service Precautions
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 400: Parts And Tools
(for the U.S.A.) or 55% coolant and 45% deionized water (for Canada). 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 401: Positioning A Floor Jack
Parts (if replacement is necessary): Fuse with same amperage rating as original Rear 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 402 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 403 ....... . 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 404: Checking The Engine Oil Level
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 405 However, SAE 0W−20 is the best choice for good fuel economy and good starting in cold weather. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 406: Checking The Engine Coolant Level
Toyota engines. Coolant” is a mixture of 55% coolant and If you can find no leak, have your Toyota 45% deionized water. This coolant pro- Please contact your Toyota dealer for fur- dealer test the cap pressure and check ther details about “Toyota Genuine Motor...
Page 407: Checking The Radiator And Condenser
If any of the above parts are extremely dirty or you are not sure of their condi- tion, take your vehicle to a Toyota dealer. CAUTION To prevent burning yourself, be care- ful not to touch the radiator or con- denser when the engine is hot.
Page 408: Checking Tire Inflation Pressure
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 409 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 410: Checking And Replacing Tires
D A greater possibility of tire tire. damage from road hazards 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 411 Gross Axle Weight Ratings (GAWR), see the Cer- tification Label. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 412: Rotating Tires
When replacing a tubeless tire, the air valve should also be replaced with a new one. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 413: Installing Snow Tires And Chains
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 414 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 415: Replacing Wheels
Drive carefully avoiding bumps, Toyota dealer about how to set up the tire WHEEL SELECTION holes, and sharp turns, which may pressure warning valves and transmitters. cause the vehicle to bounce. When replacing wheels, care should be taken to ensure that the wheels are re- Avoid sharp turns or locked−wheel...
Page 416: Aluminum Wheel Precautions
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 417 ........2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 418: Checking Battery Condition
Overtightening may damage the cal office. battery case. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 419 24 and “Electric moon roof” on page 30 in Section 1−2. Installing clip 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 420: Battery Recharging Precautions
Also, be sure all Toyota dealer. yellow accessories are turned off. Type B 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 421 434 in Section 8 for the functions controlled by each circuit. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 422: Adding Washer Fluid
When replacing comes on, the washer tank may be tem. Have your Toyota dealer correct it as a bulb, make sure the engine switch and empty. Add washer fluid.
Page 423 — Front personal — lights Vanity lights — Luggage — compartment light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 424 When aiming adjustment is nec- essary, contact your Toyota dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 425 Do not try to replace the front fog light bulbs by yourself. You may dam- age the vehicle. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 426 Use a flathead screwdriver. b: Rear turn signal light c: Back−up light 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 427: Specifications
........... . . 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Page 428: Specifications Dimensions And Weights
(trailer weight + cargo weight) kg (lb.) ∗ 10, 12 1588 (3500) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 429: Engine
3.5 L V6 (2GR−FE) engine—Use only above spark plugs. Do not adjust gaps engine performance smooth driveability. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 430 Please contact your Toyota dealer for fur- ILSAC multigrade engine oil ther details. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 431 “Toyota Genuine ATF WS” (ATF JWS3324 or NWS9638) to aid in assuring optimum transaxle performance. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 432 200 N (21 kgf, 45 lbf): 6—8 clicks Fluid type: SAE J1703 or FMVSS No.116 DOT 3 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 433: Tires
“Aluminum wheel precautions”, pages 408 through 416 in Section 7−2. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 434: Fuses
11. HEAD RH 10 A: Right−hand headlight (high beam) 12. HEAD LL 10 A: Left−hand headlight (low beam) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 435 A/F sensor 12. P/I 50 A: “EFI MAIN”, “HORN”, “A/F” fuses 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 436 (front doors) 18. RL DOOR 20 A: Power window (rear left door) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 437 29. P/SEAT 30 A: Power seat 30. POWER 30 A: Power windows 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 438 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 439: For Owners
Seat belt instructions for Canadian owners (in French) ..2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 440 Toyota Motor Sales, U.S.A., Inc. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 441 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 442 ’08 Rav4_U (L/O 0802) 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 443 2008 Quick Reference Guide I n f o r ma t i o n P r o v i d e d b y :...
Page 444 Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new RAV4. A word about safe vehicle operations This Quick Reference Guide is not a full description of RAV4 operations.
Page 445 Spare tire & tools Tire Pressure Warning System * Visit your Toyota dealer for information on customizing this feature. I n f o r ma t i o n P r o v i d e d b y :...
Page 446 OVERVIEW Instrument panel Steering wheel controls Steering wheel audio controls Telephone controls* Speech command button* Cruise control Instrument panel light control Headlight, turn signal and front fog light* control Wiper and washer controls Four-wheel drive lock switch (4WD models) or “AUTO LSD”...
Page 447 With automatic Air Conditioning system With manual Air Conditioning system Clock and Air Conditioning display 12V DC Power outlet Seat heater switch* Downhill Assist Control switch Front passenger seat belt reminder light Engine immobilizer indicator* Engine switch Tilt and telescopic steering release 115V AC Power outlet ON/OFF switch* * If equipped I n f o r ma t i o n P r o v i d e d b y :...
Page 448 OVERVIEW Instrument cluster Tachometer Service indicator and reminder Speedometer Engine coolant temperature Fuel gauge Odometer, two trip meters and outside temperature display Trip meter reset knob Indicator symbols Brake system warning Driver/Front passenger seat belt reminder (alarm will sound if speed is over 12 mph) Charging system warning Low engine oil pressure warning...
Page 449 Airbag SRS warning Automatic Transmission fluid temperature warning Low Tire Pressure Warning “4WD” warning Electric power steering system warning Low windshield washer fluid level warning Front passenger occupant classification indicator Headlight high beam indicator Turn signal indicator Front fog light indicator Automatic Transmission indicator (4-speed) Automatic Transmission indicator (5-speed) Four-wheel drive lock indicator...
Page 450 OVERVIEW Fuel tank door release and cap Driver seat Pull up Turn Store NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate. Keyless entry Beep sound can be switched “ON” or “OFF.” Refer to the Owner’s Manual for more details.
Page 451 Panic button Push and hold Hood release Pull Pull up latch and raise hood I n f o r ma t i o n P r o v i d e d b y :...
Page 452 OVERVIEW Engine maintenance 4 cylinder (2AZ-FE) engine 6 cylinder (2GR-FE) engine Engine coolant reservoir Engine oil filler cap Engine oil level dipstick Windshield and back window washer fluid tank Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Page 453 FEATURES/OPERATIONS Automatic Transmission 4-speed models Park* Reverse Neutral Drive Third gear Second gear First gear 5-speed models Park* Reverse Neutral Drive Fourth gear Third gear Second gear First gear * The engine switch must be ON, and the brake pedal depressed to shift from “Park.” Downshifting increases power going uphill, or provides engine braking downhill.
Page 454 FEATURES/OPERATIONS Auto lock functions Active torque control 4WD (4WD models) Four-wheel drive lock switch Push the switch to ensure that the engine torque is applied to the four wheels. NOTE: Should ONLY be used when wheel spinning occurs on loose or unpaved surfaces. Refer to the Owner’s Manual for more details.
Page 455 Seats-Head restraints Front seats Second row seats Lock release button Third row seats Lock release button Seat adjustments-Second row seats Vehicles with third row seats Position Seatback angle Seatback lock release I n f o r ma t i o n P r o v i d e d b y :...
Page 456 FEATURES/OPERATIONS Seats-Folding down second row seats Vehicles without third row seats Left side remote seat release Right side remote seat release Vehicles with third row seats (2) Lower (1) Push (3) Pull down I n f o r ma t i o n P r o v i d e d b y :...
Page 457 Seats-Stowing third row seats (if equipped) (4) Fold down (2) Lower (3) Pull (1) Push (8) Push to lock in (5) Pull up (6) Lift up (9) Push to lock in (7) Push down Windshield wipers & washers Front Single wipe Adjust interval Interval wipe Pull to wash and wipe...
Page 458 FEATURES/OPERATIONS Lights & turn signals Headlights Headlights Parking lights High beam Low beam High beam flasher -Daytime Running Light system (if equipped) Automatically turns on the headlights at a reduced intensity. -Automatic light cut off system Will automatically turn lights off after a delay of 30 seconds, or the lock switch on remote may be pushed.
Page 459 Parking brake Release Pull (1) Pull slightly (2) Push (3) Lower Tilt and telescopic steering wheel Length Angle Lock release lever Hold wheel, push lever down, set angle and length, and return lever. NOTE: Do not attempt to adjust while the vehicle is in motion.
Page 460 FEATURES/OPERATIONS Seat heaters (if equipped) Left front seat Right front seat Air Conditioning/Heating Automatic Air Conditioning Temperature (driver side) Fresh or recirculated cabin air Airflow vent In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce window fogging. Air Conditioning ON/OFF “DUAL”...
Page 461 Manual Air Conditioning Airflow vent selector In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce window fogging. Fan speed Temperature Air Conditioning ON/OFF Use for quick cooling. MAX A/C changes air intake to recirculate. It is not possible to change intake to fresh, or to turn A/C OFF in this mode.
Page 462 FEATURES/OPERATIONS Audio Type 1 Preset buttons - functions in other Push to turn ON/OFF modes indicated above number. Push to adjust Eject CD tone & balance Seek station/ Push to CD track skip select up/down folder Mode Station/CD View CD text track scan Type 2 additional functions Load CD(s)
Page 463 RADIO To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection. Steering wheel controls (if equipped) “...
Page 464 FEATURES/OPERATIONS Rear seat entertainment system (if equipped) Front audio system DVD player DVD screen Remote control A/V input adapter 115V AC Power outlet 115V AC Power outlet ON/OFF switch Moonroof (if equipped) Sliding operation Open Close Recommended driving position to minimize wind noise Tilting operation Tilt...
Page 465 Telephone controls (Bluetooth ® (if equipped) ® Bluetooth technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system. Refer to the Owner’s Manual for more details. Door locks Unlock Lock...
Page 466 FEATURES/OPERATIONS Power outlets 12V DC Inside center console Instrument panel Luggage Compartment NOTE: Designed for car accessories. Engine switch must be in the “ACC” or “ON” position to be used. 115V AC (if equipped) ON/OFF switch Push Rear console NOTE: Engine switch must be in the “ON” position to be used.
Page 467 Cruise control Turning system ON/OFF System ON/OFF Functions Resume /Increase speed Cancel Set/Decrease speed The set speed may also be cancelled by depressing the brake pedal. The set speed may be resumed once vehicle speed exceeds 25 mph. Refer to the Owner’s Manual for more details. Cup holders Front Rear...
Page 468: Emergency Features
SAFETY AND EMERGENCY FEATURES Doors-Child safety locks Rear door Moving the lever to “LOCK” will allow the door to be opened only from the outside. Seat belts Take up slack Too high Keep as low on hips as possible If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again.
Page 469 Spare tire & tools Tool location Luggage compartment Luggage compartment Inside left side box Inside right side box Tool bag Jack Removing the spare tire (1) To remove the spare tire cover,* open the back door. Unhook the latch on the bottom of the cover.
Page 470 Customer Experience Center 1-800-331-4331 MN 00505-QRG08-RAV4 Printed in the USA 8/07 I n f o r ma t i o n P r o v i d e d b y :...
Page 471 © 2008 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 472 Tire inflation pressure: See page 433. Publication No. OM42726U Part No. 01999-42726 Printed in Japan 01−0802−00 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 473: Important Information About This Manual
2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 474: Occupant Restraint Systems
None of these systems, either individ- Toyota encourages you and your family to take the time to ually or together, can ensure that there is no injury in the read Section 1−3 of this Owner’s Manual carefully.
Page 475: Event Data Recorder
Toyota recommends you to read the provisions in Section D Engine speed 1−3 carefully and refer to them as needed during your time D Whether the brake pedal was applied or not of ownership of this vehicle.
Page 476 D Driver’s seat position data such as conversation between passengers. D Front passenger’s occupant classification Toyota will not disclose the data recorded in an EDR to a D SRS airbag deployment data third party except when: D SRS airbag system diagnostic data D An agreement from the vehicle’s owner (or the leas-...
Page 477 ’08 Rav4_U (L/O 0802) New vehicle warranty Important health and safety information about your Toyota Your new vehicle is covered by the following Toyota limited warranties: CAUTION D New vehicle warranty D Emission control systems warranty WARNING: Engine exhaust, some of its constitu-...
Page 478 Toyota Toyota A wide variety of non−genuine spare parts and accessories The spark ignition system in your Toyota meets all require- for Toyota vehicles are currently available in the market. ments of the Canadian Interference−Causing Equipment You should know that Toyota does not warrant these prod- Standard.
Page 479 As the installation of a mobile two−way radio system in your vehicle could affect electronic systems such as fol- lows, be sure to check with your Toyota dealer for precau- tionary measures or special instructions regarding installa- Tires and loading on your tion.
Page 480 In addition, this vehicle shop or by your Toyota dealer before you dispose of your has a higher ground clearance and center of gravity than vehicle.
Page 481 These components may include airbag, seat belt preten- sioners, and wireless remote control batteries. 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 482 2008 RAV4 from Feb. ’08 Prod. (OM42726U) I n f o r ma t i o n P r o v i d e d b y :...
Page 483 The repair manual outlines exactly what maintenance The repair manual for RAV4 may be purchased is required and clearly explains how to do the work from any Toyota dealer or the Material Distribu- yourself step−by−step.
Page 484 ’08 Rav4_U (L/O 0802) WE REALLY CARE ABOUT YOU PLEASE BUCKLE UP Toyota has made a special effort to encourage use of seat belts. Toyota belts are: Comfortable Easy to use Convenient We encourage you to use your belts every time you drive.

This manual is also suitable for:

2008 rav4

Toyota Rav4 Manual

1 2 Section −

1 3 Section −

1 4 Section −

1 5 Section −

1 6 Section −

1 7 Section −

1 8 Section −

1 9 Section −

1 10 Section −

2 Section

3 Section

4 Section

6 Section

7 1 Section −

7 2 Section −

7 3 Section −

8 Section

Quick Links

Chapters

Related Manuals for Toyota Rav4

Summary of Contents for Toyota Rav4
