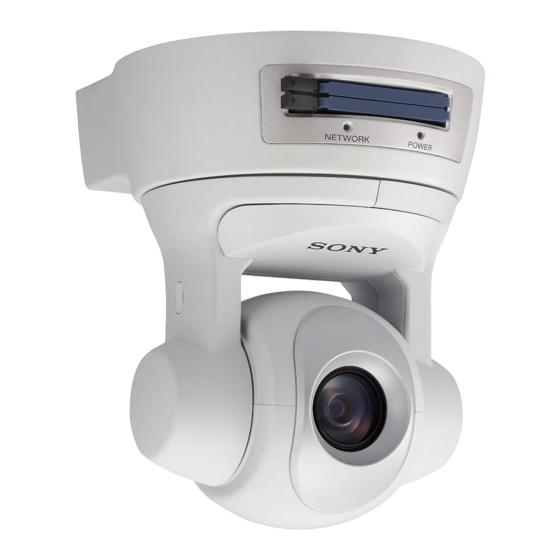

Sony SNC-RZ30N Service Manual

Hide thumbs Also See for SNC-RZ30N:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
NETWORK CAMERA
SNC-RZ30N
SNC-RZ30P
SERVICE MANUAL
1st Edition

Advertisement

Table of Contents
loading

Related Manuals for Sony SNC-RZ30N

Summary of Contents for Sony SNC-RZ30N

  • Page 1 NETWORK CAMERA SNC-RZ30N SNC-RZ30P SERVICE MANUAL 1st Edition...
  • Page 2 électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement. SNC-RZ30N/RZ30P (E)
  • Page 3 équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. ADVARSEL! Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. 1 (P) SNC-RZ30N/RZ30P (E)
  • Page 4 Gerät abschaltet und signalisiert “Batterie leer” oder nach längerer Gebrauchsdauer der Batterien “nicht mehr einwandfrei funktioniert”. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel. 2 (P) SNC-RZ30N/RZ30P (E)

  • Page 5: Table Of Contents

    2-1-2. Connection for Adjustment ............2-3 2-1-3. Precaution ................... 2-4 2-1-4. Adjusting Remote Commander ..........2-5 2-1-5. Data Processing ................2-6 2-2. Initialization of D, E, F, B, C Page Data ............. 2-7 2-3. Camera Adjustments ................. 2-13 SNC-RZ30N/RZ30P (E)
  • Page 6 Black spots, white spots and flaws on CCD ..........3-8 3-6. Power LED on front panel does not light ............ 3-9 3-7. Operation failure of pan and tilt ..............3-10 3-7-1. Operation failure of pan ............3-11 3-7-2. Operation failure of tilt ............. 3-13 SNC-RZ30N/RZ30P (E)
  • Page 7 Pan Position Detector Circuit ............. 4-6 5. Semiconductor Pin Assignments 6. Spare Parts 6-1. Notes on Repair Parts .................. 6-1 6-2. Exploded Views ..................6-2 6-3. Electrical Parts List ................... 6-10 6-4. Frame ......................6-17 6-5. Packing Materials & Supplied Accessories ..........6-17 SNC-RZ30N/RZ30P (E)
  • Page 8 SE-656 ....................8-1 MDR-19 ....................8-2 MDR-20 ....................8-6 SY-303 ....................8-7 Frame Wiring (Camera Block) ............... 8-12 Frame Wiring (Main Block) ..............8-13 9. Board Layouts MDR-20 ....................9-1 MDR-19 ....................9-2 SY-303 ....................9-4 SE-656 ....................9-6 SNC-RZ30N/RZ30P (E)

  • Page 9: Manual Structure

    Manual Structure Purpose of this manual This manual is the Service Manual of the Network Camera SNC-RZ30N/RZ30P. This manual contains the service overview, adjustments of after replacement board, troubleshooting, circuit function, semiconductor pin assignments, spare parts, block diagrams, schematic diagrams and board layouts.

  • Page 11: Service Overview

    1 to 3. When attaching the lower cover, be sure to align the projections of the camera block with the holes of the lower cover. Front cover Hooks 2. Attach the front cover in the reverse order of step 1. SNC-RZ30N/RZ30P (E)

  • Page 12: Pan Cover (F) And Pan Cover (B)

    4. Remove the two screws from the pan cover (L) and pan cover (R). Hooks Pan cover (R) Pan cover (L) Cover Pan cover (R) M 2x4 M 2x4 Holding-hooks Holding-hooks Cover Cover Groove Thin plastic card, etc. SNC-RZ30N/RZ30P (E)

  • Page 13: Pan Cover (R) And Pan Cover (L)

    (L) and pan cover (R) are not broken, then attach them securely. . When attaching the pan cover (F) and pan cover (B), be careful not to get the flexible flat cable caught in the covers. SNC-RZ30N/RZ30P (E)

  • Page 14: Base Cabinet

    8. Attach the base cabinet in the reverse order of steps 1 to 7. When attaching the base cabinet, be sure to securely attach the two projections to the two holes of the base chassis and attach one groove to one hook of the base chassis. SNC-RZ30N/RZ30P (E)

  • Page 15: Removal And Installation Of Camera Block

    11. Remove the shaft boss, then remove the camera block. Insulating plate Harness retainer Groove Flexible Coupling flat cables Camera block VC-292 MC-141 board board Groove Shaft Lock boss M 2x6.5 portion Flexible Connectors flat cable M 2.6x4 Tape Connector DC motor SNC-RZ30N/RZ30P (E)

  • Page 16: Lens Block

    11. Attach the lens block in the reverse order of steps 1 to When attaching the motor, be sure to align the groove of the motor with the groove of the lens chassis, then secure Groove Flexible flat cable the motor with one screw (M 2x3). SNC-RZ30N/RZ30P (E)

  • Page 17: Board

    VC-292 board Connector Camera block Flexible flat cable 6. Install the MC-141 board in the reverse order of steps 1 to 5. Camera block 6. Install the VC-292 board in the reverse order of steps 1 to 5. SNC-RZ30N/RZ30P (E)

  • Page 18: Board

    CCD and CCD holder. Hooks CD-400 board Base Grooves escutcheon CCD holder Base plate assembly Grooves Solders CCD block assembly M 2.6x4 11. Install the CD-400 board in the reverse order of steps 1 to 10. SNC-RZ30N/RZ30P (E)
  • Page 19 . When installing the SY-303 board, be careful not to get the flexible flat cable or harness caught in the board. SNC-RZ30N/RZ30P (E)

  • Page 20: Board And Se-656 Board

    11. Install the MDR-19 board and SE-656 board in the reverse order of steps 1 to 10. When installing the MDR-19 board and SE-656 board, be careful not to get the flexible flat cable or harness caught in the boards. 1-10 SNC-RZ30N/RZ30P (E)

  • Page 21: Flexible Flat Cable

    DC motor in the direction indicated by the arrow B. Cable guide assembly Projections Connector DC motor Flexible flat cable M 2x4 Cable retainer Flexible flat cables 12. Attach the flexible flat cables in the reverse order of steps 1 to 11. 1-11 SNC-RZ30N/RZ30P (E)

  • Page 22: Replacement Of Vanadium Lithium Battery

    1-6. Replacement of Vanadium Lithium Battery Use the following battery for replacement. Ref. No. Address Name Sony Part No. BT001 Vanadium Lithium 1-528-944-11 Battery (VL2330) 1. Remove the SY-303 board. (Refer to Section 1-4-5) 2. Remove the two solders from the SY-303 board, then remove the vanadium lithium secondary battery.

  • Page 23: Adjustments

    ..Light source for test chart J-6080-621-A Clear Chart J-6432-890-A FFC (21P) J-6431-930-A Relay Tool for Adjustment Commander J-6080-808-A ND Filter 1.0 J-6080-818-A ND Filter 0.3 ..White Balance Check SNC-RZ30N/RZ30P (E)
  • Page 24 ..RM-95 partly converted If the micro processor IC in the adjusting remote comm- ander is not the new micro processor (UPD7503G-C56- 12), the pages cannot be switched. In this case, replace with the new micro processor (8-759-148-35). SNC-RZ30N/RZ30P (E)

  • Page 25: Connection For Adjustment

    Vectorscope Adjustment commander (J-6082-053-B) Color monitor 75 Ω termination Connect the FFC (21P) (J-6432-890-A) tool so that pin 1 of CN901 on the MC-141 board should be connected to pin 21 of CN804 on the FCB interface board. SNC-RZ30N/RZ30P (E)

  • Page 26: Precaution

    1189 mm figure. Use the non-reflecting and non-glazing vellum paper whose size is more than A0, and make the boundary between white and black to be smoothly flat. SNC-RZ30N/RZ30P (E)

  • Page 27: Adjusting Remote Commander

    LCD Display 0 1 2 3 4 5 6 7 8 9 A b c d E F Decimal notation 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 conversion value SNC-RZ30N/RZ30P (E)

  • Page 28: Data Processing

    (Example) In the case that the DDS display and the adjusting remote commander display are BD (bd). As the upper digit of the hexadecimal notation is B (b), and the lower digit is D (d), the intersection “189” of the 1 and 2 in the above table is the decimal notation to be calculated. SNC-RZ30N/RZ30P (E)

  • Page 29: Initialization Of D, E, F, B, C

    3) When changing the data, press the PAUSE button of . NTSC model : SNC-RZ30N the adjusting remote commander each time when PAL model : SNC-RZ30P setting new data to write the data in the non-volatile memory.
  • Page 30 *1: Address and data are completed writing by the whole data setting *2: Address that setting cannot change by reason on servicing *3: Address that changes the data using camera adjustment *4: Address that copies the data built in the different model SNC-RZ30N/RZ30P (E)
  • Page 31 *1: Address and data are completed writing by the whole data setting *2: Address that setting cannot change by reason on servicing *3: Address that changes the data using camera adjustment *4: Address that copies the data built in the different model SNC-RZ30N/RZ30P (E)
  • Page 32 *2: Address that setting cannot change by reason on servicing *3: Address that changes the data using camera adjustment *4: Address that copies the data built in the different model 4. Preset data tables (PAL) Page: F 2-10 SNC-RZ30N/RZ30P (E)
  • Page 33 *1: Address and data are completed writing by the whole data setting *2: Address that setting cannot change by reason on servicing *3: Address that changes the data using camera adjustment *4: Address that copies the data built in the different model 2-11 SNC-RZ30N/RZ30P (E)
  • Page 34 *1: Address and data are completed writing by the whole data setting *2: Address that setting cannot change by reason on servicing *3: Address that changes the data using camera adjustment *4: Address that copies the data built in the different model 2-12 SNC-RZ30N/RZ30P (E)

  • Page 35: Camera Adjustments

    Frequency counter and Adjusting remote commander Adjustment Page . Terminate at 75 Z resistor and measure. Adjustment Address . NTSC model : SNC-RZ30N Pin 8 of IC302 : Specified Value f = 14.318181 MHz ± 68 Hz (NTSC) PAL model : SNC-RZ30P f = 14.187500 MHz ±...
  • Page 36 . Terminate at 75 Z resistor and measure. Specified Value When select page: 6, address: 01 and set data: 01, display data at . NTSC model : SNC-RZ30N page:1 is specified within 80 ± 02h. PAL model : SNC-RZ30P When select page: 6, address: 01 and set data: 03, display data at page:1 is specified within 16 ±...
  • Page 37 1) Turn off the power and then on the power again. 2) Perform the initializing of the focus zoom again. It is also required that release of the write protection during turn on the power. TV monitor picture frame Color bar chart picture frame 2-15 SNC-RZ30N/RZ30P (E)
  • Page 38 Burst position settle within each color reproduction frame. (Last page of this manual) NTSC model : SNC-RZ30N PAL model : SNC-RZ30P Adjusting method 1) Select page: 0, address: 01 and set data: 01. 2) Select page: 0, address: 01 and set data: 80.
  • Page 39 1. 9) Check that B ratio data is within specified value. 10) Set the memorized original data as described in item 2) to page: F and addresses: B8 to BB. 2-17 SNC-RZ30N/RZ30P (E)
  • Page 40 22.6 dC - 67.5 dC 67.6 dC - 112.5 dC 112.6 dC - 157.5 dC 157.6 dC - 202.5 dC 202.6 dC - 247.5 dC 247.6 dC - 292.5 dC 292.6 dC - 337.5 dC 337.6 dC - 22.5 dC 2-18 SNC-RZ30N/RZ30P (E)
  • Page 41 Figure C. 3 mm Processing after Completing Adjustments 2.0 mm 1) Select page: 2, address: 01, and set data: 00, and press 3 mm the PAUSE button of the adjusting remote commander. 1.0 mm Figure C 2-19 SNC-RZ30N/RZ30P (E)
  • Page 42 ! or dotted line with mark pour la sécurité. ! are critical for safety. Ne les remplacer que par une Replace only with part number piéce portant le numéro spécifié. specified. CRT picture frame Fig. b (Picture on monitor TV) 2-20 SNC-RZ30N/RZ30P (E)

  • Page 43: Pan / Tilt Adjustments

    EEPROM is deleted. 5. Connect an AC adaptor to DC IN connector of the 6. Set the pan to center position (SONY logo in front SNC-RZ30N/30P, then turn on the power of the SNC- position). Set the tilt with the lens side up.

  • Page 44: Pan / Tilt Adjustments

    Adjustment button. 2. Confirm the following specification is satisfied. Specification: . “Complete Phase-switch-adjust PAN” After completing the adjustment, the SNC-RZ30N/RZ30P should be displayed on the screen of restarts automatically. Wait until pan/tilt are turned to . Check mark should be located in the front position, then, proceed with the next adjustment.

  • Page 45: Zoom And Af Checking

    81 01 04 4B 00 00 00 00 FF 81 01 04 34 02 FF Stabilizer function ON Close of IRIS 3. Move the SNC-RZ30N/RZ30P to sideways quickly, After 5 seconds then confirm the following specification is satisfied. 81 01 04 39 00 FF...

  • Page 46: Pan/Tilt Operation Check

    1. Click Disconnect button in RC-232C column of the Pan/Tilt Adjuster screen. 2. Turn off the power of SNC-RZ30N/RZ30P, then remove the terminal table tool and coaxial cable. 3. Change the DIP switch S001 setting to 0000 of the SY-303 board.
  • Page 47 5. Confirm the following specification is satisfied. Specification: . “Complete!” should be indicated in 5. Connect an AC adaptor to DC IN connector on the SNC-RZ30N/30P, turn on the power of the SNC- Status column. . Text box of Serial Number should be RZ30N/RZ30P.

  • Page 48: Overall Checking

    . Memory Stick (16 MB and higher) and PC Card adaptor (MSAC-PC2) 5. Connect an AC adaptor to DC IN connector of the SNC-RZ30N/RZ30P. 6. Turn on the power of the SNC-RZ30N/RZ30P. (This should be performed that SNC-RZ30N/RZ30P is assembling state completely) Confirmation for RTC Confirm the RTC is backed up by the secondary battery.

  • Page 49: Reconfirmation For Pan/Tilt Operations

    Sensor1, Sensor2, Sensor3 Specification: No jitter images should display on the Available period: Always TV monitor. Alarm duration: 1 4. Click Alarm out2 menu, check the radio button in the “Use alarm out2 function” section. Then, click OK button. 2-27 SNC-RZ30N/RZ30P (E)

  • Page 50: Confirmation For Pc Card Slot

    (Confirmation for RS-232C → Ethernet) Procedure after Confirmation 1. Disconnect the AC adaptor (MPA-AC1) from DC IN connector of the SNC-RZ30N/RZ30P. 2. Turn off the power of the SNC-RZ30N/RZ30P. 3. Close the terminal software (hyper terminal) on PC. 2-28 SNC-RZ30N/RZ30P (E)

  • Page 51: Confirmation For Rs-485

    SNC-RZ30N/RZ30P while pressing the reset switch. 6432-870-A). Connect D-sub pins 25 (male) of RS- 2. Turn on the power of the SNC-RZ30N/RZ30P. 232C cross cable to RS-485 5 RS-232C, and 3. After Power indicator is lit in green on the front, select connect D-sub pins 9 (female) of RS-232C cross cable http://192.168.0.100 from the list box in address...

  • Page 52: Setting For Hyper Terminal

    “Save” and type the File name on the File name box. (LED side). Then, save this setting state. 6. Connect the AC adaptor to DC IN connector on the SNC-RZ30N/30P, turn on the power of the SNC- RZ30N/RZ30P. (Confirm the Power LED blinking 2-8. Update of Software (Debug mode)) 7.

  • Page 53: Normal Mode

    PC card. 2. Disconnect the AC adaptor to DC IN connector of the 13. Confirm the check marks are located on the RTC, SNC-RZ30N/RZ30P, turn off the power of the SNC- System and WEB items in Program column. RZ30N/RZ30P.
  • Page 54 2. Disconnect the AC adaptor to DC IN connector of the SNC-RZ30N/30P. SNC-RZ30N/RZ30P, turn off the power of the SNC- 7. Confirm the Power LED is lit of the SNC-RZ30N/30P. RZ30N/RZ30P. (Confirmation of normal mode) 8. Start the browser (internet explorer) of PC.

  • Page 55: Troubleshooting

    Go to A (page 3-2) input to 1-pin of CN1001 on the MDR-19 board? Are CN1001, FB1004, FB1005, TH1001, TH1002, IC1001, IC1002 and IC1003 on the MDR-19 board correctly soldered? Solder the parts that are Replace the MDR-19 board. not correctly soldered. SNC-RZ30N/RZ30P (E)
  • Page 56 (MDR-19 board) and CN401 (SY-303 board)? Does the AC adapter Replace the AC adapter. normally operate? Are CN301, FB301, Q303, FB317 and Solder the parts that are CN401 on the SY-303 board not correctly soldered. correctly soldered? Replace the SY-303 board. SNC-RZ30N/RZ30P (E)

  • Page 57: Initial Operation Of Motor Is Normal But Pc Image And Tv Picture Are Ng (When The Power Led Is Lit)

    Is the flexible flat cable (FA1) correctly connected to CN901 on the MC-141 board of the camera block? Connect the flexible flat cable (FA1) to CN901 Replace the flexible flat cable (FA1). on the MC-141 board correctly. SNC-RZ30N/RZ30P (E)
  • Page 58 CN301 (VC-292 board) and CN902 (MC-141 board)? Replace the flexible flat Connect the flexible flat cable (FFC305) correctly. cable (FFC305). Do the lens and lens iris operate normally? Replace the VC-292 Replace the lens block. board. SNC-RZ30N/RZ30P (E)

  • Page 59: Initial Operation Of Motor And Tv Picture Are Normal But Pc Image Is Ng (When The Power Led Is Lit)

    (FA1) SY-303 correctly. correctly. Is the signal of CN402 on the SY-303 board correct? Is the signal of CN302 on the VC-292 board correct? Replace the SY-303 board. Replace the VC-292 board. Replace the flexible flat cable (FA1). SNC-RZ30N/RZ30P (E)

  • Page 60: Initial Operation Of Motor And Pc Image Are Normal But Tv Picture Is Ng (When The Power Led Is Lit)

    IC902 on the _ side of C909 on the MC-141 board of the camera head normal? Are the outputs of 2-pin and 4-pin of Go to E (page 4-7) CN902 on the MC-141 board of the camera head normal? Replace the MC-141 board. SNC-RZ30N/RZ30P (E)
  • Page 61 Replace the flexible flat cable (FFC305). Out of focus Send the lens reset command of the VISCA communication command to the camera head. (Refer to the command list in Section 2) No problem Still output focus? Replace the lens. SNC-RZ30N/RZ30P (E)

  • Page 62: Black Spots, White Spots And Flaws On Ccd

    (Refer to the command list in Section 2) Not corrected or spots and flaws increased Are the black spots, Replace the CCD. white spots and flaws on CCD corrected? Corrected No problem if the spots and flaws are within specifications. SNC-RZ30N/RZ30P (E)

  • Page 63: Power Led On Front Panel Does Not Light

    SY-303 board board. correctly supplied? Are 5 V to 1-pin and 3.3 V to 4-pin of CN1008 Replace the MDR-19 on the MDR-19 board board. correctly supplied? Connect the harness (PWR1) securely. If the trouble persists, replace the PWR1. SNC-RZ30N/RZ30P (E)

  • Page 64: Operation Failure Of Pan And Tilt

    MDR-19 board, SM1 or FA1. Pan and tilt do not operate after initialization. Are the harness Connect PWR1 and SM1 correctly. (PWR1) and flexible flat cable (SM1) correctly connected? Normal Replace the part; SY-303 board, MDR-19 board or SM1. 3-10 SNC-RZ30N/RZ30P (E)

  • Page 65: Operation Failure Of Pan

    After this, the pan does not operate normally. Is the harness (SEN1) Connect the harness correctly connected? (SEN1) correctly. Check the signal around the connector, then replace the SE-656 board, MDR-19 board or SEN1. 3-11 SNC-RZ30N/RZ30P (E)
  • Page 66 Reassemble the unit. moved in pan direction (right and left) by hand in the state of power off? After readjusting Replace the pan motor. the pan and tilt, does the pan operate smoothly? Normal 3-12 SNC-RZ30N/RZ30P (E)

  • Page 67: Operation Failure Of Tilt

    Reassemble the unit. moved in pan direction (right and left) by hand in the state of power off? After readjusting Replace the tilt motor. the pan and tilt, does the tilt operate smoothly? Normal 3-13 SNC-RZ30N/RZ30P (E)

  • Page 69: Circuit Operation Description

    (H8 microcomputer on the MDR-19 board), the external interface (RS-232, RS-485, sensor input, and alarm output) control, the LED control, the clock generation (output of a 30 MHz clock to IC006), the interrupt control, the RTC (IC001) control, the software reset (XSRST) control. SNC-RZ30N (E)

  • Page 70: System Rom

    Clock buffer IC006 buffers a clock of 30 MHz from SH CPU (IC007) and supplies a stable clock to the system memory (SDRAM, IC008 and IC010) (SR1_CLK and SR2_CLK), PC card controller (IC201) (PC_CLK), or MJPEG controller ASIC (IC103) (SYCLK). SNC-RZ30N (E)

  • Page 71: Pc Card Control Block

    RS-485. This communication block can communicate in serial with the external equipment when it is connected with external equipment from the terminal board connector of CN304. Since RS-232 and RS-485 share the communication port of HD6417615 (IC007), they are switched using the select signal (IF_SEL) from HD6417615 (IC007). SNC-RZ30N (E)

  • Page 72: Board Interface Connector

    (TILT_MRFG[2:1]) for position detection. The tilt motor outputs a PWM signal (TILT_PWM), polarity switching signals (TILT_POL_U, V, and W), and phase selection signals (TILT_PHASE_U, V, and W) to control a motor. For the data of EEPROM (IC1006), the position information of each motor is mainly stored in parallel. SNC-RZ30N (E)

  • Page 73: Pan Motor Control Circuit

    The backup switching circuit (IC1104) switches the normal power to the battery power simultaneously when it detects a power failure. Moreover, the backup switching circuit outputs a reset signal to reset a microcomputer (IC1005) when the voltage of a battery decreases. SNC-RZ30N (E)

  • Page 74: Led Circuit

    4-4-1. Pan Position Detector Circuit When the pan position reaches the end point, a signal is output from photo-interrupters (PH1201 and PH1202) and sent through connectors (CN1201 to CN1004 (pin 4)) to the microcomputer (IC1005) on the MDR-19 board. SNC-RZ30N (E)
  • Page 75 In addition, for semiconductors with ID Nos., refer to the separate CD-ROM titled “Semiconductor Pin Assignments” (Sony Part No. 9-968-546-xx) that allows searching for parts by semiconductor type or ID No. The semiconductors in the manual or on the CD-ROM are listed by equivalent types.
  • Page 76 TC74LCX04FT(EL) ............TC74HC04P TC74VHC32FT(EL) ............. TC74HC32P TC7S04FU(TE85R) ............TC7S04F TC7S04FU-TE85R ............TC7S04F TC7S14FU(TE85R) ............TC7S14FU TC7SH04FU ..............TC7S04F TC7SH04FU-TE85R ............TC7S04F TPS2205IDBR ................5-3 UPD65454GL-231-NMU ............5-10 OTHERS Page or ID No. GP1S092HCPI ..............MR010-08 TLP181(GR-TPR) ............MC004-02 SNC-RZ30N/RZ30P (E)
  • Page 77 A VPP VCC A VCC5 A VCC5 A VCC3 A VCC3 D0 - D7 B VPP PGM B VPP PGM B VPP VCC B VPP VCC B VCC5 B VCC5 B VCC3 B VCC3 SHDN 3.3V 3.3V 3.3V SNC-RZ30N/RZ30P (E)
  • Page 78 SCK1, SCK2 : SERIAL CLOCK — PB13/TXD1 ETXD1 STS0 - STS2 : SERIAL TRANSMIT SYNCHRONIZATION — PB12/SRCK2/ /STATS1 ETXD2 — ETXD3 TIOCA0 - TIOCA2, : TPU INPUT CAPTURE/OUTPUT COMPARE — PB11/SRS2/ /STATS0 TXER TIOCB0 - TIOCB2, TIOCC0, TIOCD0 SNC-RZ30N/RZ30P (E)
  • Page 79 /BLOCK LOCK ENABLE DQ14 : INV DRIVER OUTPUT/RECEIVER INPUT : WRITE ENABLE OUTPUT DQ13 : STATUS INPUTS/OUTPUTS DQ12 DQ0 - DQ7 : LOW-BYTE DATA BUS DQ8 - DQ15 : HIGH-BYTE DATA BUS OTHER : NO CONNECTION DQ11 DQ10 BYTE SNC-RZ30N/RZ30P (E)
  • Page 80 P15/PO13/TIOCB1/TCLKC PA7/A23/IRQ7 P23/PO3/TIOCD3/TMCI0 P14/PO12/TIOCA1 P67/CS7/IRQ3 P22/PO2/TIOCC3/TMRI0 P13/PO11/TIOCD0/TCLKB P66/CS6/IRQ2 P21/PO1/TIOCB3 P12/PO10/TIOCC0/TCLKA P65/IRQ1 P20/PO0/TIOCA3 P11/PO9/TIOCB0/DACK1 P64/IRQ0 WDTOVF P10/PO8/TIOCA0/DACK0 — PE0/D0 PE1/D1 STBY PE2/D2 — PG0/CAS PE3/D3 XTAL PG1/CS3 — EXTAL PG2/CS2 PE4/D4 — PG3/CS1 PE5/D5 PF7/ PG4/CS0 : For HD64F2328VTE25 SNC-RZ30N/RZ30P (E)
  • Page 81 IRQ2 P32/RxD0 P66/ IRQ1 P31/TxD1 P65/ CONVERTER IRQ0 P30/TxD0 P64/ TEND1 IRQ4 P63/ CONVERTER P50/T DREQ1 P62/ IRQ5 P51/R TEND0/CS5 IRQ5 P61/ P52/SCK2/ DREQ0/CS4 P60/ ADTRG P53/ IRQ7 WAIT BREQO PORT 1 PORT 2 PORT 4 *:For HD64F2328VTE25 SNC-RZ30N/RZ30P (E)
  • Page 82 CA6 A — TEST CVS2 A CA19 B RA25 — CWE PGM B CA5 A RA24 SIRQ3 — SYSTEM V CA20 B RA23 SIRQ2 — CRDY BSY IREQ B RA22 SIRQ1 CRESET A CA21 B — SYSTEM V SIRQ0 SNC-RZ30N/RZ30P (E)
  • Page 83 131, 133,141, 151 CVS1, CRDY XBSY IREQ, CVS2, CWAIT, CARD STATUS CHANGE CINPACK, CBVD2 SPKR, CBVD1 STSCHG, CWP XIOIS16, CARD PW GOOD CARD CLK 87, 90 CCE1, CCE2 143 - 146 CVCC3 CVCC5 CVPP1, CVPP0, 76, 142 CCD1, CCD2 SNC-RZ30N/RZ30P (E)
  • Page 84 XJINT CAMY 7 — SHD 9 JCODE 0 CAMC 0 SYCLK SHD 8 JCODE 1 — XSHRWDIR SHD 7 JCODE 2 SRD 11 XSHWE 3 SHD 6 JCODE 3 SRD 12 XSHWE 2 SHD 5 JCODE 4 5-10 SNC-RZ30N/RZ30P (E)

  • Page 85: Spare Parts

    Therefore, specified parts should be used in the case of replacement. 2. Standardization of Parts Some repair parts supplied by Sony differ from those used for the unit. These are because of parts common- ality and improvement. Parts list has the present standardized repair parts.

  • Page 86: Exploded Views

    Cover 6-2. Exploded Views Part No. SP Description 4-643-832-02 s DUMMY CARD (PC/ABS) 4-644-492-71 s ACE (M2), LOCK 1-468-626-31 s ADAPTOR, AC SNC-RZ30N/RZ30P (E)
  • Page 87 Part No. SP Description 3-053-973-01 s RUBBER (W), SEAL A-7012-749-A s LENS BLOCK ASSY (NTSC) 3-318-203-11 s SCREW +BTP 1.7X6 (for SNC-RZ30N (UC)) 3-620-526-02 s INSULATOR(1) A-7012-754-A s LENS BLOCK ASSY (PAL) 3-620-527-02 s INSULATOR(2) (for SNC-RZ30P (CE)) 3-620-681-01 s SET SCREW (M2WP)
  • Page 88 Chassis Block 1 FROM CAMERA ASSY FROM CAMERA ASSY MC-141 VC-292 SNC-RZ30N/RZ30P (E)
  • Page 89 3-647-924-03 o COVER(LOWER), CABLE 3-647-941-03 o RETAINER,PC BOARD 3-647-942-02 o BOSS,SHAFT 3-941-343-21 s TAPE (A) (28X9) (FAB-NW+PSA) 4-644-492-21 s ACE (M2), LOCK 4-644-492-71 s ACE (M2), LOCK 4-644-493-11 s ACE (M2.6), LOCK 8-835-740-02 s MOTOR, DC SPZ12A/J-N 7-685-102-19 s SCREW +PTP2X4 SNC-RZ30N/RZ30P (E)
  • Page 90 Chassis Block 2 SNC-RZ30N/RZ30P (E)
  • Page 91 Chassis Block 2 Part No. SP Description A-8345-348-A s MOUNTED CIRCUIT BOARD, SE-656 3-647-926-01 o RESTRAIN, CABLE 4-644-492-71 s ACE (M2), LOCK 4-644-493-11 s ACE (M2.6), LOCK 8-835-739-01 s MOTOR, DC SPZ11A/J-N SNC-RZ30N/RZ30P (E)
  • Page 92 Chassis Block 3 MDR-20 VC-292 SE-656 TO MC-141 TO DC MOTOR PZ11A/J-N SNC-RZ30N/RZ30P (E)
  • Page 93 Chassis Block 3 Part No. SP Description A-8279-807-A s MOUNTED CIRCUIT BOARD, SY-303(N)(RP) (for SNC-RZ30N (UC)) A-8279-808-A s MOUNTED CIRCUIT BOARD, SY-303(P)(RP) (for SNC-RZ30P (CE)) A-8346-161-A s MOUNTED CIRCUIT BOARD, MDR-19 1-824-542-11 s CABLE, FLEXIBLE FLAT 1-824-544-11 s CABLE, FLEXIBLE FLAT (12 CORE) 3-064-340-01 s TAPE, VF 3-696-947-01 s SCREW(+B2.5X5)

  • Page 94: Electrical Parts List

    C1055 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C1056 1-135-366-11 s CAPACITOR ELECT 100MF (SMD) C1057 1-115-670-11 s CAPACITOR ELECT 220MF/35V(CHIP C1058 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012) C1059 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C1060 1-135-366-11 s CAPACITOR ELECT 100MF (SMD) 6-10 SNC-RZ30N/RZ30P (E)
  • Page 95 1-218-977-11 s RESISTOR,CHIP 100K 1/16W(1005) TP1010 1-535-757-11 s CHIP, CHECKER (CONNECTOR) R1005 1-218-965-11 s RESISTOR, CHIP 10K 1/16W TP1011 1-535-757-11 s CHIP, CHECKER (CONNECTOR) R1006 1-218-965-11 s RESISTOR, CHIP 10K 1/16W TP1012 1-535-757-11 s CHIP, CHECKER (CONNECTOR) 6-11 SNC-RZ30N/RZ30P (E)
  • Page 96 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1102 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1103 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1104 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1105 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R1106 1-218-965-11 s RESISTOR, CHIP 10K 1/16W 6-12 SNC-RZ30N/RZ30P (E)
  • Page 97 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C047 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C048 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C049 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C050 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C051 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C052 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V 6-13 SNC-RZ30N/RZ30P (E)
  • Page 98 C150 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C322 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B C151 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C323 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF C152 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V C324 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF 6-14 SNC-RZ30N/RZ30P (E)
  • Page 99 8-719-037-25 s DIODE RD13SB-T1 IC301 6-702-691-01 s IC BCM5221A4KPT D318 8-719-037-25 s DIODE RD13SB-T1 IC302 8-759-058-58 s IC TC7S04FU-TE85R IC303 8-759-484-69 s IC MAX3221CAE D319 8-719-037-25 s DIODE RD13SB-T1 IC304 6-702-671-01 s IC MAX3483CSA-TG068 D320 8-719-037-25 s DIODE RD13SB-T1 6-15 SNC-RZ30N/RZ30P (E)
  • Page 100 R111 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R419 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005) R112 1-218-965-11 s RESISTOR, CHIP 10K 1/16W R420 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005) R204 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005) 6-16 SNC-RZ30N/RZ30P (E)

  • Page 101: Frame

    1-575-131-61 s CORD, POWER 1pc *1 1-757-562-21 s CORD, POWER 3-620-375-11 s INSTALLATION MANUAL *2 3-620-375-21 s INSTALLATION MANUAL 3-620-525-01 s CD-ROM 3-970-626-01 s FOOT (TOGETHER PACKING) 4-075-110-01 o BAG, PROTECTION 4-884-982-00 s SCREW,STEP 7pcs 7-682-947-01 s SCREW +PSW 3X6 6-17 SNC-RZ30N/RZ30P (E)

  • Page 103: Block Diagrams

    IF_SEL MANUAL RESET SW IC301 X301 IC304 _TX/RX IC302 TX CLK RS485 +TX/RX RX CLK IC002 25 MHz DRIVER INVERTER RESET IC XEXT_RTS CN302 CHIP CONTROL TXD+, TXD_ RJ-45 IC004 (INTEGRATED XRESET RXD+, RXD_ RESET MAGNATICS) Overall BUFFER SNC-RZ30N/RZ30P (E)

  • Page 105: Schematic Diagrams

    SE-656 SE-656 Section 8 Schematic Diagrams R1202 R1204 R1201 R1203 PH1201 PH1202 GP1S092HCPI GP1S092HCPI CN1201 3.3V PAN R DET PAN L DET GND (3.3V) SE-656 SNC-RZ30N/RZ30P (E)

  • Page 106: Mdr-19

    P67/CS7/IRQ3 P62/DREQ1 P66/CS6/IRQ2 P61/TEND0/CS5 C1059 0.1uF R1010 4.7k C1017 C1018 0.1uF 0.1uF R1041 R1042 TP1003 TP1004 TP1005 Connector for Flash R1008 1774-710-41 IC1017 R1009 CN1003 TC7S14FU(TE85R) GND (3.3V) RESET GND (3.3V) R1007 S1001 Flash Write SW MPC VCC SNC-RZ30N/RZ30P (E)
  • Page 107 H8 DEBAG GND SY303 <-> MDR-20 BORAD Connecter CN1005 BATTELE +3.0V +3V(BATTERY) R1030 SH-H8 VISCA TXD SERI1_OUT(SH-H8) SH-H8 VISCA RXD R1031 SERI1_IN(SH-H8) GND(SH-H8) N.C. Camera VISCA TXD SERI_OUT2(H8-Camera) Camera VISCA RXD SERI_IN2(H8-Camera) GND(H8-Camera) PHY_LED_CTR0 PHY_LED_CTR1 POWER_LED_CTR DGND MDR-19 (1/2) SNC-RZ30N/RZ30P (E)
  • Page 108 P67/CS7/IRQ3 P62/DREQ1 P66/CS6/IRQ2 P61/TEND0/CS5 C1059 0.1uF R1010 4.7k C1017 C1018 0.1uF 0.1uF R1041 R1042 TP1003 TP1004 TP1005 Connector for Flash R1008 1774-710-41 IC1017 R1009 CN1003 TC7S14FU(TE85R) GND (3.3V) RESET GND (3.3V) R1007 S1001 Flash Write SW MPC VCC SNC-RZ30N/RZ30P (E)
  • Page 109 H8 DEBAG GND SY303 <-> MDR-20 BORAD Connecter CN1005 BATTELE +3.0V +3V(BATTERY) SH-H8 VISCA TXD R1030 SERI1_OUT(SH-H8) SH-H8 VISCA RXD R1031 SERI1_IN(SH-H8) GND(SH-H8) N.C. Camera VISCA TXD SERI_OUT2(H8-Camera) Camera VISCA RXD SERI_IN2(H8-Camera) GND(H8-Camera) PHY_LED_CTR0 PHY_LED_CTR1 POWER_LED_CTR DGND MDR-19 (2/2) SNC-RZ30N/RZ30P (E)

  • Page 110: Mdr-20

    MPC17A29ZVMEL PH1101 PH1102 GP1S092HCPI GP1S092HCPI C1128 0.1uF R1114 R1117 R1112 R1113 D1103 R1104 MA111-TX IN1A OUT1A R1105 IN1B IN2A OUT1B R1106 C1104 0.1uF IN2B OUT2A C1124 OUT2B IC1108 (2/2) 0.01uF TC7SH04FU-TE85R C1125 C1126 0.01uF 0.01uF IC1109 MPC17A29ZVMEL MDR-20 SNC-RZ30N/RZ30P (E)

  • Page 111: Sy-303

    IC002 R025 FB004 SR2_CLK C037 R030 MB3771PF-ER CLK4 R005 C027 C032 C036 0.1uF S002 R034 C005 0.1uF 680pF 0.1uF FOUT 0.1uF 4.7k XRES ASEMODE VSS(ASEMODE) VSB/RESIN OUTC C059 R010 3.3k R013 3.3k C003 4.7uF IC004 SY-303 (1/5) SN74LVC14APWR SNC-RZ30N/RZ30P (E)
  • Page 112 1-303, 2-304, 19-20, 28-29, 37-39, 38-41, 57-58, 66-67, 75-77, 76-78, 113-115, 114-116, 151-153, 152-154, 161-162, 171-172, 189-191, 190-192, 209-210, 219-221, 227-229, 228-230, 236-237, 254-256,265-267 IC101 226-268, 274-275, 292-293 CY7C1021BV33-15ZCT VSS1 VSS2 CAMC 005-B5 CAMY 005-B5 XSRST CCLK 005-B6 005-B7 005-B7 SY-303 (2/5) 005-B7 005-B7 SNC-RZ30N/RZ30P (E)
  • Page 113 (127/141) (128/141) CD10_A CN201 CN201 CD10_B D10_A D10_B (129/141) (130/141) CN201 CN201 IOIS16#_A IOIS16#_B (131/141) (132/141) CN201 CN201 CD2#_A CD2#_B (133/141) (134/141) CN201 CN201 (135/141) (136/141) CN201 CN201 (138/141) (137/141) CN201 CN201 (139/141) (140/141) CN201 (141/141) SY-303 (3/5) SNC-RZ30N/RZ30P (E)
  • Page 114 TC7S04FU(TE85R) 0.1uF +3.3V +3.3V RS-485 DRIVER D302 IF_SEL MA111-TX RY302 R309 R316 6.8k 4.7k C312 0.1uF R331 R332 IC304 R317 MAX3483CSA-TG068 4.7k PH303 D305 MA111-TX EXT_RXD TLP181(GR-TPR) R329 R337 EXT_TXD XEXT_RTS R333 001-C3 EXT_RS_IF SY-303 (4/5) 8-10 8-10 SNC-RZ30N/RZ30P (E)
  • Page 115 GND(VBS) GND(VBS) VBS_GND 004-I2 N.C. GND(H8-Camera) GND(H8-Camera) SERI2_IN(H8-Camera) FB401 SERI2_OUT(H8-Camera) L401 GND(H8-Camera) GND(Camera 12V) GND(Camera 12V) DC_IN(Camera 12V) DC_IN(Camera 12V) DC_IN(Camera 12V) C412 C424 100uF 0.1uF DC_IN(Camera 12V) GND(Camera 12V) GND(Camera 12V) DGND DGND SY-303 (5/5) 8-11 8-11 SNC-RZ30N/RZ30P (E)

  • Page 116: Frame Wiring (Camera Block)

    CCD_OUT CCD_OUT CAMY[4] CAMY[3] CAMY[2] CAMY[1] CAMY[0] CD-400 CAMC[3] SY-303 15 V 15 V CAMC[2] VC-292 _7.5 V _7.5 V CAMC[1] CN402 VSHT VSHT CAMC[0] DGND CCLK DGND DGND DGND Frame Wiring (Camera Block) TO LENS 8-12 8-12 SNC-RZ30N/RZ30P (E)

  • Page 117: Frame Wiring (Main Block)

    TILT_PHASE_U TILT_PHASE_V TILT_PHASE_V SE-656 BOARD TILT_PHASE_W TILT_PHASE_W TILT_HOLE_H1 TILT_HOLE_H1 TILT_HOLE_H2 TILT_HOLE_H2 CN1201 CN1004 TILT_HOLE_H3 TILT_HOLE_H3 +3.3V +3.3V TILT_MR_FG1 TILT_MR_FG1 PAN_R_DET PAN_R_DET TILT_MR_FG2 TILT_MR_FG2 PAN_L_DET PAN_L_DET TILT_UP_DET TILT_UP_DET TILT_DOWN_DET TILT_DOWN_DET MDR-20(MOTOR DRIVER BOARD) Frame Wiring (Main Block) 8-13 8-13 SNC-RZ30N/RZ30P (E)

  • Page 119: Board Layouts

    IC1102 C1113 C1112 D1101 C1111 D1103 D1102 C1106 C1107 C1115 C1116 L1103 L1104 C1131 IC1108 C1129 C1130 IC1101 MDR-20 MDR-20 MDR-20 MDR-20 -A SIDE- -A SIDE- -B SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 SUFFIX: -11 SUFFIX: -11 SNC-RZ30N/RZ30P (E)
  • Page 120 C1060 C1012 TP1008 D1002 IC1005 TP1009 R1040 IC1013 R1039 R1038 L1004 C1018 R1004 C1050 IC1004 R1003 CL1002 CL1006 C1015 CL1004 CL1008 R1045 R1050 TP1003 IC1017 FB1003 D1005 D1004 MDR-19 MDR-19 -A SIDE- -A SIDE- SUFFIX: -11 SUFFIX: -11 SNC-RZ30N/RZ30P (E)
  • Page 121 R1023 R1024 IC1009 C1051 C1055 C1053 C1035 C1033 C1036 C1032 IC1016 IC1010 C1052 D1008 C1037 C1043 D1007 R1030 FB1007 L1006 R1031 R1014 R1015 R1016 X1001 R1012 IC1006 C1017 MDR-19 MDR-19 -B SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 SNC-RZ30N/RZ30P (E)
  • Page 122 IC001 R008 C132 D307 C021 PH301 R307 D321 D002 C002 TP401 C001 C139 C140 FB401 CN301 IC102 C418 C417 C021 CN401 IC101 R336 C103 C105 C106 S301 BT001 SY-303 SY-303 -A SIDE- -A SIDE- SUFFIX: -11 SUFFIX: -11 SNC-RZ30N/RZ30P (E)
  • Page 123 R011 D308 C204 R313 R312 C207 FB303 R206 FB304 R007 C023 D306 C026 R033 C022 C020 C112 C111 R335 D332 R334 FB301 C104 C101 FB317 Q303 S002 S001 SY-303 SY-303 -B SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 SNC-RZ30N/RZ30P (E)
  • Page 124 SE-656 SE-656 SE-656 SE-656 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 PH1202 PH1201 R1201 R1204 CN1201 R1202 R1203 SE-656 SE-656 -A SIDE- -B SIDE- SUFFIX: -11 SUFFIX: -11 SNC-RZ30N/RZ30P (E)
  • Page 125 VECTORSCOPE SCALE Copy on a transparent sheet. <For NTSC model> Burst position <For PAL model> Burst position SNC-RZ30N/RZ30P (E)
  • Page 127 20 V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set 0.15 µ F 1.5 k Z voltmeter (5.25V) Earth Ground Fig A. Using an AC voltmeter to check AC leakage. SNC-RZ30N/RZ30P (E)
  • Page 128 SNC-RZ30N (UC) Printed in Japan Sony Corporation SNC-RZ30P (CE) E 2002. 12 22 B&P Company 9-955-377-01 ©2002...
