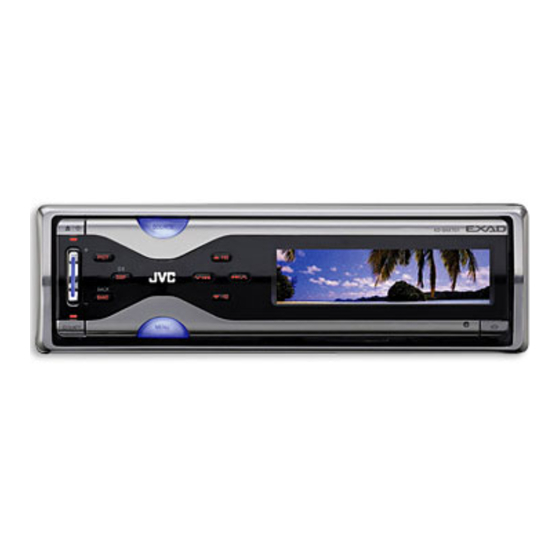

3 7 63 1515 0 SERVICE MANUAL CD RECEIVER MA047 2004 KD-SHX701, KD-SHX701T KD-SHX701 Area suffix E ---------- Continental Europe KD-SHX701T Area suffix E ---------- Continental Europe SOURCE KD-SHX701 L 13942296513 EX -------------- Central Europe TP/PTY BAND EU ------------------------- Turkey...
http://www.xiaoyu163.com 3 7 63 1515 0 SPECIFICATION AUDIO AMPLIFIER SECTION Maximum Power Output Front 50 W per channel Rear 50 W per channel 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more Continuous Power Output Front (RMS) than 0.8% total harmonic distortion.
http://www.xiaoyu163.com SECTION 1 3 7 63 1515 0 PRECAUTIONS Safety Precautions Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
Page 4
http://www.xiaoyu163.com Preventing static electricity 3 7 63 1515 0 Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs. 1.2.1 Grounding to prevent damage by static electricity Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Page 5
http://www.xiaoyu163.com Important for laser products 3 7 63 1515 0 5.CAUTION : If safety switches malfunction, the laser is able 1.CLASS 1 LASER PRODUCT to function. 2.DANGER : Invisible laser radiation when open and inter 6.CAUTION : Use of controls, adjustments or performance of lock failed or defeated.
http://www.xiaoyu163.com SECTION 2 3 7 63 1515 0 SPECIFIC SERVICE INSTRUCTIONS This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS. L 13942296513 u163 1-6 (No.MA047) http://www.xiaoyu163.com...
http://www.xiaoyu163.com SECTION 3 3 7 63 1515 0 DISASSEMBLY Main body section 3.1.1 Removing the front panel assembly (See Fig.1) (1) Push the detach button in the lower right part of the front Front panel assembly panel assembly. (2) Remove the front panel assembly. Detach button Fig.1 3.1.2 Removing the heat sink...
http://www.xiaoyu163.com 3.1.3 Removing the top chassis assembly 3 7 63 1515 0 (See Figs.3 to 6) • Prior to performing the following procedures, remove the heat sink. Reference: Bottom chassis assembly Remove the front panel assembly as required. (1) From the bottom side of the main body, remove the two screws C attaching the top chassis assembly to the bottom chassis assembly.
Page 9
http://www.xiaoyu163.com 3.1.4 Removing the front chassis 3 7 63 1515 0 (See Figs.7 and 8) • Prior to performing the following procedure, remove the front Top chassis assembly panel assembly, heat sink and top chassis assembly. (1) From the both sides of the top chassis assembly, remove the two screws E attaching the front chassis.
Page 10
http://www.xiaoyu163.com 3.1.6 Removing the main board 3 7 63 1515 0 (See Figs.10 and 11) • Prior to performing the following procedures, remove the front Rear bracket panel assembly, heat sink and top chassis assembly. (1) From the rear side of the bottom chassis assembly, remove the two screws G attaching the rear bracket to the bottom chassis assembly.
Page 11
http://www.xiaoyu163.com 3.1.8 Removing the front door mechanism assembly 3 7 63 1515 0 (See Fig.13) • Prior to performing the following procedures, remove the front Front door mechanism assembly panel assembly, heat sink, top chassis assembly and main Bottom chassis board.
Page 12
http://www.xiaoyu163.com CD mechanism assembly 3 7 63 1515 0 • Prior to performing the following procedure "Removing the CD mechanism assembly". 3.2.1 Removing the front-end board (See Fig.1) (1) From the top side of the CD mechanism assembly, solder Short-circuit point Feed motor the short-circuit point on the flexible wire extending from the CD pickup.
http://www.xiaoyu163.com 3.2.2 Removing the top cover 3 7 63 1515 0 (See Fig.2) (1) From the back side of the CD mechanism assembly, re- move the two screws B attaching the top cover. Top cover (2) Take out the top cover upward. Parts d Reference: When reassembling the top cover, set parts c of the top cover...
Page 14
http://www.xiaoyu163.com 3.2.4 Removing the clamper unit 3 7 63 1515 0 (See Figs.5 and 6) • Prior to performing the following procedures, remove the top Clamper unit cover and mechanism section. (1) From the bottom of the mechanism section, remove the clamper spring2.
Page 15
http://www.xiaoyu163.com 3.2.5 Reattaching the clamper unit 3 7 63 1515 0 (See Figs.5 to 9) (1) From the bottom of the mechanism section, attach the Clamper2 spring clamper spring2 to the clamper unit. (See Figs.5 and 7) (2) Move the clamper unit to set the side joints f and g to each boss of the chassis base.
http://www.xiaoyu163.com 3.2.6 Removing the front unit 3 7 63 1515 0 (See 10 to 12) • Prior to performing the following procedures, remove the top Front-end cover and mechanism section. board (1) From the bottom side of the mechanism section, discon- nect the flexible wire from connector CN503 on the front-...
Page 17
http://www.xiaoyu163.com 3.2.7 Removing the loading arm S.A. 3 7 63 1515 0 (See Figs.13 and 14) • Prior to performing the following procedures, remove the top cover, mechanism section and front unit. (1) From top side of the front unit, move the loading arm S.A. from the front upwards.
Page 18
http://www.xiaoyu163.com 3.2.8 Removing the rod (L)(R) and roller assembly 3 7 63 1515 0 (See Figs.15 and 16) • Prior to performing the following procedures, remove the top Collar Collar cover, mechanism section, front unit and loading arm S.A. (1) From the bottom side of the loading arm S.A., release the rod (L) and (R) from the joints r.
Page 19
http://www.xiaoyu163.com 3.2.9 Removing the CD pickup assembly 3 7 63 1515 0 (See Figs.17 to 19) • Prior to performing the following procedure, remove the front- Feed gear end board. CD Pickup assembly (1) From the bottom of the CD mechanism assembly, turn the feed gear in the direction of the arrow to move the CD pick- up assembly outwards.
Page 20
http://www.xiaoyu163.com 3.2.10 Removing the spindle motor 3 7 63 1515 0 (See Fig.20) • Prior to performing the following procedure, remove the front- T. table assembly end board. (1) From the bottom side of the CD mechanism assembly, re- Washer move the T.table assembly and washer from the spindle motor.
Page 21
http://www.xiaoyu163.com 3.2.12 Removing the SW board and reset SW board 3 7 63 1515 0 (See Fig.23) • Prior to performing the following procedure, remove the front- end board. (1) From the top side of the CD mechanism assembly, remove the screw L attaching the SW board.
(2) Electric voltmeter Load impedance 20KΩ(2 Speakers connection) (3) Digital tester Output Level (4) Tracking offset meter (5) Test Disc JVC :CTS-1000 KD-AR7000 Line out 5.0V (Vol. MAX) (6) Extension cable for check KD-SHX700 Line out 4.0V (Vol. MAX) EXTSH002-22P × 1...
Page 23
http://www.xiaoyu163.com Service mode 3 7 63 1515 0 4.2.1 Service mode setting (1) Push POWER BOTTON (Power ON) (2) Set to service mode By pushing and holding "DISP" button + "VOLUME +" button + "MENU" button sequentially. "SOURCE" button "OK" button "CURSOR"...
Page 24
http://www.xiaoyu163.com 3 7 63 1515 0 CD DATA READ ADJ NOW ADJ INT OTHERS ADJ NOW ADJ NOW FEB ** FEO ** TEB ** RFG** The auto adjustment value of FGA ** TEO ** TGA ** survo at now ADJ INT ADJ INT FEB ** FEO ** TEB ** RFG** The auto adjustment value of...
Page 25
http://www.xiaoyu163.com 3 7 63 1515 0 PICTURE CLEAR NOW... PICTURE CLEAR A.DSP ERROR CLEAR NOW... A.DSP ERROR CLEAR T.DSP ERROR CLEAR NOW... T.DSP ERROR CLEAR ROM COLLECTION DATA READ DATA CLEAR DATA READ (Without disk) If "DISP" and "SOURCE" buttons are pushed and PLEASE INSERT DATA CD held during the usual display, it will shift to ROM...
Page 26
http://www.xiaoyu163.com 3 7 63 1515 0 SMTH1=****** SMTH1=****** SMTH1=****** DEFAULT * BACK / DISP Change the value with ENTER : OK / BAND "CURSOR" button. SMTH2=****** SMTH2=****** SMTH2=****** DEFAULT * BACK / DISP Change the value with ENTER : OK / BAND "CURSOR"...
Page 27
http://www.xiaoyu163.com 3 7 63 1515 0 7.FM IF COUNTER 7.FM COUNTER 97.9MHz 70dBuV 0% 97.9MHz 70dBuV 0% Adjustment NG or No Signal 8.AM S.METER 8.AM S.METER 999kHz 26dBuV 0% 999kHz 26dBuV 0% High or Low or No Signal 9.AM S.METER 9.AM S.METER 999kHz 56dBuV 0% 999kHz 56dBuV 0%...
Page 28
http://www.xiaoyu163.com 4.2.2 Detailed CD error code 3 7 63 1515 0 Error Details of error Error code Detailed error code Focus serch error When foucus is not adjusted by 3-round(1set) focus serch after 0053 Focus is not adjusted by disc change or focus shock, 3-round focus serch the result is NG Tracking balance adjustment error...
Page 29
http://www.xiaoyu163.com 4.2.3 Detailed error code of mechanism error 3 7 63 1515 0 Error Details of error Error code Detailed error code Disc loading error 1.B1 Time out 0011 2.C1 Time out 0012 3.D1 Time out 0013 4.C2 Time out 0014 5.B2 Time out 0015...
Page 30
http://www.xiaoyu163.com 4.2.5 Detailed CD changer mechanisum error code 3 7 63 1515 0 Error Details of error Error code Detailed error code Tray extension error 1.Tray-in switch time out Tray stops part way 0011 (Tray-in switch Low,Tray-out switch High) 2.Tray-out switch time out Tray stops part way 0012 (Tray-in switch High,Tray-out switch High)
Page 31
http://www.xiaoyu163.com 4.2.6 Detailed CD changer error code 3 7 63 1515 0 Details of error Error code Error Detailed error code Pickup movement error Time over at PUBWD and PUFWD by monitoring RESET SW 1.Time over of pickup movement Pickup cannot move to an inner around inner circumference (10s) circumference.
http://www.xiaoyu163.com SECTION 5 3 7 63 1515 0 TROUBLESHOOTING Feed section Is the wiring for IC601 Is 8V present at IC681 Is 2V at IC601 pin 63? Check CD8V. pin 63 correct? pins 3 and 12? Check the vicinity of IC601.
Page 33
http://www.xiaoyu163.com Signal processing section 3 7 63 1515 0 Compare the L-ch and Is the sound output from No sound from either R-ch to locate the both channels (L, R)? channel. defective point. Normal Is 9V present at IC165 Is 9V present at IC901 Check IC901 and its /IC265 pin 16? pin 10?
Page 34
http://www.xiaoyu163.com Maintenance of laser pickup 3 7 63 1515 0 Replacement of laser pickup (1) Cleaning the pick up lens Before you replace the pick up, please try to clean the lens Turn of the power switch and, disconnect the with a alcohol soaked cotton swab.
Page 35
http://www.xiaoyu163.com 16P CORD DIAGRAM 3 7 63 1515 0 WH/BK GN/BK VI/BK Black GY/BK Green Violet Blue Gray BL/WH White Yellow OR/WH Orange Brown VI/BK GY/BK MEMORY OR/WH WH/BK BL/WH REMOTE L 13942296513 GN/BK VI/BK GY/BK BL/WH OR/WH WH/BK GN/BK Rear Right Auto...
Page 36
http://www.xiaoyu163.com 3 7 63 1515 0 L 13942296513 u163 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY CAR ELECTRONICS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan (No.MA047) Printed in Japan http://www.xiaoyu163.com...
3 7 63 1515 0 SCHEMATIC DIAGRAMS CD RECEIVER KD-SHX701,KD-SHX701T CD-ROM No.SML200405 KD-SHX701 Area suffix E ---------- Continental Europe L 13942296513 KD-SHX701T Area suffix E ---------- Continental Europe SOURCE KD-SHX701 EX -------------- Central Europe TP/PTY BAND EU ------------------------- Turkey...
http://www.xiaoyu163.com 3 7 63 1515 0 Safety precaution Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
Page 40
http://www.xiaoyu163.com Standard schematic diagrams 3 7 6 3 1 5 1 5 0 DSP section Parts are safety assurance parts. When replacing those parts make sure to use the specified one. blend iboc_i 0.022 10/6.3 iboc_q iboc_ws IDM_DATA iboc_bck IDM_WS IDM_BCK LINE.IN-L LINE.IN-GND...
Page 48
http://www.xiaoyu163.com 3 7 63 1515 0 L 13942296513 u163 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY CAR ELECTRONICS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan Printed in Japan (No.MA047SCH) http://www.xiaoyu163.com...
3 7 63 1515 0 PARTS LIST [ KD-SHX701 ] [ KD-SHX701T ] * All printed circuit boards and its assemblies are not available as service parts. KD-SHX701 Area suffix E ----------- Continental Europe KD-SHX701T L 13942296513 Area suffix...
Page 50
http://www.xiaoyu163.com 3 7 63 1515 0 Exploded view of general assembly and parts list Block No. L 13942296513 Front board 50 51 u163 http://www.xiaoyu163.com...
Page 51
http://www.xiaoyu163.com 3 7 63 1515 0 Main board L 13942296513 u163 http://www.xiaoyu163.com...
Page 52
http://www.xiaoyu163.com 3 7 63 1515 0 General Assembly Block No. [M][1][M][M] Symbol No. Part No. Part Name Description Local GE20156-002A GEAR BKT UNIT LV40847-002A SPACER FSYH4036-100 SHEET GE30968-001A LEVER BKT UNIT GE30964-002A LOWER LEVER ASS GE30975-003A FRONT BKT ASSY QNZ0664-002 CAR CONNECTOR QAL0587-001...
Page 53
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Part No. Part Name Description Local LV43889-001A SW PWB SHEET LV40848-050A SPACER(P) LV34937-001A NAME PLATE SHX701E LV35345-001A NAME PLATE SHX701TE,SHX701TEU,SHX701TEX LV41843-002A LASER CAUTION GE40218-011A SHEET (x2) GE40101-001A PIN CAP (x8) QJJ010-040904 SIN CR C-C WIR QUQ105-3003AB FFC WIRE...
Page 54
http://www.xiaoyu163.com 3 7 63 1515 0 CD mechanism assembly and parts list Block No. FLM-JC1-1D Grease = JVS-1003 = MOBIL-1 = JVG-31N = JC-803B 61 38 L 13942296513 11.10mm 0.10mm 82 82 u163 1.2 0.1mm http://www.xiaoyu163.com...
Page 55
http://www.xiaoyu163.com 3 7 63 1515 0 CD mechanism Block No. [M][B][M][M] Symbol No. Part No. Part Name Description Local VKZ4539-026 MINI SCREW (x5) LV10857-001A CHASSIS FRAME 2 LV30225-0J6A SPACER (x2) LV35272-001A DAMPER(F) (x2) LV35273-001A DAMPER(R) QYSPSTU2045M TAP SCREW M2 x 4.5mm(x3) LV43039-001A DAMPER SP.(R) LV43849-001A...
Page 56
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Part No. Part Name Description Local LV43011-001A THRUST SPRING QYSPSFT2040Z TAP SCREW M2 x 4mm LV21604-003A L.S.HOLDER 1 VKZ4539-026 MINI SCREW (x2) LV34582-002A L.S.HOLDER 2 VKZ4539-026 MINI SCREW (x2) LV34581-001A SUB GUIDE VKZ4539-026 MINI SCREW (x3)
http://www.xiaoyu163.com 3 7 63 1515 0 Electrical parts list Main board Symbol No. Part No. Part Name Description Local Block No. [0][1][0][0] D715 UDZS5.6B-X Z DIODE 1.5kΩ 1/10W J Symbol No. Part No. Part Name Description Local D716 UDZS5.6B-X Z DIODE 1.5kΩ...
Page 58
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Symbol No. Part No. Part Name Description Local Part No. Part Name Description Local NRSA63J-473X MG RESISTOR 47kΩ 1/16W J C987 QERF1CM-107Z E CAPACITOR 100uF 16V M NCB31EK-223X C CAPACITOR 0.022uF 25V K C988 NCB31HK-103X...
Page 59
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Symbol No. Part No. Part Name Description Local Part No. Part Name Description Local C2723 QERF1AM-107Z E CAPACITOR 100uF 10V M NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J C2724 NCB31HK-152X C CAPACITOR 1500pF 50V K NRSA63J-0R0X MG RESISTOR...
Page 60
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Symbol No. Part No. Part Name Description Local Part No. Part Name Description Local R757 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R991 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R758 NRSA63J-473X MG RESISTOR 47kΩ...
Page 61
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Symbol No. Part No. Part Name Description Local Part No. Part Name Description Local R2626 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R4134 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R2651 NRSA63J-0R0X MG RESISTOR 0Ω...
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Symbol No. Part No. Part Name Description Local Part No. Part Name Description Local TH901 NAD0036-224X N THERMISTOR 220kΩ C806 NCB31HK-102X C CAPACITOR 1000pF 50V K Ω TH902 NAD0031-002X N THERMISTOR C807 NCB31CK-473X C CAPACITOR...
Page 63
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. CD module board Part No. Part Name Description Local Block No. [0][3][0][0] R822 NRSA63J-821X MG RESISTOR 820Ω 1/16W J Symbol No. R823 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J Part No. Part Name Description Local...
Page 64
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Symbol No. Part No. Part Name Description Local Part No. Part Name Description Local C638 NCB31HK-103X C CAPACITOR 0.01uF 50V K R533 NRSA63J-101X MG RESISTOR 100Ω 1/16W J C639 NEA70JM-476X E CAPACITOR 47uF 6.3V M R534...
http://www.xiaoyu163.com 3 7 63 1515 0 Symbol No. Part No. Part Name Description Local R642 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R643 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R651 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R653 NRSA63J-0R0X MG RESISTOR 0Ω...
Page 66
http://www.xiaoyu163.com 3 7 63 1515 0 Packing materials and accessories parts list Block No. A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 L 13942296513 KIT : A13 A14 A16 A17 u163 3-18 http://www.xiaoyu163.com...
Page 67
http://www.xiaoyu163.com 3 7 63 1515 0 Packing and Accessories Block No. [M][3][M][M] Symbol No. Part No. Part Name Description Local LVT1159-004A INST BOOK ENG SPA FRE TUR SHX701TEU LVT1159-001A INST BOOK ENG GER FRE DUT SHX701E,SHX701TE,SHX701TEX LVT1159-002A INST BOOK SPA ITA POL RUS SHX701E,SHX701TE LVT1159-005A...
