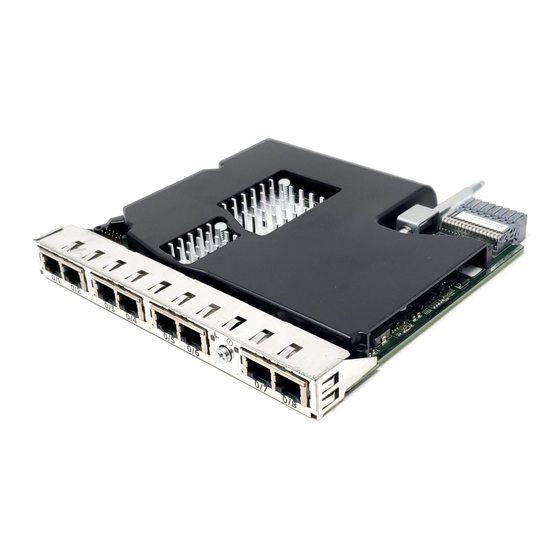

Dell PowerEdge VRTX Switch Modules,
R1-2401 and R1-2210
Getting Started Guide
D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 – F O R P R O O F O N LY
Regulatory Model: E12M
Regulatory Type: E12M001, E12M002
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell
Plasma\GSG\Plasma_GSGCover_5MM18A00.fm
Template Last Updated -03/06/2010
Advertisement
Table of Contents
Related Manuals for Dell R1-2401
Summary of Contents for Dell R1-2401
-
Page 1: Getting Started Guide
Dell PowerEdge VRTX Switch Modules, R1-2401 and R1-2210 Getting Started Guide FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_GSGCover_5MM18A00.fm D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 – F O R P R O O F O N LY... - Page 2 Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Dell_PlasmaGSGTOC.fm Contents Introduction ......Hardware Overview .... - Page 4 FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Dell_PlasmaGSGTOC.fm Contents...
-
Page 5: Introduction
Modules R1-2401 and R1-2210 User Guide. For information about how to configure and monitor switch features using the CLI, see the Dell PowerEdge VRTX Switch Modules R1-2401 and R1- 2210 CLI Reference Guide. D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 - F O R P R O O F O N LY... - Page 6 FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_GSGIntroduction.fm D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 - F O R P R O O F O N LY...
-
Page 7: Hardware Overview
Hardware Overview This section describes the device hardware. It contains the following topics: • Switch Layout • Ports • Front Panel LEDs D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 - F O R P R O O F O N LY Template Last Updated - 2/7/2007 Hardware Overview... -
Page 8: Switch Layout/Ports
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_GSGHardwareOverview.fm Switch Layout Figure 2-1 shows the R1-2401/R1-2210 devices within the chassis. Figure 2-1. R1-2401/R1-2210 Blade Trays Servers R1-2401/R1-2210 Shared Power Storage Supplies Ports The devices have five groups of ports, numbered 0-4. Group 0 contains the external ports and groups 1-4 contain the internal ports that are connected to blade servers 1-4. - Page 9 Table 2-1 and Table 2-2 map the hardware network port numbers to the software interface port numbers and describe how they are referred to in the CLI/GUI (short version) for the R1-2401 and the R1-2210, respectively: Table 2-1. R1-2401 Port Mapping Table...
-
Page 10: R1-2210 Port Mapping Table
• Status and Power LEDs, described in Table 2-3. • LEDs associated with external ports, described in Table 2-4 and Table 2-5. Table 2-3. System LEDs on R1-2401 and R1-2210 State of Switch Status Power LED (Green) Description Switch is powered- off. - Page 11 FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_GSGHardwareOverview.fm Table 2-4. R1-2401 External Port LEDs Color — Link No link — Solid green Link at 1G speed — Solid amber Link at 10/100M speed — Activity No link — Blinking green Traffic is being received/forward Table 2-5.
- Page 12 FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_GSGHardwareOverview.fm D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 - F O R P R O O F O N LY...
-
Page 13: Installation
Installation Site Preparation Before installing the switch or switches, make sure that the chosen installation location meets the following site requirements: • Clearance — There is adequate front and rear clearance for operator access. Allow clearance for cabling, power connections, and ventilation. •... -
Page 14: Unpacking Steps
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_GSGInstallation.fm Unpacking Steps NOTE: Before unpacking the switch, inspect the container and immediately report any evidence of damage. 1 Place the container on a clean, flat surface and cut all straps securing the container. 2 Open the container or remove the container top. -
Page 15: Initial Configuration Of The Switch
10Gb switch modules. NOTE: Before proceeding further, read the latest documentation and release notes for this product, which can be downloaded from the Dell Support website at dell.com/support. To logon to the switch after it is inserted into the chassis, perform the following: 1 Turn on the chassis. -
Page 16: Major System Defaults Table
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_UGHW&InitialConfiguration.fm Table 4-1 describes the major switch defaults: Table 4-1. Major System Defaults Feature Defaults SNMP Enabled. SNMP version: V3. SNMP Local Engine ID: 0000000001. SNMP Notifications: Enabled. Login and Authentication Telnet authentication login is from the local user data base. - Page 17 FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_UGHW&InitialConfiguration.fm Table 4-1. Major System Defaults Feature Defaults Default IP Address DHCP enabled by default; If DHCP is disabled, the default IP address of 192.168.2.1 over the OOB interface is used. Default system mode (for Layer 2...
- Page 18 FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Dell Plasma\GSG\Plasma_UGHW&InitialConfiguration.fm D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 1 / 1 6 / 1 4 - F O R P R O O F O N LY...
- Page 19 Current template as of 3/13/07...
- Page 20 Printed in the U.S.A. d ell.c om/ su ppor t...
