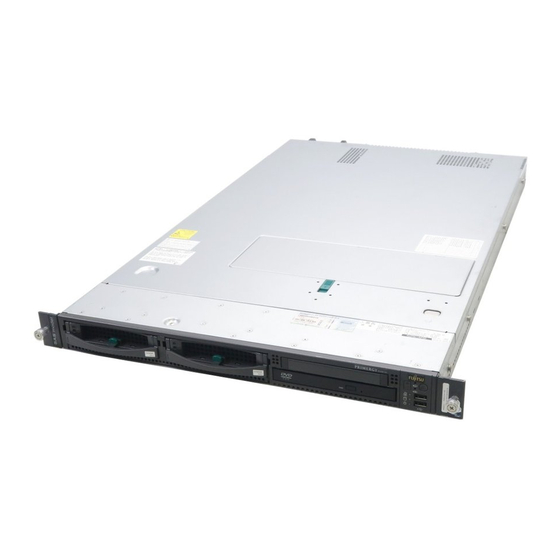

Fujitsu Primergy RX200 S4 Operating Manual

Intel-based server
Hide thumbs Also See for Primergy RX200 S4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
PRIMERGY RX200 S4
Operating manual
Edition April 2008

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu Primergy RX200 S4

Summary of Contents for Fujitsu Primergy RX200 S4

  • Page 1 PRIMERGY RX200 S4 Operating manual Edition April 2008...

  • Page 2: Copyright And Trademarks

    Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2008 Fujitsu Siemens Computers GmbH. All rights are reserved. Delivery subject to availability. The right to technical modification is reserved. All hardware and software names used are trade names and/or trademarks of their respective...

  • Page 3: Table Of Contents

    Contents Preface ......7 Concept and target groups for this manual .
  • Page 4 Contents Startup and operation ..... . 57 Controls and indicators ..... 57 5.1.1 Front of server .
  • Page 5 Contents CSS components ......83 Hot-plug components ..... 83 8.1.1 Hot-plug power supply units .

  • Page 7: Preface

    Internet server. Thanks to its highly developed hardware and software components, the PRIMERGY RX200 S4 server offers a high level of data security and availability. These components include hot-plug hard disk drive modules, redundant system...

  • Page 8: Documentation Overview

    Documentation overview Preface Documentation overview More information on your PRIMERGY RX200 S4 can be found in the following documents: – “Quick Start Hardware - PRIMERGY RX200 S4” leaflet (only included as a printed copy) – “Quick Start Software - Quick Installation Guide” leaflet (only included as a printed copy) –...
  • Page 9 Internet. The overview page showing the online documentation available on the Internet can be found using the URL: http://manuals.fujitsu-siemens.com. The PRIMERGY server documentation can be accessed using the Industry standard servers navigation option. If you need a replacement copy of the ServerBooks DVD, send the...

  • Page 10: Features

    Preface Features Customer Self Service (CSS) The Fujitsu Siemens Computers Customer Self Service (CSS) concept enables you to identify and replace the affected component yourself in the case of certain error scenarios. In the CSS concept, you can replace the following components yourself in the event of an error: –...
  • Page 11 Preface Features Hard disk drives The server is shipped with one of the following drive cages: – For up to two 3.5-inch SAS/SATA hard disk drives: Up to two SAS/SATA HDD modules can be used in the drive cage. Each HDD module can accommodate an SAS/SATA hard disk drive with a maximum height of 1 inch.
  • Page 12 Features Preface PCI SAS controller To run a maximum of four SAS hard disk drives, the server is shipped with one of the following PCI SAS controllers: – PCI SAS controller with “Integrated Mirroring Enhanced” (IME) IME supports RAID level 0, 1 and 1E configuration of the internal hard disk drives.
  • Page 13 ASR&R (Automatic Server Reconfiguration and Restart) restarts the system in case of an error and automatically “hides” the defective system components. The PDA (Prefailure Detection and Analysis) technology from Fujitsu Siemens Computers analyzes and monitors all components that are critical for system reliability.
  • Page 14 Features Preface iRMC S2 with integrated service LAN port The features of the iRMC S2 Advanced Video Redirection and Remote Storage are available as an option. The iRMC S2 (integrated Remote Management Controller) is a BMC with integrated service LAN port and expanded functionality that was previously only available with additional plug-in cards.
  • Page 15 Server management Server management is implemented using the ServerView software supplied combined with PDA (Prefailure Detection and Analysis) technology from Fujitsu Siemens Computers. PDA reports the threat of a system error or overload at an early stage, allowing preventive measures to be taken.
  • Page 16 With the iRMC S2 (integrated Remote Management Controller) on the system board and the optional remote testing and diagnostic system ServerView Remote Management, the PRIMERGY RX200 S4 server can also be maintained and serviced remotely. This enables remote diagnosis for system analysis, remote configuration and remote restart should the operating system or hardware fail.
  • Page 17 ServerView Remote Management ServerView Remote Management is the remote management solution from Fujitsu Siemens Computers for PRIMERGY servers. ServerView Remote Management and the relevant hardware components integrated on the system board allow remote monitoring and maintenance as well as fast restoration of operation in the event of errors.

  • Page 18: Notational Conventions

    Notational conventions Preface Notational conventions The following notational conventions are used in this manual: Text in italics indicates commands or menu items. “Quotation marks” indicate names of chapters and terms that are being emphasized. Ê describes activities that must be performed in the order shown.

  • Page 19: Technical Data

    Preface Technical data Technical data Electrical data (hot-plug power supply unit) Rated voltage range 100 V - 127 V or 200 V - 240 V Frequency 50 Hz - 60 Hz Rated current with basic configuration 100 V - 240 V / 5 A - 2.5 A Max.
  • Page 20 Technical data Preface Mechanical values Width 430 mm Depth 770 mm Height 44 mm or 1 HU Installation depth in rack 745 mm Cable depth in rack 100.0 mm (1000 mm rack recommended) Mechanical values Width (without front panel) 430 mm Installation depth 745 mm Total depth (with front panel)

  • Page 21: Technical Data

    Preface Technical data Noise level Sound power level L (ISO 9296) < 6.7 B (standby) < 7.5 B (operation) Sound pressure level at adjacent workstation < 50 dB (A) (standby) (ISO 9296) < 58 dB (A) (operation) Operating manual RX200 S4...

  • Page 23: Installation Steps, Overview

    Installation steps, overview This chapter contains an overview of the steps necessary to install your server. Links guide you to sections where you can find more detailed information on the individual steps: Ê First of all, it is essential that you familiarize yourself with the safety infor- mation in chapter “Important information”...
  • Page 24 Installation steps, overview Ê Configure the server and install the desired operating system and applica- tions. The following options are available: – Remote configuration and installation with ServerStart: The ServerStart DVD supplied allows you to conveniently configure the server and install the operating system. Details on how to operate ServerStart, as well as some additional infor- mation, can be found in the “PRIMERGY ServerView Suite - ServerStart”...

  • Page 25: Important Information

    Important information In this chapter you will find essential information regarding safety when working on your server. Safety instructions The following safety instructions are also provided in the manual “Safety notes and other important information”. This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 26 Safety instructions Important information Before starting up CAUTION! During installation and before operating the device, observe the instructions on environmental conditions for your device (see section “Technical data” on page 20). If the server has been moved from a cold environment, condensation may form both inside and on the outside of the machine.
  • Page 27 Important information Safety instructions CAUTION! Ensure that the power sockets on the device and the grounded shock- proof sockets are freely accessible. The On/Off button or the main power switch (if present) does not isolate the device from the mains power supply. To disconnect it completely from the mains power supply, unplug all network power plugs from the grounded shockproof sockets.
  • Page 28 Safety instructions Important information CAUTION! Proper operation of the system (in accordance with IEC 60950-1/EN 60950-1) is only ensured if the casing is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression).
  • Page 29 Important information Safety instructions Working with CDs/DVDs and CD/DVD drives When working with devices with CD/DVD drives, these instructions must be followed. CAUTION! Only use CDs/DVDs that are in perfect condition in your server's CD/DVD drive, in order to prevent data loss, equipment damage and injury.
  • Page 30 Safety instructions Important information Batteries CAUTION! Incorrect replacement of batteries may lead to a risk of explosion. The batteries may only be replaced with identical batteries or with a type recommended by the manufacturer (see the technical manual for the system board).
  • Page 31 Important information Safety instructions Modules with Electrostatic-Sensitive Devices Modules with electrostatic-sensitive devices are identified by the following sticker: Figure 1: ESD label When you handle components fitted with ESDs, you must always observe the following points: Switch off the system and remove the power plugs from the power outlets before installing or removing components with ESDs.

  • Page 32: Ce Conformity

    CE conformity Important information Other important information: During cleaning, observe the instructions in section “Cleaning the server” on page Keep this operating manual and the other documentation (such as the technical manual, CD) close to the device. All documentation must be included if the equipment is passed on to a third party.

  • Page 33: Fcc Class A Compliance Statement

    Consult the dealer or an experienced radio/TV technician for help. Fujitsu Siemens Computers is not responsible for any radio or television inter- ference caused by unauthorized modifications of this equipment or the substi- tution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers.

  • Page 34: Transporting The Server

    Transporting the server Important information WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Transporting the server CAUTION! Only transport the server in its original packaging or in packaging that protects it from impacts and jolts.

  • Page 35: Notes On Installing In The Rack

    Important information Notes on installing in the rack Notes on installing in the rack CAUTION! For safety reasons, at least two people are required to install the rack model because of its weight and size. Never lift the server into the rack using the handles on the front panel. When connecting and disconnecting cables, observe the relevant instructions in the “Important Information”...

  • Page 36: Environmental Protection

    Important information Environmental protection Environmentally-friendly product design and development This product has been designed in accordance with the Fujitsu Siemens Computers standard for “environmentally friendly product design and devel- opment”. This means that key factors such as durability, selection and labeling of materials, emissions, packaging, ease of dismantling and recycling have been taken into account.
  • Page 37 Details regarding the return and recycling of devices and consumables within Europe can also be found in the “Returning used devices” manual, via your local Fujitsu Siemens Computers branch or from our recycling center in Paderborn: Fujitsu Siemens Computers Recycling Center D-33106 Paderborn Tel.

  • Page 39: Hardware Installation

    Hardware installation CAUTION! Follow the safety instructions in the chapter “Important information” on page Do not expose the server to extreme environmental conditions (see “Ambient conditions” on page 20). Protect the server from dust, humidity and heat. Make sure that the server is acclimatized for the time indicated in this table before putting it into operation.

  • Page 40: Unpacking The Server

    Unpacking the server Hardware installation Unpacking the server CAUTION! Follow the safety instructions in the “Important information” on page 25 chapter. The server must always be lifted or carried by at least two people. Do not unpack the server until it is at its installation location. Ê...

  • Page 41: Installing/Removing The Server In/From The Rack

    Rack requirements The rack systems from Fujitsu Siemens Computers (PRIMECENTER Rack and DataCenter Rack) support installation of PRIMERGY server systems. Instal- lation in most current rack systems from other manufacturers (3rd party racks) is also supported.
  • Page 42 Installing/removing the server in/from the rack Hardware installation The main features of the rack systems from Fujitsu Siemens Computers are as follows: PRIMECENTER Rack – Telescopic rails screwed to the front. The rails have a linear alignment feature to ensure that they can be adjusted to different rack depths.
  • Page 43 Hardware installation Installing/removing the server in/from the rack 3rd party rack Certain general conditions must be met: – Installation dimensions (see the dimensions shown in figure 2 on page 45): Front of rack Rear of rack Rack depth (comparison PRIMECENTER Rack 1000/1100 mm) Rack width (comparison PRIMECENTER Rack 700 mm) Clearance for 19”...
  • Page 44 Installing/removing the server in/from the rack Hardware installation – Climatic conditions: An unobstructed air intake in the rack front and air discharge in the rear cover of the rack are essential for ventilation of the installed server. In principle the ventilation concept envisages that the necessary cooling is achieved by the horizontal self-ventilation of the installed devices (air flow from the front to the rear).
  • Page 45 Hardware installation Installing/removing the server in/from the rack Figure 2: Mechanical requirements Operating manual RX200 S4...

  • Page 46: Installation In Primecenter/Datacenter Rack

    Installing/removing the server in/from the rack Hardware installation 4.2.1 Installation in PRIMECENTER/DataCenter Rack For installation in a PRIMECENTER/DataCenter Rack, the following parts are required: – Support bracket – One left and one right telescopic rail (assembled) – M5x10 screws with integrated plugwashers –...
  • Page 47 Hardware installation Installing/removing the server in/from the rack Figure 3: Fitting the support bracket Ê Position the support bracket at the corresponding height on the rear left support upright, (insert lug in corresponding hole) (1). Ê Secure the bracket with two screws incl. plug washers (2). Operating manual RX200 S4...
  • Page 48 Installing/removing the server in/from the rack Hardware installation Figure 4: Removing the outer telescopic rail Ê Extend the telescopic rail fully (1). Ê Unlock and remove the server rail. With fully-extendable rails (a): Press the locking lever to release the server rail.
  • Page 49 Hardware installation Installing/removing the server in/from the rack Installing the telescopic rail with variable support Figure 5: Fit the left telescopic rail in the PRIMECENTER/DataCenter Rack Ê Position the left rail (1) on the support bracket with the retaining bolts in the upper and lower square catch (a).

  • Page 50: Installation In 3Rd Party Racks

    Installing/removing the server in/from the rack Hardware installation 4.2.2 Installation in 3rd party racks The following parts are required to install the server in 3rd party racks: – One left and one right telescopic rail (assembled) – M5x10 screws with integrated plugwashers –...

  • Page 51: Inserting The Server

    Hardware installation Installing/removing the server in/from the rack Racks with installation depth smaller/greater than 735 mm The lengths of the telescopic rails have to be adjusted with respect to each other when installing in rack systems with an installation depth greater than/less than 735 mm.
  • Page 52 Installing/removing the server in/from the rack Hardware installation Figure 7: Inserting the server CAUTION! At least two people are needed to position the server in the rack. Ê Push the prepared server into the rails that are attached to the rack until the server rails engage (1).

  • Page 53: Connecting Devices To The Server

    Hardware installation Connecting devices to the server Connecting devices to the server The ports for external devices are on the rear of the server. The additional ports available on your server depend on the options and expansion cards installed. The standard ports are marked with symbols, and some are color-coded: Figure 8: Ports on the rear 1 PS/2 keyboard port (purple) 6 Serial port COM...
  • Page 54 Connecting devices to the server Hardware installation Two additional USB ports (1) are located on the front of the server (figure Figure 9: USB ports on the front Connecting the keyboard, mouse and monitor Ê Connect the monitor, keyboard and mouse to the standard ports of the server (see table and figure 8 on page 53).

  • Page 55: Connecting The Server To The Mains

    Hardware installation Connecting the server to the mains Connecting the server to the mains In its basic configuration level the server has a hot-plug power supply unit. A second hot-plug power supply unit can be added to achieve redundant power supply.

  • Page 56: Using The Cable Clamp

    Connecting the server to the mains Hardware installation 4.4.1 Using the cable clamp Alternatively, you can secure the power cables in a cable clamp to ensure that the insulated connectors cannot be disconnected from the server accidentally. The cable clamp is included in the accessories pack that is delivered together with the server.

  • Page 57: Notes On Connecting/Disconnecting Cables

    Hardware installation Notes on connecting/disconnecting cables Notes on connecting/disconnecting cables CAUTION! Always read the documentation supplied with the device you wish to connect. Never connect, or disconnect cables during a thunderstorm. Never pull on a cable when disconnecting it. Always take hold of the cable by the plug.

  • Page 59: Startup And Operation

    Startup and operation CAUTION! Please note the safety instructions in “Important information” on page Controls and indicators 5.1.1 Front of server Figure shows the operating and indicator elements on the front. Figure 12: Controls and indicators on the front 1 ID button 6 Power-on indicator 2 ID indicator 7 Hard disk activity indicator...
  • Page 60 Controls and indicators Startup and operation Controls On/Off button When the system is switched off, it can be switched on again by pressing the On/Off button. When the system is operating, pressing the On/Off button will switch off the system. The On/Off button does not disconnect the server from the mains voltage.
  • Page 61 Startup and operation Controls and indicators Hard disk activity indicator (green) Flashes green when an internal hard disk drive is being accessed. CSS/Global Error indicator (yellow/orange) Does not light up when the system is OK. No service incident or critical event has occurred. If the event is still acute after a power failure, the indicator is activated after the restart.
  • Page 62 Controls and indicators Startup and operation ID indicator (blue) Lights up blue when the system has been selected by pressing the ID button. To deactivate, press the button again. The ID indicator can also be activated via ServerView S2 and its status reported to ServerView S2.
  • Page 63 Startup and operation Controls and indicators Hard disk drive control indicators Figure 13: Indicators on the 3.5-inch HDD module Figure 14: Indicators on the 2.5-inch HDD module HDD BUSY (green) – Lights up: HDD in active phase – Does not light: HDD inactive (drive inactive) HDD FAULT (orange) (in conjunction with a RAID controller) –...

  • Page 64: Rear Of Server

    Controls and indicators Startup and operation 5.1.2 Rear of server CSS/global error indicator and ID indicator Figure 15: CSS/global error indicator and ID indicator 1 CSS/Global Error/ID indicator 2 ID indicator 1 CSS/global error/ID indicator (yellow/orange/blue) Does not light up when the system is OK. No service incident or critical event has occurred.
  • Page 65 Startup and operation Controls and indicators 1 Global Error Does not light up when the system is OK. No service incident or critical event has occurred. Flashes orange when a critical event has occurred. Details of the event can be found in the BIOS Setup, in the System Event Log or using ServerView S2.
  • Page 66 Controls and indicators Startup and operation LAN indicators Figure 16: LAN indicators 1 LAN activity indicator 3 LAN activity indicator (standard LAN) (service LAN) 2 LAN transfer rate indicator 4 LAN transfer rate indicator (standard LAN) (service LAN) 1 LAN activity indicator (standard LAN) Lights up green if a LAN connection exists.
  • Page 67 Startup and operation Controls and indicators Indicator on hot-plug power supply unit Figure 17: Indicator on hot-plug power supply unit Indicator on hot-plug power supply unit (two colors) Flashes green when the server is switched off, but mains voltage is present (standby mode).

  • Page 68: Indicators Of The Hot-Plug System Fans

    Controls and indicators Startup and operation 5.1.3 Indicators of the hot-plug system fans A fan status indicator (LED on the system board) is assigned to each system fan. The status indicators are not visible unless the housing is open. The respective LED is set with commands in Server Management.

  • Page 69: Switching The Server On And Off

    Startup and operation Switching the server on and off Switching the server on and off CAUTION! If nothing appears on the screen but flickering stripes after switching on the server, switch the server off immediately (see section “Flickering stripes on monitor screen” on page 79).
  • Page 70 Switching the server on and off Startup and operation Switching the server OFF Power-on indicator (item 6 in figure 12 on page 57) lights green. Ê Shut down the operating system properly. The server is automatically switched off. The power-on indicator lights up orange.

  • Page 71: Configuring The Server

    Startup and operation Configuring the server Configuring the server This section contains information about configuring the server and installing the operating system. Make sure that the power saving functions are disabled in the Power menu of the BIOS Setup during operation. 5.3.1 Configuring the onboard SATA controller A SATA controller is integrated on the system board.

  • Page 72: Configuring The Pci Sas Controller With Raid Functionality

    Configuring the server Startup and operation 5.3.3 Configuring the PCI SAS controller with RAID functionality The server has an PCI SAS controller with RAID functionality. You can configure the PCI SAS controller either before or during ServerStart. Using ServerStart is recommended.

  • Page 73: Configuration With Serverstart

    Startup and operation Configuring the server 5.3.4 Configuration with ServerStart The ServerStart DVD supplied allows you to conveniently configure the server and install the operating system. Menu-guided configuration includes server configuration with the SCU and RAID controller configuration with ServerVie- wRAID.

  • Page 74: Configuration Without Serverstart

    Configuring the server Startup and operation 5.3.5 Configuration without ServerStart Configuring the onboard SATA controller Configure the controller as described in section “Configuring the onboard SATA controller” on page Configuring the PCI SAS controller with “Integrated Mirroring Enhanced” Configure the controller as described in section “Configuring the PCI SAS controller with “Integrated Mirroring Enhanced””...

  • Page 75: Cleaning The Server

    Startup and operation Cleaning the server Cleaning the server CAUTION! Switch the server off and disconnect the power plugs from the grounded shockproof sockets. Do not clean any interior parts yourself; leave this job to a service technician. Do not use any cleaning agents that contain abrasives or may corrode plastic.

  • Page 77: Property And Data Protection

    Property and data protection The lockable rack door protects the server against unauthorized access. To protect your system and data internally against unauthorized access, you can use the BIOS Setup security functions. BIOS Setup security functions The Security menu in BIOS Setup offers various options for protecting your data from unauthorized access.
  • Page 78 BIOS Setup security functions Property and data protection Preventing the system from booting from the floppy disk drive and/or from the CD/DVD drive To activate this protection, select the value Disabled for the System Load field in the Security menu. Protecting BIOS from being overwritten To activate this protection, select the value Disabled for the Flash Write field in the Security menu.

  • Page 79: Troubleshooting And Tips

    Troubleshooting and tips CAUTION! Follow the safety instructions in the “Safety notes and other important information” manual and in chapter “Important information” on page If a fault occurs, attempt to resolve it using the measures described: – in this chapter, –...

  • Page 80: Server Switches Itself Off

    Server switches itself off Troubleshooting and tips Server switches itself off Server Management has detected an error Ê Check the error list or the ErrorLog file in the ServerView program, and attempt to eliminate the error. Screen remains blank Monitor is switched off Ê...

  • Page 81: Flickering Stripes On Monitor Screen

    Troubleshooting and tips Flickering stripes on monitor screen Flickering stripes on monitor screen CAUTION! Switch off the server immediately. Risk of damaging the server. Monitor does not support the set horizontal frequency Ê Find out which horizontal frequency your monitor screen supports. You will find the horizontal frequency (also known as line frequency or horizontal deflection frequency) in the documentation for your monitor.

  • Page 82: No Mouse Pointer Displayed On Screen

    No mouse pointer displayed on screen Troubleshooting and tips No mouse pointer displayed on screen Mouse driver not loaded Ê Check whether the mouse driver is properly installed and is activated when the application program is started. Detailed information can be found in the user manuals for the mouse, the operating system and the application program.

  • Page 83: Drives Reported As "Dead" When Starting System

    Troubleshooting and tips Drives reported as “dead” when starting system Drives reported as “dead” when starting system This error message can occur when the onboard SAS controller has RAID functionality or the server is equipped with a PCI RAID controller. RAID controller configuration incorrect Ê...

  • Page 85: Css Components

    CSS components This chapter describes how to handle CSS components and how to identify defective CSS components and replace them yourself. Further information on the CSS concept is provided in the “Customer Self Service (CSS)” manual on the ServerBooks DVD. Upgrades, updates and replacement of non-CSS components are described in the “Options Guide”...

  • Page 86: Remove The Dummy Module

    Hot-plug components CSS components 8.1.1.1 Remove the dummy module The mounting location for the second hot-plug power supply unit contains a dummy module. This dummy module must be removed before installing a second power supply unit. Ê Push the green catch to the left. Ê...

  • Page 87: Replacing The Hot-Plug Power Supply Unit

    CSS components Hot-plug components 8.1.1.3 Replacing the hot-plug power supply unit CAUTION! Before replacing a non-defective power supply unit in a non-redundant configuration (only one power supply unit present), the server must be switched off. Figure 19: Unlocking and removing the power supply unit Ê...

  • Page 88: Hot-Plug Hard Disk Drives

    8.1.2 Hot-plug hard disk drives In the PRIMERGY RX200 S4 Server server you can use up to two 3.5-inch SAS hard disk drives, up to two 3.5-inch SATA hard disk drives or up to four 2.5-inch SAS hard disk drives.

  • Page 89: Hdd Module And Dummy Module

    8.1.2.1 HDD module and dummy module The hard disk drives which can be ordered for the PRIMERGY RX200 S4 are supplied already mounted in an installation frame so that defective drives can be replaced and new drives can be added during operation. The hard disk drive and installation frame together make up the HDD module.
  • Page 90 Hot-plug components CSS components 2 3 4 Figure 21: 2.5-inch HDD module and dummy module HDD module (installation frame with hard disk drive installed) Indicators HDD Busy (LED green) HDD Fault (LED orange) For description see section “Hard disk drive control indicators” on page Handle for locking and unlocking the HDD module Button for locking and unlocking the handle...

  • Page 91: Handling Hard Disk Drives And Hdd Modules

    CSS components Hot-plug components 8.1.2.2 Handling hard disk drives and HDD modules Hard disk drives incorporated in the HDD modules are highly sensitive electro- magnetic devices and must be handled with great care. Incorrect handling can cause partial or total failure of the hard disk drives. These failures can result in data errors and to a loss of data or to total corruption of the hard disk drive.

  • Page 92: Removing/Installing The Dummy Module

    Hot-plug components CSS components 8.1.2.3 Removing/installing the dummy module Free slots are provided with dummy modules. Remove the dummy module before installing an additional HDD module. Figure 22: Removing/installing the dummy module (example: 3.5-inch dummy module) Ê Press both tabs on the dummy module together until the locking mechanism disengages (1).

  • Page 93: Installing The Hdd Module

    CSS components Hot-plug components 8.1.2.4 Installing the HDD module Unlocking the 3.5-inch HDD module If HDD modules are provided with a transport lock, remove the lock before releasing the locking mechanism. Figure 23: Removing the transport lock Ê Pull the transport lock out in the direction of the arrow. Operating manual RX200 S4...
  • Page 94 Hot-plug components CSS components Figure 24: Unlocking the HDD module Ê Release the locking mechanism by pressing the locking button (1). Ê Push the handle of the HDD module fully in the direction of the arrow (2). The HDD module is now unlocked. Operating manual RX200 S4...
  • Page 95 CSS components Hot-plug components Unlocking the 2.5-inch HDD module Figure 25: Unlocking the 2.5-inch HDD module Ê Open the locking mechanism by pressing the locking button (1). Ê Push the handle of the HDD module fully in the direction of the arrow (2). The HDD module is now unlocked.
  • Page 96 Hot-plug components CSS components Installing the 3.5-inch HDD module Figure 26: Installing the 3.5-inch HDD module Ê Unlock the HDD module as described in section “Unlocking the 3.5-inch HDD module” on page Ê Carefully push the HDD module into the empty slot (1) until it stops. Ê...
  • Page 97 CSS components Hot-plug components Installing the 2.5-inch HDD module Figure 27: Installing the 2.5-inch HDD module Ê Unlock the HDD module as described in section “Unlocking the 2.5-inch HDD module” on page Ê Carefully push the HDD module into the empty slot (1) until it stops. Ê...

  • Page 98: Removing The Hdd Module

    Hot-plug components CSS components 8.1.2.5 Removing the HDD module CAUTION! Only remove an HDD module during operation if the drive is not currently being accessed. Observe the control LEDs for the corre- sponding HDD modules (see “Hard disk drive control indicators” on page 61).
  • Page 99 CSS components Hot-plug components Ê Install the new HDD module, as described in “Installing the HDD module” on page CAUTION! If you have removed a HDD module and do not install a new one in its place, put the dummy module back in its place for cooling, to comply with EMC regulations (regulations regarding electromagnetic compatibility), and for protection against fire.

  • Page 100: Replacing A Hot-Plug Fan

    Hot-plug components CSS components 8.1.3 Replacing a hot-plug fan CAUTION! The actions described in this section may only be performed by personnel with the appropriate technical training. Any unauthorized openings and improper repairs could expose the user to risks (electric shock, fire hazards) and could also damage the equipment. It is essential to observe the safety instructions in chapter “Important information”...

  • Page 101: Opening/Closing The Fan Cover

    CSS components Hot-plug components 8.1.3.1 Opening/closing the fan cover CAUTION! The fan cover must be replaced as soon as possible for purposes of cooling, to comply with EMC regulations (regulations regarding electro- magnetic compatibility) and to prevent fires. The fan cover must not remain open for longer than 15 minutes.

  • Page 102: Exchanging The Fan

    Hot-plug components CSS components 8.1.3.2 Exchanging the fan Ê Open the fan cover (see section “Opening/closing the fan cover” on page 99). FAN SYS 12 FAN SYS 10 FAN SYS 8 FAN SYS 6 FAN SYS 4 FAN SYS 2 FAN SYS 11 FAN SYS 9 FAN SYS 7...
  • Page 103 CSS components Hot-plug components Figure 30: Removing the fan Ê Take hold of the fan by the green touch points (1) and lift it out of the housing. Ê Set the fan down on the outside of the server. CAUTION! Never set a removed/defective fan down inside the server.

  • Page 104: Replacement Of Non-Hot-Plug Components

    Replacement of non-hot-plug components CSS components Replacement of non-hot-plug components When a defective non-hot-plug component has been detected (for more infor- mation see chapter “Startup and operation” on page 57 and the "Customer Self Service (CSS)" manual on the ServerBooks DVD), proceed as follows: Ê...

  • Page 105: Replacing A Memory Module

    CSS components Replacement of non-hot-plug components 8.2.2 Replacing a memory module 8.2.2.1 Removing the air cowl Figure 32: Taking off the air cowl. Ê Lift the air cowl and remove it. Operating manual RX200 S4...

  • Page 106: Identifying A Defective Css Component

    Replacement of non-hot-plug components CSS components 8.2.2.2 Identifying a defective CSS component Figure 33: Indicate CSS button Ê Press the Indicate CSS button (1). The PRIMERGY Diagnostic LED of the defective CSS component lights up orange and displays, which CSS component on the system board needs replacing (memory module or expansion card).

  • Page 107: Installing A New Memory Module

    CSS components Replacement of non-hot-plug components 8.2.2.4 Installing a new memory module CAUTION! Please note the equipping rules in the technical manual for the system board D2671. Figure 35: Installing a memory module Ê Insert the memory module into the slot (1) until the ejection levers on the sides engage with the module (2).

  • Page 108: Fitting The Air Cowl

    Replacement of non-hot-plug components CSS components 8.2.2.5 Fitting the air cowl Figure 36: Fitting the air cowl Ê Fit the air cowl back on (1). Make sure that the hooks on the air cowl (a) engage in the fan cage. Operating manual RX200 S4...

  • Page 109: Replacing An Expansion Card

    CSS components Replacement of non-hot-plug components 8.2.3 Replacing an expansion card 8.2.3.1 Removing the riser module Figure 37: Removing the riser module Ê If necessary, remove the cables from the defective expansion card. Ê Hold the riser module at the green dots (a) marked "LIFT UP" and carefully pull the riser module up and out (1).

  • Page 110: Identifying A Defective Css Component

    Replacement of non-hot-plug components CSS components 8.2.3.2 Identifying a defective CSS component Figure 38: Indicate CSS button Ê Press the Indicate CSS button (1). The PRIMERGY Diagnostic LED of the defective CSS component lights up orange and displays, which CSS component on the system board needs replacing (memory module or expansion card).

  • Page 111: Removing A Defective Expansion Card

    CSS components Replacement of non-hot-plug components 8.2.3.3 Removing a defective expansion card Figure 39: The riser module fully assembled Ê Pull out the defective expansion card from the riser card slot. On some expansion cards, you must first loosen two screws (a). Operating manual RX200 S4...

  • Page 112: Installing A New Expansion Card

    Replacement of non-hot-plug components CSS components 8.2.3.4 Installing a new expansion card Figure 40: The riser module fully assembled Ê Carefully press the new expansion card into the riser card slot, until it clicks into place. Make sure that the lug on the slot cover clicks into place in the corresponding hole.

  • Page 113: Installing A Riser Module

    CSS components Replacement of non-hot-plug components 8.2.3.5 Installing a riser module Figure 41: Installing a riser module Ê Position the riser cards on the slots in the system board. Ê Push carefully on the green dots (a) marked "PUSH" to press the riser module into place.

  • Page 114: Assembling The Server

    Replacement of non-hot-plug components CSS components 8.2.4 Assembling the server AC T AC T CO MP CO MP Figure 42: Mounting the housing cover Ê Place the housing cover on the server (1). Make sure that each bolt is positioned in the corresponding nut. Ê...

  • Page 115: Abbreviations

    Abbreviations Alternating Current ANSI American National Standard Institute ASR&R Automatic Server Reconfiguration and Restart Advanced Technology Attachments BIOS Basic Input-Output System Baseboard Management Controller Cache Coherency Compact Disk CD-ROM Compact Disk-Read Only Memory Cylinder Head Sector CMOS Complementary Metal Oxide Semiconductor Communication Central Processing Unit Operating manual...
  • Page 116 Abbreviations Direct Current DIMM Dual Inline Memory Module Dual Inline Package Direct Memory Access Desktop Management Interface Error Checking and Correcting Extended Capabilities Port EEPROM Electrically Erasable Programmable Read-Only Memory Elektrostatisch Gefährdete Bauteile (components are in danger of electrostatic) Emergency Management Port Enhanced Parallel Port Elektromagnetische Verträglichkeit (electromagnetic compatibility) Electrostatic Discharge...
  • Page 117 Abbreviations Field Replaceable Unit Front Side Bus Global Array Manager Graphical User Interface Hard Disk Drive Hot-Swap Controller I²C Inter-Integrated Circuit Input/Output Intelligent Chassis Management Identification Integrated Drive Electronics Integrated Mirroring Enhanced Interrupt Request Line Local Area Network Operating manual RX200 S4...
  • Page 118 Abbreviations Logical Block Address Liquid Crystal Display Logical Unit Number Low-Voltage Differential LichtWellenLeiter (fiber optic cable) Multi Mode Faser Manual Retention Latch Non Maskable Interrupt NVRAM Non Volatile Random Access Memory Operating System Peripheral Component Interconnect Prefailure Detection and Analysis POST Power ON Self Test RAID...
  • Page 119 Abbreviations Random Access Memory Read-Only Memory Remote Service Board Real Time Clock RTDS Remote Test and Diagnosis System SAF-TE SCSI Accessed Fault-Tolerance Enclosures Serial Attached SCSI SATA Serial ATA Single Bit Error Single Connector Attachment SCSI Small Computer System Interface SDDC Single Device Data Correction Sensor Data Record...
  • Page 120 Abbreviations System Event Log System Management Interrupt System Setup Utility SVGA Super Video Graphics Adapter Universal Serial Bus Video Graphics Adapter Operating manual RX200 S4...

  • Page 121: Index

    Index components 3rd party rack hardware installing in software requirements configuration, server connecting cables consumables accessible drives control panel CD drive controls DVD drive cooling, fan acclimatization time 39, correcting faults Advanced Video Redirection CPU, fan air cowl 103, CSS indicator 57, 59, ambient conditions articulated cable guide ASR&R...
  • Page 122 Index error FCC statement drifting display on monitor features drive “dead” Flash EPROM drive defective incorrect date global error indicator 57, 59, incorrect time graphics card no display on monitor no mouse pointer power-on indicator does not hard disk activity indicator 57, light hard disk drive 11, screen remains blank...
  • Page 123 Index indicators CD/DVD drive activity 57, labels CSS 57, 59, LAN activity indicator global error 57, 59, LAN port hard disk drive LAN transfer rate indicator HDD BUSY laser information HDD FAULT light emitting diode (LED) ID 57, 60, lithium battery ID indicator Low Voltage Directive 19, LAN activity...
  • Page 124 Index Remote Storage packaging 36, removing PCI SAS controller, configuring PDA 13, server ports requirements keyboard port 3rd party rack LAN port DataCenter Rack monitor port PRIMECENTER Rack mouse port reset button 57, serial port return of devices service LAN port routing cables USB port...
  • Page 125 Index indicators service LAN port 14, installation setup password installing startup, server noise level support bracket opening fan cover switch off time, defining operation switch on time, defining ports switching off, server property protection switching on, server removing system board routing cables PRIMERGY Diagnostic LED safety standards...
  • Page 127 Information on this document On April 1, 2009, Fujitsu became the sole owner of Fujitsu Siemens Compu- ters. This new subsidiary of Fujitsu has been renamed Fujitsu Technology So- lutions. This document from the document archive refers to a product version which was released a considerable time ago or which is no longer marketed.

Table of Contents
