Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server
Data Sheet
Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack
server
Maximum productivity in a 1U housing
costs.
The PRIMERGY RX Rack Server family is the perfect
platform to form dynamic infrastructures for your
business processes today and in the coming
decade. You will thus benefit several times over
from our recognized experience in optimized
data center technology and our innovative
strength in developing energy-efficient and cost/
performance-optimized rack systems for universal
use. PRIMERGY rack servers, built upon industry
standards, focus from a functional viewpoint
on core features: energy efficiency, reliability,
optimized for virtualization, ease of operation
and maintenance, flexibility for your future. And
thus they notably meet your requirements for
outstanding cost efficiency. Optimal operating
costs and long-term usability comply with
the IT quality required by your customers. Our
responsibility goes way beyond the hardware as
our tailor-made service packages mean that you
can rely on the best support for your IT during its
whole lifecycle.
PRIMERGY RX200 S7

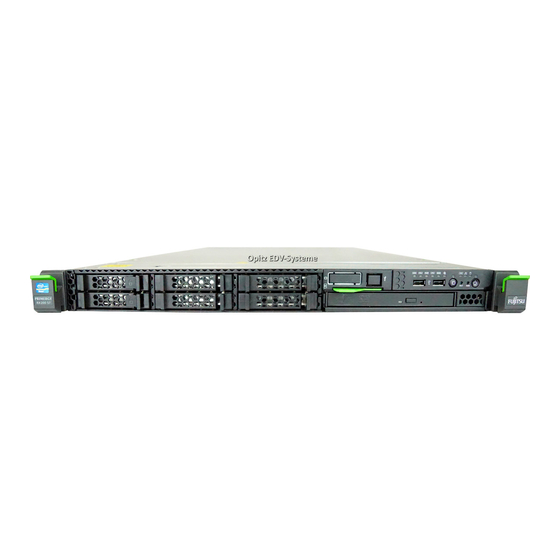

The Fujitsu PRIMERGY RX200 S7 is a rack server
that provides high performance, expandability
and energy efficiency in 1U space saving housing.
Thus, the PRIMERGY RX200 S7 is ideal for
virtualization and cloud, small databases as well
as for high performance computing thanks to
the top performance of the new Intel® Xeon® E5
product family. Moreover, the RX200 S7 delivers
a great expandability, by supporting up to 768
GB of memory, eight hard disk drives and cost-
saving Modular LAN options to ensure future
requirements are met and budgets are saved.
Thanks to the highly efficient power supply units
with an efficiency rate of 94% and the new power
management this will result in lower operational
Page 1 / 9
www.fujitsu.com/fts

Advertisement

loading

Summary of Contents for Fujitsu PRIMERGY RX200 S7

  • Page 1 Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Maximum productivity in a 1U housing costs. The PRIMERGY RX Rack Server family is the perfect...
  • Page 2: Features And Benefits

    Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Features and Benefits Main Features Benefits Meet today’s demand and be prepared for future requirements Intel Xeon E5-2600 product family with up to 8 core processors and Increased performance of up to 80% compared to the previous „...
  • Page 3: Technical Details

    Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Technical details PRIMERGY RX200 S7 Housing types Rack Rack Storage drive architecture 4x 2.5” SAS/SATA 8x 2.5” SAS/SATA Power supply Hot-plug Hot-plug Mainboard Mainboard type D3032 Chipset Intel® C600 (Intel® Patsburg A) Processor quantity and type 1 - 2 x Intel®...
  • Page 4 Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Memory notes Max. 8 memory modules/CPU with UDIMM (low voltage or standard) OR quad-rank RDIMM; max. 12 memory modules/CPU with single or dual-rank RDIMM or single, dual-rank or quad-rank Load-Reduced (LR) DIMM.
  • Page 5 Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server General system information Fan configuration redundant / hot-plug Fan notes 4 + 2 double-fans for 2 CPU configuration Operating panel Operating buttons On/off switch Reset button NMI button...
  • Page 6 Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Server Management Standard ServerView Suite - Deploy SV Installation Manager SV Scripting Toolkit SV Deployment Manager (30-day trial version) ServerView Suite - Control SV Operations Manager incl. PDA and ASR & R (Prefailure and Analysis;...
  • Page 7 Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server Electrical values Rated current max. 8.0 A (100 V) / 4.0 A (240 V) Rated current in basic configuration 1.5 A (100 V) / 0.6 A (240 V) Active power (max.
  • Page 8: Warranty

    RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU (based on LSI SAS2208) RAID 5/6 Ctrl., SAS/SATA 6 Gb, Fujitsu RAID Ctrl SAS 6G 5/6 512MB (D2616), 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 512 MB Cache, Optional BBU (based on LSI SAS2108) RAID 5/6 Ctrl., SAS/SATA 6 Gb, Fujitsu RAID Ctrl SAS 6G 1GB (D3116), 8 ports int.
  • Page 9: More Information

    Data Sheet Fujitsu PRIMERGY RX200 S7 Dual socket 1 U rack server More information Fujitsu platform solutions More information Copyrights In addition to Fujitsu PRIMERGY RX200 S7, Learn more about Fujitsu PRIMERGY RX200 All rights reserved, including intellectual Fujitsu provides a range of platform solutions.
