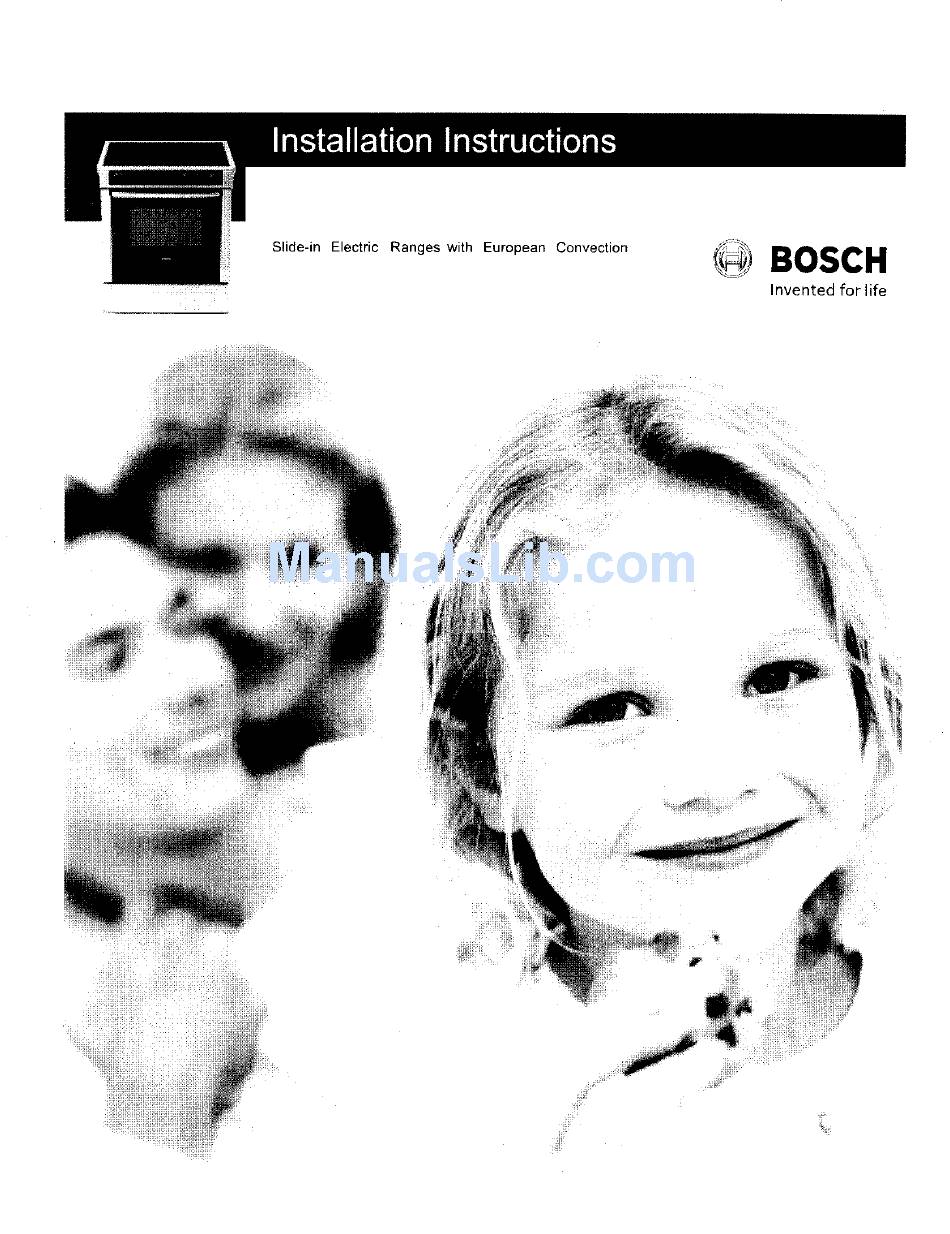

- Page 1 Slide-in Electric Ranges with European Convection BOSCH Invented for life ;i !!i!_!ii_iii!iii!ii!_i_!ii ¸ i...
-
Page 2: Table Of Contents
Table of Contents Safety ............. Installation ..........Before You Begin ............. Installation Procedure ............Service ........... Before Calling Service ............Questions? 1-800-944-2904 www.boschappliances.com 5551 McFadden Ave. Huntington Beach, CA 92649 We look forward to hearing from you! -
Page 3: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Important Safety Warning: If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury. Instructions WARNING: Do not repair or replace any part of the appliance unless specifi- cally recommended in the manuals. -
Page 4: Installation
• Remove alltapeandpackaging b efore using theappliance. Destroy thepack- agingafterunpacking t heappliance. Never a llowchildren toplaywithpackag- ingmaterial. • Nevermodify or altertheconstruction o ftheappliance. Forexample, donot remove leveling legs,panels, wirecoversoranti-tip brackets/screws. • Toeliminate theriskofburnsorfireby reaching o verheated surface units, cabinet s torage space located above thesurface unitsshouldbeavoided. I f cabinet storage isto beprovided, theriskcanbereduced byinstalling a hood thatprojects horizontally a minimum of5 inches beyond thebottom of the cabinet. - Page 5 General Information Overall Dimensions Table 1: Overall Dimensions Dimension Inches centimeters Height 91.44 cm Width 29 5/16" 74.55 cm Depth 25 5/8" 65.09 cm Level For best results, cabinets, countertops walls and floors in the installation location should be as level and plumb as possible. Variance may cause damage to coun- tertops and floors during installation, could jeopardize the seal around the cooktop and may adversely affect cooking and baking performance.
- Page 6 Theelectrical outlet m ustbelocated intheshaded spacein Figure 3. (114.3 mm) Figure 1: Cooktop Clearances Verify that wiring to house is adequate Contact your local utility company to verify that the present electric service to your home is adequate. In some instances, the size of the wiring to the house and ser- vice switch must be increased to handle the electrical load demanded by the range.
- Page 7 Allowa minimum of30inches between cabinets where rangeisto beinstalled 1 . See Figure 2: Cutout R equirements formoreinformation.. " .._-..62 . _m_ .._._" Figure 2: Cutout Requirements Note: The slide-in range can also replace a freestanding range. In this case, ver- ify that the opening is at least 30 inches.
- Page 8 30" (76.2 cm) min. centered ® ® 4" (10,2 cm) 4" (10.2cm) 30" (76.2 cm) min. rain. min. no clearance required (12 mm clearance required in Canada) Figure 4: Cabinet Preparation Required Clearance I From cooktop to materials above: There must be a minimum clearance of 30 inches between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet.
-
Page 9: Installation Procedure
1. Adjust height of range and level by rotating the adjustable leg supports on the bottom of the range, using 1-1/4" wrench. Measure to locate bracket position as shown in See Figure 5: Anti-Tip Bracket. Secure bracket with 2 screws adequate for mounting surface (i.e., for wood ....... - Page 10 Install 2 screws through holes in trimandinrangebackwall. See Figure 6:Back- wallTrimStripandFigure 7:Install B ackwall TrimStrip Backwall Trim Strip Figure 6: Backwall Trim Strip Back of Range Figure 7: Install Backwall Trim Strip Connect Electric - Range Note: tn Canada, the range is shipped from the factory with the range cord Cord already installed.
- Page 11 length/slack hasbeenadjusted, attach strainreliefperinstructions i ncluded w ith strainrelief. Tip:Theknockout panelbelow theterminal b lock canberemoved f rom therange to install t hestrainrelief: R emove knockout panel f romrange, install s trainreliefinpanel a ndreattach. DONOTremove entirerange backpane. Figure 8: Strain Relief Knockout ,_Warning: Risk of Electric Shock or Fire.
- Page 12 FourWireRangeCordConnection 1. Disconnect electrical power at breaker box. (Recommended Method) ......... Figure 10:4 Wire Connection Remove top nut, star washer, and round washer from each post. Note: DO NOT remove last round washer, last nut or internal wiring leads. Remove screw from bottom end of ground strap. Remove ground strap from center post, rotate so that wide end is at top and attach wide end to range through hole below junction box.
- Page 13 black white Figure 12: Four Wire Range Cord Connection (continued) Tighten all connections securely and replace terminal block cover. 10. Properly secure strain relief (see previous section). Note: DO NOT plug in range at this time. Three Wire Range Cord Connection The Four Wire Connection (above) is preferred, but where local codes and ordi- nances permit grounding through neutral and where conversion to four wire is impractical, the unit may be connected to the power supply via a three wire con-...
- Page 14 6. Attachblack wire,round washer, starwasher a ndnutINTHISORDER toright ........ post: ........................biack ground strap white Figure 14: Three Wire Connection Tighten a!! €onnecti o nS sec u re! a nd re p!ace te rm !na! b!ock cove r:........green ground screw Figure 15: Completed Three Wire Range Cord Connection...
- Page 15 8. Strip3/8(9.53mm)inches of insulation f romtheendof thewire. Wire Stripping Figure Insert the insulated grounding wire into the lug below the terminal block. 10. Insert stripped end of white wire into the center lug. Secure the clamping- screw. clamping screw wire Figure 17: Attaching Wire to Lug 11.
- Page 16 Note:DONOTpluginrange atthistime. ThreeWireFlexibleConduitConnec-TheFourWireConnection i s preferred, butwherelocal c odes andordinances tion permit g rounding t hrough neutral a nd/or c onversion t ofourwireis impractical, unit maybeconnected t othepower supply viaa threewireconnection. 1. Disconnect electrical power atthebreaker b ox. 2 Remove t hetermina! b !ock covertoexpose theterminal b lock. Figure 19: Terminal Block Remove the top nut, star washer, and round washer from each post.
- Page 17 9. Tighten eachclamping screw withtheappropriate t orque(Seetablebelow). Table 4: Appropriate Torque Levels for Aluminum or Copper Wire Gauge Torque (in./Ibs.) Torque (Nm) 3.95 2.82 10. Properly secure flexible conduit at knockout panel on range and at supply ........ sial junct!o b°x:Th wr!ng! com13!e! ..............
-
Page 18: Service
Slide range into opening, being careful not to damage countertops, floors, or the range drawer front. Do not apply pressure to cooktop when sliding into position. Tip: Remove the drawer to prevent damage. Check Back of Range for Proper When properly installed, the cooktop trim around the back of the range will Installation rest lightly on the countertop. - Page 19 Product Data Plate The data plate shows the model and serial number. Refer to the data plate on the appliance when requesting service. It is located on the frame near the drawer. Open the drawer to view it. Data Plate_ Figure 24: Data Plate English 17...
-
Page 20: Www.boschappliances.com
5551 McFadden Avenue, Huntington Beach, CA 92649 • 800-944-2904 • www.boschappliances.com 9000135012 (No ECO) ° 10086 Rev B ° 03/06 • © BSH Home Appliances Corporation • Litho U. S. A.
