Hsv400 Controller Rear View; Hsv450 Controller Rear View - HP StorageWorks 6400/8400 - Enterprise Virtual Array User Manual

NOTE:
Some controller enclosure modules have a cache battery located behind the OCP.

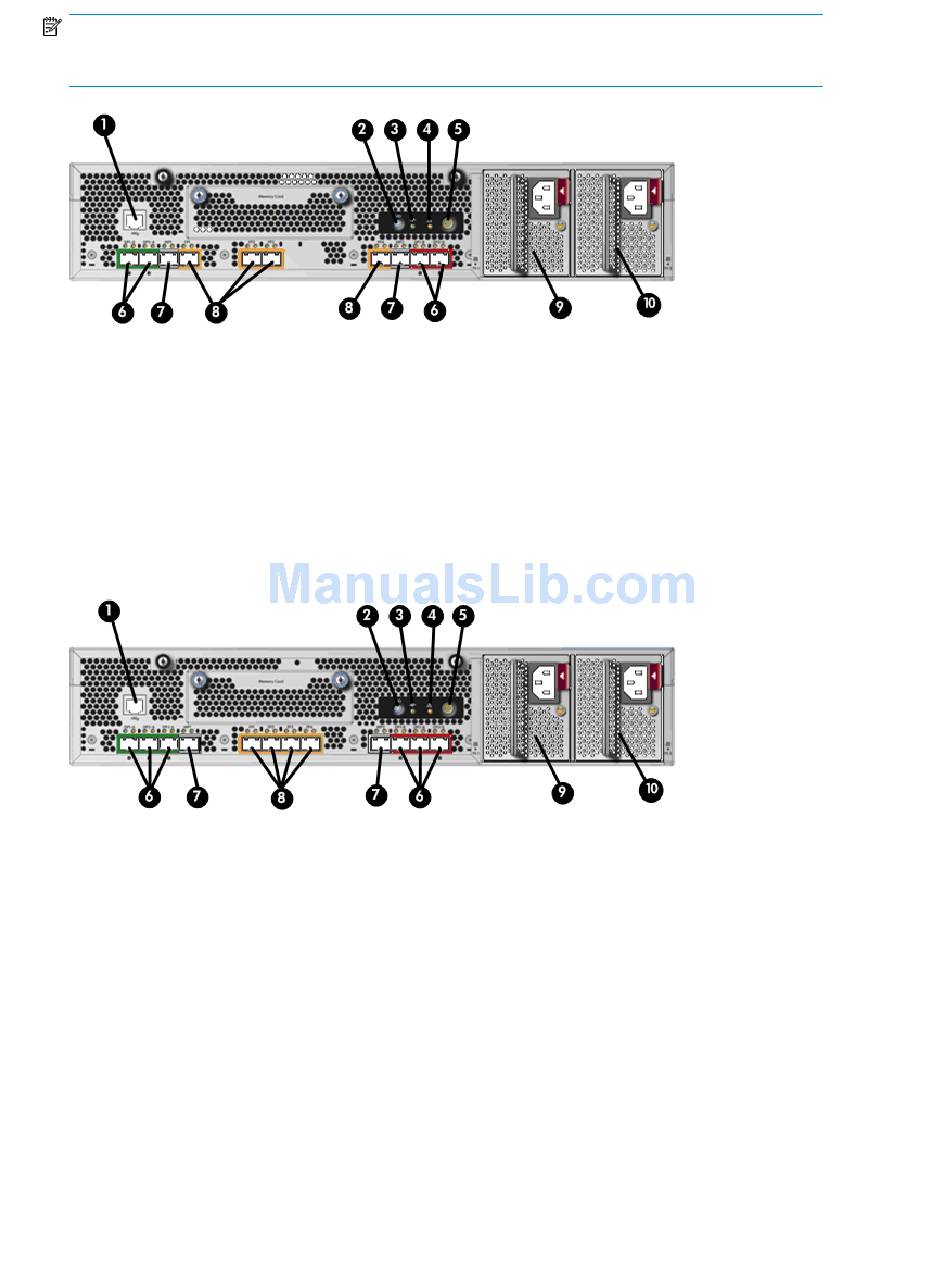

Figure 8 HSV400 controller rear view
.
1. Serial port
3. Controller health
5. Power
7. Mirror ports
9. Power supply 1
Figure 9 HSV450 controller rear view
.
1. Serial port
3. Controller health
5. Power
7. Mirror ports
9. Power supply 1
22 EVA6400/8400 hardware
2. Unit ID
4. Fault indicator
6. DPI ports
8. Fiber ports
10. Power supply 2
2. Unit ID
4. Fault indicator
6. DPI ports
8. Fiber ports
10. Power supply 2
