5. Verify that the processor ejector lever has rotated over the edge of the
processor retaining latch, as shown in Figure 3-12. If the ejector lever is
not fully rotated, gently push it into place.
If the ejector lever does not rotate easily over the edge of the processor
retaining latch, the processor module is not fully inserted into its slot. In
that case, press firmly on the processor module to seat it.
Hooks to Engage
Processor Ejector Lever
Processor
Ejector Lever
Secondary
Processor Position

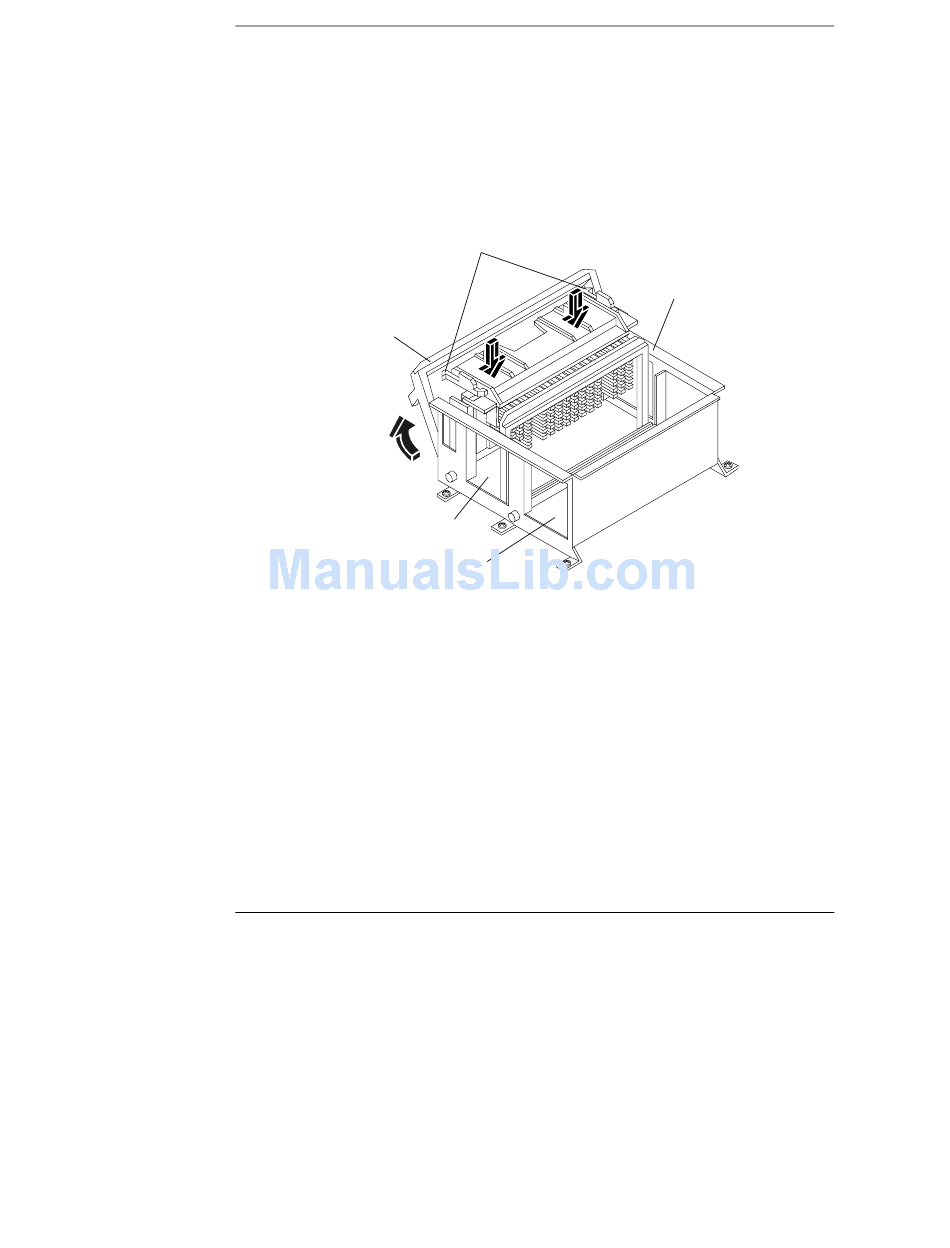

Figure 3-12. Rotate the Processor Ejector Lever
(Shown for Secondary Processor Module)
6. Verify that two hooks on the processor retaining latch have engaged the
back of the ejector lever, as shown in Figure 3-12. These hooks hold the
ejector lever in place.
26
Primary
Processor Position
Installation in LC 3 and LH 3/3r
Processor Mounting
Bracket
