Removing the Terminator Board

If your system has one processor, a terminator board is installed in the upper
(secondary) processor position. You must remove the terminator board before
installing a processor module into this position. (See Figure 3-3).
1. Squeeze together the two retaining latches on the terminator board.
2. Pull the terminator board out of the slot.
3. Save the terminator board for future use.

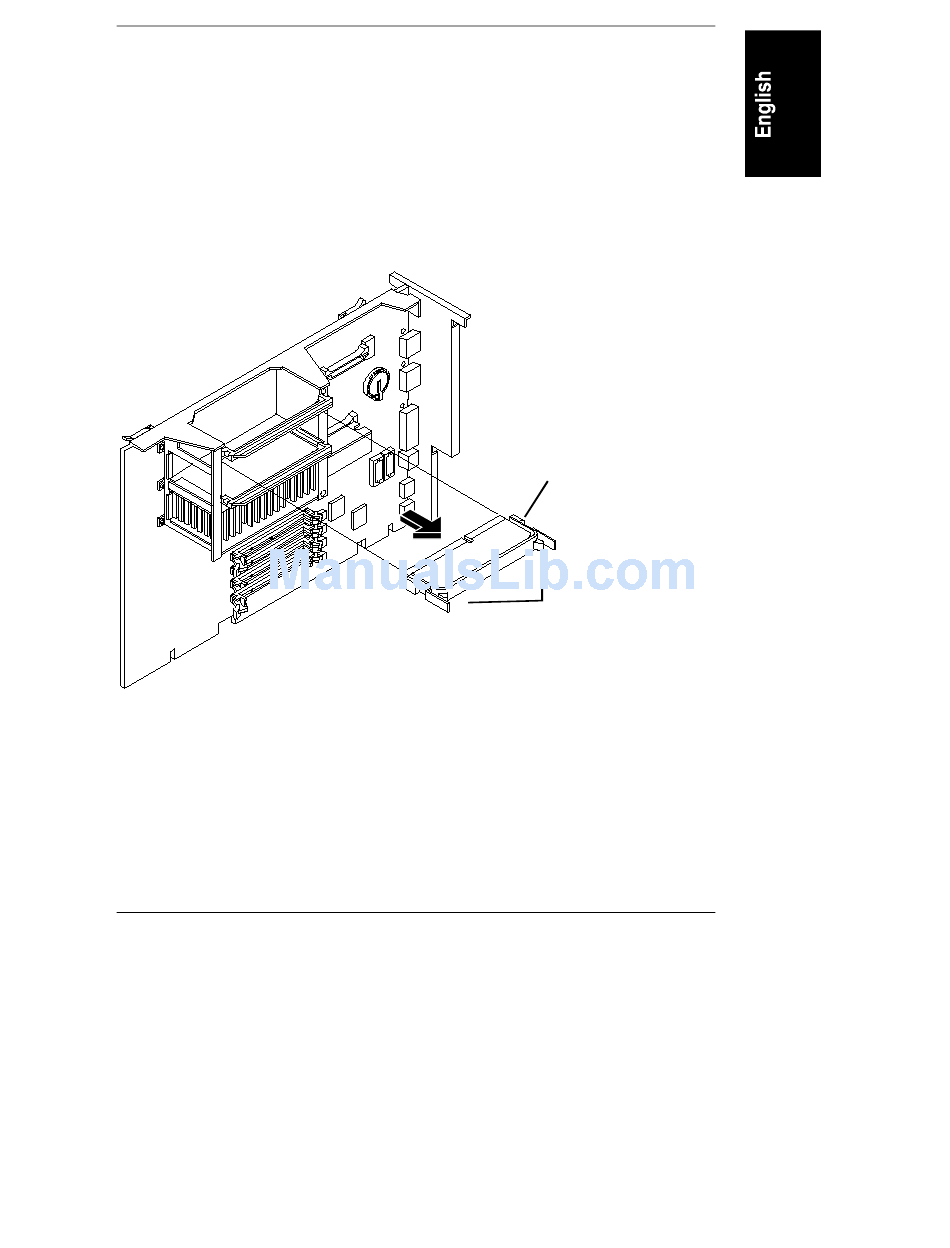

Figure 3-3. Removing Terminator Board from HP NetServer
(Details of the Pre-existing Processor Module May Vary.)
Installation in LC 3 and LH 3/3r
Terminator Board
Terminator Board
Retaining Latches
LC 3 and LH 3/3r
