DIMM and 32-DIMM Configuration for Interleaved Memory Boards

Boot Device Priority

NOTE
By default, the HP NetServer searches for bootable devices in the order shown below. (This boot sequence
is configurable.)
1. IDE CD-ROM drive
2. Flexible disk drive
3. ISA board
4. Slot P1
5. On-board SCSI
6. Slots P2 through P10
Bank A
Key:
Bank B
Primary Board

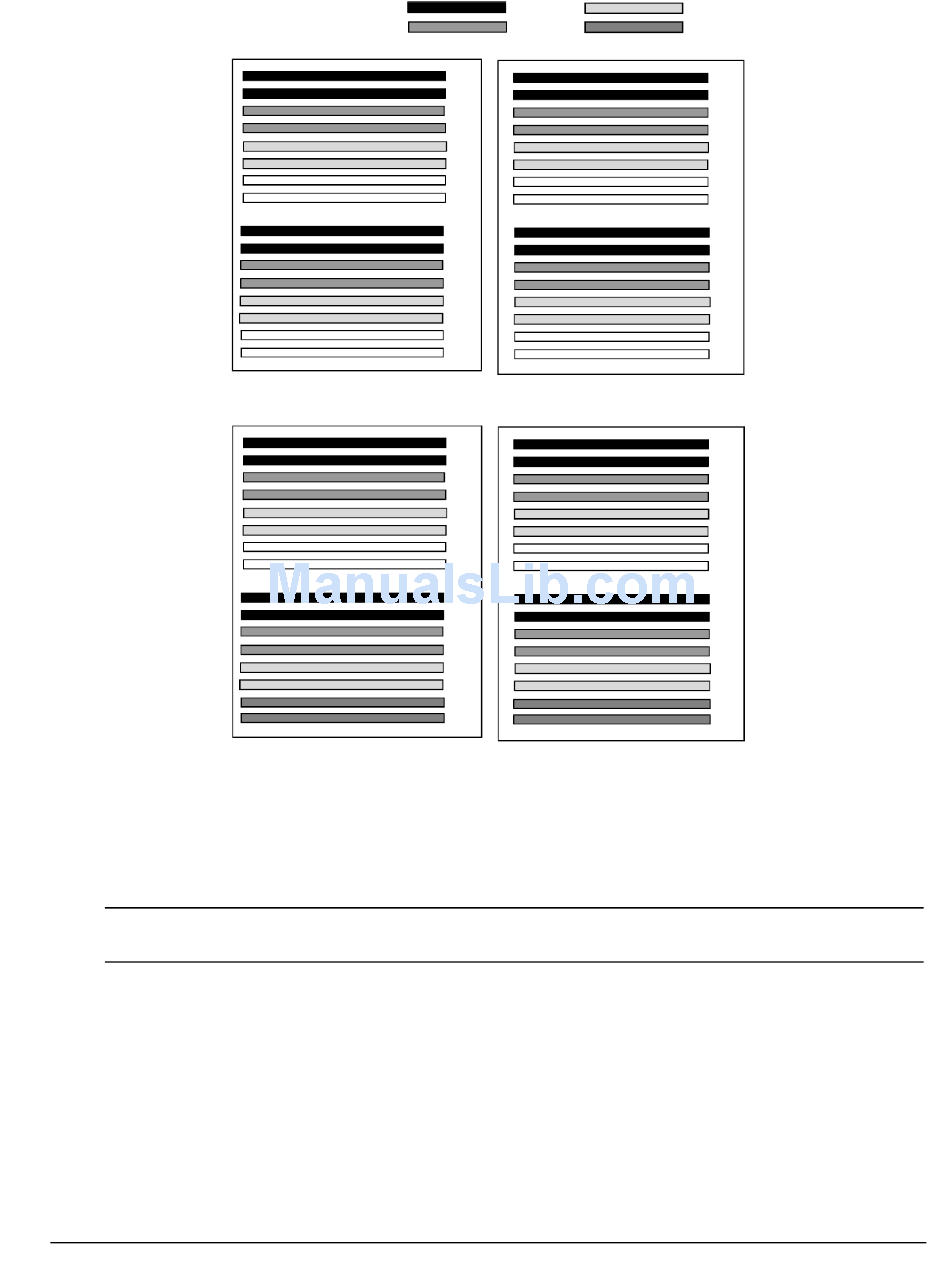

Board-to-Board Interleaving: 24 DIMMS
Primary Board
Board-to-Board Interleaving: 32 DIMMS
Plugging the HP TopTools Remote Management card (board) in any slot other than
slot 2 may cause it to malfunction.
Bank C
Bank D
Secondary Board
J1
J2
J5
J6
J9
J10
J13
J14
J3
J4
J7
J8
J1 1
J12
J15
J16
Secondary Board
J1
J2
J5
J6
J9
J10
J13
J14
J3
J4
J7
J8
J11
J12
J15
J16
J1
J2
J5
J6
J9
J10
J13
J14
J3
J4
J7
J8
J1 1
J12
J15
J
16
J1
J2
J5
J6
J9
J10
J13
J14
J3
J4
J7
J8
J1 1
J12
J15
J16
