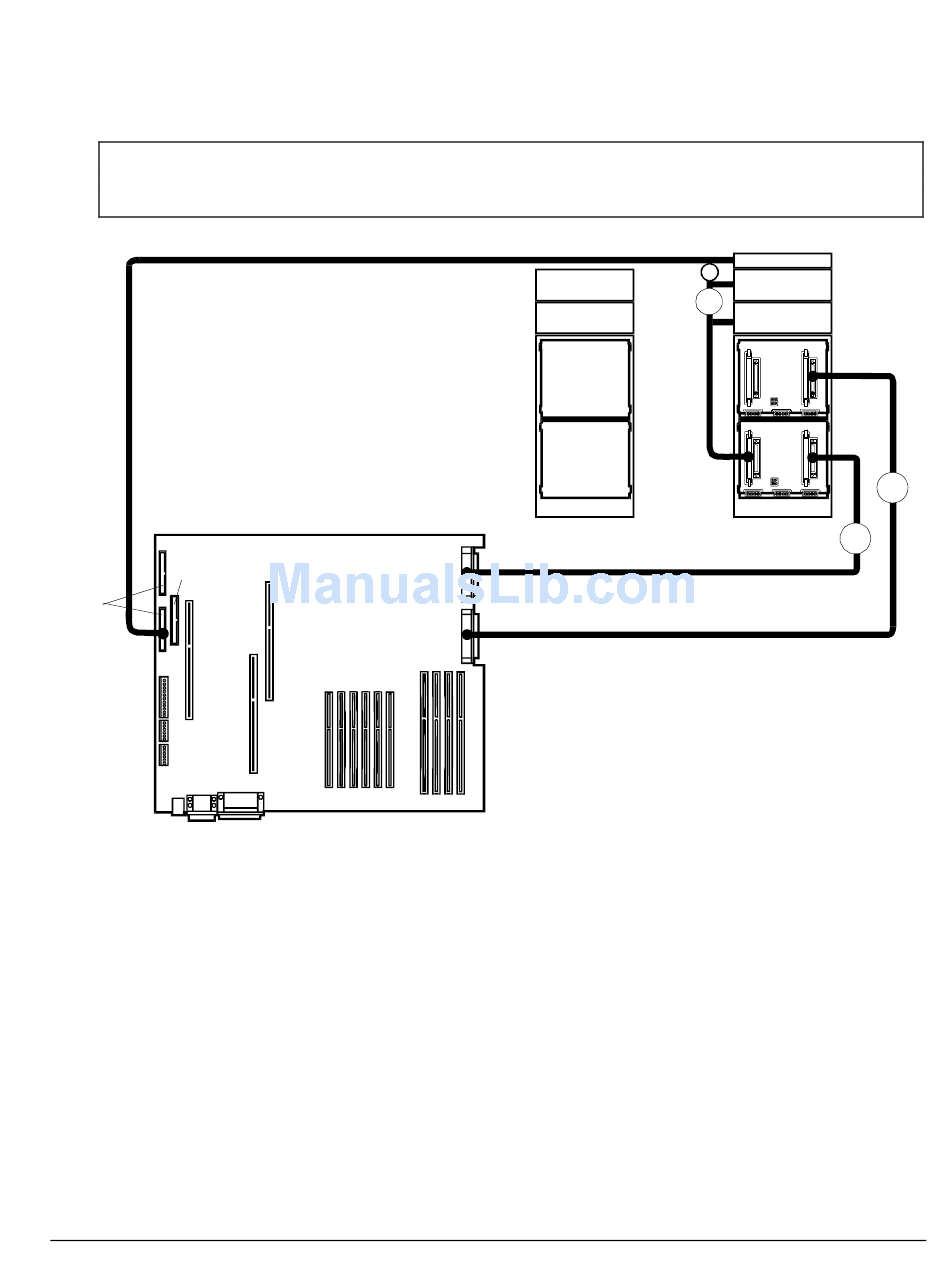

LXe Cabling Configurations
LXe Pro: Duplex, Non-Disk Array Model using the Internal Controller
CAUTION
IDE
Flexible
disk
Do not attempt to run the NetServer with any mass storage devices installed in the
right side (including shelves B1 or B2, illustrated above) without first installing a
second power supply module.
System Board
B1
B2
Right cages
Rear view
SCSI A
SCSI B
Flexible Disk
*
CD-ROM
A1
C21
SCSI or IDE
Device
A2
Left cages
Rear view
C12
* Termination resistor
incorporated into cable
C12
25
