Chapter 2

Viewing Information on the Control Panel Display

The HP NetServer LXr 8500's control panel display can show HP NetServer
configuration information, a log of current and past error conditions, replaceable
parts information, and more.
The control panel uses a two-line LCD display to provide the necessary
information. A main menu is used to make selections, which lead to several
different information windows. The navigation buttons, briefly described in Table
2-5, are used to make selections and scroll through the windows.

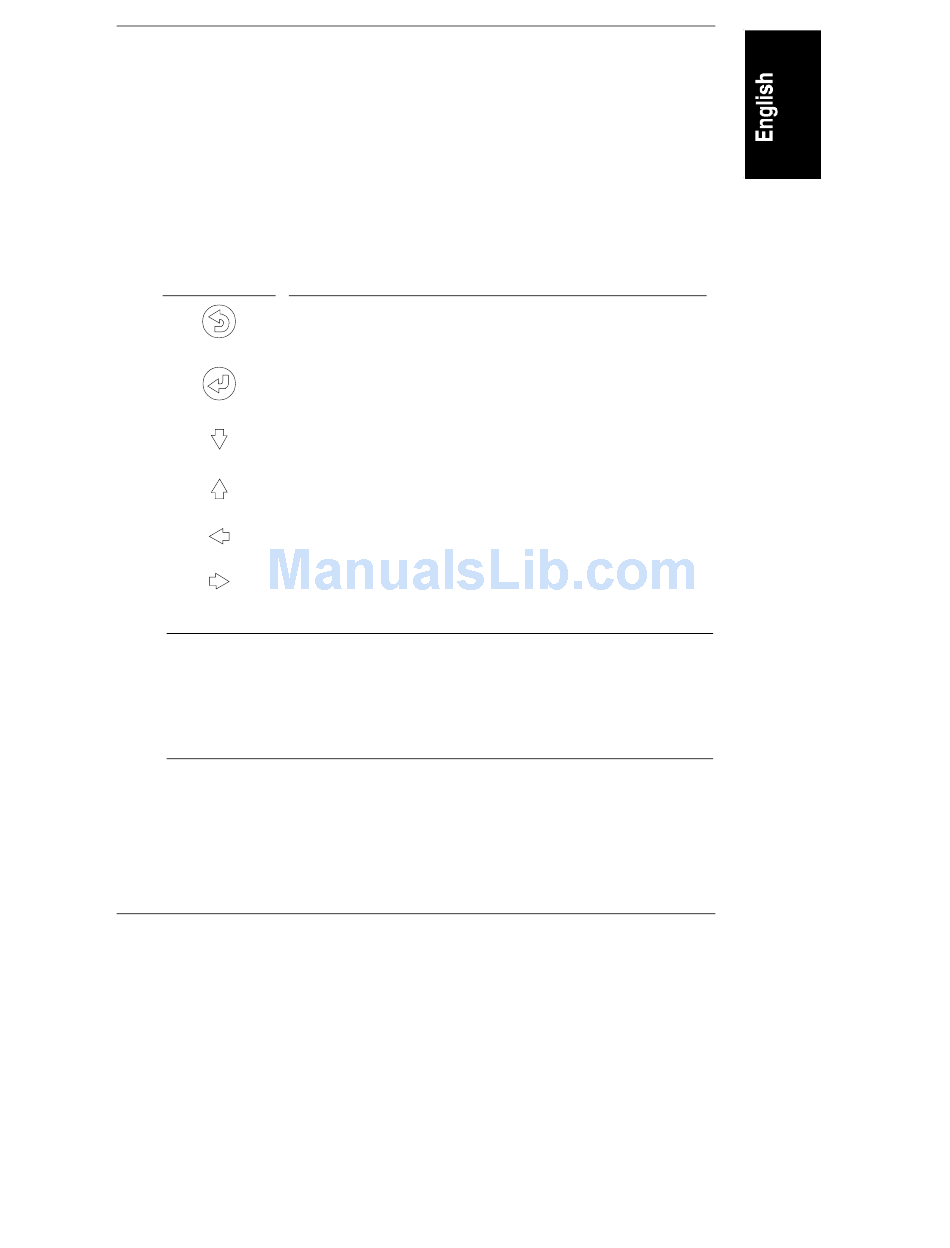

Table 2-5. Control Panel Display Control Buttons
Button Name
Return to previous menu.
Escape
Select an item from a menu.
Enter
Scroll down one line through the current window or menu.
Down Arrow
Scroll up one line through the current window or menu.
Up Arrow
Not used.
Left Arrow
Not used.
Right Arrow
NOTE The front panel display buttons and menus are fully functional
even when the HP NetServer is powered down or hung, as long
as the HP NetServer is plugged into its power source.
However, during POST (power-on self-test) the buttons and
menus are temporarily disabled to display the POST codes and
boot messages.
Controls, Indicators, and Ports
Description
19
