Chapter 2

HP NetServer Status LEDs

Three LEDs -- one red, one green, one yellow -- are grouped on the right side of
the control panel. The three HP NetServer status LEDs give you a quick idea of
the HP NetServer's general health. The signals provided reflect the most critical
pending event in the HP NetServer.
Figure 2-4 shows the HP NetServer status LEDs, and Table 2-2 describes how to
interpret each one.
Table 2-2. Interpreting the HP NetServer Status LEDs
Red Yellow
LED LED
Off Off
Flashing Off
Off Flashing
Off Off

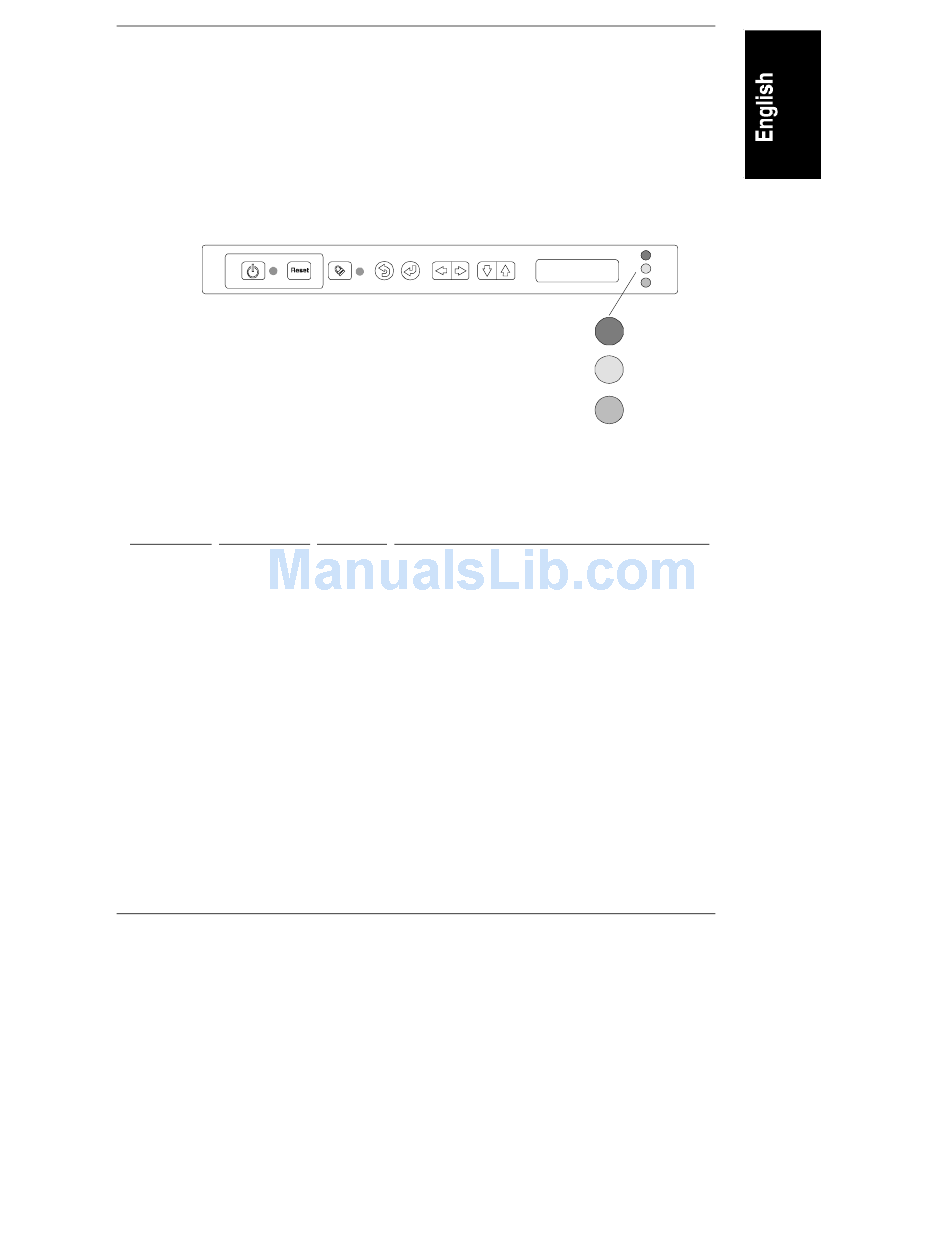

Figure 2-4. HP NetServer Status LEDs
Green
LED Indicates HP NetServer Status:
Off Main power is off and the HP NetServer may
or may not be on standby power.
Off Immediate attention required due to a failed
component in the HP NetServer. The HP
NetServer may not be fully operational, due to
this condition, such as POST errors.
Off Attention required due to a pre-failure
condition. This condition may be caused by a
component failure (for example, a redundant
fan or power supply) that could lead to a
critical component failure, such as a processor
module exceeding its operating temperature.
If the failed component is redundant, the HP
NetServer may still be operating normally.
On The HP NetServer is operating normally.
Controls, Indicators, and Ports
Red
Yellow
Green
9
