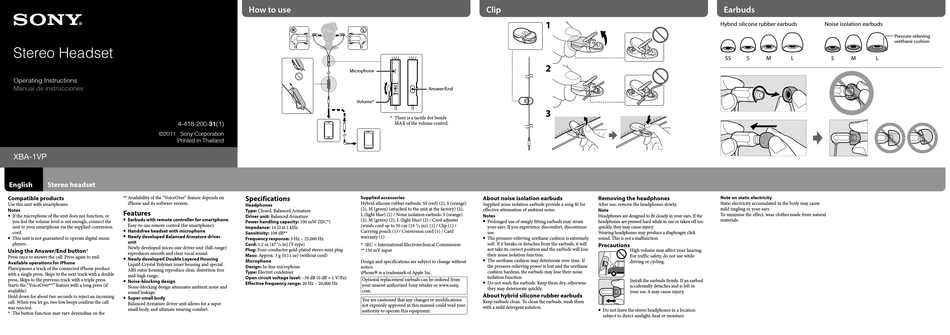

Sony XBA-1VP Operating Instructions

Stereo Headset
Operating Instructions
Manual de instrucciones
4-418-200-31(1)
©2011 Sony Corporation
Printed in Thailand
XBA-1VP
English Stereo headset
Compatible products ** Availability of the "VoiceOver" feature depends on
iPhone and its software version.
Use this unit with smartphones.
Notes
Features
 If the microphone of the unit does not function, or
 Earbuds with remote controller for smartphone
you feel the volume level is not enough, connect the
Easy-to-use remote control (for smartphone).
unit to your smartphone via the supplied conversion
 Handsfree headset with microphone
cord.
 Newly developed Balanced Armature driver
 This unit is not guaranteed to operate digital music
unit
players.
Newly developed micro-size driver unit (full-range)
Using the Answer/End button*
reproduces smooth and clear vocal sound.
Press once to answer the call. Press again to end.
 Newly developed Double Layered Housing
Available operations for iPhone
Liquid Crystal Polymer inner housing and special
Plays/pauses a track of the connected iPhone product
ABS outer housing reproduce clear, distortion-free
with a single press. Skips to the next track with a double
mid-high range.
press. Skips to the previous track with a triple press.
 Noise-blocking design
Starts the "VoiceOver**" feature with a long press (if
Noise-blocking design attenuates ambient noise and
available).
sound leakage.
Hold down for about two seconds to reject an incoming
 Super-small body
call. When you let go, two low beeps confirm the call
Balanced Armature driver unit allows for a super
was rejected.
small body, and ultimate wearing comfort.
* The button function may vary depending on the
smartphone.
How to use
Microphone
Volume*
* There is a tactile dot beside
MAX of the volume control.
Specifications
Supplied accessories
Hybrid silicone rubber earbuds: SS (red) (2), S (orange)
Headphones
(2), M (green) (attached to the unit at the factory) (2),
Type: Closed, Balanced Armature
L (light blue) (2) / Noise isolation earbuds: S (orange)
Driver unit: Balanced Armature
(2), M (green) (2), L (light blue) (2) / Cord adjuster
Power handling capacity: 100 mW (IEC*)
(winds cord up to 50 cm (19 3 / in)) (1) / Clip (1) /
Impedance: 16 Ω at 1 kHz 4
Carrying pouch (1) / Conversion cord (1) / Card
Sensitivity: 108 dB**
warranty (1)
Frequency response: 5 Hz – 25,000 Hz
Cord: 1.2 m (47 / in) (Y-type)
1 * IEC = International Electrotechnical Commission
4
Plug: Four-conductor gold-plated stereo mini plug
** 150 mV input
Mass: Approx. 3 g (0.11 oz) (without cord)
Microphone
Design and specifications are subject to change without
Design: In-line microphone notice.
®
Type: Electret condenser
iPhone is a trademark of Apple Inc.
Open circuit voltage level: –38 dB (0 dB = 1 V/Pa)
Optional replacement earbuds can be ordered from
Effective frequency range: 20 Hz – 20,000 Hz
your nearest authorized Sony retailer or www.sony.
com.
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
Clip
Answer/End
About noise isolation earbuds Removing the headphones
Supplied noise isolation earbuds provide a snug fit for After use, remove the headphones slowly.
effective attenuation of ambient noise. Note
Notes Headphones are designed to fit closely in your ears. If the
 Prolonged use of snugly fitting earbuds may strain headphones are pressed hard while in use or taken off too
your ears. If you experience discomfort, discontinue quickly, they may cause injury.
use. Wearing headphones may produce a diaphragm click
 The pressure-relieving urethane cushion is extremely sound. This is not a malfunction.
soft. If it breaks or detaches from the earbuds, it will
Precautions
not take its correct position and the earbuds will lose
their noise isolation function.
 The urethane cushion may deteriorate over time. If
the pressure-relieving power is lost and the urethane
cushion hardens, the earbuds may lose their noise
isolation function.
 Do not wash the earbuds. Keep them dry, otherwise
they may deteriorate quickly.
About hybrid silicone rubber earbuds
Keep earbuds clean. To clean the earbuds, wash them
with a mild detergent solution.
 Do not leave the stereo headphones in a location
subject to direct sunlight, heat or moisture.
Earbuds
Hybrid silicone rubber earbuds
SS S M L
Note on static electricity
Static electricity accumulated in the body may cause
mild tingling in your ears.
To minimise the effect, wear clothes made from natural
materials.
High volume may affect your hearing.
For traffic safety, do not use while
driving or cycling.
Install the earbuds firmly. If an earbud
accidentally detaches and is left in
your ear, it may cause injury.
Noise isolation earbuds
Pressure-relieving
urethane cushion
S M L
