BM 2610908996 5/03

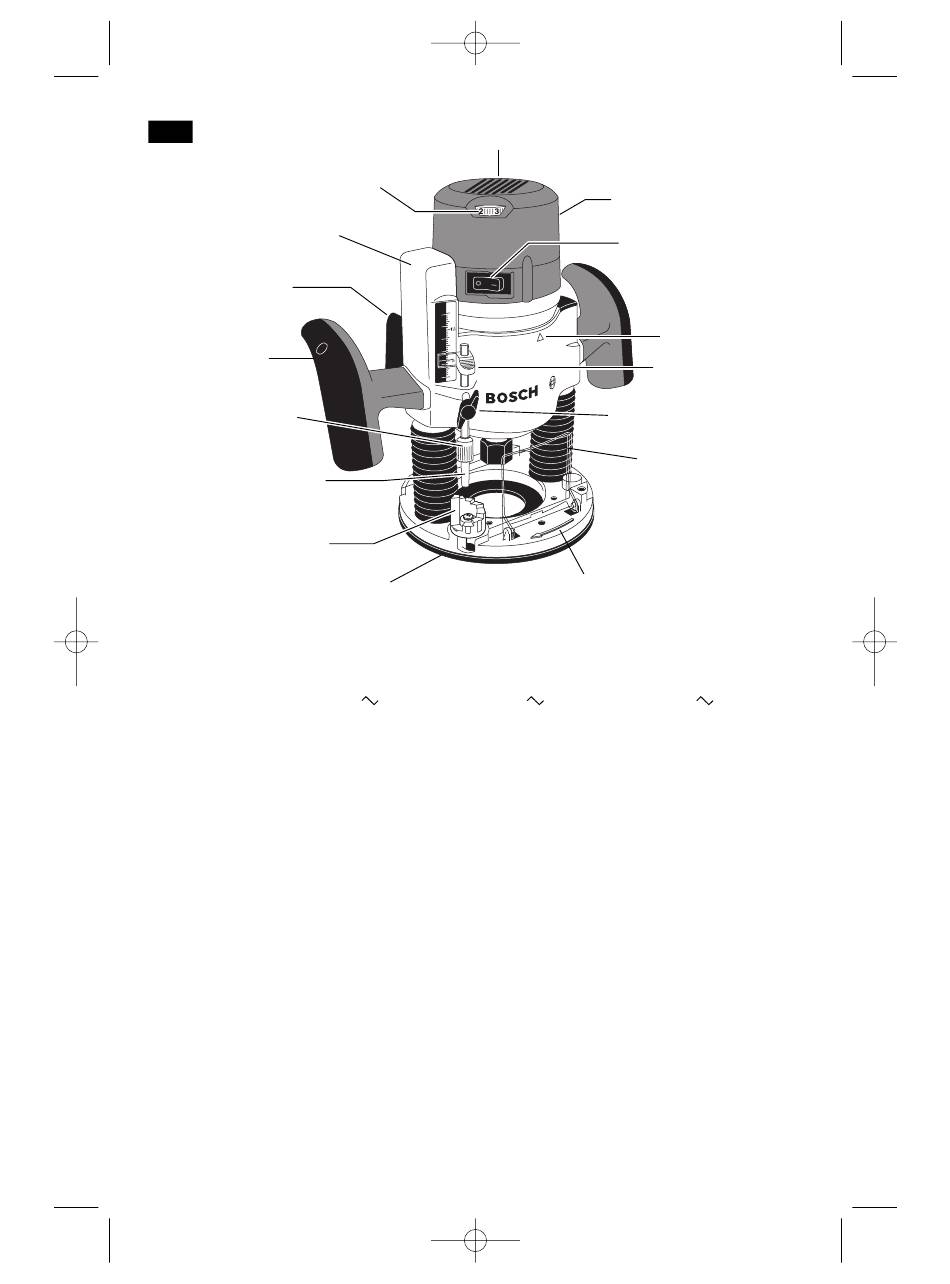

FIG. 3
SPEED CONTROL DIAL
Model 1617EVSP only
BASE TYPE P
PLUNGE LOCK LEVER
PLUNGE HANDLE
DEPTH ROD FINE
ADJUSMENT KNOB
DEPTH ROD
DEPTH STOP TURRET
Model number
Voltage rating
Amperage rating
No load speed
Collet capacities
RA1160 fixed-base shop router base marked type "S" is designed for use with these router motors:
1617 router motor (16171)
1617EVS router motor (16176)
0 601 617 061 router motor (0 601 617 161)
1618 router motor (16181)
1618EVS router motor (16186)
RA1162 D-handle router base marked type "D" is designed only for use with these router motors:
1618 router motor (16181)
1618EVS router motor (16186)
RA1166 plunge router base marked type "P" is designed for use with these router motors:
1617 router motor (16171)
1617EVS router motor (16176)
0 601 617 061 router motor (0 601 617 161)
1618 router motor (16181)
1618EVS router motor (16186)
5/20/03 9:06 AM Page 7
AIR VENTS
IN
MM
2
50
40
30
1
20
10
0
0
SUB-BASE
1617 & 1618
120V 50 - 60Hz
11A
n 25,000/min
0
1/4", 3/8", 1/2", 8mm
-7-

MOTOR HOUSING

ROCKER ON\OFF SWITCH
MOTOR ALIGNMENT
DEPTH INDICATOR
DEPTH ROD KNOB
CHIP DEFLECTOR
BIT ROTATION ARROW
1617EVS & 1618EVS 0 601 617 061
120V 50 - 60Hz 220V
12A 6A
n 8,000-25,000/min n
0 0
1/4", 3/8", 1/2", 8mm 1/4", 3/8", 1/2", 8mm
ARROW
50 - 60Hz
25,000/min
