Sealey VS0202.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Familiarise yourself with the application and limitations, as well as any potential hazards, of this product. Ensure that Health
‰
and Safety, local authority and general workshop practice regulations are adhered to when using.
DO NOT use pressure reservoir, or its ancillaries if damaged.
8
DO NOT use the pressure reservoir to perform a task for which it is not designed.
8
DO NOT allow untrained persons to use the pressure vessel.
8
DO NOT use when tired or under the influence of drugs, alcohol or intoxicating medication.
8
Use approved parts and approved spare parts only.
9
Maintain in a good and clean condition for the best and safest performance.
9
Ensure that the ignition key of the vehicle being worked on is removed, to prevent inadvertent engine cranking.
9
If the vehicle to be worked on is raised, ensure that it is adequately supported with axle stands or ramps and wheel chocks.
9
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist .
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
Keep children and unauthorised persons away from the work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Ensure the work area has adequate lighting.
9
1.1. BRAKE FLUID SAFETY
Always read and comply with the warnings on the brake fluid container.
9
Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with plenty of water and seek medical
9
advice. If swallowed seek medical advice immediately.
WARNING! Brake fluid is flammable - keep away from sources of ignition, including hot surfaces e.g. exhaust manifold.
‰
WARNING! Brake fluid will damage paintwork. Any spillage should be flushed with water immediately.
‰
Always read and comply with the warnings on the brake fluid container.
9
WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of fluids. Dispose of waste liquids in accordance
‰
with local authority regulations.
After use, clean equipment and store in a cool, dry, childproof area.
9
2. INTRODUCTION
One-person operation using standard workshop air supply (90-120psi). Professional, quick, clean and efficient. Large capacity for the busy
workshop. Draws fluid from the bleed nipple enabling either bleeding or full replacement of fluid in system. Vacuum gauge for precise application.
Separate cap for easy emptying. Long lasting silicon rubber hose for ultra flexibility. Includes reservoir top-up kit and adaptors.
3. SPECIFICATION
Model no .............................................................. VS0202.V3
Inlet size ....................................................................1/4"BSP
Max. air supply ............................................................ 120psi
Tank capacity ..................................................................... 5L
Key
1. Trigger
2. Hose assembly
3. Container
4. Pressure gauge
5. Top cap
6. N/A
7. Replenishment bottle
8, 9, 10, 11 Adaptors
© Jack Sealey Limited

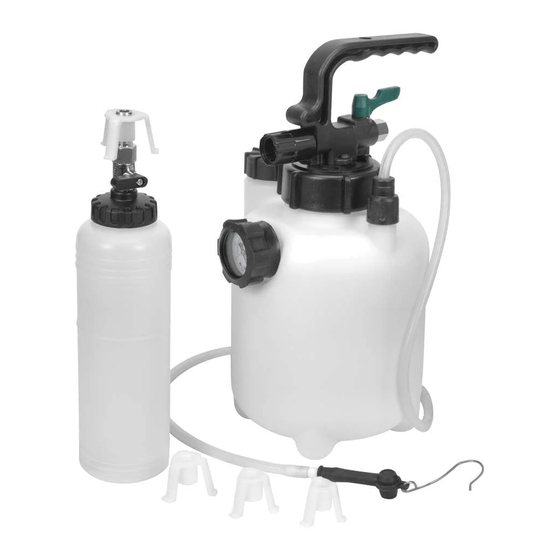

5L WORKSHOP VACUUM BRAKE & CLUTCH
BLEEDER
MODEL NO:
Wear protective
gloves
Original Language Version
VS0202.V3
VS0202.V3| Issue:1 12/03/20
