Sealey VS0216 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instruction gloves
manual
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using
‰
tools.
DO NOT use tools if damaged or worn.
8
Maintain the tools in good and clean condition for best and safest performance.
9
Ensure that a vehicle which is jacked up is adequately supported with axle stands, ramps, etc. as appropriate.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9
Wear approved hand and eye protection and face mask. A full range of personal safety equipment is available from your Sealey stockist.
9
Account for all tools and parts being used and do not leave them in or on the vehicle.
9
When not in use, store in a safe, dry and child-proof location.
9
WARNING! The warnings, cautions and instructions discussed in this document cannot cover all possible conditions and situations that
‰
occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied by
the operator.
IMPORTANT: Always refer to the vehicle manufacturer's service
instructions, or proprietary manual, to establish the correct
procedure and data. These instructions for use are provided
as a guide only.
2. INTRODUCTION

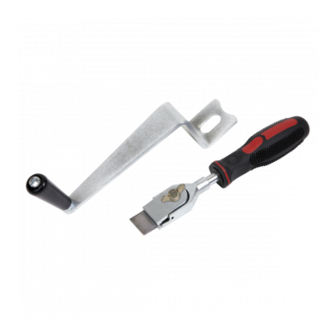

Designed to remove the lip and corrosion that can form on the brake disc.
The handle bolts to the hub and provides a smooth easy method
of spinning the disc for effortless lip and corrosion removal. The set
consists of crank handle, scraper and steel blades x2.
3. OPERATION
NOTE: Ensure you read and understand safety section above.
3.1.
With the road wheel removed and the vehicle securely and safely raised,
fix the crank handle to the wheel hub using the original fixings (either
bolts or nuts).
3.2. To load the blade, unscrew the blade clamp from the handle and loosen
it sufficiently to slide the blade in. Firmly retighten the clamp onto blade.
3.3. Brace the blade on the calliper, rotate the wheel using the crank handle while pressing the blade onto the disc lip or rim.
© Jack Sealey Limited
BRAKE DISC LIP REMOVER SET
MODEL NO:
Wear eye Wear face
protection mask
Original Language Version
VS0216
Blade
Clamp
Crank
Handle
Blade
VS0216 Issue 1 21/09/22
