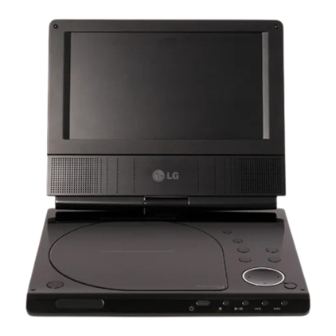

DP272B-P_AA4ISLW_ENG Portable DVD Player Owner’s Manual Model: DP271B/DP272B Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK This product employs a Laser System. DO NOT REMOVE COVER (OR BACK) To ensure proper use of this product, please read this owner’s manual NO USER-SERVICEABLE PARTS INSIDE carefully and retain it for future reference.
Page 3
Safety Precautions (Continued) CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Before Use To ensure proper use of this product, please read this owner’s Notes on Discs manual carefully and retain for future reference. Handling Discs Do not touch the playback side of the disc. Hold the disc by the This manual provides information on the operation and mainte- edges so that fingerprints do not get on the surface.
Before Use (Continued) Maintenance and Service Maintaining the Unit The DVD player is a high-tech, precision device. If the optical Refer to the information in this chapter before contacting a service pick-up lens and disc drive parts are dirty or worn, the picture technician.
Before Use (Continued) Types of Playable Discs Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission (8 cm / 12 cm disc) should always be sought from the copyright owner.
Identification of Controls a LCD screen Main Unit b Speaker c LCD MODE: NORMAL → 4:3 Mode → OFF d Function Buttons • DISPLAY: Accesses On-Screen display. • MODE: Selects a mode among DISC, AV IN or USB. • SETUP: Accesses or removes setup menu. •...
Identification of Controls (continued) a Volume Control Main Unit b Earphones jacks c COAXIAL jack d AV IN/OUT jack NOTE If the VIDEO IN signal is not connected in AV IN mode, this unit will automatically power off in 10 minutes to prevent battery dis- charge.
Identification of Controls (continued) Remote Control POWER: Switches DVD Player ON or OFF. PAUSE/STEP ( X ): Pauses playback temporarily/ press repeatedly for AUDIO: Selects an audio language. frame-by-frame playback. SUBTITLE: Selects a subtitle language. PLAY (N): Starts playback. ANGLE: Selects a DVD camera angle, if STOP ( x ): Stops playback.
Page 11
Identification of Controls (Continued) Insert the battery (Lithium battery) Button-type battery (Lithium battery) 1. Pinch the battery holder clip together then pull the tab to remove the battery holder. 2. Insert the battery with the + facing in the same direction as the + on the battery holder.
Power Connections Connect the AC adapter. Caution • Do not connect the power plug to a power outlet other than that indicated on the label, as this can result in a risk of fire or electric shock. • Do not connect or disconnect the power plug with wet hands. Doing so may cause electric shock.
Power Connections (continued) Connect the Automotive adapter Caution • To prevent electrical shock and possible damage to your unit or This unit and its automotive adapter are designed for use in vehi- vehicle, always unplug the automotive adapter from the cigarette cles that have 8.5-16 volt, negative ground electrical systems.
Power Connections (continued) Battery Pack NOTES • Do not detach the battery pack during playback. Charge the battery pack before using it for the first time. • Be careful not to drop the battery pack. Detaching the battery pack Attaching the battery pack a Press the PUSH knob.
Page 15
Power Connections (Continued) Charging the battery pack Recharging and play times 1. Attach the battery pack to the player. Recharging Play time 2. Connect the AC power adapter to the player and without Playback LCD On LCD Off the plug into an AC outlet. Approx.
Rotating the LCD After rotating LCD completely, you can fold the LCD screen as You can rotate LCD clockwise an angle of 180 degrees. However, shown above. if you turn it by force, it can cause serious damage.
Playing a Disc 1. Prepare the power supply. Select a MODE 2. Open the outer cover and press POWER button. Selects a mode among DISC, AV IN or USB. 3. Press OPEN to open the disc lid and insert a disc with the side 1.
On-Screen Display Displaying Disc Information on-screen Initial Settings You can display various information about the disc loaded on-screen. By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for 1.
Initial Settings DISPLAY LANGUAGE TV Aspect Menu Language Select a language for the Setup menu and on-screen display. 4:3: Select when a standard 4:3 TV is connected. 16:9: Select when a 16:9 TV is connected. Disc Audio / Subtitle / Menu NOTE Select the language you prefer for the audio track (disc audio), If the TV Aspect option is set to 16:9, the Display Mode setting is...
Initial Settings (continued) AUDIO Sample Freq. (Frequency) If your receiver or amplifier is NOT capable of handling 96 kHz Each DVD disc has a variety of audio output options. Set the play- signals, select 48 kHz. When this choice is made, this unit auto- er’s AUDIO options according to the type of audio system you use.
Initial Settings (continued) LOCK (Parental Control) 3. Select a rating from 1 to 8 using the v / V buttons. Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. Unlock: If you select unlock, parental control is not active and the disc plays in full.
Page 22
Initial Settings (continued) Password Area Code You can enter or change password. Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 41. 1. Select Password on the LOCK menu then press B. 1.
Initial Settings(Continued) OTHERS DivX(R) VOD ® We provide you the DivX VOD (Video On Demand) registration The PBC, Game, DivX(R) VOD settings can be changed. ® code that allows you to rent and purchase videos using the DivX VOD service. For more information, visit www.divx.com/vod. 1.
General Features If a menu screen is displayed Moving to another TITLE When a disc has more than one title, you can move to another title. Press DISPLAY during playback or resume play then the appropriate Use the b B v V buttons to select the title/chapter you want to view, number (0-9) or use b / B to move to another title.
Page 25
General Features (Continued) Still Picture and Frame-by-Frame Playback Repeat During playback, press REPEAT repeatedly to select a desired repeat mode. During playback, press PAUSE/STEP(X) to pause playback. DVD Video Discs: Chapter/Title/Off DivX Video CDs, Audio CD, DivX/MP3/WMA discs: Track/All/Off Press PAUSE/STEP(X) repeatedly to play Frame-by-Frame. ( Remote Control Only ) NOTES To exit still motion mode, press PLAY(N).
Page 26
General Features (Continued) Title Menu Subtitles DivX If the current DVD title has a menu, the title menu appears on the Press SUBTITLE repeatedly during playback to see the different screen. Otherwise, the disc menu may appears. subtitle languages. Disc Menu NOTE If there is no information or there is a code that can not read in the Press MENU and the disc menu is displayed.
Additional features Marker Search Last Scene Memory DivX VCD1.1 To enter a Marker This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc You can start playback from up to nine memorized points. To enter from the unit or switch off the unit.
Playing an Audio CD or MP3/WMA file This unit can play Audio CDs or MP3/WMA files. MP3 / WMA file compatibility with this unit is limited as follows: MP3/ WMA/ Audio CD • Sampling frequency: within 8 - 48 kHz (MP3), Once you insert an MP3/WMA files recorded media or Audio CD, a within 32 - 48kHz (WMA) menu appears on the TV screen.
Programmed Playback The program function enables you to store your favorite tracks Repeat Programmed Tracks from any disc in the player memory. Press REPEAT to select a desired repeat mode. A program can contain 30 tracks. • Track: repeats the current track 1.
Viewing a JPEG file This unit can play JPEG files. TIPS 1. Insert a JPEG files recorded media. The PHOTO menu • Press MENU to move to the next page. appears on the TV screen. • There are three Slide Speed options >>>...
Viewing a JPEG file (Continued) Moving to another file JPEG disc compatibility with this unit is limited as follows: Press SKIP/SEARCH (. or >) or cursor (b or B) once while • Depending upon the size and number of JPEG files, it could take a viewing a picture to advance to the next or previous file.
Playing a DVD VR format Disc This unit will play DVD-RW discs recorded using the Video Recording (VR) format. 1. Insert a disc and close the tray. The DVD-VR menu appears on the screen. 2. Press v / V to select a track then press PLAY(N) or ENTER and playback starts.
Playing a DivX Movie file This unit can play DivX files. Notice for displaying the DivX subtitle If the subtitle does not display properly during playback, press and 1. Insert a DivX file recorded media. The MOVIE menu appears hold SUBTITLE about 3 seconds then press b / B to select anoth- on the screen.
Playing a DivX Movie file (Continued) DivX disc compatibility with this unit is limited as follows: Playable DivX file ".avi ", ".mpg ", ".mpeg " • Available resolution size of the DivX file is under 720x576 (W x H) pixel. Playable Subtitle format •...
Playing an USB Flash Drive This unit can play DivX or MP3/WMA files. NOTES • Do not extract the USB Flash Drive in operating. 1. Connect the USB Flash Drive to the USB port on the unit after • Music files (MP3/WMA), image files (JPEG) and DivX files can power is on.
Game (DP272B Only) You can enjoy this game by deleting all balls on screen. Move the Game cursor to select a ball you want to delete. And press Enter twice, the selected ball will be deleted. Only when more than two balls of You can play 5 games With this DVD player the same color are connected, you can delete all of them.
Page 37
Game (DP272B Only)(Continued) Black jack You can enjoy this game by selecting and deleting same two blocks. Move the cursor to select the first block and second block that you want to delete, then you can delete the two blocks. The two blocks can be selected when those blocks are connected with a line whose direction is shifted only twice.
Setting up the Player The picture and sound of a nearby TV, VCR, or radio may be Rear of TV distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc.
Setting up the Player (Continued) AV input Connections AV input Connections to Your unit 1. Set the Mode selection menu to “AV IN” mode. Connect the input jacks (Audio/Video) on the unit to the audio/video out jacks on your external device, using audio/video 2.
Setting up the Player (Continued) Audio Connection to Optional Equipment Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic ll / Pro Logic: Connect the AV IN/OUT jacks on the unit to Connect the unit to your optional equipment for audio output. the audio left and right IN jacks on your amplifier, receiver, or You must set the Mode selection menu to “USB”...
Troubleshooting Symptom Cause Correction No power. • The power cord is disconnected. • Plug the power cord into the wall outlet securely. • The battery is discharged. • Recharge the battery. No picture on the LCD • The video cable is not connected securely. •...
Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian 7684...
Area Codes Choose an area code from this list. Area Code Area Code Area Code Area Code Afghanistan Ethiopia Malaysia Saudi Arabia Argentina Fiji Maldives Senegal Australia Finland Mexico Singapore Austria France Monaco Slovak Republic Belgium Germany Mongolia Slovenia Bhutan Great Britain Morocco South Africa...
Specifications General Liquid Crystal Display Power supply: Panel size: 7 inches wide (diagonal) DC 9.5V (AC adapter terminal), DC 7.4V (Battery) Projection system: R.G.B. stripe Power consumption: 12W with battery Driving system: TFT active matrix Net Weight: 1.60 lbs (0.73 kg) (without battery pack) Resolution: 234 x 480 x 3 (effective pixel rate: more than External dimensions (W x H x D): 99.99%)
