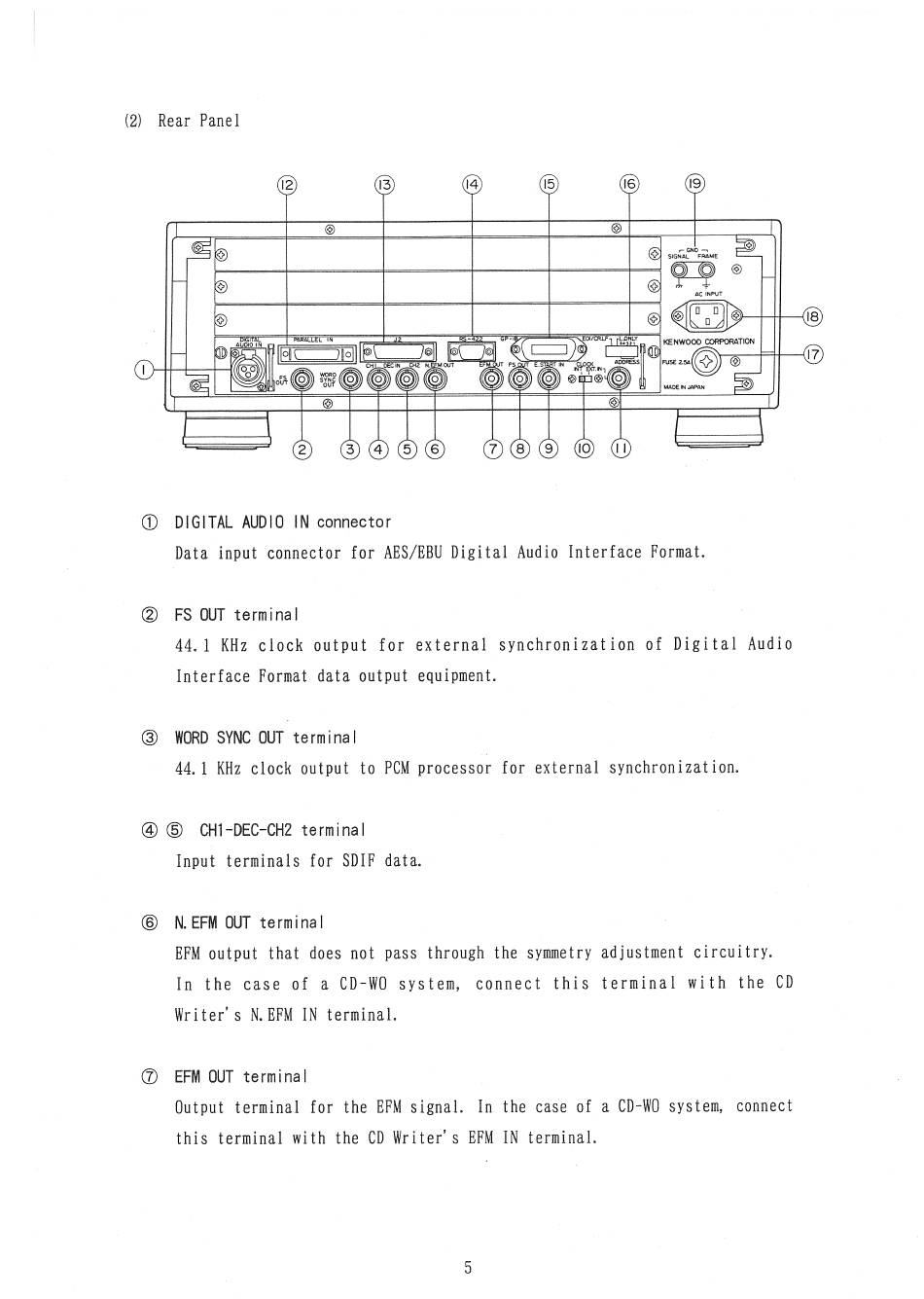

(2) Rear Panel
©
DIGITAL AUDIO IN connector
Data input connector for AES/EBU D i g i t a l Audio Interface Format.
(D
FS OUT terminal
44. 1 KHz c l o c k output f o r e x t e r n a l synchroni zat ion of D i g i t a l Audio
Interface Format data output equipment.
< D W O R D SYNC OUT terminal
44.1 KHz clock output to PCM processor for external synchronization.
©
(D CH1-DEC-CH2 terminal
Input terminals for SDIF data.
©
N.EFM OUT terminal
EFM output that does not pass through the symmetry adjustment c i r c u i t r y .
In the case of a CD-WO system, connect t h i s
Writer's N.EFM IN terminal.
®
EFM OUT terminal
Output terminal for the EFM s i g n a l . In the case of a C D - W O system, connect
t h i s terminal with the CD Writer's EFM IN terminal.
t e r m i n a l w i t h the CD
