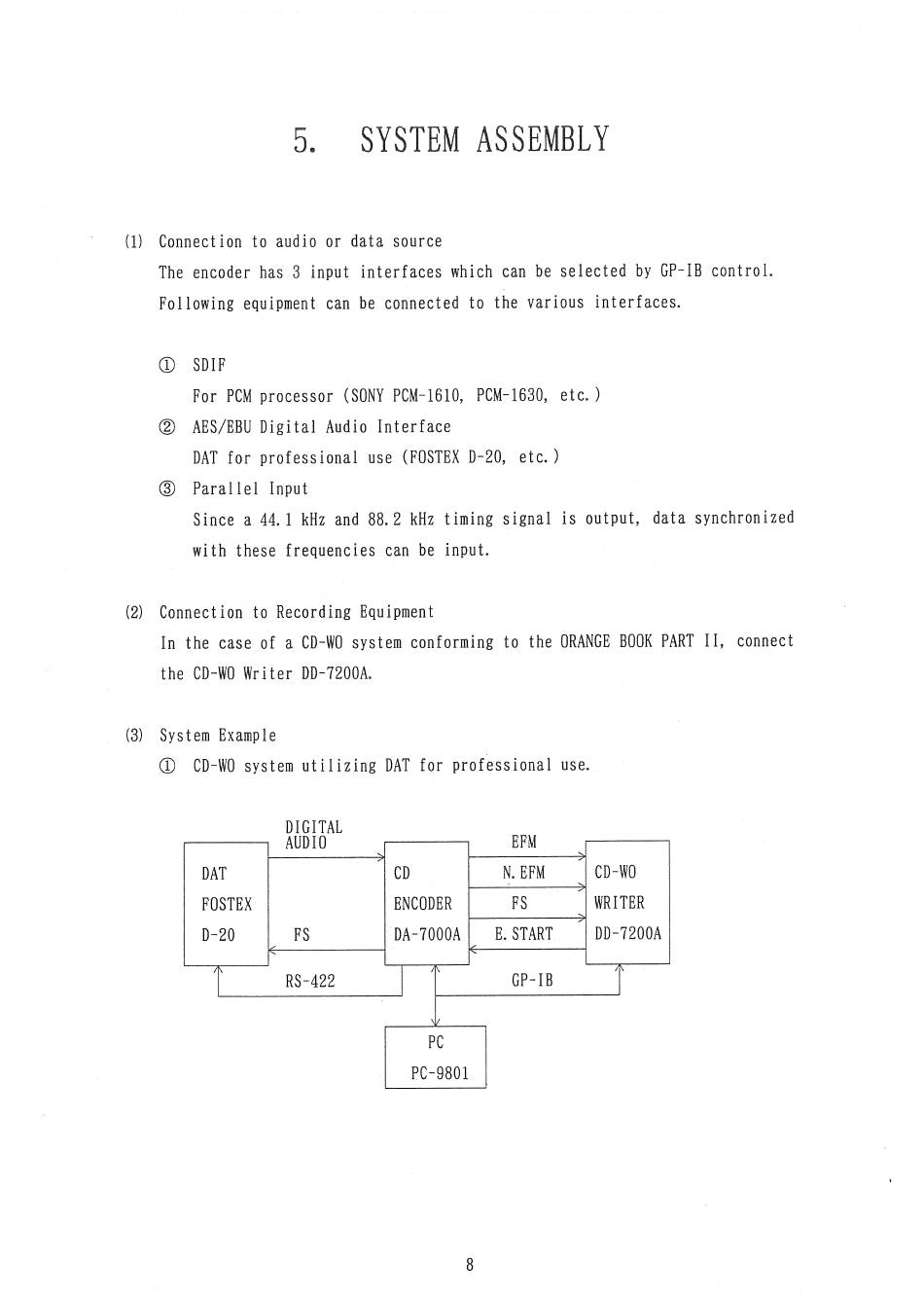

5.
(1) Connection to audio or data source
The encoder has 3 input interfaces which can be selected by GP-IB control.
Following equipment can be connected to the various i n t e r f a c e s .
©
SDIF
For PCM processor (SONY PCM-1610, PCM-1630, etc. )
(D
AES/EBU D i g i t a l Audio Interface
DAT for professional use (FOSTEX D-20, e t c . )
(D
P a r a l l e l Input
Since a 44.1 kHz and 88.2 kHz timing signal i s output, data synchronized
with these frequencies can be input.
(2) Connect ion to Recording Equipment
In the case of a C D - W O system conforming to the ORANGE BOOK PART I I , connect
the C D - W O Writer DD-7200A.
(3) System Example
®
C D - W O system u t i l i z i n g DAT for professional use.
DIGITAL
AUDIO
DAT
FOSTEX
D-20
FS
RS-422
SYSTEM ASSEMBLY
EFM
N. EFM
CD
ENCODER
FS
E. START
DA-7000A
GP-IB
PC
PC-9801
8
C D - W O
WRITER
DD-7200A
