(1) Encode Method
(2) Master Clock
(3) EFM Output
(4) Data Input As AES/EBU D i g i t a l Audio Interface Format
Input method
Connector
External synchronization clock: 44. 1 kHz (50 ohms TTL level output, BNC-R
(5) SDIF Data Input
W O R D SYNC
DEC CHI
DEC CH2
(6) P a r a l l e l Data Input
Data format
Input level
Connector
(7) Symmetry Adjustment Function
Steps
Delay time
Pole reversal
3.

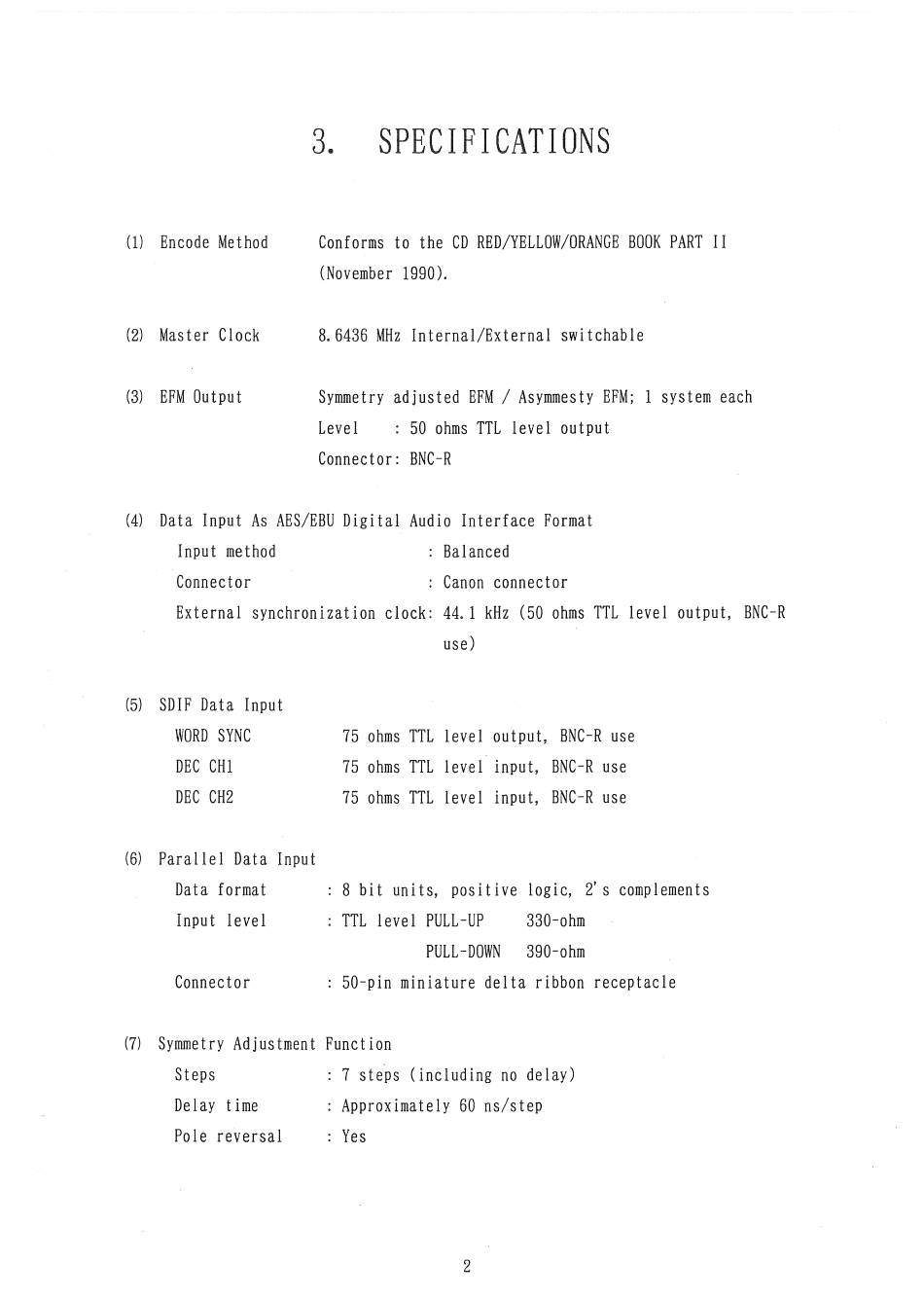

SPECIFICATIONS
Conforms to the CD RED/YELLOW/ORANGE BOOK PART I I
(November 1990).
8. 6436 MHz Internal/External switchable
Symmetry adjusted EFM / Asymmesty EFM; 1 system each
Level
: 50 ohms TTL level output
Connector: BNC-R
: Balanced
: Canon connector
use)
75 ohms TTL level output, BNC-R use
75 ohms TTL level input, BNC-R use
75 ohms TTL level input, BNC-R use
: 8 b i t units, positive logic, 2's complements
: TTL level PULL-UP
PULL-DOWN
: 50-pin miniature delta ribbon receptacle
: 7 steps (including no delay)
: Approximately 60 ns/step
: Yes
2
330-ohm
390-ohm
