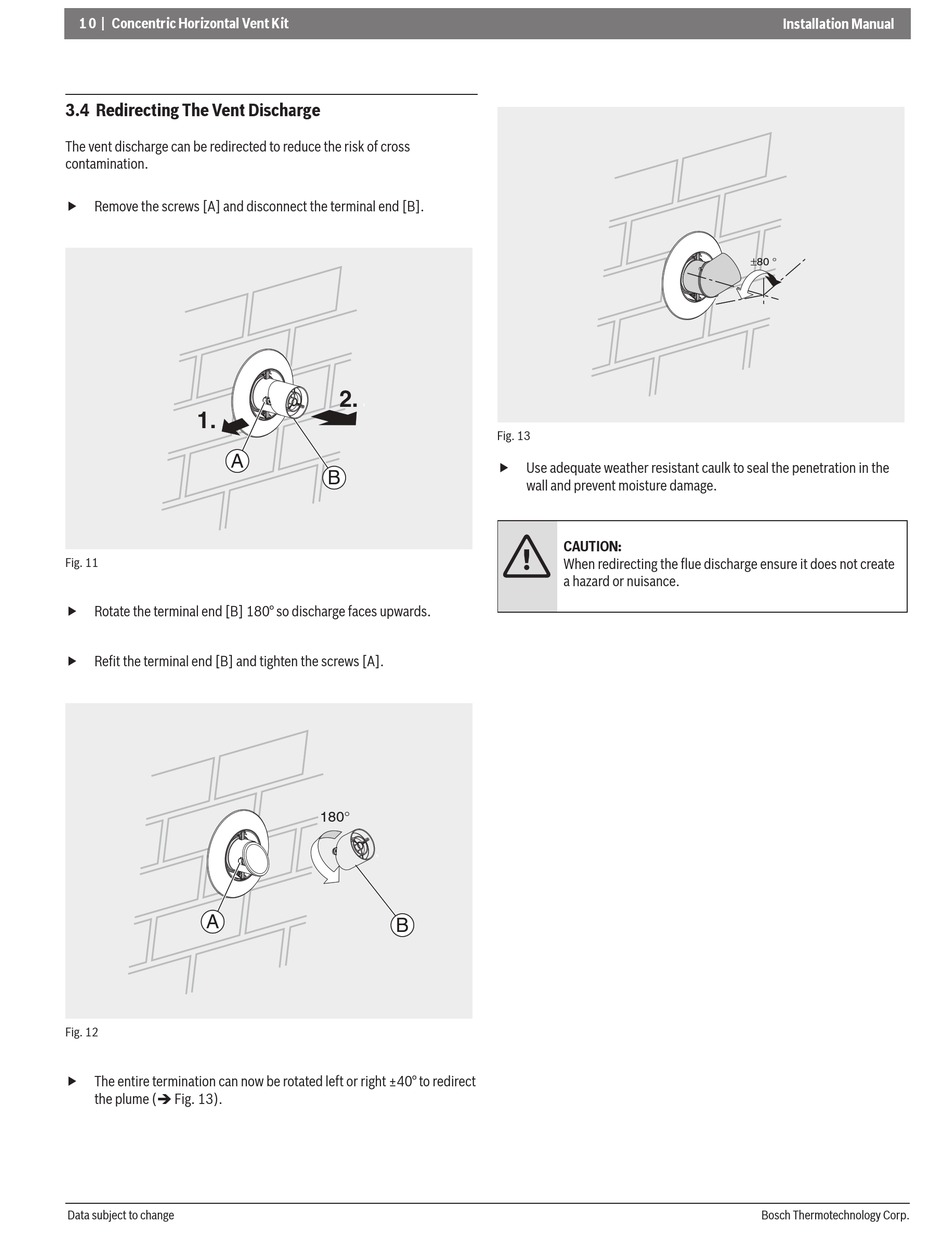

1 0 | Concentric Horizontal Vent Kit
3.4 Redirecting The Vent Discharge
The vent discharge can be redirected to reduce the risk of cross
contamination.
Remove the screws [A] and disconnect the terminal end [B].
f
1.
A
Fig. 11
Rotate the terminal end [B] 180° so discharge faces upwards.
f
Refit the terminal end [B] and tighten the screws [A].
f
A
Fig. 12
The entire termination can now be rotated left or right ±40° to redirect
f
the plume ( Fig. 13).
Data subject to change
2.
Fig. 13
f
B
180°
B
Use adequate weather resistant caulk to seal the penetration in the
wall and prevent moisture damage.
CAUTION:
When redirecting the flue discharge ensure it does not create
a hazard or nuisance.
Installation Manual
±80 °
Bosch Thermotechnology Corp.
