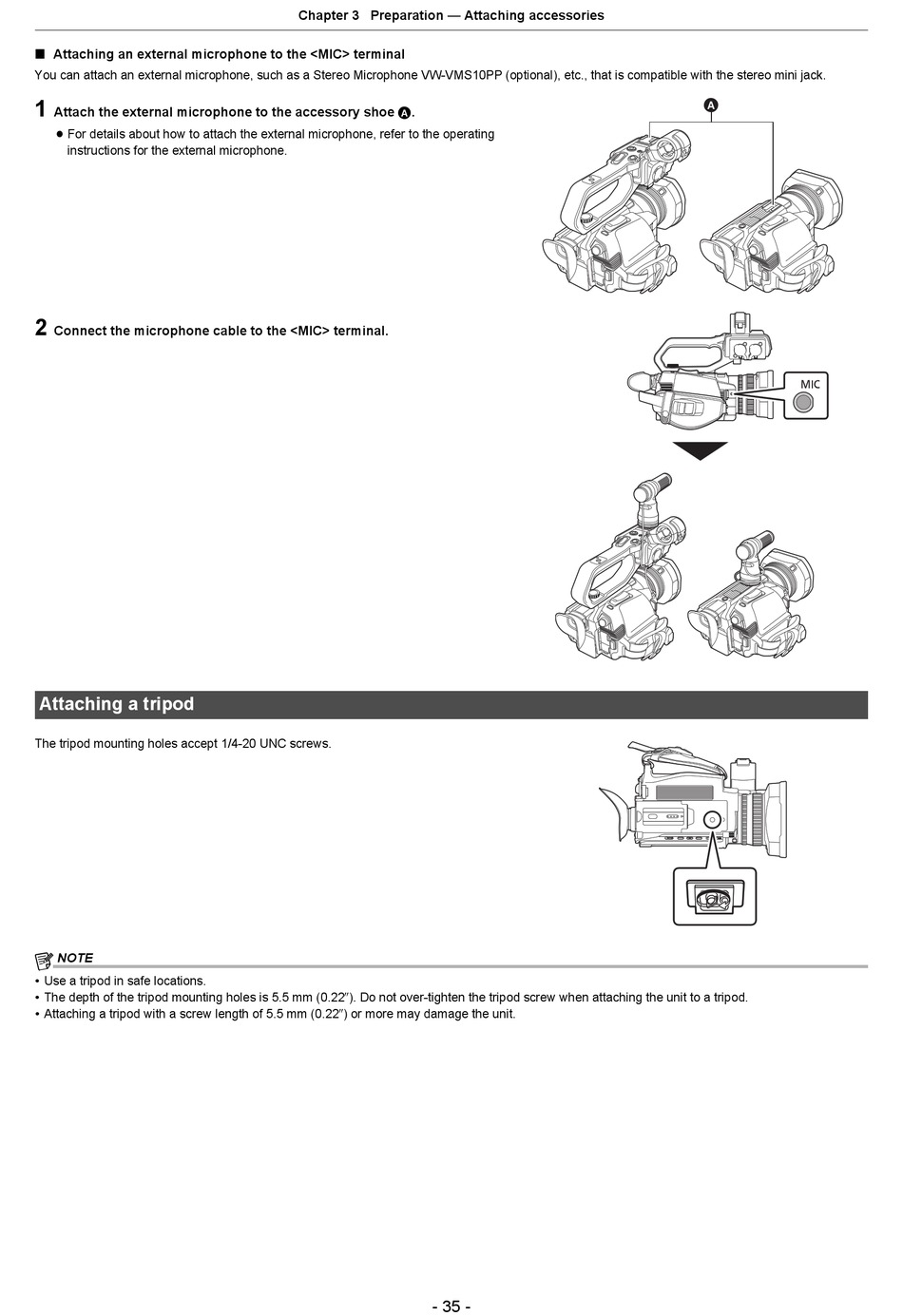

∫ Attaching an external microphone to the <MIC> terminal
You can attach an external microphone, such as a Stereo Microphone VW-VMS10PP (optional), etc., that is compatible with the stereo mini jack.
1
Attach the external microphone to the accessory shoe A.
≥ For details about how to attach the external microphone, refer to the operating
instructions for the external microphone.
2
Connect the microphone cable to the <MIC> terminal.

Attaching a tripod

The tripod mounting holes accept 1/4-20 UNC screws.
@
NOTE
0 Use a tripod in safe locations.
0 The depth of the tripod mounting holes is 5.5 mm (0.22q). Do not over-tighten the tripod screw when attaching the unit to a tripod.
0 Attaching a tripod with a screw length of 5.5 mm (0.22q) or more may damage the unit.
Chapter 3 Preparation — Attaching accessories
- 35 -

