Summary of Contents for Bluetti EB3A

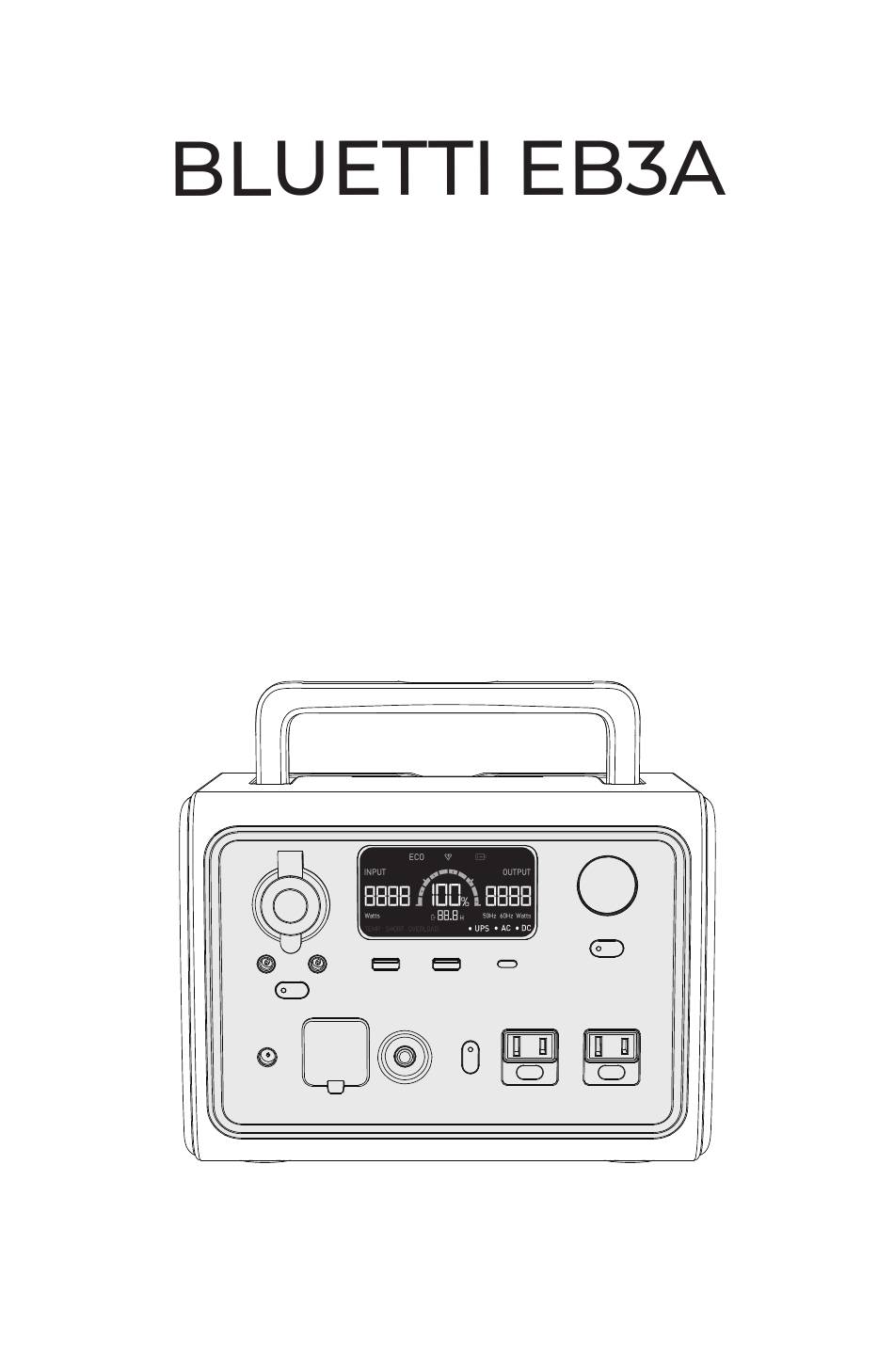

- Page 1 User Manual...
- Page 2 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 3: Table Of Contents
CONTENTS Before You Begin Instructions General Safety Maintenance Handling & Storage What's In The Box Standard Packaging Product Overview Diagram Specifications Operation LCD Screen Powering On/Off Standard Mode Setting Charging Discharging Appendix FAQs (Frequently Asked Questions) Technical Support... -
Page 4: Before You Begin
The user manual contains instructions and notes on the operation and use of this unit. BLUETTI recommends that you use genuine accessories from BLUETTI. BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI. -
Page 5: Maintenance
AC adapter from the outlet. Charge the unit to 80% SOC every 3-6 months for long-term storage. When the battery capacity drops to 20%, charge the EB3A to extend battery lifespan and do NOT power devices with 400W and above. -
Page 6: What's In The Box
What's In The Box Standard Packaging EB3A Portable Power Station Warranty Card AC Charging Cable User Manual * Below accessories are not included in standard packaging and can be purchased at https://www.bluettipower.com/. Car Charging Cable Solar Charging Cable USB-C to USB-C Cable * AC Charging Cable: 71in/180cm. -
Page 7: Product Overview
Product Overview Diagram 1. Cigarette Lighter Port 8. LCD Screen 2. DC5521 Port 9. LED Lamp 3. DC Power Button 10. LED Lamp Button 4. DC Input Port 11. USB-C Port 5. AC Input Port 12. USB-A Port 6. AC Circuit Breaker* 13. -
Page 8: Specifications
Specifications Product EB3A US EB3A EU/UK/AU Item General Battery Capacity 268.8Wh(12Ah) Cell Type LiFePO4 Dimensions (L*W*H) 10.04*7.09*7.20IN/255*180*183MM Weight 10.14LB/4.6KG Discharging Temperature -4-104°F/-20-40°C Charging Temperature 32-104°F/0-40°C Working Humidity 10-90% AC Output Power 600W 1200W Surge 220-240VAC Voltage 120VAC 2.6A Current DC Output... -
Page 9: Operation
Operation LCD Screen a: ECO Mode h: Temperature Anomaly Alert b: Turbo Charging i: Short-circuit Alert c: Low-battery Alert j: Overload Alert d: Input Power k: Remaining Time Indicator* e: Output Power l: UPS Indicator f: Battery Capacity m: AC Indicator g: AC Frequency n: DC Indicator * This indicator tells the remaining charge/discharge time. -
Page 10: Powering On/Off
Note: When on this mode, the AC/DC output will automatically turn off after 4-hour low (≤10W for AC, ≤1W for DC) or no load to save power. Power Lifting Mode: Enable in BLUETTI App. Note: When on this mode, both output voltage and current can be adjusted to a higher level for running high-powered heating devices like space heaters and electric irons. -
Page 11: Ups
UPS Bypass Mode: Connect the EB3A with the AC power and the ‘UPS’ will be on display. Then turn on the AC output. When on this mode, the AC power will directly support the loads on AC output ports and charge the EB3A. -
Page 12: App
’ to customize your settings. Keep your phone no more than 5m/16.4ft away from the unit during the update. Available functions may vary depending on the version of your BLUETTI App. Please download the latest version for updated features. Charging AC Charging Simply plug the EB3A into the standard wall outlet and start charging. - Page 13 Solar Charging Cable Car Charging Connect the EB3A directly to the vehicle plug-in cigarette lighter port via the car charging cable. Car Charging Cable OCV: Open circuit voltage. The maximum voltage that the solar panel can produce with no load on it.
-
Page 14: Discharging
Generator Charging Connect the EB3A with the generator via the AC charging cable. AC Charging Cable Note: Please select the generator with compliant and stable voltage. Discharging Iphone13 MacBook Drone 12-17 Times 5-6 Times 5-6 Times 13Wh 49.9Wh 43Wh Camera... -
Page 15: Appendix
Q: How can I turn on the UPS Bypass Mode and what does it mean? A: Connect the EB3A with the AC power and the 'UPS' will be on display. Then turn on the AC output. When on this mode, the AC power will directly support the loads on AC output ports and charge the EB3A. -
Page 16: Technical Support
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.com/ Tel: 833-988-3663 / 702-463-4792 Mail: service@bluettipower.com Add: 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
