TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Schematic Diagram ---------------------------------------------- 4
5 Exploded View and Replacement Parts List ------------ 5
Model No.
Europe
CIS
PAGE
© Panasonic Corporation, 2013. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
Order Number PCD1301X31CE
ES-EU20
ES-EU10

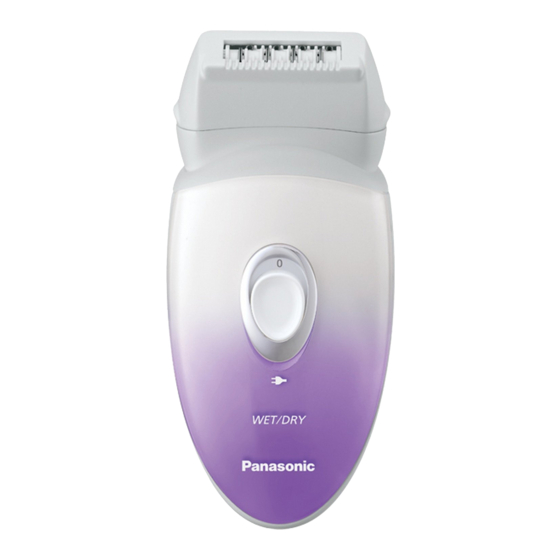

Epilator
PAGE
Advertisement
Related Manuals for Panasonic ES-EU20
Summary of Contents for Panasonic ES-EU20
-

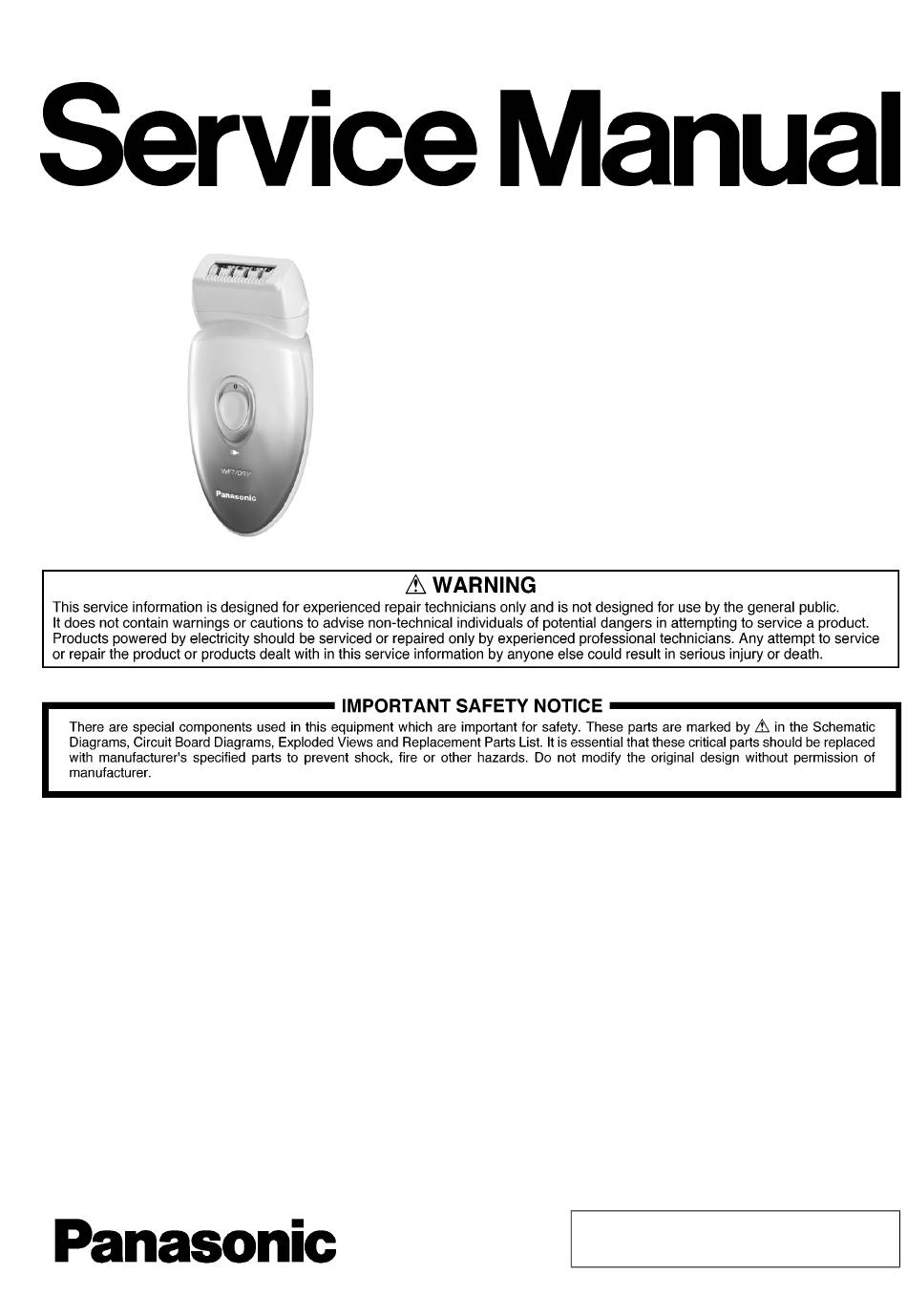

Page 1: Table Of Contents
1 Warning -------------------------------------------------------------- 2 2 Specifications ----------------------------------------------------- 2 3 Troubleshooting Guide ----------------------------------------- 3 4 Schematic Diagram ---------------------------------------------- 4 5 Exploded View and Replacement Parts List ------------ 5 © Panasonic Corporation, 2013. All rights reserved. Unauthorized copying and distribution is a violation of law. -
Page 2: Warning
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long. -
Page 3: Troubleshooting Guide
3 Troubleshooting Guide 3.1. CHECK MAIN BODY AND ADAPTOR NOTE: When charging, the unit does not operate even switching ON. -
Page 4: Schematic Diagram
3.2. CHECK MAIN BODY AND ADAPTOR 1. Confirm the smooth operation when switching ON and OFF. 2. Confirm if the motor and disc may rotate when holding the disc slightly. 3. Confirm if there is no dirt or scratch. 4. Confirm if the main unit may operate approximately 25 minutes after fully charging. 4 Schematic Diagram... -
Page 5: Exploded View And Replacement Parts List
5 Exploded View and Replacement Parts List Model No. : ES-EU20 Exploded View... - Page 6 Model No. : ES-EU20 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-EU20 WESEU20W3128 FRAME WESEU20W1068 EPILATION HEAD FOR LEGS/ARMS WESWD51L9397 TAPPING SCREW 3 K2-5 WESEU20W3368 MOUNTING BASE B WESEU20W3278 HEAD RELEASE BUTTON WES2047S9707 SCREW 1 K2-8...
- Page 7 Model No. : ES-EU10 Exploded View...
- Page 8 Model No. : ES-EU10 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-EU10 WESEU20W3128 FRAME WESEU20W1068 EPILATION HEAD FOR LEGS/ARMS WESWD51L9397 TAPPING SCREW 3 K2-5 WESEU20W3368 MOUNTING BASE B WESEU20W3278 HEAD RELEASE BUTTON WES2047S9707 SCREW 1 K2-8 WER504L0966 O-RING 2 (2PCS/PK)
