4-262-154-11 (1)

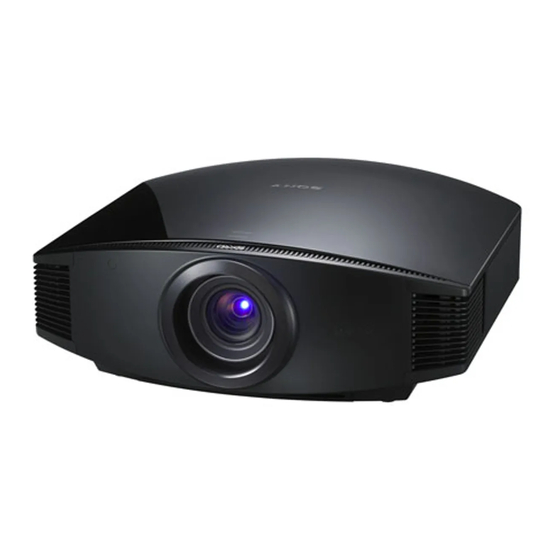

Video Projector
Operating Instructions
VPL-VW90ES
© 2010 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony VPL-VW90ES

Summary of Contents for Sony VPL-VW90ES

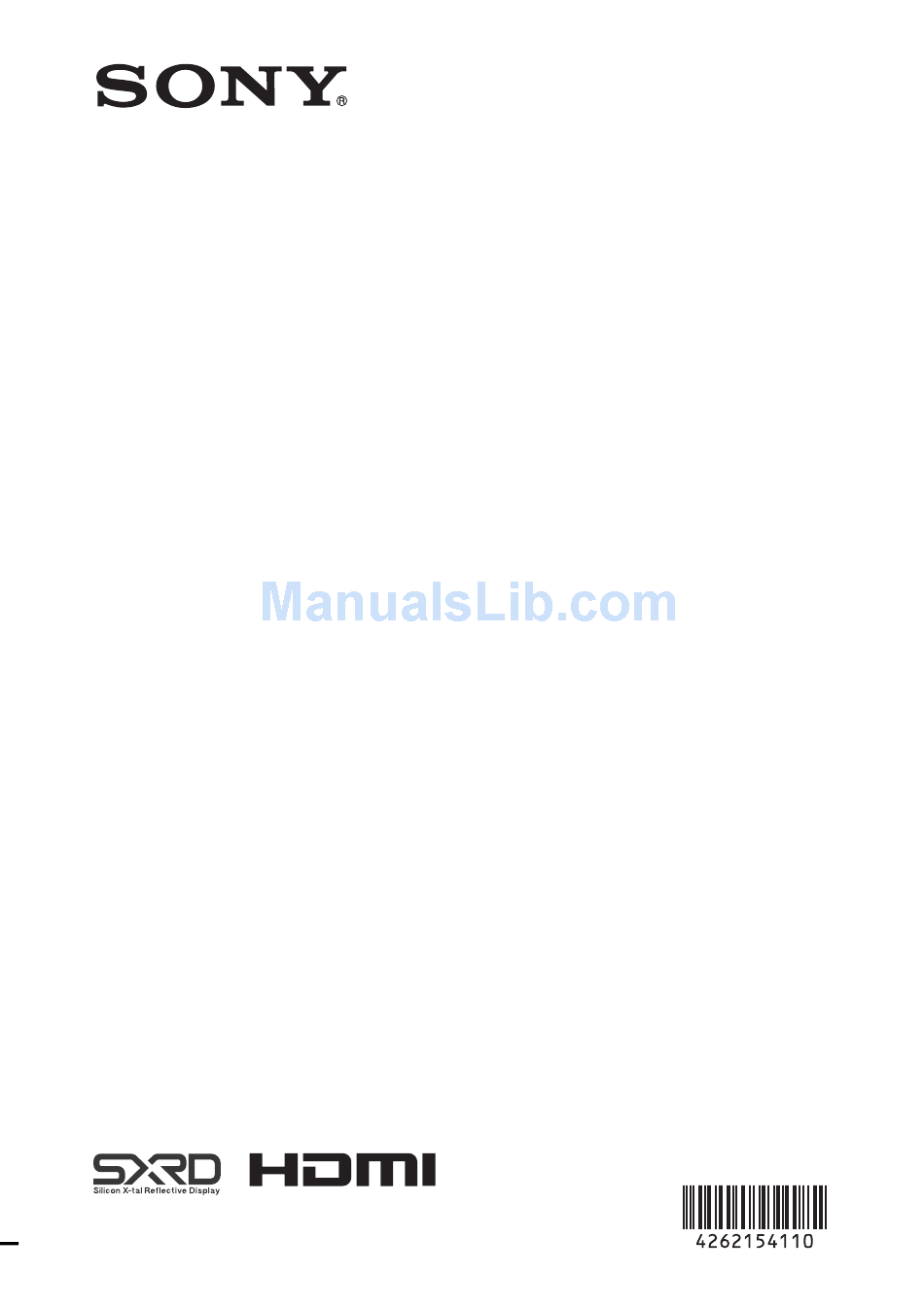

  • Page 1 4-262-154-11 (1) Video Projector Operating Instructions VPL-VW90ES © 2010 Sony Corporation...
  • Page 2 WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. THIS APPARATUS MUST BE EARTHED. AVERTISSEMENT Afin de réduire les risques d’incendie ou d’électrocution, ne pas exposer cet appareil à...
  • Page 3 Pour les clients au Canada Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. For the customers in Europe The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC...
  • Page 4 For the customers in Taiwan only...

  • Page 5: Table Of Contents

    Table of Contents Precautions ...7 Location of Controls Front/Right Side ...8 Rear/Bottom ...9 Remote Control ...10 3D Glasses ...11 Connections and Preparations Unpacking ...12 Step 1: Installing the Projector ...13 Before Setting Up the Projector ...13 Positioning the Projector and a Screen ...15 Step 2: Adjusting the Picture Position ...19...
  • Page 6 3D Signals and Adjustable/Setting Items ... 91 Ceiling Installation ... 93 Index ... 97 Trademark Information “PS3” is a registered trademark of Sony Computer Entertainment Inc. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

  • Page 7: Precautions

    Precautions On safety • Check that the operating voltage of your unit is identical with the voltage of your local power supply. • Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further.

  • Page 8: Location Of Controls

    Location of Controls Front/Right Side You can use the buttons on the control panel with the same names as those on the remote control to operate the projector. Press the button and open the cover. LENS button (1 page 19) M/m/</, (arrow)/ (enter) button (1 page 47) MENU button (1 page 47)

  • Page 9: Rear/Bottom

    Rear/Bottom Remote control detector (1 page 19) Ventilation holes (intake) (1 page 14) Ventilation holes (intake) (1 page 14) Ventilation holes (intake) (1 page 14) Ventilation holes (intake) (1 page 14) Lamp cover (1 page 77) Adjusters (1 page 23) Filter holder (1 page 78) Ventilation holes (intake) (1 page 14)

  • Page 10: Remote Control

    Remote Control LIGHT button Illuminates the buttons on the remote control. INPUT button (1 page 31) PICTURE MODE buttons (1 page 42) Buttons to operate BRAVIA Sync compatible equipment (1 page 33) LENS button (1 page 19) BLACK LEVEL button (1 page 43) GAMMA CORRECTION button (1 page 43)

  • Page 11: 3D Glasses

    3D Glasses Slide switch Set the switch for a comfortable fit (1 page 40). Battery cover Detach the cover when replacing the battery (1 page 80). Before use: Remove the battery’s insulating sheet before using the product for the first time. LED indicator Flashes one time every 3 seconds: Power Flashes three times every 3 seconds:...

  • Page 12: Connections And Preparations

    Connections and Preparations This section describes how to install the projector and screen, how to connect the equipment from which you want to project the picture, etc. Unpacking Check the carton to make sure it contains the following items: • Remote control (1) and Size AA (R6) manganese batteries (2) Inserting the batteries into the remote control Push and slide to open.

  • Page 13: Step 1: Installing The Projector

    Step 1: Installing the Projector The projector displays pictures output from a VCR or other device. The lens shift allows you to have broader options for placing the projector and viewing pictures easily. Before Setting Up the Projector Unsuitable installation Do not place the projector in the following situations, which may cause malfunction or damage to the projector.
  • Page 14 Improper use Do not do any of the following while using the projector. Blocking the ventilation holes (intake or exhaust) Ventilation holes (intake) Ventilation holes (exhaust) For details on the location of the ventilation holes (intake or exhaust), see “Location of Controls”...

  • Page 15: Positioning The Projector And A Screen

    Positioning the Projector and a Screen The installation distance between the projector and a screen varies depending on the size of the screen or whether or not you use the lens shift features. Determine the installation position of the projector and screen. You can obtain a good quality picture if you position the projector so that the center of the lens is within the area indicated in gray in the illustration.
  • Page 16 When using the 16:9 aspect ratio screen size Screen Size SS (inches) (mm) 1016 1524 minimum 1201 1825 maximum 1840 2782 (109 ) (146 ) (19 ) (25 ) (15 ) (20 ) (15 ) (17 To calculate the installation positions L (minimum) = 31.1781 (1 ) ×...
  • Page 17 When using the 4:3 aspect ratio screen size Screen Size SS (inches) (mm) 1016 1524 minimum 1480 2243 maximum 2262 3414 (134 ) (179 ) (23 ) (31 ) (18 ) (18 ) (17 (16) To calculate the installation positions L (minimum) = 38.1569 (1 ) ×...
  • Page 18 Position the projector so that the lens is parallel to the screen. Top view Screen Project an image on the screen and adjust the picture so that it fits the screen (1 page 19). Note When using a screen with an uneven surface, stripes pattern may rarely appear on the screen depending on the distance between the screen and the projector or the zooming magnifications.

  • Page 19: Step 2: Adjusting The Picture Position

    Step 2: Adjusting the Picture Position Project an image on the screen and then adjust the picture position. Remote control detector (ON/STANDBY), INPUT, LENS, MENU, and M/m/</,/ side panel of the projector function the same as those on the remote control. Note Depending on the installation location of the projector, you may not control it with the remote control.
  • Page 20 Flashes in green for a while (tens of seconds) and then lights in green. Note Be sure to adjust the picture size and the focus by using buttons on the remote control or the control panel of the projector. Never make adjustments by directly turning the lens with your hands, which may cause damage or malfunction to the projector.
  • Page 21 • When “Lens Control” is set to “Off” on the Installation position (1 page 64). When “Test Pattern” is set to “Off” on the Function (1 page 63). • The test signal is displayed for 1 minute. Press the button to clear the test signal display before that. Adjust the picture size.

  • Page 22: To Adjust The Horizontal Position

    To adjust the horizontal position Press </,. The picture projected on the screen moves right or left by a maximum of 25% of the screen width from the center of the lens. 1 screen width To adjust the vertical position Press M/m.
  • Page 23 Range of movement of the projected picture Projected Picture H: Width of the projected picture V: Height of the projected picture To adjust the tilt of the installation surface If the projector is installed on an uneven surface, use the adjusters to keep the projector level.

  • Page 24: Step 3: Connecting The Projector

    : Video signal flow AV amplifier Equipment with HDMI output connectors HDMI cable (not supplied) When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable they has the HDMI logo. Speakers to HDMI output...

  • Page 25: To Connect To Equipment With Component Video Output Connectors

    Notes • Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080P, DeepColor, and 3D video images may not be displayed properly. • When connecting an HDMI cable to the projector, make sure the HDMI input of the projector and the position.
  • Page 26 To connect to a VCR equipped with the video connector You can connect a DVD player/recorder, hard disk video recorder, VCR or laser disk player, which is not equipped with component video connectors. Right side of the projector Speakers AV amplifier Video equipment to Video output Video cable (not supplied)

  • Page 27: Connecting To A Computer

    When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable they has the HDMI logo. mark on the upper part of the HDMI input of...

  • Page 28: Connecting To An Optional Tmr-Br100 3D Sync Transmitter

    Connecting to an Optional TMR-BR100 3D Sync Transmitter The projector incorporates a 3D Sync Transmitter. Depending on the installation environment of the projector, the 3D glasses may not received 3D signals properly from the projector’s built-in 3D Sync Transmitter. In this case, connect an optional TMR- BR100 3D Sync Transmitter and place it near your viewing position.

  • Page 29: Step 4: Selecting The Menu Language

    Step 4: Selecting the Menu Language You can select one of 16 languages for displaying the menu and other on-screen displays. The factory default setting is English. To change the current menu language, set the desired language with the menu screen. 2,3,4 M/m/</, (arrow)/...
  • Page 30 Press M/m to select the Setup menu, and press , or The setting items of the selected menu appears. Press M/m to select “Language,” and press , or Press M/m/</, to select a language, and press The menu changes to the selected language.

  • Page 31: Projecting

    Projecting This section describes how to operate the projector to view the picture from the equipment connected to the projector. It also describes how to adjust the quality of the picture to suit your taste. Projecting the Picture on the Screen Example: To view the picture from the video equipment connected...

  • Page 32: Turning Off The Power

    Notes on input of HDMI signal The projector adjusts the RGB dynamic range of the equipment connected with HDMI cable to the following to suit the HDMI standard and display in best picture quality. When video signal is input: Limited (16-235) When computer signal is input: Full (0-255) When a signal other than those of HDMI standard is input, the following symptoms may occur.

  • Page 33: Operating The Bravia Sync Compatible Equipment With The Remote Control Of The Projector

    Operating the BRAVIA Sync Compatible Equipment with the Remote Control of the Projector By using the remote control of the projector, you can directly operate the BRAVIA Sync compatible equipment connected to the HDMI 1 and HDMI 2 INPUT connectors of the projector.
  • Page 34 Notes • Only connected equipment compatible with BRAVIA Sync can be operated with the remote control of the projector. • Functions available to operate differ depending on the equipment. • For the functions available to operate, refer to the operating instruction of each equipment. Using the OPTIONS button to operate Press OPTIONS while viewing...

  • Page 35: Selecting The Wide Screen Mode

    Selecting the Wide Screen Mode You can enjoy various wide screen modes according to the video signal received. WIDE MODE button Original When the Wide image Mode is operated Squeezed Press WIDE MODE. Each time you press the button, you can select the “Wide Mode”...
  • Page 36 Letterbox picture with side panels Letterbox picture When using an Anamorphic lens Notes • You can adjust the vertical position of the picture with “V Center” and “Vertical Size” on the Screen menu only when “Zoom” is selected (1 page 58). •...
  • Page 37 • When a 3D video image is displayed, the “Wide Mode” setting is fixed at “Full.” Notes on selecting the wide screen mode The projector is featured with the WIDE MODE. When changing the settings of WIDE MODE, use caution as described below. •...

  • Page 38: Watching 3D Video Images

    Watching 3D Video Images You can enjoy powerful 3D video images, such as from 3D games and 3D Blu-ray Discs, using the supplied the 3D glasses. Turn on the HDMI equipment for 3D compatibility connected to the projector then play the 3D content. For details on how to play 3D content, refer to the operating instructions for the connected equipment.

  • Page 39: Using The Simulated 3D Function

    Using the Simulated 3D Function You can convert normal 2D video images to 3D video images. For details on how to operate the on-screen menu, see “Operation through the Menus” (1 page 47). Display the Function Set “2D-3D Display Sel.” to “3D.” Set “3D Format”...

  • Page 40: Using The 3D Glasses

    • If these glasses are broken, keep broken pieces away from your mouth or eyes. • Not for use by children without proper adult supervision. • For 3D compatibility when watching a Sony TV, remove the filter attachments from the 3D glasses.
  • Page 41 3D glasses communication range Figures A and B below indicate the communication range of the 3D glasses. If you try to watch 3D video images from a distance greater than the communication range or install the projector outside the communication range, the 3D glasses may not be able to display the images properly.

  • Page 42: Selecting The Picture Viewing Mode

    Selecting the Picture Viewing Mode You can select the picture viewing mode that best suits the type of program or room conditions. PICTURE MODE buttons DYNAMIC STANDARD CINEMA 1 CINEMA 2 CINEMA 3 USER Press one of the PICTURE MODE buttons (DYNAMIC, STANDARD, CINEMA 1, CINEMA 2, CINEMA 3 and USER).

  • Page 43: Adjusting The Picture Quality

    Adjusting the Picture Quality You can easily adjust the picture quality that suits your taste by selecting the adjustment items with the remote control. The adjusted data can be stored in each picture mode. Selecting to Directly Adjust the Desired Menu Item GAMMA CORRECTION button...

  • Page 44: Selecting Desired Adjust Menu Items In The Order

    Selecting Desired Adjust Menu Items in the Order M/m/</, (arrow) / (enter) buttons ADJ PIC button Example: To adjust the contrast Press ADJ PIC. Each time you press the button, the following adjustment windows are displayed in sequence. “Advanced Iris,” “Lamp Control,” “Film Projection,”...

  • Page 45: Adjusting The Picture Using Real Color Processing

    Adjusting the Picture Using Real Color Processing The Real Color Processing (RCP) feature allows you to adjust the color and hue of each target of the projected picture you specify independently. You can thus obtain a picture more suitable to your taste. Freeze the scene of the video source when you are adjusting the picture using Real Color Processing.

  • Page 46: Using The Supplied Software To Adjust The Picture Quality (Imagedirector3)

    Using the Supplied Software to Adjust the Picture Quality (ImageDirector3) By using the “ImageDirector3” (supplied as a CD-ROM), you can make the desired gamma correction from a computer connected to the projector. Connect the REMOTE connector of the projector with a computer and start-up “ImageDirector3” on the computer.

  • Page 47: Using The Menus

    Using the Menus This section describes how to make various adjustments and settings using the menus. Operation through the Menus The projector is equipped with an on-screen menu for making various adjustments and settings. Some of the adjustable/setting items are displayed in a pop-up menu, in a setting menu or adjustment menu with no main menu, or in the next menu window.
  • Page 48 Press MENU. The menu window appears. Press M/m to select a menu item, and press , or The items that can be set or adjusted with the selected menu appear. The item presently selected is shown in white.
  • Page 49 Pop-up menu Setting items Setting menu Adjustment menu Next menu window Setting items Press M/m to select an item you want to set or adjust and press , or The setting items are displayed in a pop-up menu, in a setting menu, in an adjustment menu or in the next menu window.
  • Page 50 Make the setting or adjustment of an item. When changing the adjustment level To increase the value, press M/,. To decrease the value, press m/<. Press to restore the original menu screen. When changing the setting Press M/m to change the setting. Press to restore the original screen.

  • Page 51: Picture Menu

    Picture Menu The Picture menu is used for adjusting the picture. Note These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustable/Setting Items” (1 pages 89 to 92 ). Picture Mode You can select the picture viewing mode that best suits the type of picture or the environment.
  • Page 52 Cinema Black Pro Advanced Iris Switches the iris function during projection. Auto 1: Automatically switches to an optimum iris according to a projected scene. The contrast of the scene is emphasized most. Auto 2: An optimum iris becomes smaller than when set to “Auto 1.” The contrast of the scene becomes reduced.
  • Page 53 Brightness Adjusts the brightness of the picture. The higher the setting, the brighter the picture. The lower the setting, the darker the picture. You can make adjustments by pressing the BRIGHTNESS+/– on the remote control. Color Adjusts the color density. The higher the setting, the greater the intensity.
  • Page 54 Expert Setting Film Mode According to the film source you have selected, make a setting for playback. Auto 1: Suited for reproducing a picture movement close to the original picture movement of the film source. Normally, set this to “Auto 1.” Auto 2: Reproduces a 2-3 or 2-2 Pull-Down format video signal, such as film sources, in a smooth picture movement.
  • Page 55 Expert Setting Using the specified controller, “ImageDirector3” (supplied as a CD- ROM) allows you to adjust, set, and store a favorite tone in a computer. For detailed information on “ImageDirector3,” refer to the Help provided on the supplied CD-ROM in the computer. Note You can only perform adjustment with “ImageDirector3”...

  • Page 56: Advanced Picture Menu

    Advanced Picture Menu The Advanced Picture is used for adjusting the picture more. RCP (Real Color You can adjust the color and hue of each selected portion of the Processing) picture independently. User 1, User 2, User 3: You can adjust the picture using Real Color Processing and store the settings.

  • Page 57: Screen Menu

    Screen Menu The Screen menu is used to adjust the input signal. You can adjust the size of the picture, and select wide screen mode, etc. Note These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustable/Setting Items”...
  • Page 58 Wide Mode You can set the aspect ratio of the picture to be displayed for the (Computer signal) current input signal. (1 page 36) This item is enabled only when a computer signal is input. Full 1: Displays a picture on the whole of the screen without changing the aspect ratio of the original picture.

  • Page 59: Setup Menu

    Setup Menu The Setup menu is used to change the factory preset settings, etc. Status Sets whether or not the on-screen display is displayed. Set to “Off” to turn off the on-screen displays except for certain menus, message when turning off the power, and warning messages. Language Selects the language used in the menu and on-screen displays.
  • Page 60 Power Saving Sets the power saving mode. When set to “On,” the projector goes into power saving mode if no signal is input for 10 minutes. At that time, the ON/STANDBY indicator lights in orange, then the screen becomes dark. In power saving mode, the power saving mode is cancelled if a signal is input or any button on the projector or the remote control is pressed.

  • Page 61: Function Menu

    Function Menu The Function menu is used for changing the settings of the various functions of the projector. 3D Settings You can change the settings of the 3D function. 2D-3D Display Sel.: For Switching the video images to “2D” or 3D Format: Set the 3D system when the input HDMI signals do not “3D.”...
  • Page 62 • The operation of the projector and the connected Control for HDMI compatible equipment will synchronize with each other. • The Control for HDMI setting of Sony equipment (AV amplifier, video, etc.), which is compatible with “Control for HDMI - Easy Setting,”* will also be effective.
  • Page 63 All equipment listed (except AV amplifier) can be selected with SYNC MENU of the remote control of the projector. When “Enable” is selected, the Control for HDMI setting of Sony equipment (AV amplifier, video, etc.), which is compatible with “Control for HDMI - Easy Setting,” will also be effective.

  • Page 64: Installation Menu

    Installation Menu The Installation menu is used for changing the installation settings. V Keystone Corrects the vertical trapezoidal distortion of the picture. When the bottom of the trapezoid is longer than the top ( When the top of the trapezoid is longer than the bottom ( Note Depending on the picture position adjusted with the lens shift feature, the aspect ratio of the picture may change from the original...
  • Page 65 IR Receiver Selects the remote control detectors (IR Receiver) on the front and rear of the projector. Front & Rear: Activates both the front and rear detectors. Front: Activates the front detector only. Rear: Activates the rear detector only. Blanking This feature allows you to adjust the displayable region within the four directions of the screen.
  • Page 66 Panel Alignment This feature allows you to adjust the gaps in the color of characters or the picture. When set to “On,” “Adjust Color” and “Pattern Color” can be assigned and adjusted. Adjust Item: Selects how to make adjustments from below. Adjust Color: Assigns the desired color to adjust the gaps in color.

  • Page 67: Information Menu

    Information Menu The Information menu displays the model name, serial number, the horizontal and vertical frequencies of the input signal and the cumulated hours of usage of the lamp. Model name Displays the model name (VPL-VW90ES). Serial No. Displays the serial number. fH (horizontal frequency) Displays the horizontal frequency of the input signal.

  • Page 68: About The Control For Hdmi

    Control for HDMI compatible equipment such as a hard disk Blu-ray Disc player, a DVD player/recorder, an AV amplifier, etc. to a Sony Control for HDMI compatible TV or a projector with an HDMI cable, the equipment connected will synchronize with the TV or the projector when either is operated.

  • Page 69: About The X.v.color

    Sony Corporation. • xvYCC is an international standard of the technical specifications of the extended- gamut color space for video signals. The...

  • Page 70: Troubleshooting

    Troubleshooting If the projector appears to be operating erratically, try to diagnose and correct the problem using the following instructions. If the problem persists, consult with qualified Sony personnel. Power Symptom Cause and Remedy c The power may not turn on if you turn the power off with The power is not turned on.
  • Page 71 This is only a temporary condition. Turning off the power for a while will eliminate the retained image. menu to “On” (1 page 59). purchase. Consult with your local dealer or qualified Sony personnel. page 63). (1 page 12).
  • Page 72 3D video images Symptom Cause and Remedy c Check if the 3D glasses are turned on (1 page 40). The video image does not c Check that the batteries are not exhausted. seem like 3D video images. c Check if the input source is HDMI. c Set “2D-3D Display Sel.”...

  • Page 73: Warning Indicators

    The lamp has reached a high temperature. Wait until the lamp flashes) ON/STANDBY flashes in c The fan is broken. Consult with qualified Sony personnel. red. (A repetition rate of 4 flashes) c The internal temperature is unusually high. Check to ensure that ON/STANDBY flashes in red.

  • Page 74: Message Lists

    Note When a warning indicator other than the above starts flashing, and the symptom persists even after carrying out the above methods, consult with qualified Sony personnel. Message Lists Warning messages Message Cause and Remedy c Turn off the power.

  • Page 75: Caution Messages

    Message Cause and Remedy Please clean the filter. c It is time to clean the air filter. Clean the air filter (1 page 79). Note To clear this message, press any button either on the remote control or the control panel of the projector once. Please clean the filter.

  • Page 76: Replacing The Lamp And The Air Filter And Cleaning The Ventilation Holes (Intake)

    Replacing the Lamp and the Air Filter and Cleaning the Ventilation Holes (intake) Tools you need to get started: • Projector Lamp LMP-H201 (Optional) • Standard Phillips screwdriver • Cloth (for scratch protection) The lamp used for the light source has a certain lifespan.
  • Page 77 Loosen the screw on the lamp cover with a Philips screwdriver, and then open the lamp cover. Loosen the 3 screws on the lamp with the Phillips screwdriver. Hold up the handle, then pull the lamp straight out. Hold the handle of the new lamp and push it in securely until it reaches the end, and then tighten the 3 screws.
  • Page 78 Remove the filter holder. Remove the air filter. Attach the new air filter so that it fits into the each claws (10 positions) on the filter holder. Note Attach the air filter aligning it with the shape of the filter holder. Also, do not touch the fan after removing the air filter that is set deep inside the projector.

  • Page 79: Cleaning The Air Filter

    • Be sure to turn off the projector and unplug the power cord before replacing the lamp, then check the ON/STANDBY lamp has already been turned off. • The projector will not turn on unless the lamp is securely installed in place. •...

  • Page 80: Replacing The Battery Of The 3D Glasses

    Black points and bright points (red, blue, or green) on the screen The projector is manufactured using high- precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the projector. This is a normal result of the manufacturing process and does not indicate a malfunction.
  • Page 81 Push and remove the battery at an angle. Push here and remove the battery at an angle. Insert the new battery CR2032. Battery (CR2032) Insert a coin, etc, into the slot of the battery cover, turn it in the direction of the arrow, then close the battery cover.

  • Page 82: Removing/Attaching The Filter Attachment For 3D Glasses

    If you wish to purchase additional filter attachments, consult your local dealer or qualified Sony personnel. Note The 3D glasses supplied with the projector include the filter attachments in regular and small sizes. Install the filter attachments when you purchase 3D glasses, being sure to select the appropriate size for 3D glasses.
  • Page 83 Removing the filter Attach the supplied tab to the filter. Pinch the tab, and pull it forward to remove. Note The filter is fragile. If the filter becomes dirty, wipe it with a cleaning cloth for glasses after removing any dust.

  • Page 84: Specifications

    Specifications System Projection system SXRD panel, 1 lens, projection system LCD panel 0.61-inch (15.4 mm) SXRD panel 6,220,800 pixels (2,073,600 pixels × 3) Lens 1.6 times zoom lens (motorized) f=18.5 mm to 29.6 mm F2.50 to F3.40 Lamp 200 W Ultra High Pressure Lamp Projection picture size 40 inches to 300 inches (1,016 mm to 7,620 mm) (measured diagonally)
  • Page 85 Supplied accessories Remote control RM-PJVW85 (1) Size AA (R6) manganese batteries AC power cord (1) Operating Instructions (1) CD-ROM (ImageDirector3) (1) 3D glasses (including the battery) Pouch for the 3D glasses (2) Filter attachments for the 3D glasses (For the customers in the U.S.A.) Regular size (4 kits) Small size (4 kits)

  • Page 86: Preset Signals

    Preset Signals The following table shows the signals and video formats which you can project using this unit. When a signal other than the preset signal shown below is input, the picture may not be displayed properly. Memory Preset signal (resolution) VIDEO/60 60 Hz...
  • Page 87 Memory Preset signal (resolution) 1080/24p 1080/24p (1920 × 1080p) (Frame packing) 640 × 350 VGA-1 (VGA350) VESA 85 (VGA350) 640 × 400 NEC PC98 VGA-2 (TEXT) /VESA70 VESA 85 (VGA400) 640 × 480 VESA 60 Mac 13 VESA 72 VESA 75 (IBM M3) VESA 85 (IBM M4)
  • Page 88 Preset memory numbers for each input signal Analog signal Signal Video signal (VIDEO INPUT connector) Component signal (INPUT A and Y P connectors) Video GBR signal (INPUT A connector) Computer signal (INPUT A connector) Digital signal Signal Component signal (HDMI 1, 2 connectors) Video GBR signal (HDMI 1, 2 connectors) Computer signal (HDMI 1, 2 connectors) * Some digital signals input from computers may be displayed as preset memory number of...

  • Page 89: Input Signals And Adjustable/Setting Items

    Input Signals and Adjustable/Setting Items The items in the menus available to adjust differ depending on the input signal. The following tables indicate them. The items that cannot be adjusted are not displayed in the menu. Picture menu Item Video signal Advanced Iris Lamp Control Film Projection...
  • Page 90 Screen menu Item Video signal Wide Mode Over Scan – Screen Area * – V Center * Vertical Size * – Phase – Pitch – Shift – z : Adjustable/can be set – : Not adjustable/cannot be set : The setting can be made only when “x.v.Color” is set to “Off.” : The setting can be made only when “Wide Mode”...

  • Page 91: Compatible 3D Signals

    Compatible 3D Signals The projector accepts the following types of 3D signals. Resolution 3D signal format 720/60, 50P Over-Under format* Frame packing* 1080/60, 50i Side-by-Side format* 1080/24P Over-Under format* Frame packing* 1080/60, 50P Side-by-Side format Over-Under format *: Mandatory 3D format of the HDMI standards. 3D Signals and Adjustable/Setting Items Some items on the menus may not be available to adjust/set, depending on the 3D signals.
  • Page 92 When the projector is set to convert 2D video images to 3D video images, some items on the menus may be not available to adjust/set, depending on the “3D Format” settings on the Function menu. The items that cannot be adjusted are not displayed on the menu. The following tables indicate these items.

  • Page 93: Ceiling Installation

    Ceiling Installation Use the PSS-H10 Projector Suspension Support when you install the projector on a ceiling. The projection distances for ceiling installation are shown below. L’:Distance between the screen and the installation hole at the ceiling side of the ceiling mount unit (front side) y’: Distance between the ceiling and the center of the screen such that the picture will not be truncated or blocked Center of the screen...
  • Page 94 When using the 16:9 aspect ratio screen size Screen Size SS (inches) (mm) 1016 1524 (minimum) 1385 2008 L’ (maximum) 2013 2955 (116 (minimum) y’ (maximum) To calculate the installation positions L’ (minimum) = 31.1781 (1 ) × SS + 137.7 (5 L’...
  • Page 95 For details on installation on a ceiling, refer to the Installation manual for Dealers of the PSS-H10. Make sure to consult with a qualified Sony personnel for installation. The installation measurements are shown below when installing the projector on a ceiling using the PSS-H10.

  • Page 96: Front View

    Front view 150 (5 75 (2 235 (9 235 (9 470 (18 Side view Front of the cabinet Ceiling 175 (6 The bottom Center of the surface of the supporting pole mount bracket 93.5 (3 Center of the lens 204.8 (8 130 (5 249.8 (9 235.1 (9...

  • Page 97: Index

    Index Numerics 3D Glasses Filter Attachment ...82 Location of Controls ...11 Replacing the battery ...80 Using the 3D glasses ...40 3D Settings 2D-3D Display Sel..61 3D Depth Adjust ...62 3D Format ...61 3D glasses Bright ...62 Simulated 3D Effect ...62 Acceptable 3D Signals ...91 Adjust Signal APA ...58...
  • Page 98 Over Scan ... 58 Panel Alignment ... 66 Picture Mode CINEMA ... 42 Cinema ... 51 DYNAMIC ... 42 Dynamic ... 51 STANDARD ... 42 Standard ... 51 USER ... 42 User ... 51 Precautions ... 7 Preset Memory ... 67 Preset Signals ...
  • Page 100 Sony Corporation Printed in Japan...
