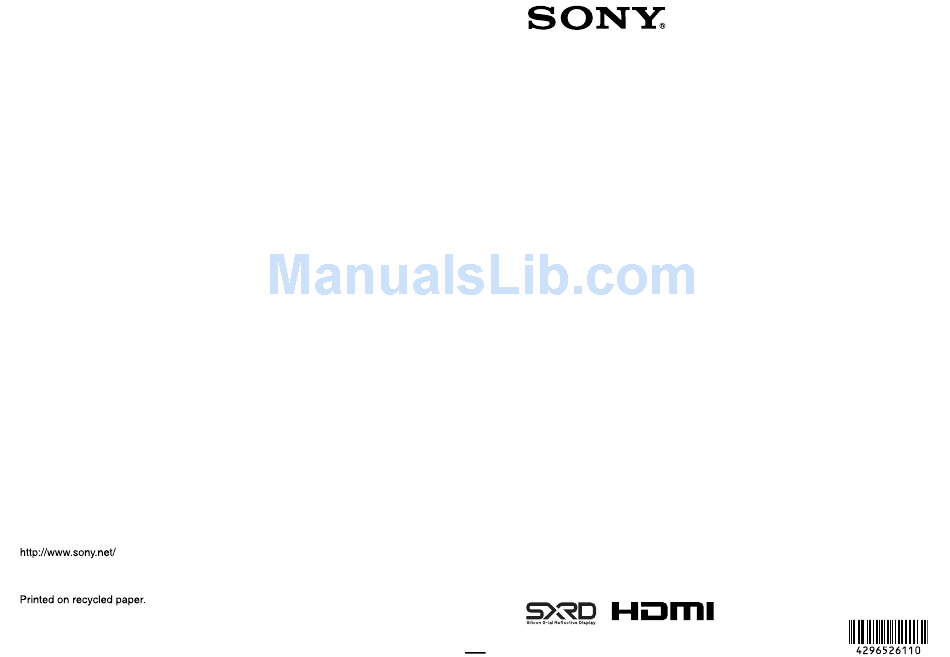

4-296-526-11 (1)
Video Projector
Operating Instructions
VPL-VW95ES
Sony Corporation
Printed in Japan
© 2011 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony VPL-VW95ES

Summary of Contents for Sony VPL-VW95ES

  • Page 1 4-296-526-11 (1) Video Projector Operating Instructions VPL-VW95ES Sony Corporation Printed in Japan © 2011 Sony Corporation...
  • Page 2 For the customers in Canada This Class B digital apparatus complies with Canadian ICES-003. For the customers in Europe The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
  • Page 3 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Pour les clients en Europe Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japon. Le représentant autorisé pour EMC et la sécurité...
  • Page 4 Ao fim da vida útil do equipamento, disponha-o em um ponto de coleta na Rede Autorizada Sony ou nas lojas Sony, de forma a garantir o tratamento adequadoda bateria. Note on use of the USB charging AC power adaptor AC-UD10 For the customer in the U.S.A.

  • Page 5: Table Of Contents

    Table of Contents Precautions ...7 Location of Controls Front/Right Side ...8 Rear/Bottom ...9 Remote Control ...10 Connections and Preparations Unpacking ...11 Step 1: Installing the Projector ...13 Before Setting Up the Projector ...13 Positioning the Projector and a Screen ...16 Step 2: Adjusting the Picture Position ...20 Step 3: Connecting the Projector ...25...
  • Page 6 3D Signals and Adjustable/Setting Items ... 87 Ceiling Installation ... 89 Index ... 93 Trademark Information “PS3” is a registered trademark of Sony Computer Entertainment Inc. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

  • Page 7: Precautions

    Precautions On safety • Check that the operating voltage of your unit is identical with the voltage of your local power supply. • Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further.

  • Page 8: Location Of Controls

    Location of Controls Front/Right Side You can use the buttons on the control panel with the same names as those on the remote control to operate the projector. Press the button and open the cover. LENS button (1 page 20) M/m/</, (arrow)/ (enter) button (1 page 45) MENU button (1 page 45)

  • Page 9: Rear/Bottom

    Rear/Bottom Remote control detector (1 page 20) Ventilation holes (intake) (1 page 14) Ventilation holes (intake) (1 page 14) Ventilation holes (intake) (1 page 14) Ventilation holes (intake) (1 page 14) Lamp cover (1 page 76) Adjusters (1 page 24) Filter holder (1 page 77) Ventilation holes (intake) (1 page 14)

  • Page 10: Remote Control

    Remote Control LIGHT button Illuminates the buttons on the remote control. PICTURE MODE buttons (1 page 41) POSITION button (1 page 33) MOTION ENHANCER button (1 page 42) WIDE MODE button (1 page 34) COLOR SPACE button (1 page 42) COLOR TEMP button (1 page 42) GAMMA CORRECTION...

  • Page 11: Connections And Preparations

    • AC power cord for USB charging AC power adaptor (1) • USB charging cable (GPHK05 - 2010 - 0007/SONY) (1.2 m) (1) Insert the batteries E side first as shown in the illustration. Inserting them forcibly or with the polarities reversed may...
  • Page 12 VORSICHT Explosionsgefahr bei Verwendung falscher Batterien. Batterien nur durch den vom Hersteller empfohlenen oder einen gleichwertigen Typ ersetzen. Wenn Sie die Batterie entsorgen, müssen Sie die Gesetze der jeweiligen Region und des jeweiligen Landes befolgen. Installing batteries Two size AA (R6) batteries are supplied for Remote Control. To avoid risk of explosion, use size AA (R6) manganese or alkaline batteries.

  • Page 13: Step 1: Installing The Projector

    Step 1: Installing the Projector The projector displays pictures output from a VCR or other device. The lens shift allows you to have broader options for placing the projector and viewing pictures easily. Before Setting Up the Projector Unsuitable installation Do not place the projector in the following situations, which may cause malfunction or damage to the projector.
  • Page 14 Improper use Do not do any of the following while using the projector. Blocking the ventilation holes (intake or exhaust) Ventilation holes (intake) Ventilation holes (exhaust) For details on the location of the ventilation holes (intake or exhaust), see “Location of Controls”...
  • Page 15 AVERTISSEMENT Lors de l’installation de l’appareil, incorporer un dispositif de coupure dans le câblage fixe ou brancher la fiche d’alimentation dans une prise murale facilement accessible proche de l’appareil. En cas de problème lors du fonctionnement de l’appareil, enclencher le dispositif de coupure d’alimentation ou débrancher la fiche d’alimentation.

  • Page 16: Positioning The Projector And A Screen

    Positioning the Projector and a Screen The installation distance between the projector and a screen varies depending on the size of the screen or whether or not you use the lens shift features. Determine the installation position of the projector and screen. You can obtain a good quality picture if you position the projector so that the center of the lens is within the area indicated in gray in the illustration.
  • Page 17 When using the 16:9 aspect ratio screen size Screen Size SS (inches) (mm) 1016 1524 minimum 1201 1825 maximum 1840 2782 (109 ) (146 ) (19 ) (25 ) (15 ) (20 ) (15 ) (17 To calculate the installation positions L (minimum) = 31.1781 (1 ) ×...
  • Page 18 When using the 4:3 aspect ratio screen size Screen Size SS (inches) (mm) 1016 1524 minimum 1480 2243 maximum 2262 3414 (134 ) (179 ) (23 ) (31 ) (18 ) (18 ) (17 (16) To calculate the installation positions L (minimum) = 38.1569 (1 ) ×...
  • Page 19 Position the projector so that the lens is parallel to the screen. Top view Screen Project an image on the screen and adjust the picture so that it fits the screen (1 page 20). Note When using a screen with an uneven surface, stripes pattern may rarely appear on the screen depending on the distance between the screen and the projector or the zooming magnifications.

  • Page 20: Step 2: Adjusting The Picture Position

    Step 2: Adjusting the Picture Position Project an image on the screen and then adjust the picture position. Remote control detector (ON/STANDBY), INPUT, MENU, and M/m/</,/ panel of the projector function the same as those on the remote control. The LENS button functions in the same way as the LENS ADJUSTMENT (FOCUS, ZOOM, SHIFT) button of the remote control.
  • Page 21 Flashes in green for a while (tens of seconds) and then lights in green. Note Adjust the lens by using buttons on the remote control or the control panel of the projector. Never make adjustments by directly turning the lens with your hands, which may cause damage or malfunction to the projector.
  • Page 22 • When “Lens Control” is set to “Off” on the Installation position (1 page 63). When “Test Pattern” is set to “Off” on the Function (1 page 62). • The test signal is displayed for 1 minute. Press the button to clear the test signal display before that. Adjust the picture size.

  • Page 23: To Adjust The Horizontal Position

    Note When adjusting the window position, do not touch the lens unit, otherwise your fingers may be pinched by the moving parts. To adjust the horizontal position Press </,. The picture projected on the screen moves right or left by a maximum of 25% of the screen width from the center of the lens.
  • Page 24 Note The range to move the picture projected on the screen can be adjusted only within the octagon area illustrated below. In this connection, see “Positioning the Projector and a Screen” (1 page 16) as well. Range of movement of the projected picture Projected Picture H: Width of the projected picture...

  • Page 25: Step 3: Connecting The Projector

    : Video signal flow AV amplifier Equipment with HDMI output connectors HDMI cable (not supplied) When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable they has the HDMI logo. Speakers to HDMI output...

  • Page 26: To Connect To Equipment With Component Video Output Connectors

    Notes • Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, and 3D video images may not be displayed properly. • When connecting an HDMI cable to the projector, make sure the HDMI input of the projector and the position.

  • Page 27: Connecting To A Computer

    When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable they has the HDMI logo. mark on the upper part of the HDMI input of...

  • Page 28: Connecting To An Optional Tmr-Pj1 3D Sync Transmitter

    Connecting to an Optional TMR-PJ1 3D Sync Transmitter The projector incorporates a 3D Sync Transmitter. Depending on the installation environment of the projector, the 3D glasses may not received 3D signals properly from the projector’s built-in 3D Sync Transmitter. In this case, connect an optional TMR-PJ1 3D Sync Transmitter and place it near your viewing position.

  • Page 29: Step 4: Selecting The Menu Language

    Step 4: Selecting the Menu Language You can select one of 16 languages for displaying the menu and other on-screen displays. The factory default setting is English. To change the current menu language, set the desired language with the menu screen. 2,3,4 M/m/</, (arrow)/...
  • Page 30 Press M/m to select the Setup menu, and press , or The setting items of the selected menu appears. Press M/m to select “Language,” and press , or Press M/m/</, to select a language, and press The menu changes to the selected language.

  • Page 31: Projecting

    Projecting This section describes how to operate the projector to view the picture from the equipment connected to the projector. It also describes how to adjust the quality of the picture to suit your taste. Projecting the Picture on the Screen Example: To view the picture from the video equipment connected...

  • Page 32: Turning Off The Power

    Notes on input of HDMI signal The projector adjusts the RGB dynamic range of the equipment connected with HDMI cable to the following to suit the HDMI standard and display in best picture quality. When video signal is input: Limited (16-235) When computer signal is input: Full (0-255) When a signal other than those of HDMI standard is input, the following symptoms may occur.

  • Page 33: Using The Picture Position

    Using the Picture Position You can store the five lens settings (combination of focus, window size, window position) and you can recall those settings. Notes • After you have selected and confirmed the lens position, the lens starts to move automatically. Do not touch the lens and the area around the lens, otherwise it may cause injury or a malfunction.

  • Page 34: Selecting The Wide Screen Mode

    Selecting the Wide Screen Mode You can enjoy various wide screen modes according to the video signal received. WIDE MODE button Original When the Wide image Mode is operated Squeezed Press WIDE MODE. Each time you press the button, you can select the “Wide Mode”...
  • Page 35 Letterbox picture with side panels Letterbox picture When using an Anamorphic lens Notes • You can adjust the vertical position of the picture with “V Center” and “Vertical Size” on the Screen menu only when “Zoom” is selected (1 page 57). •...
  • Page 36 • When a 3D video image is displayed, the “Wide Mode” setting is fixed at “Full.” Notes on selecting the wide screen mode The projector is featured with the WIDE MODE. When changing the settings of WIDE MODE, use caution as described below. •...

  • Page 37: Watching 3D Video Images

    Watching 3D Video Images You can enjoy powerful 3D video images, such as from 3D games and 3D Blu-ray Discs, using the supplied the 3D glasses. Turn on the HDMI equipment for 3D compatibility connected to the projector then play the 3D content. For details on how to play 3D content, refer to the operating instructions for the connected equipment.

  • Page 38: Using The Simulated 3D Function

    Using the Simulated 3D Function You can convert normal 2D video images to 3D video images. For details on how to operate the on-screen menu, see “Operation through the Menus” (1 page 45). Display the Function You can display the “3D settings” by pressing the 3D button on the remote control. Set “2D-3D Display Sel.”...

  • Page 39: Using The 3D Glasses

    Using the 3D Glasses The 3D glasses receive signals the 3D Sync Transmitter built into the front of the projector and reflected to the glasses from the screen. When watching 3D video images using the 3D glasses, face squarely toward the screen. Power button LED indicator IR sensor...
  • Page 40 Figure A: 3D glasses communication range (distance from the screen) Approx. 5 m (Maximum) Screen Figure B:3D sync signal communication distance between the projector and screen Approx. 5 m (Maximum) Side view Screen 3D glasses Top or side view Projector...

  • Page 41: Selecting The Picture Viewing Mode

    Selecting the Picture Viewing Mode You can select the picture viewing mode that best suits the type of program or room conditions. The availability of each picture mode depends on whether the video image is 2D or 3D. PICTURE MODE buttons Press one of the PICTURE MODE buttons.

  • Page 42: Adjusting The Picture Quality

    Adjusting the Picture Quality You can easily adjust the picture quality that suits your taste by selecting the adjustment items with the remote control. The adjusted data can be stored in each picture mode. Selecting to Directly Adjust the Desired Menu Item MOTION ENHANCER button COLOR TEMP...

  • Page 43: Adjusting The Picture Using Real Color Processing

    Adjusting the Picture Using Real Color Processing The Real Color Processing (RCP) feature allows you to adjust the color, hue, and brightness of each target of the projected picture you specify independently. You can thus obtain a picture more suitable to your taste. Freeze the scene of the video source when you are adjusting the picture using Real Color Processing.

  • Page 44: Using The Supplied Software To Adjust The Picture Quality (Imagedirector3)

    Using the Supplied Software to Adjust the Picture Quality (ImageDirector3) By using the “ImageDirector3” (supplied as a CD-ROM), you can make the desired gamma correction from a computer connected to the projector. Connect the REMOTE connector of the projector with a computer and start-up “ImageDirector3” on the computer.

  • Page 45: Using The Menus

    Using the Menus This section describes how to make various adjustments and settings using the menus. Operation through the Menus The projector is equipped with an on-screen menu for making various adjustments and settings. Some of the adjustable/setting items are displayed in a pop-up menu, in a setting menu or adjustment menu with no main menu, or in the next menu window.
  • Page 46 Press MENU. The menu window appears. Press M/m to select a menu item, and press , or The items that can be set or adjusted with the selected menu appear. The item presently selected is shown in white.
  • Page 47 Pop-up menu Setting items Setting menu Adjustment menu Next menu window Setting items Press M/m to select an item you want to set or adjust and press , or The setting items are displayed in a pop-up menu, in a setting menu, in an adjustment menu or in the next menu window.
  • Page 48 Make the setting or adjustment of an item. When changing the adjustment level To increase the value, press M/,. To decrease the value, press m/<. Press to restore the original menu screen. When changing the setting Press M/m to change the setting. Press to restore the original screen.

  • Page 49: Picture Menu

    Picture Menu The Picture menu is used for adjusting the picture. Note These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustable/Setting Items” (1 pages 85 to 88 ). Picture Mode You can select the picture viewing mode that best suits the type of picture or the environment.
  • Page 50 Cinema Black Pro Advanced Iris Switches the iris function during projection. Auto 1: Automatically switches to an optimum iris according to a projected scene. The contrast of the scene is emphasized most. Auto 2: An optimum iris becomes smaller than when set to “Auto 1.” The contrast of the scene becomes reduced.
  • Page 51 Brightness Adjusts the brightness of the picture. The higher the setting, the brighter the picture. The lower the setting, the darker the picture. You can make adjustments by pressing the BRIGHTNESS+/– on the remote control. Color Adjusts the color density. The higher the setting, the greater the intensity.
  • Page 52 Expert Setting Film Mode According to the film source you have selected, make a setting for playback. Auto 1: Suited for reproducing a picture movement close to the original picture movement of the film source. Normally, set this to “Auto 1.” Auto 2: Reproduces a 2-3 or 2-2 Pull-Down format video signal, such as film sources, in a smooth picture movement.
  • Page 53 Expert Setting Using the specified controller, “ImageDirector3” (supplied as a CD- ROM) allows you to adjust, set, and store a favorite tone in a computer. For detailed information on “ImageDirector3,” refer to the Help provided on the supplied CD-ROM in the computer. Note You can only perform adjustment with “ImageDirector3”...

  • Page 54: Advanced Picture Menu

    Advanced Picture Menu The Advanced Picture is used for adjusting the picture more. RCP (Real Color You can adjust the color, hue, and brightness of each selected Processing) portion of the picture independently. User 1, User 2, User 3: You can adjust the picture using Real Color Processing and store the settings.

  • Page 55: Screen Menu

    Screen Menu The Screen menu is used to adjust the input signal. You can adjust the size of the picture, and select wide screen mode, etc. Note These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustable/Setting Items”...
  • Page 56 Wide Mode You can set the aspect ratio of the picture to be displayed for the (Video signal) current input signal (1 page 34). This item is enabled only when a video signal (preset memory numbers 3 to 14) (1 pages 83) is input. Wide Zoom: A 4:3 aspect ratio picture is enlarged naturally to fill the screen.
  • Page 57 Vertical Size Reduces or enlarges the picture vertically. The screen is enlarged as the setting increases and reduced as the setting decreases. If the subtitle of a movie, etc. cannot be seen, use this together with “V Center.” Adjust Signal You can adjust the input signal.

  • Page 58: Setup Menu

    Setup Menu The Setup menu is used to change the factory preset settings, etc. Status Sets whether or not the on-screen display is displayed. Set to “Off” to turn off the on-screen displays except for certain menus, message when turning off the power, and warning messages. Language Selects the language used in the menu and on-screen displays.
  • Page 59 Power Saving Sets the power saving mode. When set to “On,” the projector goes into power saving mode if no signal is input for 10 minutes. At that time, the ON/STANDBY indicator lights in orange, then the screen becomes dark. In power saving mode, the power saving mode is cancelled if a signal is input or any button on the projector or the remote control is pressed.

  • Page 60: Function Menu

    Function Menu The Function menu is used for changing the settings of the various functions of the projector. 3D Settings You can change the settings of the 3D function. You can display the “3D settings” by pressing the 3D button on the remote control.
  • Page 61 When set to “On,” the following are available. • The operation of the projector and the connected Control for • The Control for HDMI setting of Sony equipment (AV The factory default setting is “On.” Device Auto Power Off: Sets whether to also turn the power of the connected Control for HDMI compatible equipment off when you turn the power of the projector off.
  • Page 62 You can select “Black” or “Blue.” connected to the projector. When “Enable” is selected, the Control for HDMI setting of Sony equipment (AV amplifier, video, etc.), which is compatible with “Control for HDMI - Easy Setting,” will also be effective.

  • Page 63: Installation Menu

    Installation Menu The Installation menu is used for changing the installation settings. V Keystone Corrects the vertical trapezoidal distortion of the picture. When the bottom of the trapezoid is longer than the top ( When the top of the trapezoid is longer than the bottom ( Note Depending on the picture position adjusted with the lens shift feature, the aspect ratio of the picture may change from the original...
  • Page 64 IR Receiver Selects the remote control detectors (IR Receiver) on the front and rear of the projector. Front & Rear: Activates both the front and rear detectors. Front: Activates the front detector only. Rear: Activates the rear detector only. Blanking This feature allows you to adjust the displayable region within the four directions of the screen.
  • Page 65 Panel Alignment This feature allows you to adjust the gaps in the color of characters or the picture. When set to “On,” “Adjust Color” and “Pattern Color” can be assigned and adjusted. Adjust Item: Selects how to make adjustments from below. Shift: Shifts the whole picture and makes adjustments.

  • Page 66: Information Menu

    The Information menu displays the model name, serial number, the horizontal and vertical frequencies of the input signal and the cumulated hours of usage of the lamp. Model name Displays the model name (VPL-VW95ES). Serial No. Displays the serial number.

  • Page 67: About The Control For Hdmi

    Control for HDMI compatible equipment such as a hard disk Blu-ray Disc player, a DVD player/recorder, an AV amplifier, etc. to a Sony Control for HDMI compatible TV or a projector with an HDMI cable, the equipment connected will synchronize with the TV or the projector when either is operated.

  • Page 68: About The X.v.color

    Sony Corporation. • xvYCC is an international standard of the technical specifications of the extended- gamut color space for video signals. The...

  • Page 69: Troubleshooting

    Troubleshooting If the projector appears to be operating erratically, try to diagnose and correct the problem using the following instructions. If the problem persists, consult with qualified Sony personnel. Power Symptom Cause and Remedy c The power may not turn on if you turn the power off with The power is not turned on.
  • Page 70 “On” (1 page 58). When the ON/STANDBY indicator blinks in green, the projector is starting up. Wait until it stops blinking and remains lit in green. purchase. Consult with your local dealer or qualified Sony personnel. page 62). (1 page 11).
  • Page 71 3D video images Symptom Cause and Remedy c Check if the 3D glasses are turned on (1 page 39). The video image does not c Make sure that the battery in the 3D glasses is charged. seem like 3D video images. c Check if the input source is HDMI.

  • Page 72: Warning Indicators

    The lamp has reached a high temperature. Wait until the lamp flashes) ON/STANDBY flashes in c The fan is broken. Consult with qualified Sony personnel. red. (A repetition rate of 4 flashes) c The internal temperature is unusually high. Check to ensure that ON/STANDBY flashes in red.

  • Page 73: Message Lists

    Note When a warning indicator other than the above starts flashing, and the symptom persists even after carrying out the above methods, consult with qualified Sony personnel. Message Lists Warning messages Message Cause and Remedy c Turn off the power.

  • Page 74: Caution Messages

    Message Cause and Remedy Please clean the filter. c It is time to clean the air filter. Clean the air filter (1 page 78). Note To clear this message, press any button either on the remote control or the control panel of the projector once. Please clean the filter.

  • Page 75: Replacing The Lamp And The Air Filter And Cleaning The Ventilation Holes (Intake)

    Replacing the Lamp and the Air Filter and Cleaning the Ventilation Holes (intake) Tools you need to get started: • Projector Lamp LMP-H202 (Optional) • Standard Phillips screwdriver • Cloth (for scratch protection) The lamp used for the light source has a certain lifespan.
  • Page 76 Loosen the screw on the lamp cover with a Philips screwdriver, and then open the lamp cover. Loosen the 3 screws on the lamp with the Phillips screwdriver. Hold up the handle, then pull the lamp straight out. Hold the handle of the new lamp and push it in securely until it reaches the end, and then tighten the 3 screws.
  • Page 77 Remove the filter holder. Remove the air filter. Attach the new air filter so that it fits into the each claws (10 positions) on the filter holder. Note Attach the air filter aligning it with the shape of the filter holder. Also, do not touch the fan after removing the air filter that is set deep inside the projector.

  • Page 78: Cleaning The Air Filter

    • Be sure to turn off the projector and unplug the power cord before replacing the lamp, then check the ON/STANDBY indicator has already been turned off. • The projector will not turn on unless the lamp is securely installed in place. •...

  • Page 79: How To Use The Usb Charging Ac Power Adaptor

    Black points and bright points (red, blue, or green) on the screen The projector is manufactured using high- precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the projector. This is a normal result of the manufacturing process and does not indicate a malfunction.
  • Page 80 Connect the USB cable to the USB connector of the supplied USB charging AC power adaptor. Supplied USB charging AC power adaptor Connect the AC power cord for USB charging AC power adaptor to the supplied USB charging AC power adaptor. AC power cord for USB charging AC power adaptor Plug the AC power cord for USB...

  • Page 81: Specifications

    Specifications System Projection system SXRD panel, 1 lens, projection system LCD panel 0.61-inch (15.4 mm) SXRD panel 6,220,800 pixels (2,073,600 pixels × 3) Lens 1.6 times zoom lens (motorized) f=18.5 mm to 29.6 mm F2.50 to F3.40 Lamp 200 W Ultra High Pressure Lamp Projection picture size 40 inches to 300 inches (1,016 mm to 7,620 mm) (measured diagonally)

  • Page 82: Warning On Power Connection

    USB charging cable (GPHK05 - 2010 - 0007/SONY) (1.2 m) (1) Design and specifications are subject to change without notice. Warning on power connection Use a proper power cord for your local power supply.

  • Page 83: Preset Signals

    Preset Signals The following table shows the signals and video formats which you can project using this unit. When a signal other than the preset signal shown below is input, the picture may not be displayed properly. Memory Preset signal (resolution) 480/60i 480/60i...
  • Page 84 Memory Preset signal (resolution) 640 × 480 VESA 60 VESA 72 VESA 75 (IBM M3) VESA 85 (IBM M4) 800 × 600 VESA 56 VESA 60 VESA 72 VESA 75 (IBM M5) VESA 85 1024 × 768 VESA 60 VESA 70 VESA 75 1280 ×...

  • Page 85: Input Signals And Adjustable/Setting Items

    Input Signals and Adjustable/Setting Items The items in the menus available to adjust differ depending on the input signal. The following tables indicate them. The items that cannot be adjusted are not displayed in the menu. Picture menu Item Component signal Advanced Iris Lamp Control Film Projection...
  • Page 86 Screen menu Item Component signal Wide Mode Over Scan Screen Area * (preset memory numbers 7, 8, 9, 12, 13, 14 only) V Center * Vertical Size * Phase Pitch Shift z : Adjustable/can be set – : Not adjustable/cannot be set : The setting can be made only when “x.v.Color”...

  • Page 87: Compatible 3D Signals

    Compatible 3D Signals The projector accepts the following types of 3D signals. Resolution 3D signal format 720/60, 50P Side-by-Side format Over-Under format* Frame packing* 1080/60, 50i Side-by-Side format* 1080/24P Over-Under format* Frame packing* 1080/60, 50P Side-by-Side format Over-Under format *: Mandatory 3D format of the HDMI standards. 3D Signals and Adjustable/Setting Items Some items on the menus may not be available to adjust/set, depending on the 3D signals.
  • Page 88 : Adjustable/can be set –: Not Adjustable/cannot be set : The setting can be made for 2D display : The setting can be made for Over-Under format When the projector is set to convert 2D video images to 3D video images, some items on the menus may be not available to adjust/set, depending on the “3D Format”...

  • Page 89: Ceiling Installation

    Ceiling Installation Use the PSS-H10 Projector Suspension Support when you install the projector on a ceiling. The projection distances for ceiling installation are shown below. L’:Distance between the screen and the installation hole at the ceiling side of the ceiling mount unit (front side) y’: Distance between the ceiling and the center of the screen such that the picture will not be truncated or blocked Center of the screen...
  • Page 90 When using the 16:9 aspect ratio screen size Screen Size SS (inches) (mm) 1016 1524 (minimum) 1385 2008 L’ (maximum) 2013 2955 (116 (minimum) y’ (maximum) To calculate the installation positions L’ (minimum) = 31.1781 (1 ) × SS + 137.7 (5 L’...
  • Page 91 For details on installation on a ceiling, refer to the Installation manual for Dealers of the PSS-H10. Make sure to consult with a qualified Sony personnel for installation. The installation measurements are shown below when installing the projector on a ceiling using the PSS-H10.

  • Page 92: Front View

    Front view 150 (5 75 (2 235 (9 470 (18 Side view Front of the cabinet Ceiling 175 (6 Center of the supporting pole 93.5 (3 Center of the lens 235 (9 204.8 (8 130 (5 249.8 (9 235.1 (9 484.9 (19 The bottom surface of the...

  • Page 93: Index

    Index Numerics 3D Glasses 3D glasses communication range ...39 Using the 3D Glasses ...39 3D Settings 2D-3D Display Sel..60 3D Depth Adjust ...61 3D Format ...60 3D Glasses Bri’ght ...61 Simulated 3D Effect ...61 Acceptable 3D Signals ...87 Adjust Signal APA ...57 Phase ...57 Pitch ...57...
  • Page 94 Over Scan ... 56 Panel Alignment ... 65 Picture Mode CINEMA ... 41 Cinema ... 49 DYNAMIC ... 41 Dynamic ... 49 GAME ... 41 Game ... 49 PHOTO ... 41 Photo ... 49 STANDARD ... 41 Standard ... 49 USER ...
