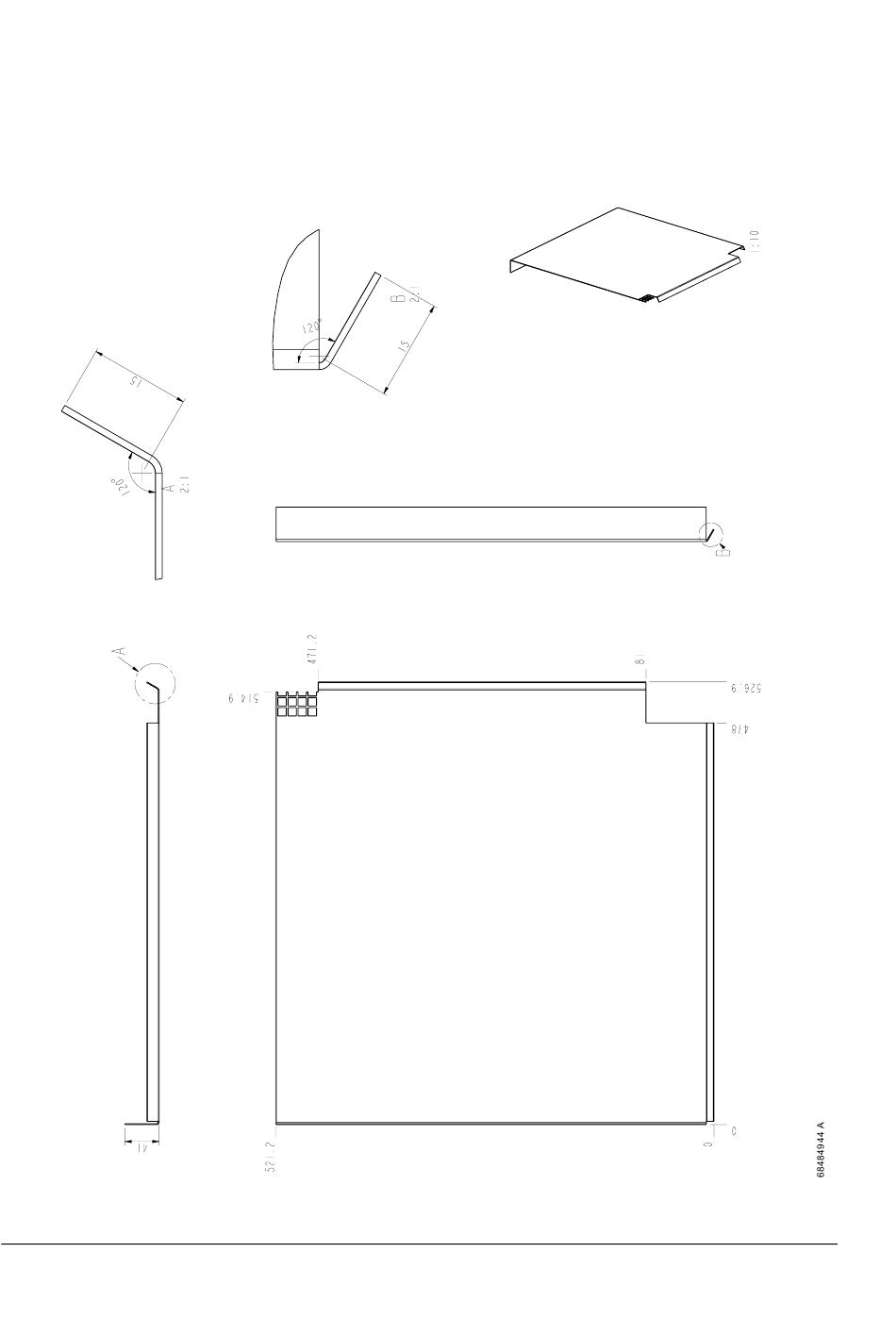

EMC screen mesh for the enclosure with drive module of frame size R7

and Rittal cooling unit

The EMC screen mesh used in the installation on page

26

is shown below.
