Step Instruction

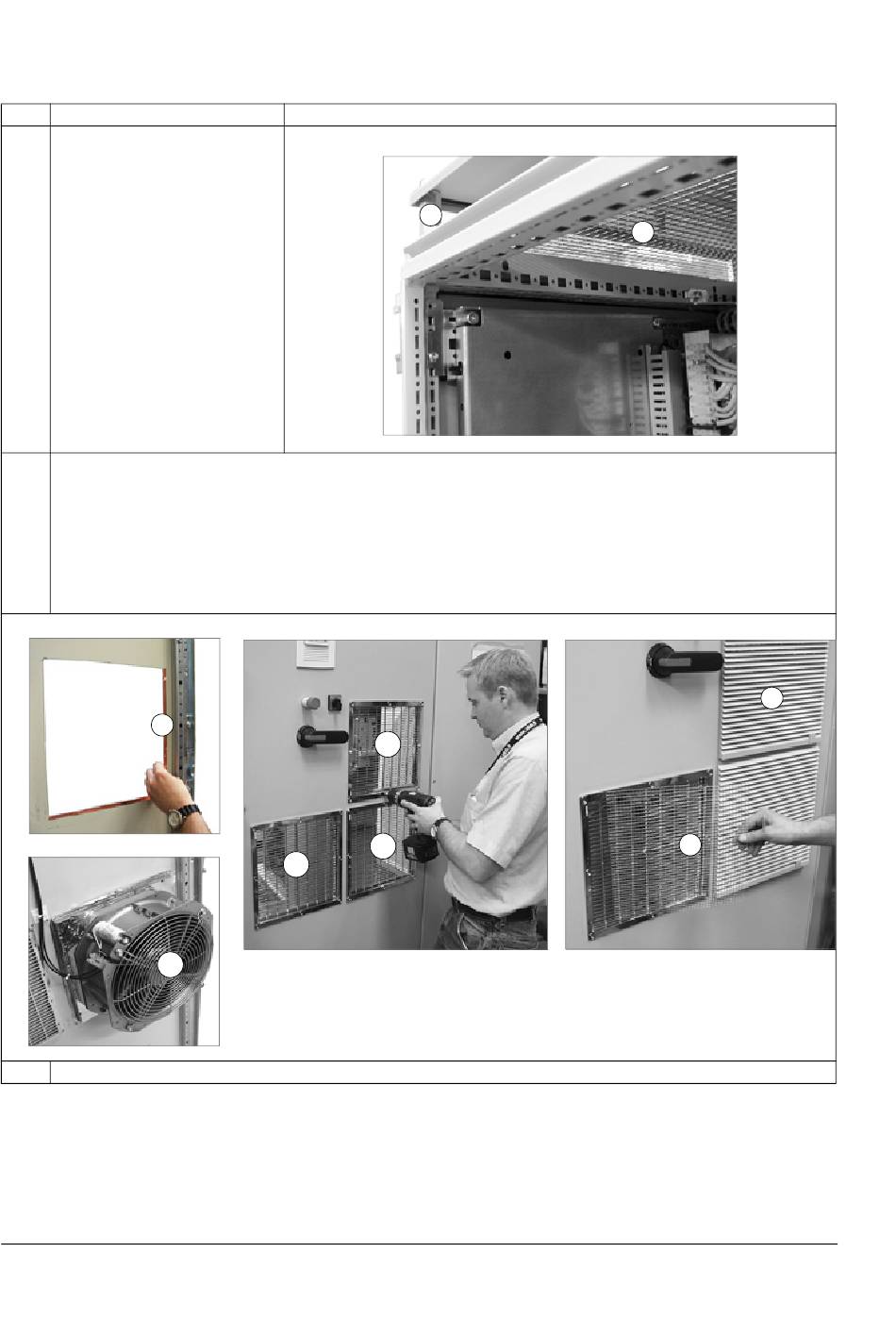

16 Fasten the roof plate:
1. Cut an opening to the roof
wire mesh for the upper edge
of the air baffle. Place the
mesh on the top of the
enclosure frame.
2. Fasten the enclosure roof
plate above the mesh with four
50 mm spacers at the corners.
17 Fasten the door devices. See RPMP-11/13 Control Panel Mounting Platform Kit Installation Guide [3AFE68400643
(English)].
Install the ventilation gratings on the door:
1. Cover the edges of the cuttings with copper tape.
2. Fasten the metal gratings (2a) and the EMC compatible fan-and-air-filter unit (2b).
3. Place the metal mesh between the lower grating and the outer louvred grating.
4. Push the louvred grating onto its place.
1
Cutting
2b
18 Fasten the EMC gasket strip to the door as shown on page
Drive module of frame size R7 with bottom exit
2a
2a
2a
View of the EMC compatible
fan-and-air-filter unit on the
back side of the door
2
13.
1
4
3
