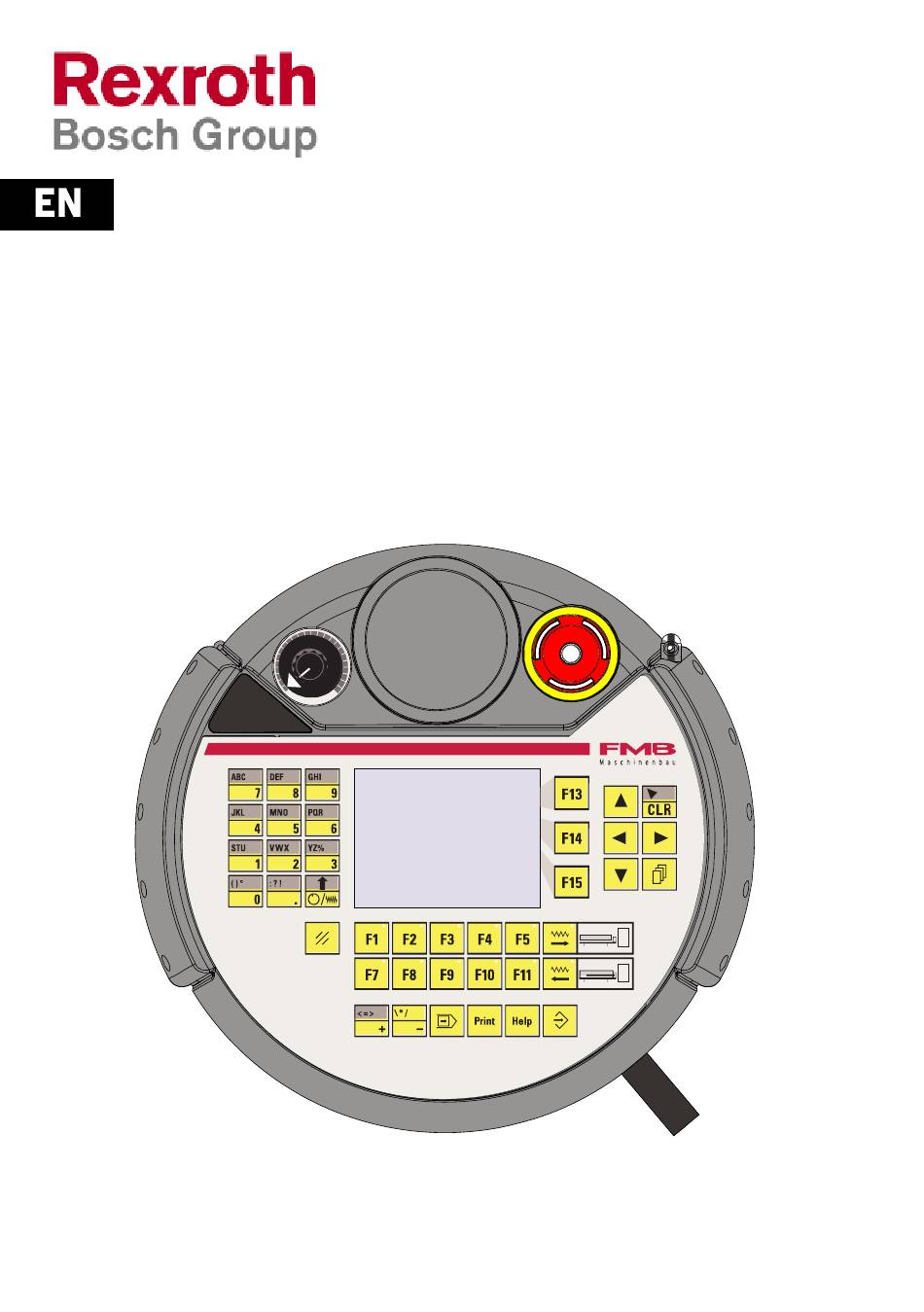

Rexroth IndraControl VCH 08.1
with Emergency STOP Button (customer-specific)
Hand-Held Terminal
Assembly Instruction
Bosch Rexroth AG
Electric Drives and Controls
Bgm.-Dr.-Nebel-Str. 2
97816 Lohr am Main, Germany
Phone +49 (0)9352-40-50 60
Fax
+49 (0)9352-40-48 85
www.boschrexroth.com
Advertisement
Related Manuals for Bosch Rexroth IndraControl VCH 08.1
Summary of Contents for Bosch Rexroth IndraControl VCH 08.1
- Page 1 Bosch Rexroth AG Electric Drives and Controls Bgm.-Dr.-Nebel-Str. 2 97816 Lohr am Main, Germany Phone +49 (0)9352-40-50 60 +49 (0)9352-40-48 85 www.boschrexroth.com Rexroth IndraControl VCH 08.1 with Emergency STOP Button (customer-specific) Hand-Held Terminal Assembly Instruction...
- Page 2 The assembly instruction describes how to install the customer-specific VCH 08.1 with EMERGENCY STOP button. For further information, please refer to the project planning manual “Rexroth IndraControl VCH 08.1”, parts number R911320190. Symbols This document uses the following symbols to draw the reader’s attention to...
- Page 3 Unpack all items and check the contents for visible damages in transit. Also check, whether the delivery corresponds to the data on the delivery note. Please contact the Bosch Rexroth sales department immediately in case of discrepancies or damages in transit.
- Page 4 Terminal assignment of the cable and Connection parame- ters Terminal assignment of the cable Connection parameters Color Signal name Parameters Value green 24 VDC Rated voltage U DC 24 V ; (+19 V to +30 V) grey Residual ripple U See device documentation black Ground...
