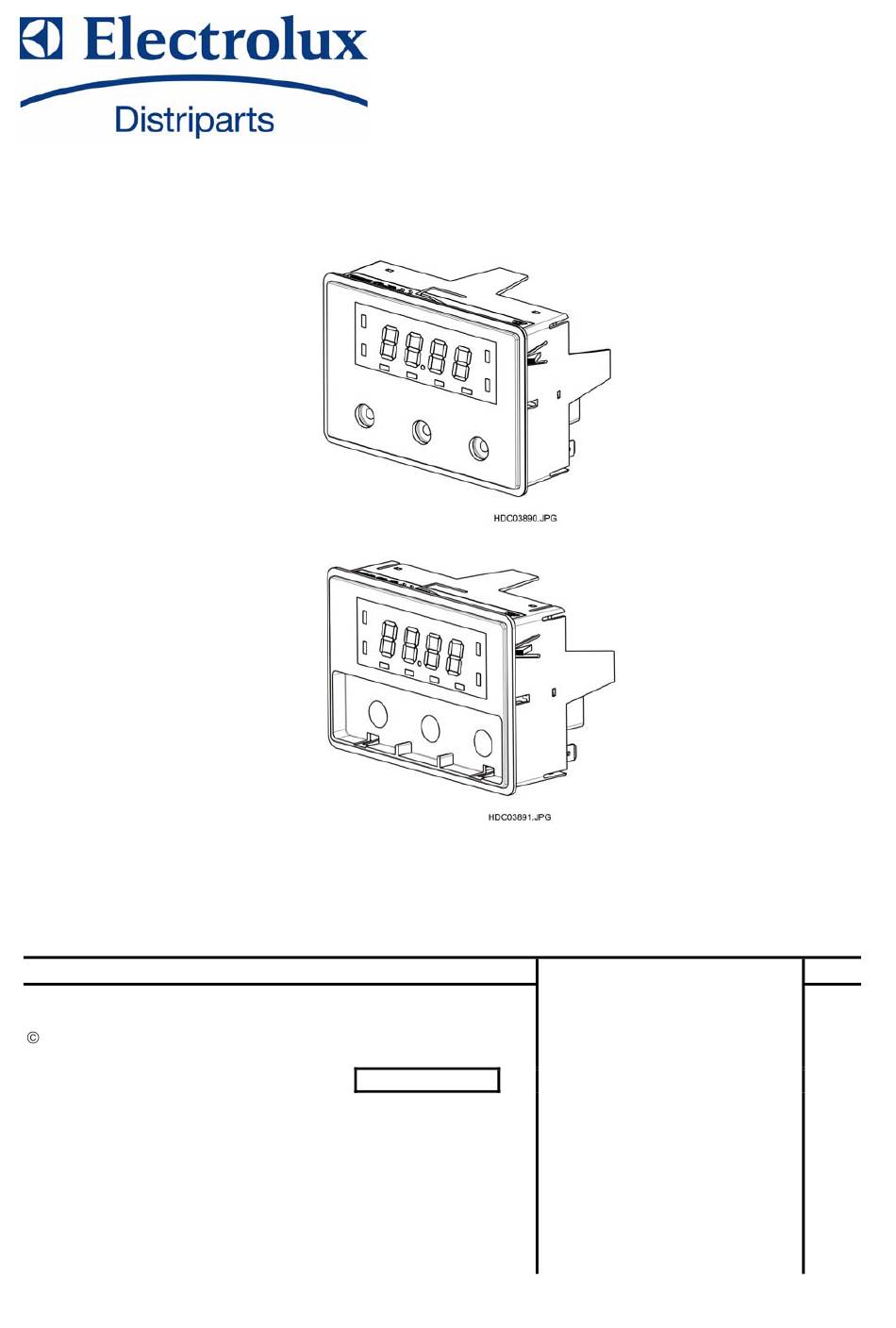

ELECTROLUX ZANUSSI S.p.A.
Corso Lino Zanussi,30
I - 33080 PORCIA /PN (ITALY)
Tel +39 0434 394850
Fax +39 0434 394096
SOI
Edition: 02.2010 - Rev. 00
SOI 02.10 FV
Publication
number
599 72 74-12
EN/SERVICE/FV
1/20
SERVICE MANUAL
Built-in ovens
S.E.T.
(Simple Electronic Timer)
Electronic Programmer
COOKING
599 72 74-12

Advertisement

Table of Contents
loading

Summary of Contents for Electrolux HDC03890

  • Page 1 SERVICE MANUAL COOKING Built-in ovens Publication ELECTROLUX ZANUSSI S.p.A. S.E.T. number Corso Lino Zanussi,30 (Simple Electronic Timer) I - 33080 PORCIA /PN (ITALY) 599 72 74-12 Electronic Programmer Tel +39 0434 394850 Fax +39 0434 394096 EN/SERVICE/FV Edition: 02.2010 - Rev. 00 SOI 02.10 FV...
  • Page 2 SOI 02.10 FV 2/20 599 72 74-12...
  • Page 3: Table Of Contents

    CONTENTS 1 - INTRODUCTION --------------------------------------------------------------------------------------------page 4 1.1 - PURPOSE OF THIS MANUAL ----------------------------------------------------------------------page 4 1.2 - ESD - ELECTROSTATIC DISCHARGE AND ITS EFFECT ON THE COMPONENTSpage 4 2 - GENERAL DESCRIPTION ------------------------------------------------------------------------------page 5 2.1 - GENERAL BLOCK DIAGRAM OF THE SYSTEM ----------------------------------------------page 5 2.1.1 - VERSION FOR OVENS WITHOUT FAN CONTROL------------------------------------------------ page 2.1.2 - VERSION FOR OVENS WITH FAN CONTROL ------------------------------------------------------ page 2.1.3 - VERSION WITH LOW VOLTAGE CONTROL AND POWER BOARD-------------------------- page...
  • Page 4: Introduction

    1 - INTRODUCTION 1.1 - PURPOSE OF THIS MANUAL The purpose of this Manual is to provide the basic information required to carry out repairs on ovens fitted with the SET electronic programmer. 1.2 - ESD - ELECTROSTATIC DISCHARGE AND ITS EFFECT ON THE COMPONENTS The interface for the control unit is not fitted with an internal device to protect against electrostatic discharge.
  • Page 5: General Description

    2 - GENERAL DESCRIPTION The SET (Simple Electronic Timer) programmer is a type of programmer for ovens with or without power board, produced in various versions with one or two relays and red or green display (see table on pages 9 and 10).
  • Page 6: Version With Low Voltage Control And Power Board

    2.1.3 - VERSION WITH LOW VOLTAGE CONTROL AND POWER BOARD SET PROGRAMMER OVEN TEMPERA- FUNCTIONS TURE POWER BOARD MAIN OVEN HEATING ELEMENTS Fig. 3 SOI 02.10 FV 6/20 599 72 74-12...
  • Page 7: Controls

    3 - CONTROLS FUNCTIONS CONTROLLED BY THE BUTTON (1) Cooking time indicator. End of cooking time indicator. Timer indicator. Clock indicator. Fig. 4 SELECT FUNCTIONS BUTTON END OF COOKING TIME INDICATOR DECREASE BUTTON “ ” TIMER INDICATOR INCREASE BUTTON “ ”...
  • Page 8: Technical Characteristics

    5 - TECHNICAL CHARACTERISTICS Indication: Red or green LED display, 14 mm high Time: Adjustment range 0.0 … 24.00 hours Buzzer (2 pulses / 2 seconds) Timer: Adjustment range 0.0 … 2.30 hours End of operation indicator Buzzer (2 pulses / 2 seconds) Cooking time Adjustment range 0.0 …...
  • Page 9: Table Of Relay Characteristics And Power Supply

    5.1 - TABLE OF RELAY CHARACTERISTICS AND POWER SUPPLY MAINS POWER CODE (see INTERNAL RELAY RELAY SUPPLY MAX. DISPLAY Fig. 3 item NUMBER STYLING TEMP. COLOUR MAXIMUM MAXIMUM (AND POS.) MAXIMUM FREQ. VOLTAGE VOLTAGE 16 A 250 VAC SINGLE 330 17 40 01 230 V 50 Hz 85 °C...
  • Page 10 MAINS POWER INTERNAL RELAY RELAY CODE (see Fig. SUPPLY MAX. DISPLAY NUMBER STYLING 3 item L1) TEMP. COLOUR MAXIMUM MAXIMUM (AND POS.) MAXIMUM FREQ. VOLTAGE VOLTAGE BUTTON 16 A 250 VAC 330 66 47 10 230 V 50 Hz 105 °C ASSEMBL GREEN 10 A...
  • Page 11: Connections And Relay Positions

    5.2 - CONNECTIONS AND RELAY POSITIONS CODE POSITION OF CONNECTIONS AND RELAYS 330174001 330174003 330174004 330174010 330174101 330174103 330174105 330174110 Fig. 9 330174002 330174011 330174102 330174104 330174111 Fig. 10 330664600 330664604 330664610 330664700 330664704 330664710 387127200 387127204 387127210 387127300 387127304 387127310 Fig.
  • Page 12 CODE POSITION OF CONNECTIONS AND RELAYS 387127203 Fig. 13 330496900 330496910 330497000 330497010 Fig. 14 387124710 387124711 387488710 387488711 Fig. 15 387124700 387124701 387488700 387488701 Fig. 16 SOI 02.10 FV 12/20 599 72 74-12...
  • Page 13: Display And Leds

    5.3 - DISPLAY AND LEDS VERSION WITH BUTTON ASSEMBLY Fig. 17 1 - DISPLAY 2 - COOKING TIME LED 3 - TIMER LED 4 - END OF COOKING TIME LED 5 - CLOCK LED VERSION WITH SINGLE BUTTONS Fig. 18 1 - DISPLAY 2 - COOKING TIME LED 3 - TIMER LED...
  • Page 14: Example Of How To Use The Programmer

    6 - EXAMPLE OF HOW TO USE THE PROGRAMMER The following is an example of how to use the SET programmer. For further details, please consult the relevant instruction manuals for the individual versions, enclosed with your model. Setting the current time When the appliance is first connected to the power supply or after a power cut, the "Current time"...
  • Page 15 "Cooking time" function You can start cooking immediately and programme the length of time the food is to be cooked automatically. After placing the food to be cooked in the oven, press the button repeatedly to select the "Cooking time" function. The corresponding LED will start to flash.
  • Page 16 "End of cooking" function You can start cooking immediately and programme the time at which cooking is to stop automatically. After putting the food to be cooked into the oven, press the button repeatedly to select the "End of cooking" function. The corresponding LED will start to flash.
  • Page 17 Combined "Cooking time” “End of cooking time” function The "Cooking time" and "End of cooking time" functions can be used together to turn the oven on and off automatically at a later time. 1 - Using the "Cooking time" function (proceed as described in the paragraph entitled “Cooking time function”), set the cooking time required.
  • Page 18 Display switch-off function (*). When no cooking functions are set (only the current time showing) it is possible to turn the display off. To turn the display off: 1 - Press and hold two or three of the buttons simultaneously for about 5 seconds. The display will switch off.
  • Page 19: Table Of Codes And Versions

    7 - TABLE OF CODES AND VERSIONS TECHNICAL SPARE PARTS NOTE Factory MAX. CODE CODE TEMP. 330174001 330174001/9 Red display, Single buttons, ZO GC PLS 85 °C 230/50Hz, 1 Relay 330174002 899661927012/8 Red display, single buttons, DGT DGR 85 °C (661927012) 230/50Hz, 1 LV relay (5 V / 0.1mA) 330174003...
  • Page 20 330664712 899661927148/0 Green display, Button assembly, 105 °C (661927148) 230/50Hz, 1 LV relay (5 V / 0.1mA) 387124700 387124700/7 Red display, Single buttons, ABS GC PLS 105 °C 230/50Hz, 1 Relay ROA SC ZO 387124701 387124701/5 Red display, Single buttons, ABS PLS 105 °C 230/50Hz, 1 Relay,...
